Model # KC50XCMWZU01 Official Whirlpool powermate vacuum attachment

Here are the diagrams and repair parts for Official Whirlpool KC50XCMWZU01 powermate vacuum attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |

Vacuum Handle Release Pedal KC47AGJ3V06
#35

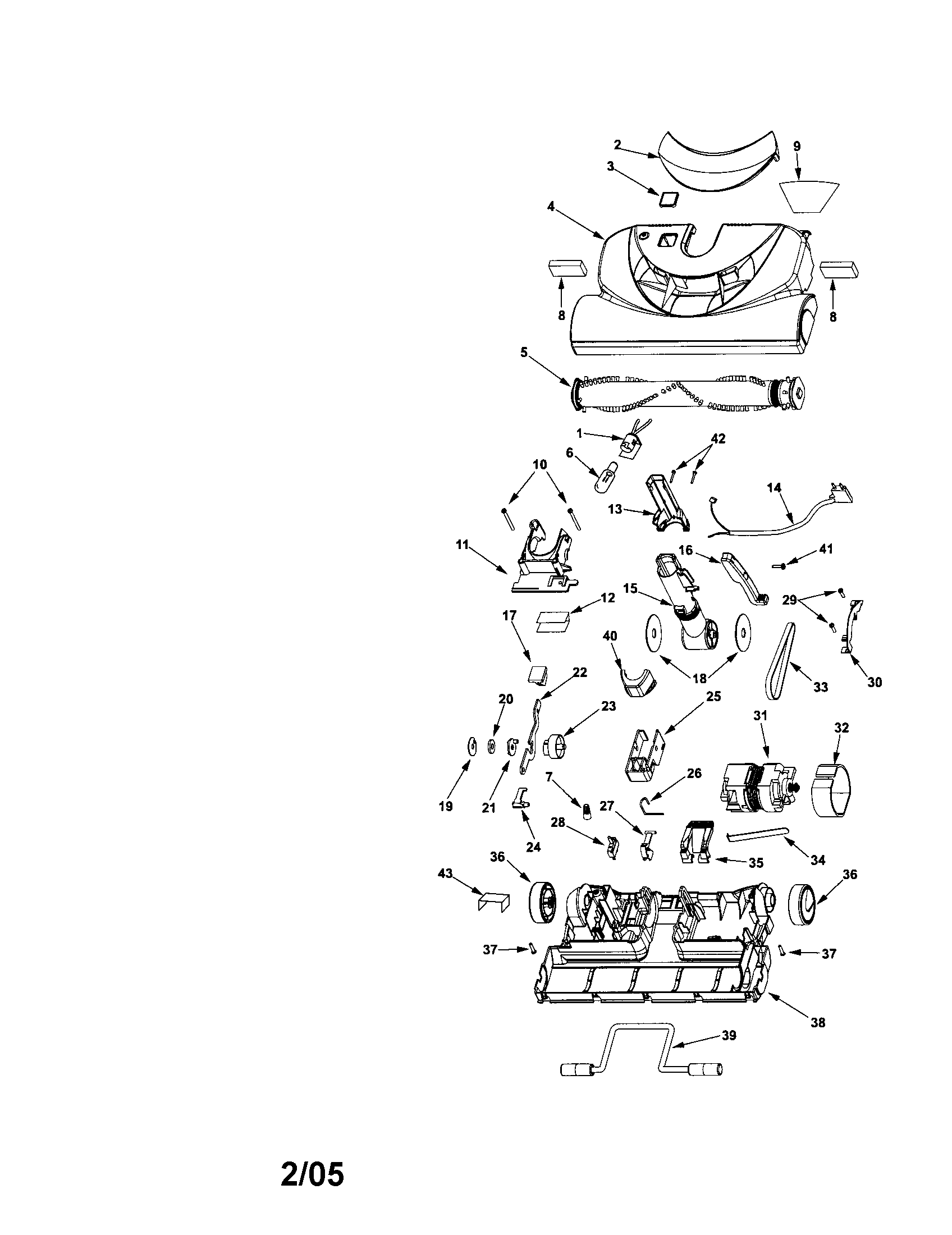

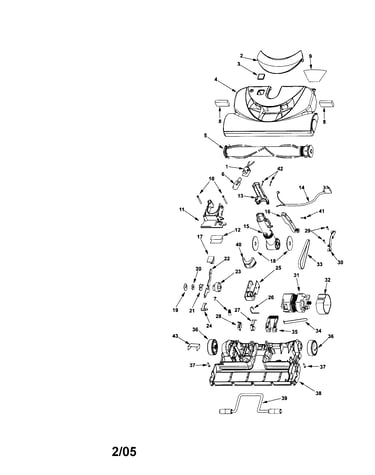

Power mate diagram

Vacuum handle release pedal

Part #KC47AGJ3V06

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368563
Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Swivel Seal KS742019
#18

Power mate diagram

Vacuum powermate swivel seal

Part #KS742019

The manufacturer no longer makes this part, and there's no substitute part

Wiring Label LITKS747155

#NI

All parts diagram

Wiring label

Part #LITKS747155

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Wheel KC99CBZTZV07
#36

Power mate diagram

Vacuum powermate wheel

Part #KC99CBZTZV07

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 8192535
#5

Power mate diagram

Vacuum beater bar

Part #8192535

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt KC28SBZTZ000
#33

Power mate diagram

Vacuum beater bar belt

Part #KC28SBZTZ000

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Foam Filter 4370713
#8

Power mate diagram

Vacuum foam filter

Part #4370713

The manufacturer no longer makes this part, and there's no substitute part

Indicator Cam KS747291
#23

Power mate diagram

Indicator cam

Part #KS747291

The manufacturer no longer makes this part, and there's no substitute part

Axle (silver) 744029
#39

Power mate diagram

Axle (silver)

Part #744029

The manufacturer no longer makes this part, and there's no substitute part
