Kenmore
Canister Vacuum

Model # 1163280590C Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1163280590C vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Vacuum Grip Handle 4155620
#44

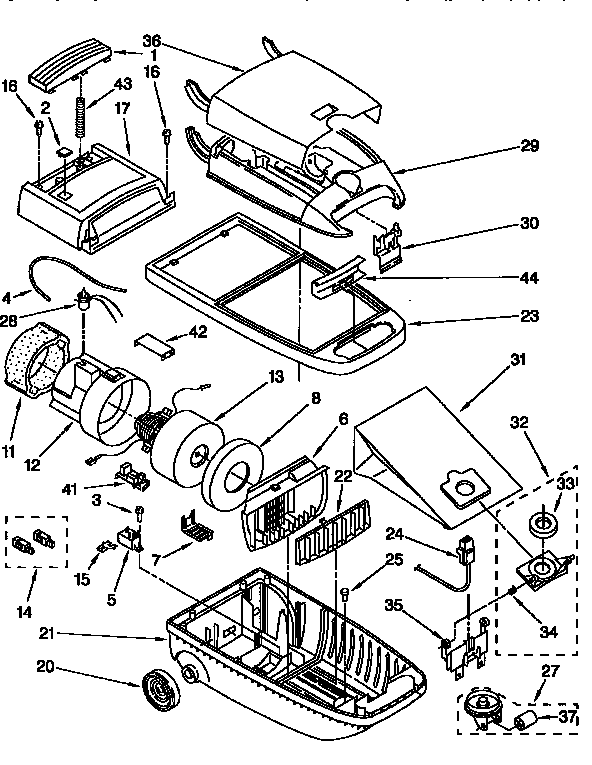

Vacuum cleaner diagram

Vacuum grip handle

Part #4155620

The manufacturer no longer makes this part, and there's no substitute part

Bag, Dust (sears No, 20-50555)(available At Any Sears Retail Or Catalog Store) 4156140
#31

Vacuum cleaner diagram

Bag, dust (sears no, 20-50555)(available at any sears retail or catalog store)

Part #4156140

The manufacturer no longer makes this part, and there's no substitute part

Wand 742489
#28

Hose & attachment diagram

Wand

Part #742489

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 4369362
#9

Power cord reel diagram

Power cord

Part #4369362

The manufacturer no longer makes this part, and there's no substitute part

Turbine Nozzle 4369739
#6

Hose & attachment diagram

Turbine nozzle

Part #4369739

The manufacturer no longer makes this part, and there's no substitute part

Parts List LIT4369798

#NI

All parts diagram

Parts list

Part #LIT4369798

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Cord Rewind Button 4369308
#1

Vacuum cleaner diagram

Vacuum cord rewind button

Part #4369308

The manufacturer no longer makes this part, and there's no substitute part

Spring 725419
#16

Hose & attachment diagram

Spring

Part #725419

The manufacturer no longer makes this part, and there's no substitute part

Canister Hood 4369829
#29

Vacuum cleaner diagram

Canister hood

Part #4369829

The manufacturer no longer makes this part, and there's no substitute part

Canister Base 4369226
#21

Vacuum cleaner diagram

Canister base

Part #4369226

The manufacturer no longer makes this part, and there's no substitute part
