Model # 10063351 Official Kenmore upright vacuum

Here are the diagrams and repair parts for Official Kenmore 10063351 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |

Line Cord 30196P1046
#6

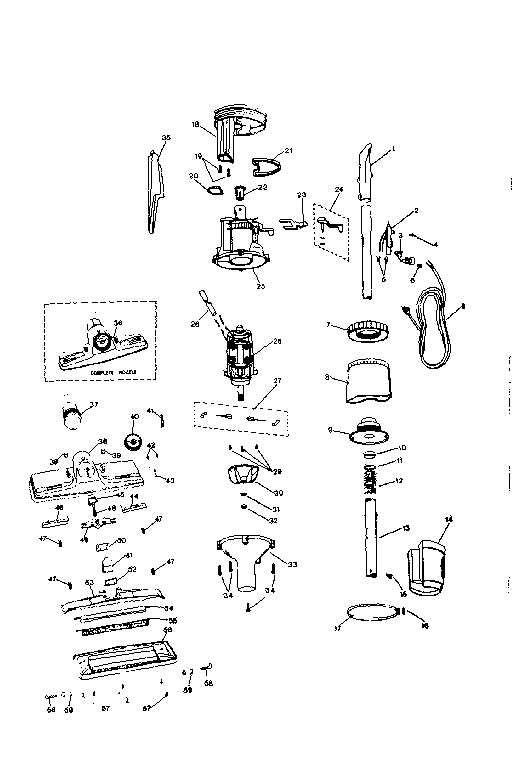

Unit parts diagram

Line cord

Part #30196P1046

The manufacturer no longer makes this part, and there's no substitute part

Fltr Top In 24218P1046
#9

Unit parts diagram

Fltr top in

Part #24218P1046

The manufacturer no longer makes this part, and there's no substitute part

Spring 20119P2
#12

Unit parts diagram

Spring

Part #20119P2

The manufacturer no longer makes this part, and there's no substitute part

Filter Ring 924440G2
#18

Unit parts diagram

Filter ring

Part #924440G2

The manufacturer no longer makes this part, and there's no substitute part

Strain Relef 03487
#3

Unit parts diagram

Strain relef

Part #03487

The manufacturer no longer makes this part, and there's no substitute part

F Clamp Scrw 03525
#16

Unit parts diagram

F clamp scrw

Part #03525

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Housing 24877P1046
#38

Unit parts diagram

Nozzle housing

Part #24877P1046

The manufacturer no longer makes this part, and there's no substitute part

Fan 24340P1175
#30

Unit parts diagram

Fan

Part #24340P1175

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Retainer 24008
#48

Unit parts diagram

Nozzle retainer

Part #24008

The manufacturer no longer makes this part, and there's no substitute part

Retainer Nozzle 24181P1165
#45

Unit parts diagram

Retainer nozzle

Part #24181P1165

The manufacturer no longer makes this part, and there's no substitute part
