Treadmill

Model # IMTL07611 Official Image 12.0q treadmill

Here are the diagrams and repair parts for Official Image IMTL07611 12.0q treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

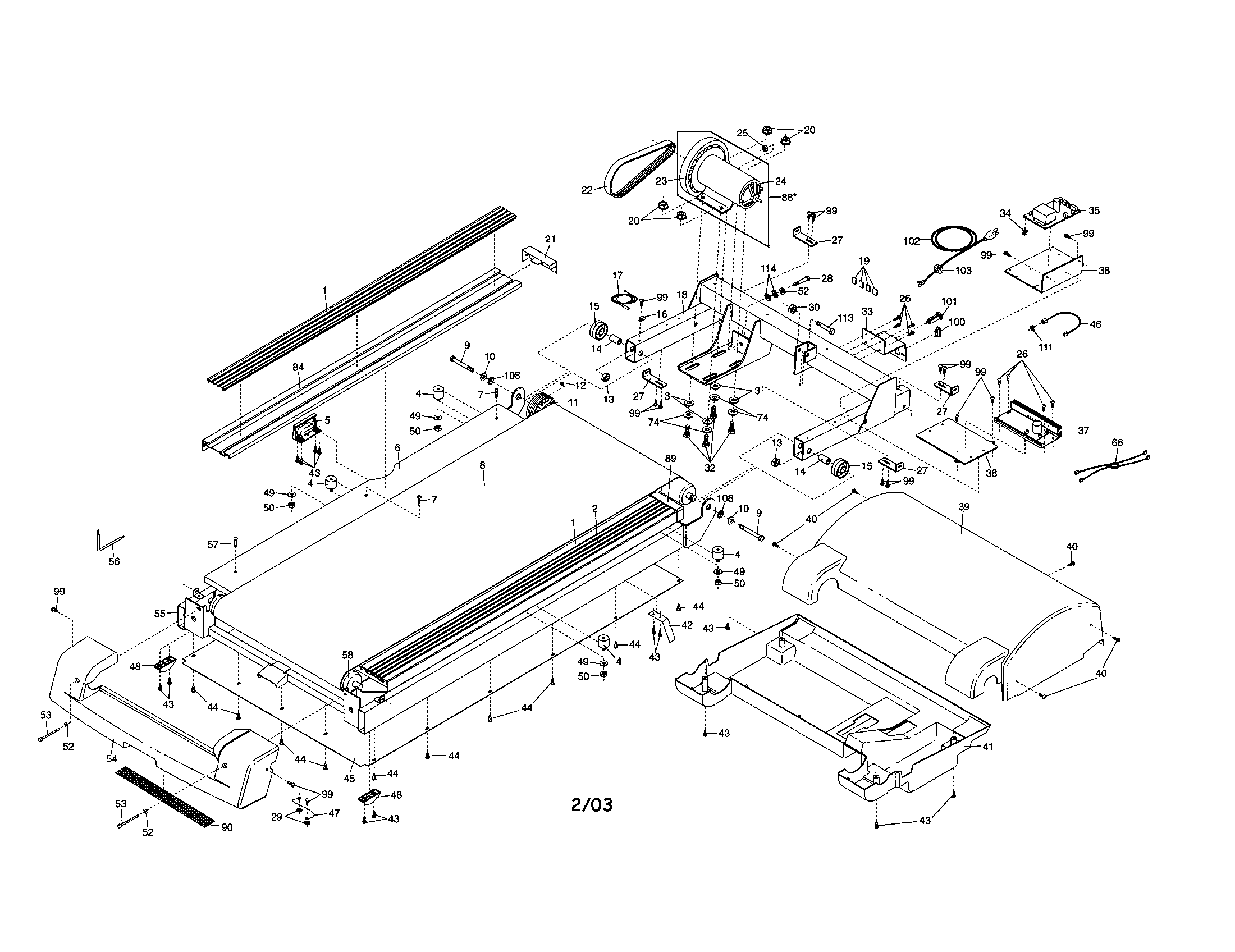

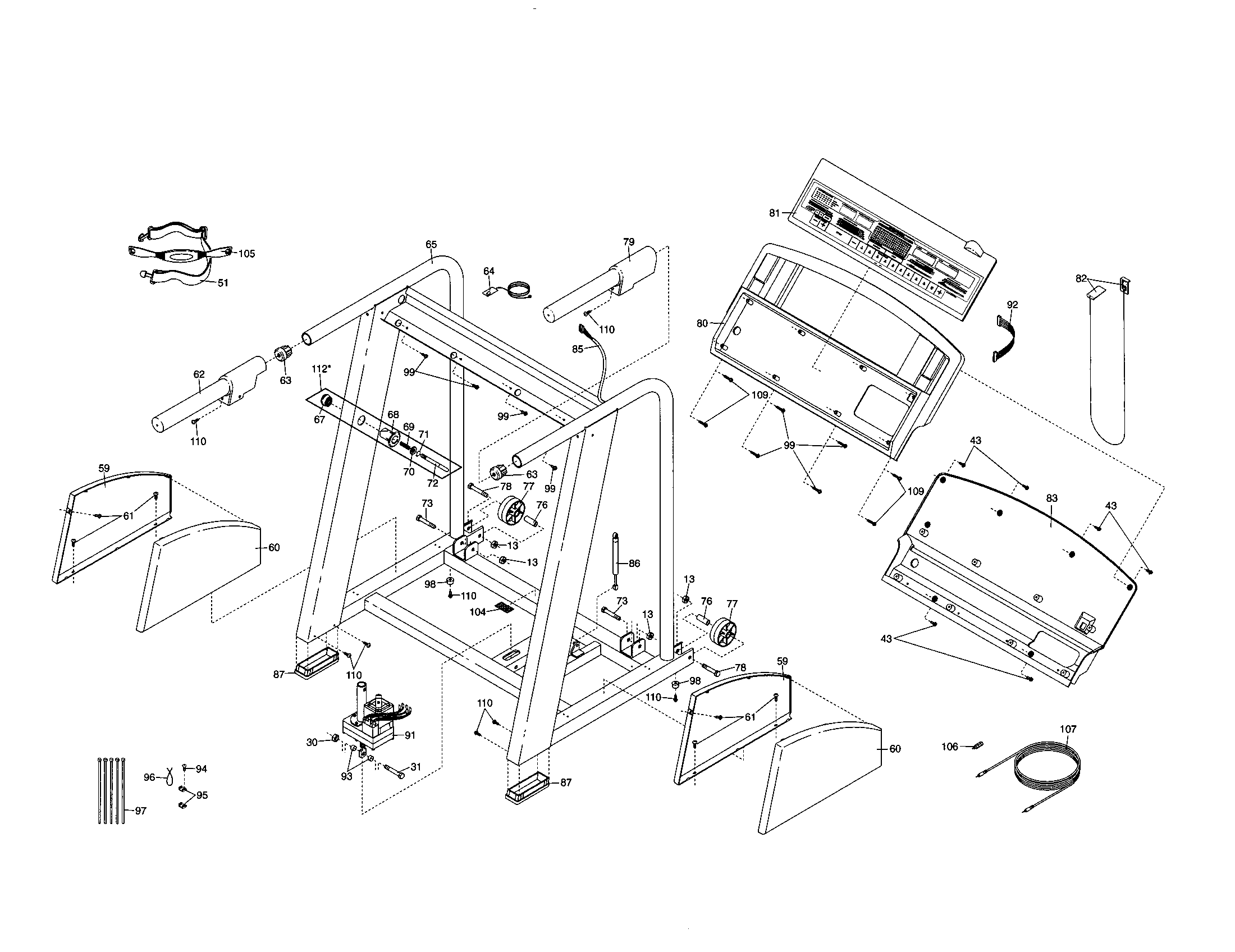

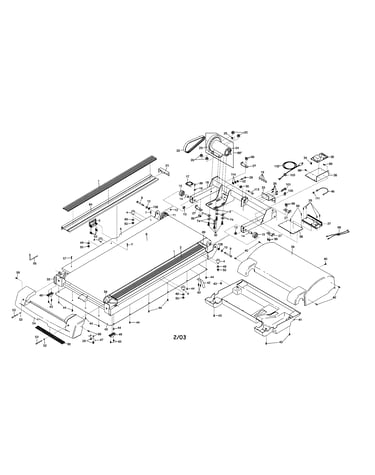

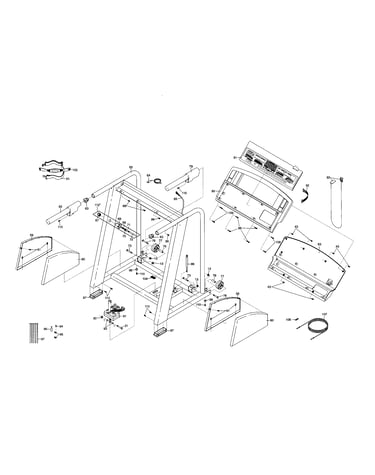

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Treadmill Safety Key (replaces 125589, 153017) 119038
Treadmill safety key (replaces 125589, 153017)

Part #119038

BEST SELLER
This item is not returnable
$3.14 |
24% OFF Phone Price : $4.14
Back Order
Black & Decker Treadmill Power Cord (replaces 031033, 031143, 031147, 247991) 031229

#102

All parts diagram

Black & decker treadmill power cord (replaces 031033, 031143, 031147, 247991)

Part #031229

$11.39 |
15% OFF Phone Price : $13.39
In Stock
Treadmill Circuit Breaker, 15-amp (replaces 031103, 127202, 173322) 109382

#101

All parts diagram

Treadmill circuit breaker, 15-amp (replaces 031103, 127202, 173322)

Part #109382

This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Black & Decker Exercise Equipment Screw 105444

#53

All parts diagram

Black & decker exercise equipment screw

Part #105444

This item is not returnable
$2.16
In Stock
Toyostove Treadmill Reed Switch And Sensor Wire (replaces 160068, 249538) 165798

#17

All parts diagram

Toyostove treadmill reed switch and sensor wire (replaces 160068, 249538)

Part #165798

This item is not returnable
$10.19 |
16% OFF Phone Price : $12.19
In Stock
Exercise Equipment Rubber Pad 126650

#98

All parts diagram

Exercise equipment rubber pad

Part #126650

This item is not returnable
$2.16
In Stock
Weider Treadmill Pan Fastener 138853

#44

All parts diagram

Weider treadmill pan fastener

Part #138853

This item is not returnable
$2.16
In Stock
Exercise Equipment Hex Nut 012056

#50

All parts diagram

Exercise equipment hex nut

Part #012056

This item is not returnable
$2.16
In Stock
Black & Decker Treadmill Power Control Board Support 125819

#34

All parts diagram

Black & decker treadmill power control board support

Part #125819

This item is not returnable
$2.16
In Stock
Weider Screw,hhcs,z 136176

#113

All parts diagram

Weider screw,hhcs,z

Part #136176

This item is not returnable
$2.49
In Stock
