Model # S3165--- Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover S3165- canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

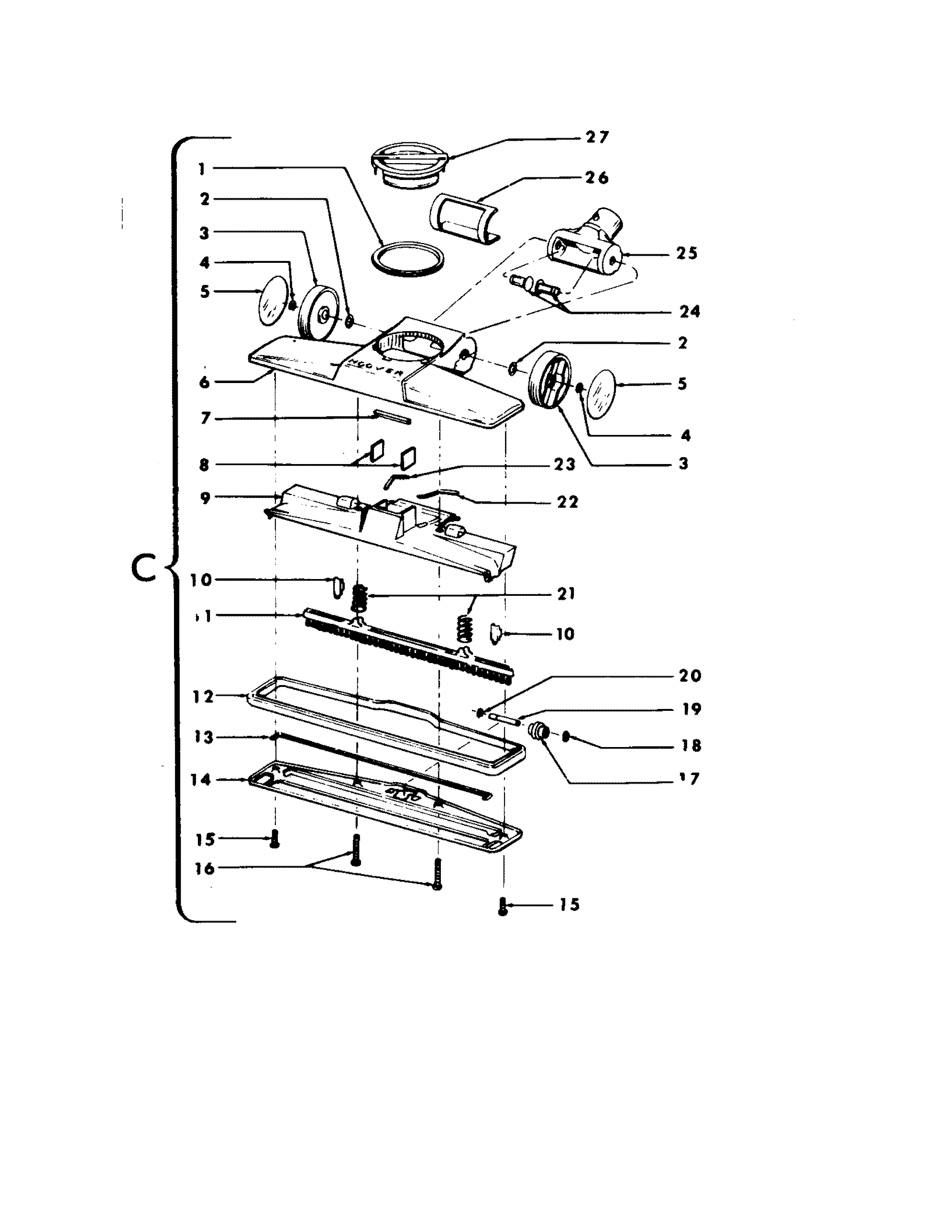

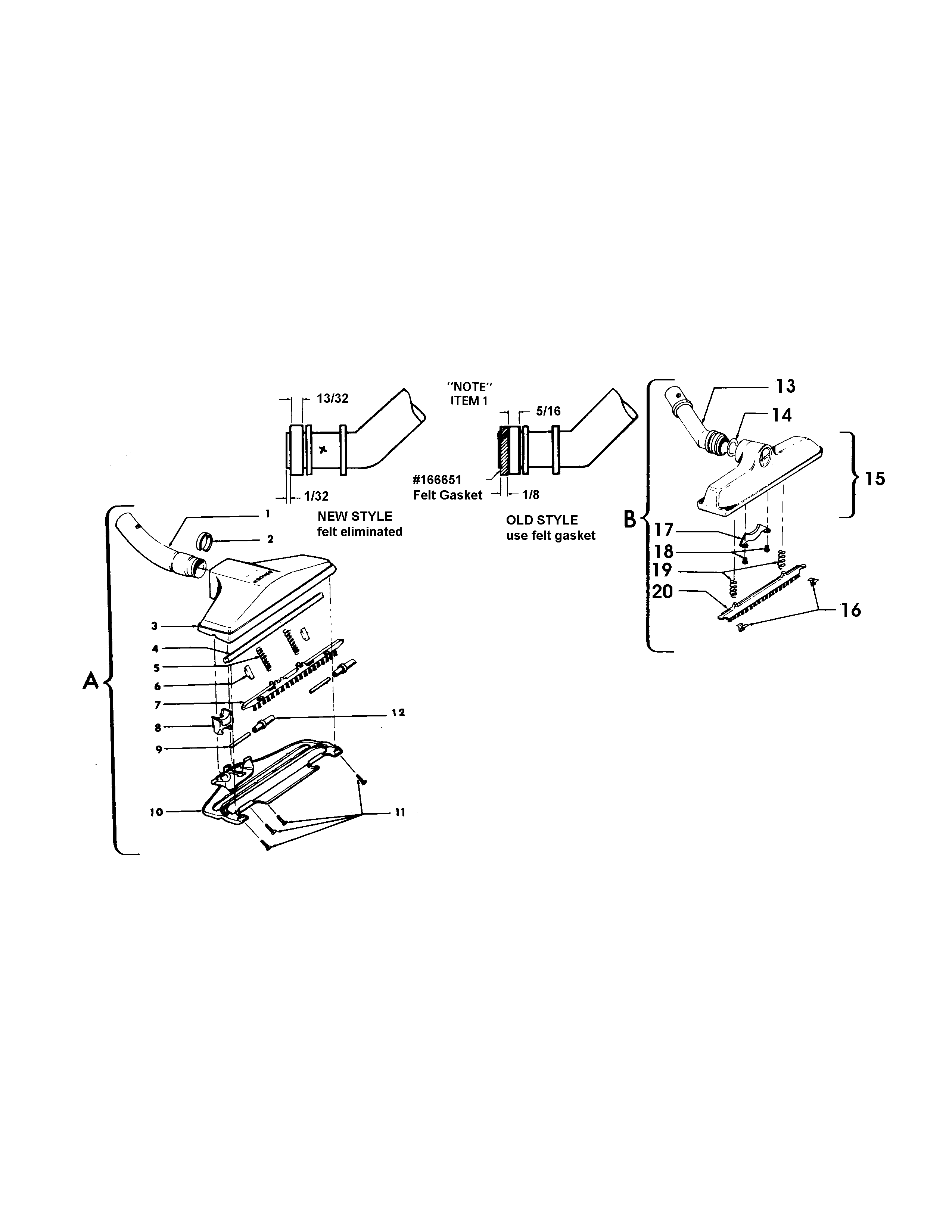

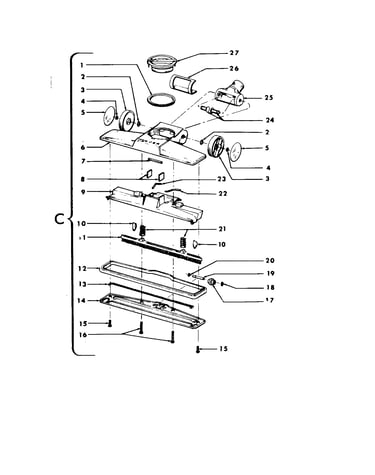

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |

Kenmore Vacuum Floor Brush Attachment Swivel 38644020
#12A

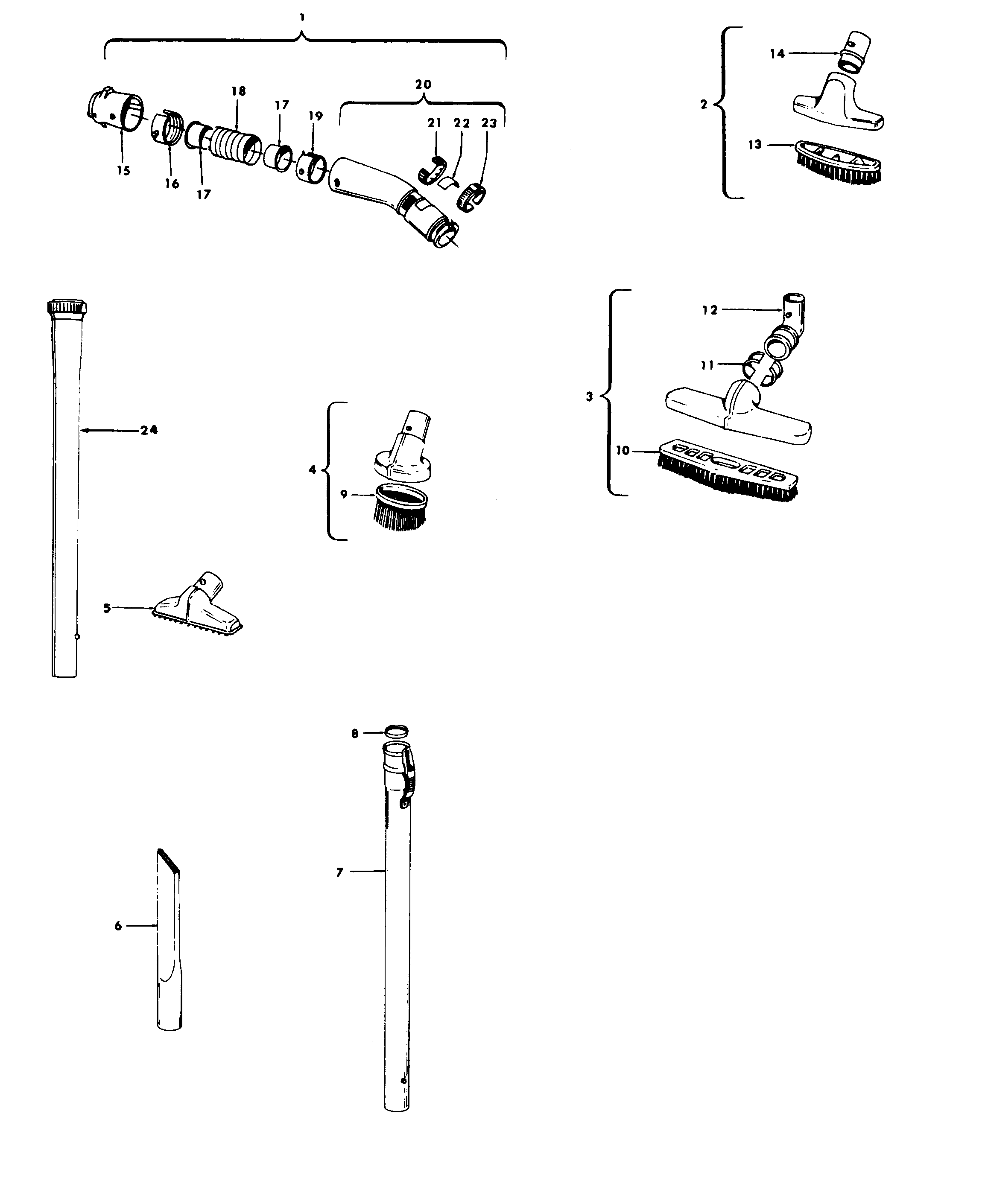

Hose diagram

Kenmore vacuum floor brush attachment swivel

Part #38644020

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Grip Lock Ring 36153009
#23

Hose diagram

Vacuum hose grip lock ring

Part #36153009

The manufacturer no longer makes this part, and there's no substitute part

Spring 38353004
#8

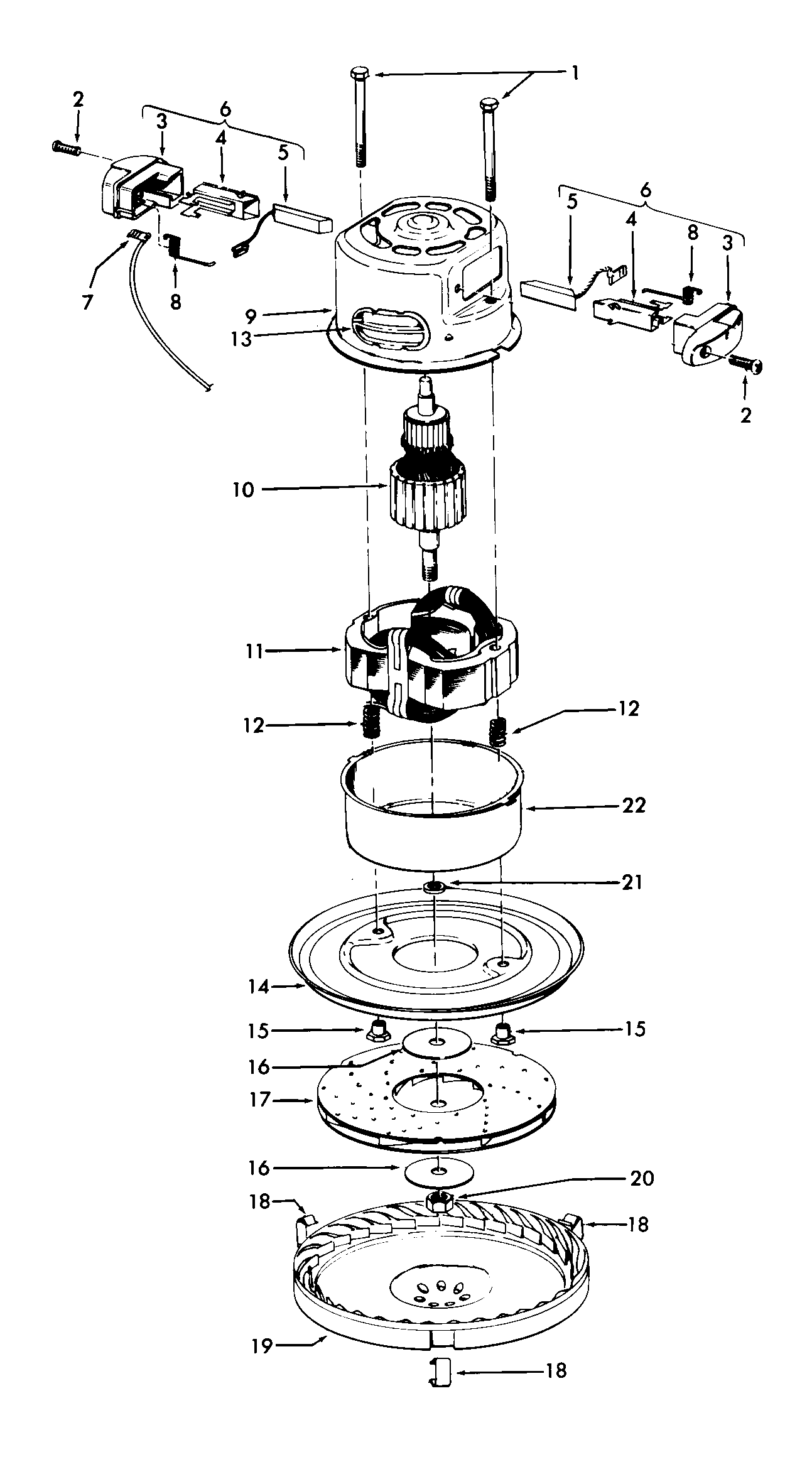

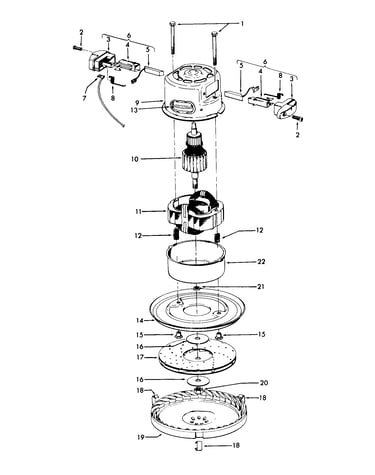

Motor assembly diagram

Spring

Part #38353004

The manufacturer no longer makes this part, and there's no substitute part

Split Ring 33712007
#11A

Hose diagram

Split ring

Part #33712007

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 048969--
#11

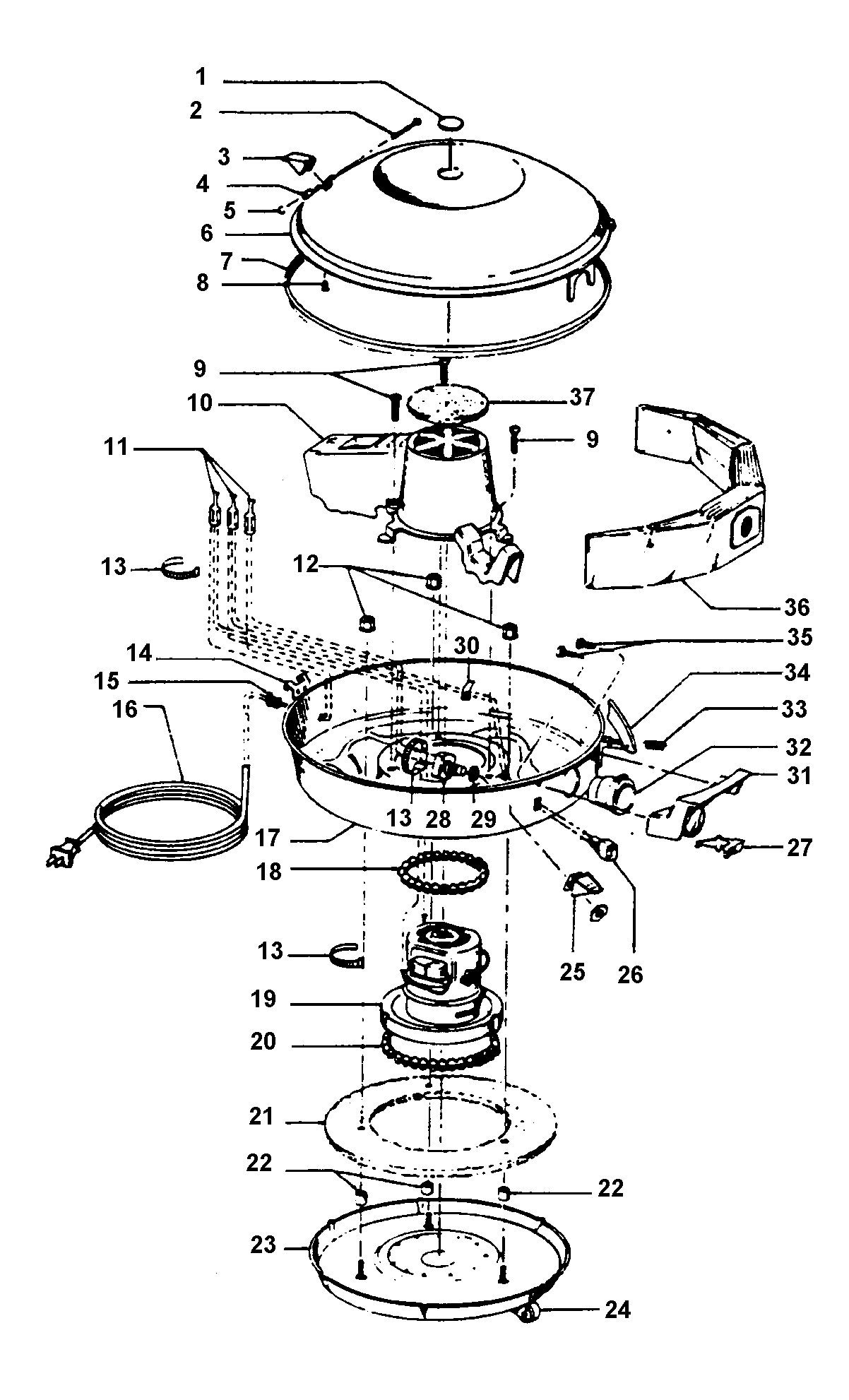

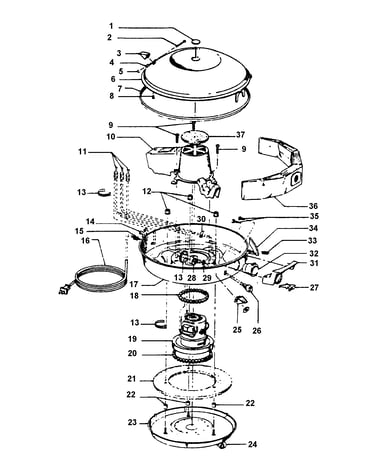

Mainhousing diagram

Twist-on wire connector

Part #048969--

The manufacturer no longer makes this part, and there's no substitute part

Hoover Vacuum Bag, Type H, 3-pack 4010009H
#36

Mainhousing diagram

Hoover vacuum bag, type h, 3-pack

Part #4010009H

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter, 1-pack 31114008
#21

Mainhousing diagram

Vacuum filter, 1-pack

Part #31114008

The manufacturer no longer makes this part, and there's no substitute part

Screw 21429406
#2

Motor assembly diagram

Screw

Part #21429406

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Sleeve Hose 32156010
#17

Hose diagram

Kenmore sleeve hose

Part #32156010

The manufacturer no longer makes this part, and there's no substitute part

Nut 33426001
#20

Motor assembly diagram

Nut

Part #33426001

The manufacturer no longer makes this part, and there's no substitute part
