Charmglow
Gas Grill

Model # 01682 Official Charmglow gas grill

Here are the diagrams and repair parts for Official Charmglow 01682 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

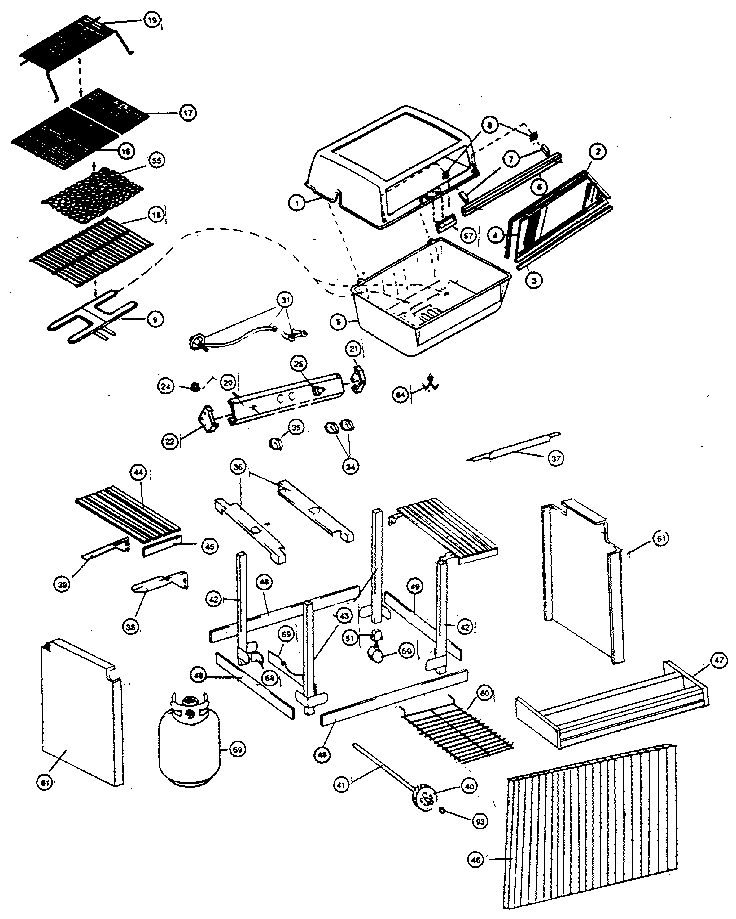

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Leg Bracket Assembly 6541810
#42

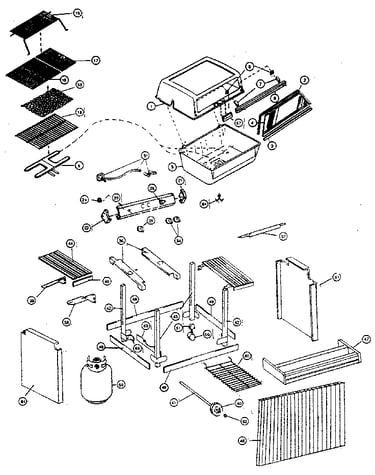

Charmglow diagram

Leg bracket assembly

Part #6541810

The manufacturer no longer makes this part, and there's no substitute part

Axle Cap 2779410
#93

Charmglow diagram

Axle cap

Part #2779410

The manufacturer no longer makes this part, and there's no substitute part

Rack 2500330
#55

Charmglow diagram

Rack

Part #2500330

The manufacturer no longer makes this part, and there's no substitute part

Cont Pen 6541190
#22

Charmglow diagram

Cont pen

Part #6541190

The manufacturer no longer makes this part, and there's no substitute part

Holder 3427670
#64

Charmglow diagram

Holder

Part #3427670

The manufacturer no longer makes this part, and there's no substitute part

Control K 2620850
#34

Charmglow diagram

Control k

Part #2620850

The manufacturer no longer makes this part, and there's no substitute part

Cont P Ls 2336580
#23

Charmglow diagram

Cont p ls

Part #2336580

The manufacturer no longer makes this part, and there's no substitute part

Fascia Board 2627800
#45

Charmglow diagram

Fascia board

Part #2627800

The manufacturer no longer makes this part, and there's no substitute part

Fuel Gauge B 6542050
#72

Charmglow diagram

Fuel gauge b

Part #6542050

The manufacturer no longer makes this part, and there's no substitute part

Venturi 2628210
#13

Charmglow diagram

Venturi

Part #2628210

The manufacturer no longer makes this part, and there's no substitute part
