Model # 167430022 Official Sears swimming pool water filter

Here are the diagrams and repair parts for Official Sears 167430022 swimming pool water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

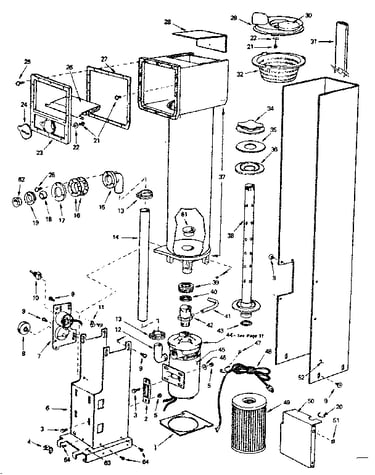

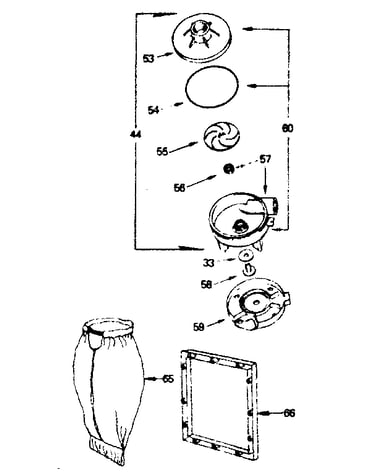

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Gasket 038-3458

#27

All parts diagram

Gasket

Part #038-3458

The manufacturer no longer makes this part, and there's no substitute part

Motor 3/4 Hp 010-3078

#45

All parts diagram

Motor 3/4 hp

Part #010-3078

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Cap 098-7315

#24

All parts diagram

Vacuum cap

Part #098-7315

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 052-3701

#46

All parts diagram

Flat washer

Part #052-3701

The manufacturer no longer makes this part, and there's no substitute part

Tank 08-6105

#37

All parts diagram

Tank

Part #08-6105

The manufacturer no longer makes this part, and there's no substitute part

Post 08-9055

#38

All parts diagram

Post

Part #08-9055

The manufacturer no longer makes this part, and there's no substitute part

Cap 099-7008

#62

All parts diagram

Cap

Part #099-7008

The manufacturer no longer makes this part, and there's no substitute part

Clamp 066-6217

#13

All parts diagram

Clamp

Part #066-6217

The manufacturer no longer makes this part, and there's no substitute part

Washer 052-3738

#22

All parts diagram

Washer

Part #052-3738

The manufacturer no longer makes this part, and there's no substitute part

Weir 06-3024

#26

All parts diagram

Weir

Part #06-3024

The manufacturer no longer makes this part, and there's no substitute part
