Model # 1149 Official Hoover vacuum cleaner

Here are the diagrams and repair parts for Official Hoover 1149 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

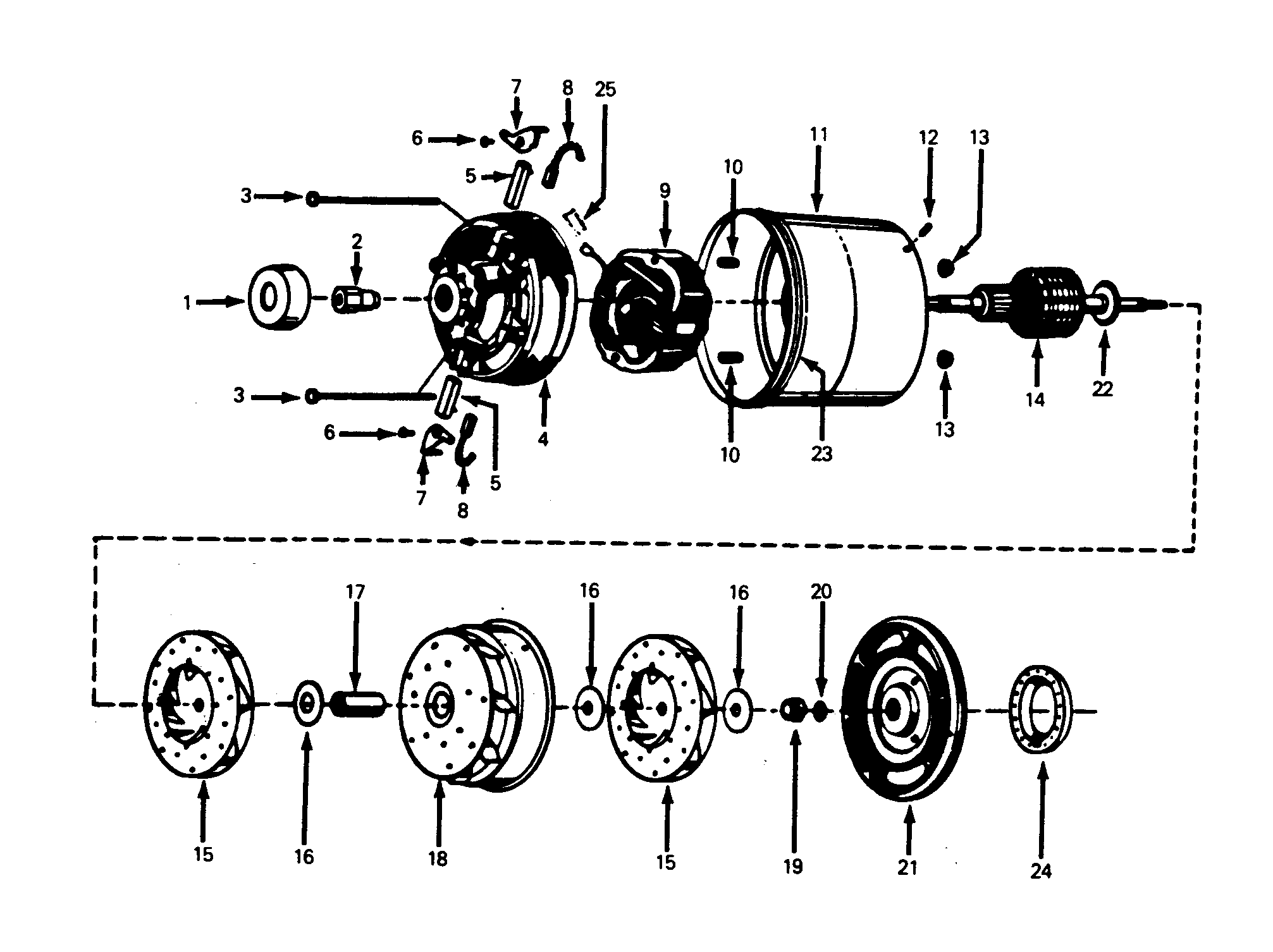

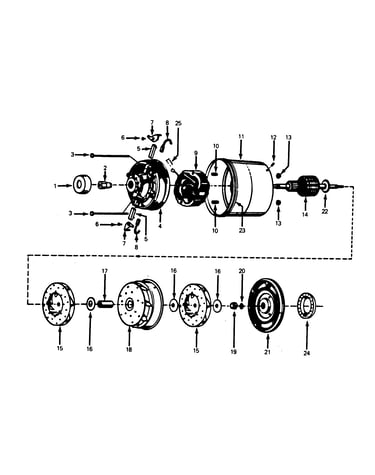

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Twist-on Wire Connector 048969--
#9

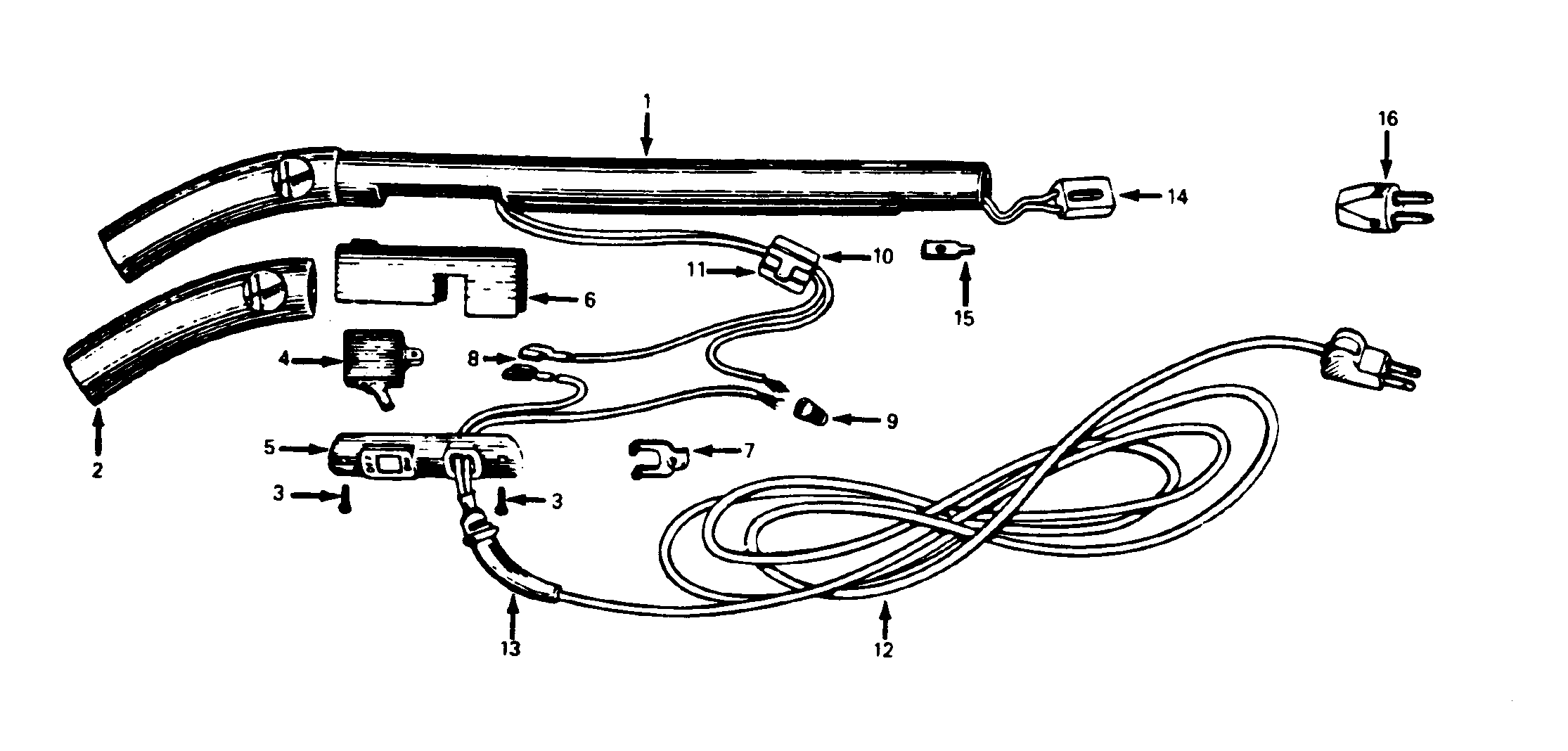

Handle diagram

Twist-on wire connector

Part #048969--

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Light Bulb 27317307
#15

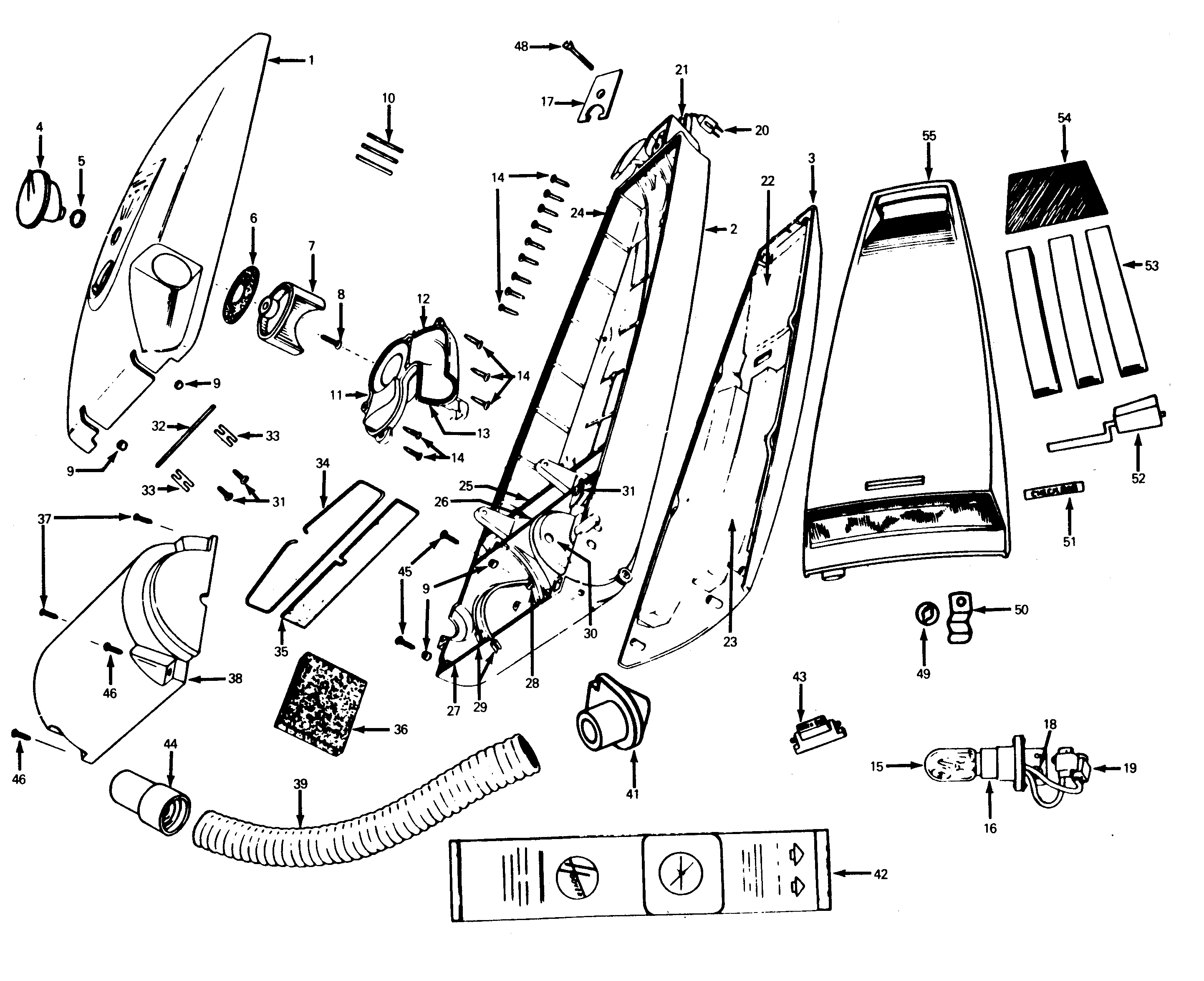

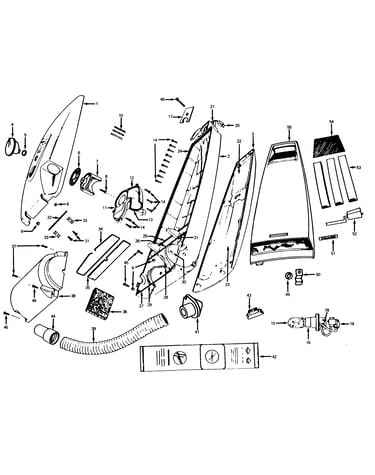

Outerbag diagram

Kenmore vacuum light bulb

Part #27317307

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Floor Brush Attachment Swivel 38644020
#16A

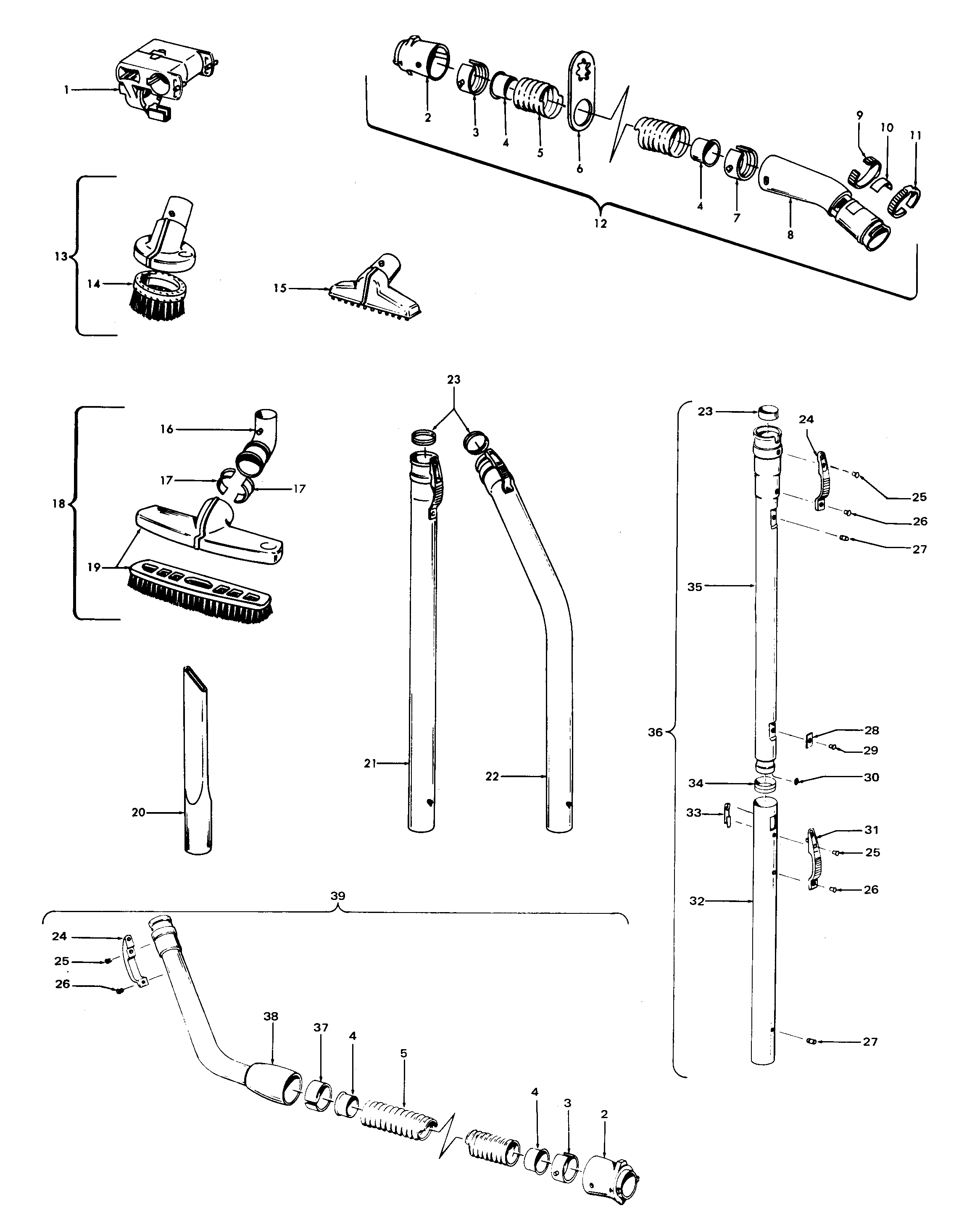

Cleaningtools diagram

Kenmore vacuum floor brush attachment swivel

Part #38644020

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Screw 21465314
#3

Handle diagram

Kenmore vacuum screw

Part #21465314

The manufacturer no longer makes this part, and there's no substitute part

Split Ring 33712007
#17A

Cleaningtools diagram

Split ring

Part #33712007

The manufacturer no longer makes this part, and there's no substitute part

Washer 12 Pk 21312772
#5

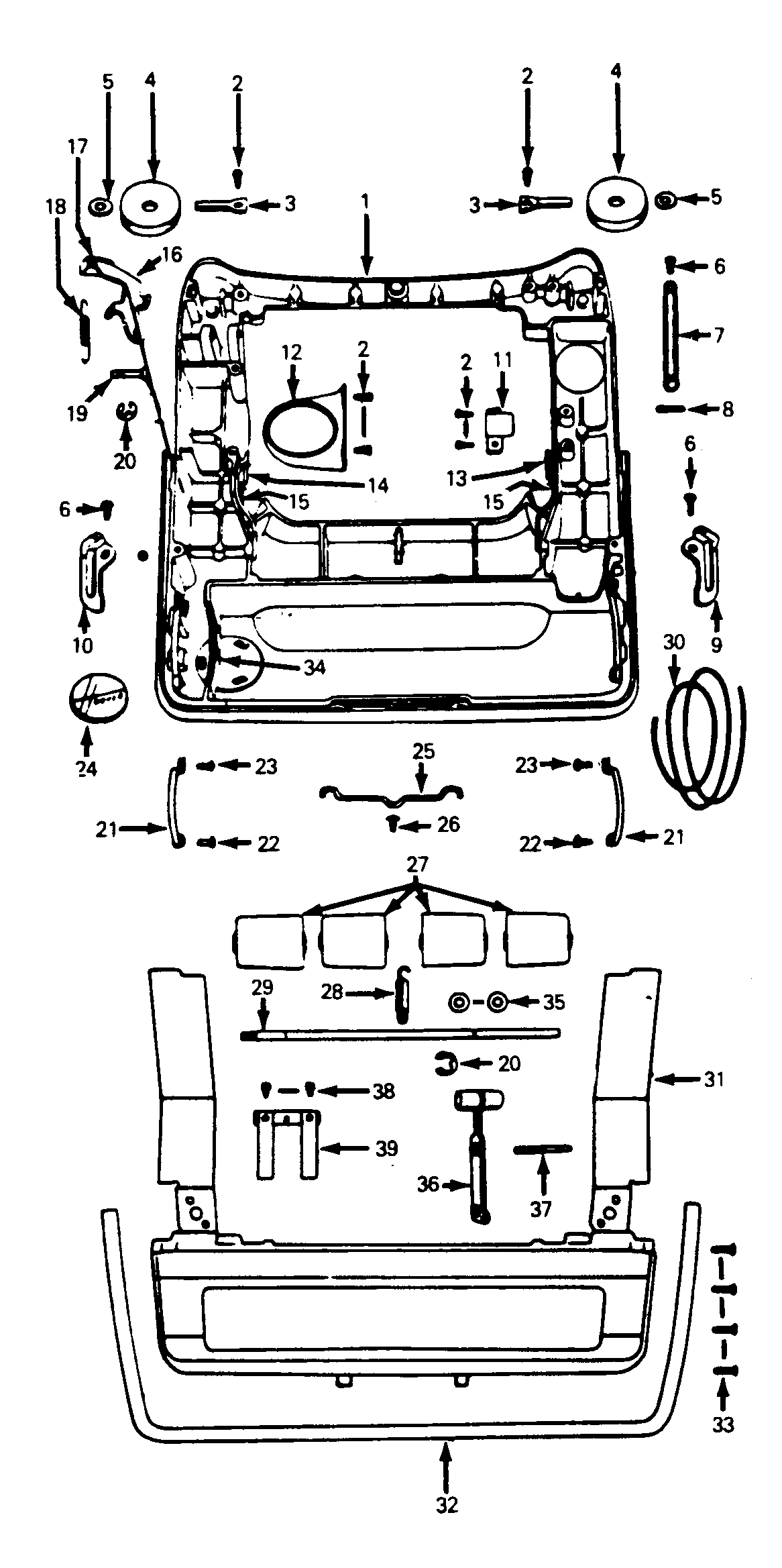

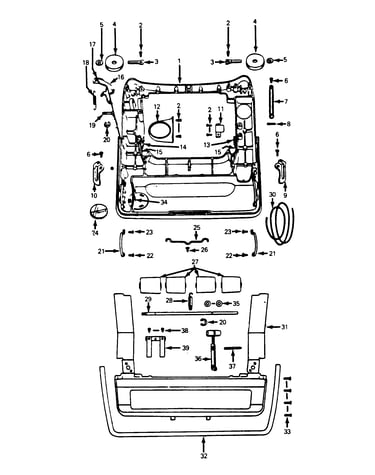

Mainbody diagram

Washer 12 pk

Part #21312772

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Conical Washer 21347003
#6

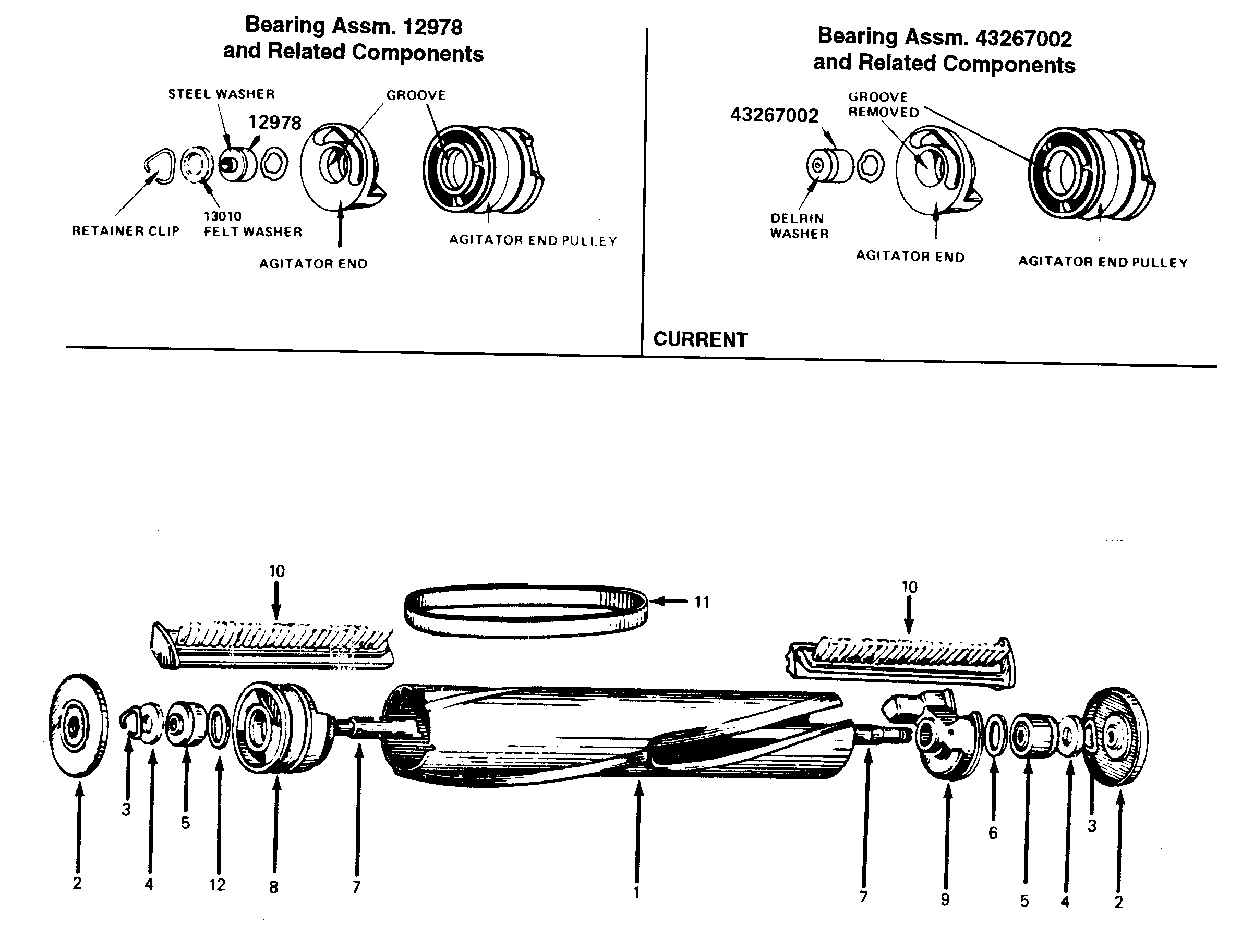

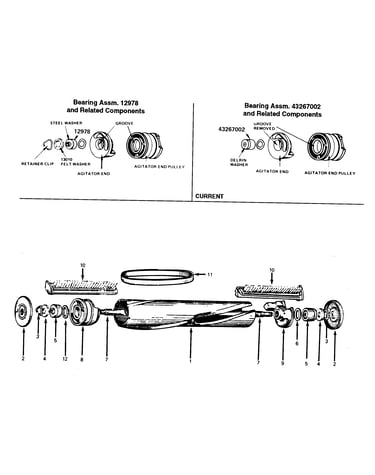

Agitator diagram

Vacuum conical washer

Part #21347003

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Dust Brush 43414064
#13A

Cleaningtools diagram

Kenmore vacuum dust brush

Part #43414064

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Grip Lock Ring 36153009
#11

Cleaningtools diagram

Vacuum hose grip lock ring

Part #36153009

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 012471AG
#11

Agitator diagram

Vacuum beater bar belt

Part #012471AG

The manufacturer no longer makes this part, and there's no substitute part
