Troybilt
Lawn Tractor Attachment

Model # 34501 Official Troybilt mulching attachment

Here are the diagrams and repair parts for Official Troybilt 34501 mulching attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |

Lock Nut 1732499
#9

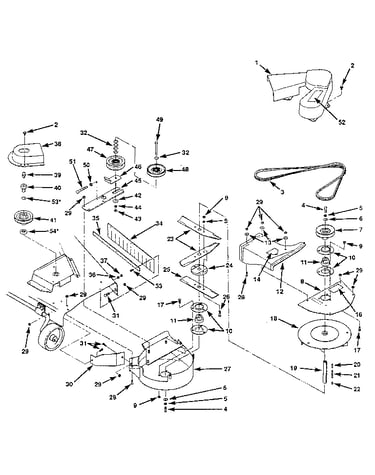

Replacement parts diagram

Lock nut

Part #1732499

Replaced by #712-3004A

?
Manufacturer substitution
This part replaces 1732499. Substitute parts can look different from the original.
This item is not returnable
$4.92
17% OFF Phone Price : $5.92
In Stock
Nut 1186391
#29

Replacement parts diagram

Nut

Part #1186391

Replaced by #712-04054

?
Manufacturer substitution
This part replaces 1186391. Substitute parts can look different from the original.
In Stock
Washer 1701055
#42

Replacement parts diagram

Washer

Part #1701055

Replaced by #1701055

?
Manufacturer substitution
This part replaces 1701055. Substitute parts can look different from the original.
In Stock
Idler Pulley 1756151
#47

Replacement parts diagram

Idler pulley

Part #1756151

Replaced by #1756151

?
Manufacturer substitution
This part replaces 1756151. Substitute parts can look different from the original.
In Stock
Grease Fitting 1185976
#39

Replacement parts diagram

Grease fitting

Part #1185976

Replaced by #937-0146

?
Manufacturer substitution
This part replaces 1185976. Substitute parts can look different from the original.
In Stock
Screw 1186097
#17

Replacement parts diagram

Screw

Part #1186097

Replaced by #710-0260A

?
Manufacturer substitution
This part replaces 1186097. Substitute parts can look different from the original.
This item is not returnable
$6.55
13% OFF Phone Price : $7.55
In Stock
Screw 1186329
#28

Replacement parts diagram

Screw

Part #1186329

Replaced by #710-04043

?
Manufacturer substitution
This part replaces 1186329. Substitute parts can look different from the original.
This item is not returnable
In Stock
Decal 1739687
#14

Replacement parts diagram

Decal

Part #1739687

Replaced by #1739687

?
Manufacturer substitution
This part replaces 1739687. Substitute parts can look different from the original.
In Stock
Square Key 1104335
#21

Replacement parts diagram

Square key

Part #1104335

Replaced by #714-0139

?
Manufacturer substitution
This part replaces 1104335. Substitute parts can look different from the original.
In Stock
Hex Nut 1186231
#43

Replacement parts diagram

Hex nut

Part #1186231

The manufacturer no longer makes this part, and there's no substitute part
