Universal/Multiflex (Frigidaire)
Upright Freezer

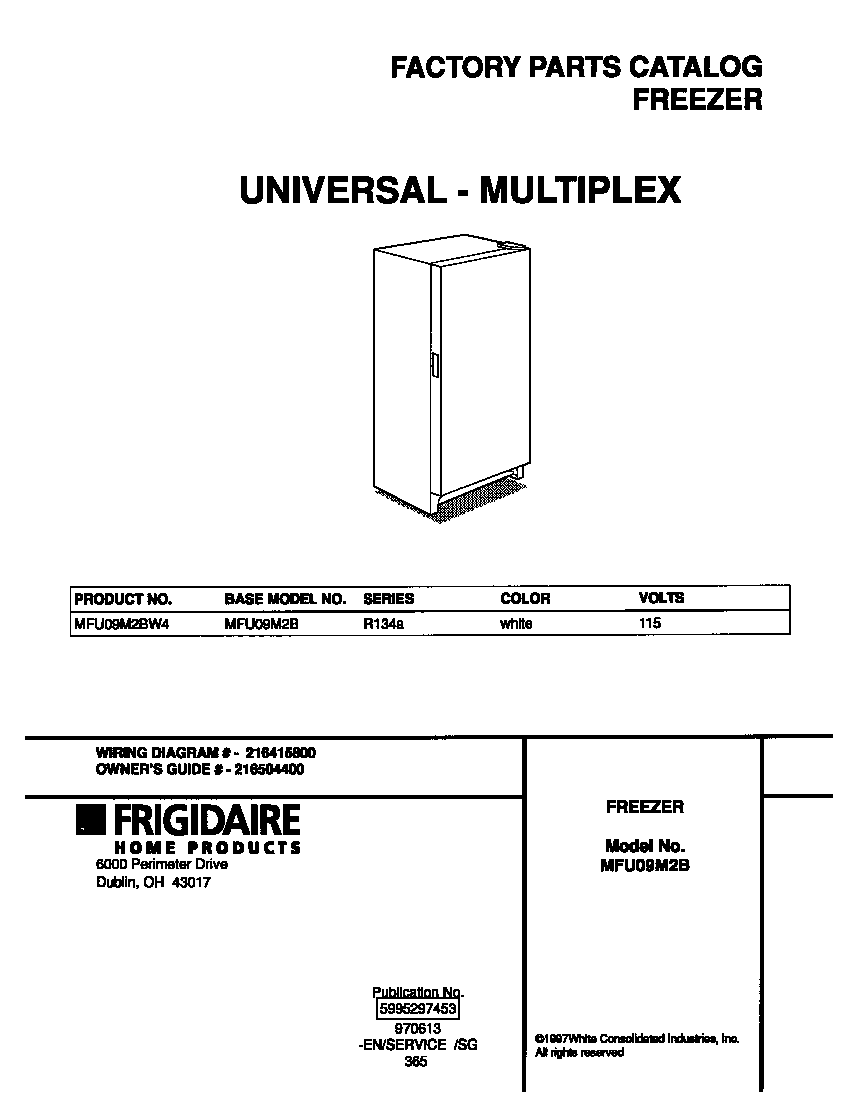

Model # MFU09M2BW4 Official Universal/Multiflex (Frigidaire) freezer - 5995297453

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) MFU09M2BW4 freezer - 5995297453, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

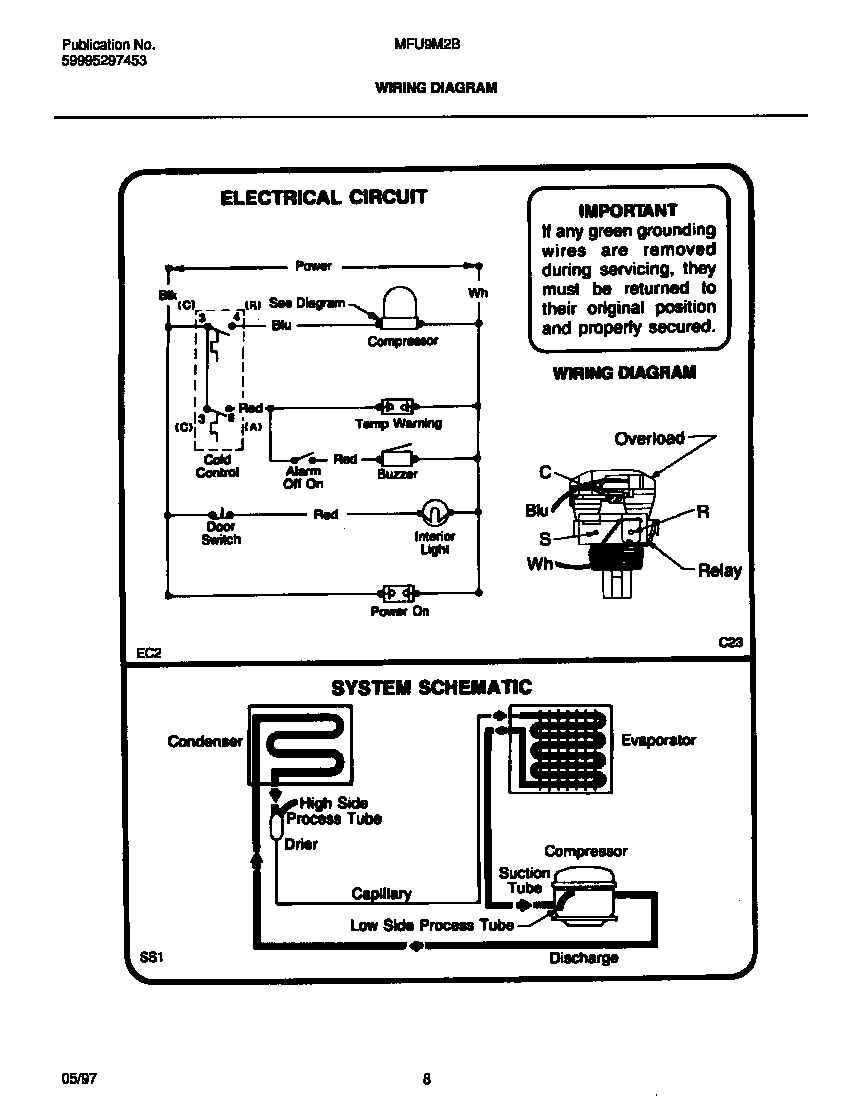

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Appliance Leveling Leg (replaces 134158000, 7216396900) 216396900
#63

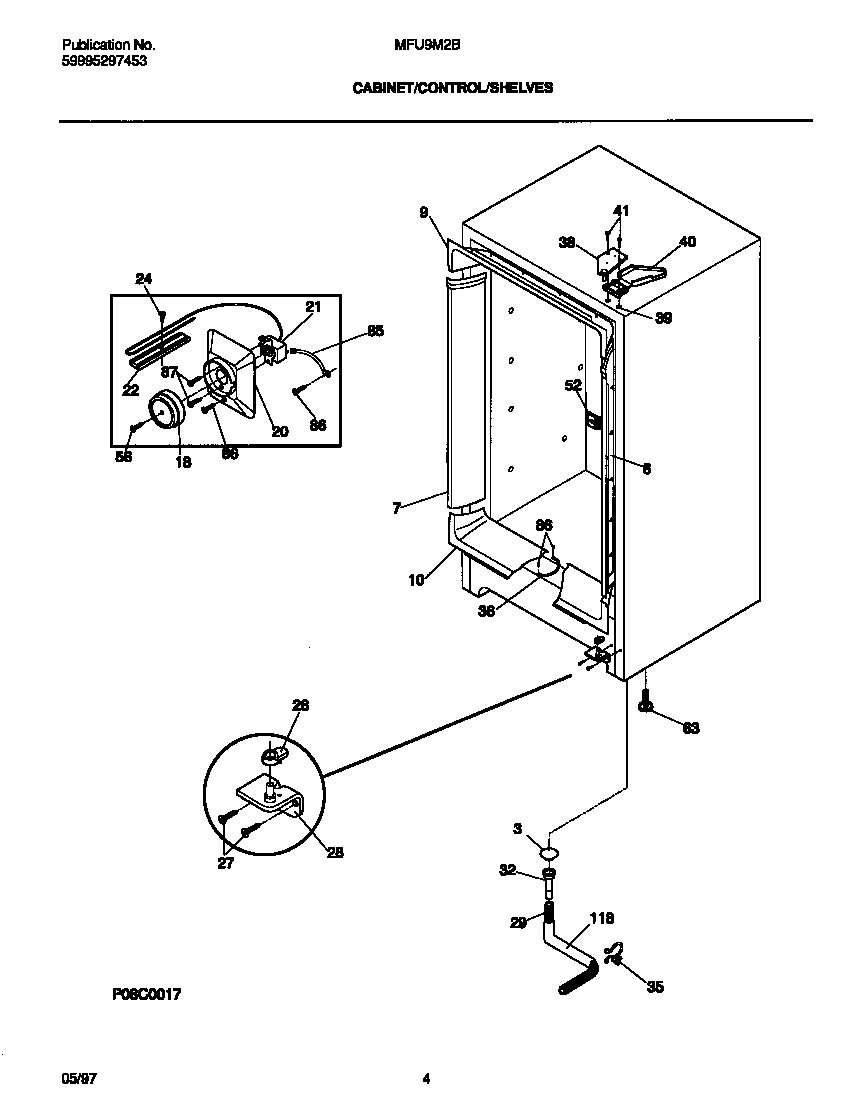

Cabinet/control/shelves diagram

Appliance leveling leg (replaces 134158000, 7216396900)

Part #216396900

BEST SELLER
$20.04 |
23% OFF Phone Price : $26.04
In Stock
Hose 216313500
#29

Cabinet/control/shelves diagram

Hose

Part #216313500

Replaced by #5304512272

?
Manufacturer substitution
This part replaces 216313500. Substitute parts can look different from the original.
This item is not returnable
$16.29 |
11% OFF Phone Price : $18.29
In Stock
Freezer Inner Door Panel Rivet 5303212828
#27

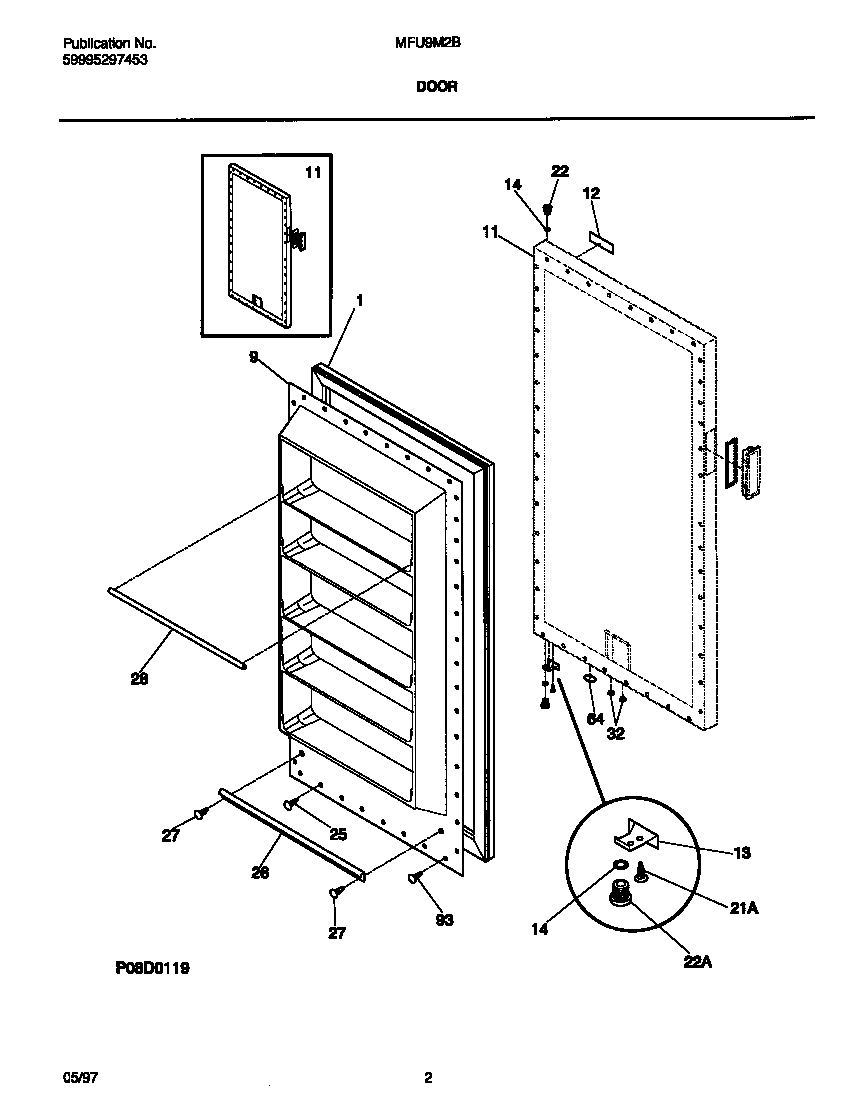

Door diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |
9% OFF Phone Price : $21.49
In Stock
Freezer Breather Valve 5309950074
#32

Door diagram

Freezer breather valve

Part #5309950074

This item is not returnable
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Crosley Refrigeration Appliance Compressor Grommet 216498900
#27

System diagram

Crosley refrigeration appliance compressor grommet

Part #216498900

This item is not returnable
$13.39 |
13% OFF Phone Price : $15.39
In Stock
Freezer Breaker Strip Insulation 5303925098

#NI

All parts diagram

Freezer breaker strip insulation

Part #5303925098

$98.69 |
11% OFF Phone Price : $110.69
In Stock
Screw (i 216036600
Screw (i

Part #216036600

Replaced by #216036601

?
Manufacturer substitution
This part replaces 216036600. Substitute parts can look different from the original.
$12.57
In Stock
Compressor 5303925442
#29

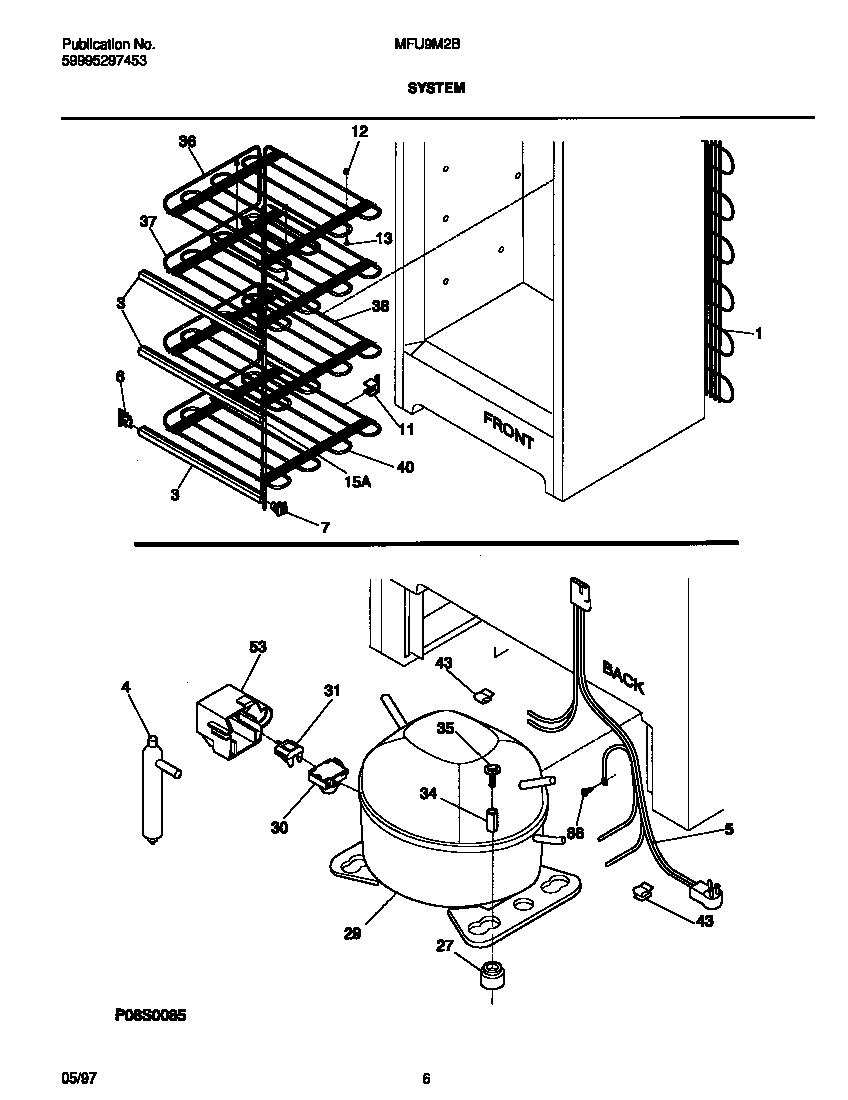

System diagram

Compressor

Part #5303925442

Replaced by #5304443412

?
Manufacturer substitution
This part replaces 5303925442. Substitute parts can look different from the original.
$620.55
In Stock
Freezer Door Stop 08016354
#13

Door diagram

Freezer door stop

Part #08016354

$28.36
In Stock
Strap 06594651
#36

Cabinet/control/shelves diagram

Strap

Part #06594651

This item is not returnable
$2.29
In Stock
