Model # AZ91H09D5EW2 Official GE room a/c

Here are the diagrams and repair parts for Official GE AZ91H09D5EW2 room a/c, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Main Board WP26X21993
#10

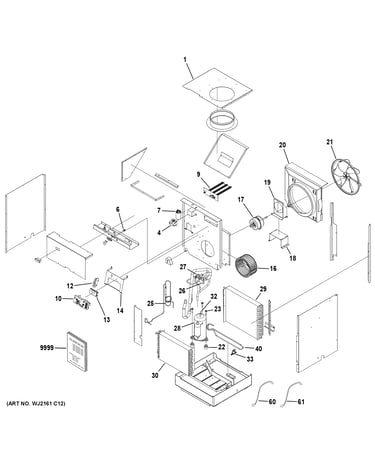

Vertical zoneline diagram

Main board

Part #WP26X21993

$460.43
In Stock
Sump Tube WP53X24843
#40

Vertical zoneline diagram

Sump tube

Part #WP53X24843

$87.73
In Stock
Indoor Coil WP88X21948
#30

Vertical zoneline diagram

Indoor coil

Part #WP88X21948

$370.30
In Stock
Outdoor Coil Temp Sensor WP26X27655
#61

Vertical zoneline diagram

Outdoor coil temp sensor

Part #WP26X27655

$52.04
In Stock
Overload WP20X21957
#32

Vertical zoneline diagram

Overload

Part #WP20X21957

$49.47
In Stock
Bolt WP01X21934
#23

Vertical zoneline diagram

Bolt

Part #WP01X21934

$21.65
In Stock
Vent Slide WP71X21961
#6

Vertical zoneline diagram

Vent slide

Part #WP71X21961

$18.50
In Stock
Compressor And Electricals WP98X21938
#28

Vertical zoneline diagram

Compressor and electricals

Part #WP98X21938

$632.98
In Stock
Room Air Conditioner Compressor Capacitor WP20X25600
#7

Vertical zoneline diagram

Room air conditioner compressor capacitor

Part #WP20X25600

$39.67
In Stock
Condensate Drain Valve WP53X21939
#33

Vertical zoneline diagram

Condensate drain valve

Part #WP53X21939

$98.71
In Stock
