Model # 143611112 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143611112 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 178 parts  |
Starter Rope 590386
#9

Rewind starter diagram

Starter rope

Part #590386

Replaced by #590535

?
Manufacturer substitution
This part replaces 590386. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Fuel Line 29774
#118

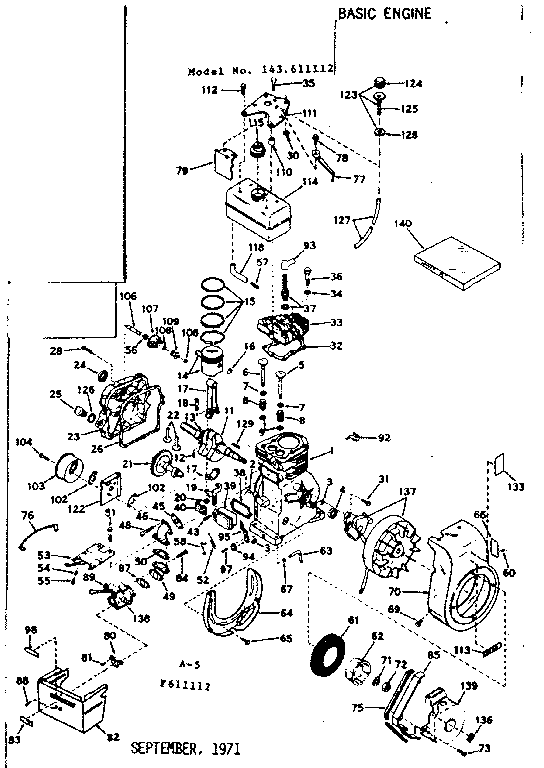

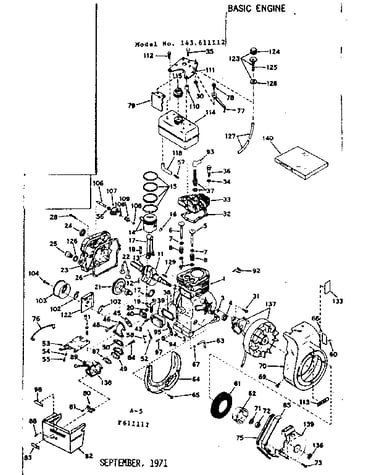

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Primer Line 32180A
#127

Basic engine diagram

Primer line

Part #32180A

The manufacturer no longer makes this part, and there's no substitute part

Plug 27625
#25

Basic engine diagram

Plug

Part #27625

The manufacturer no longer makes this part, and there's no substitute part

Thrtle Sprng 631279
#2

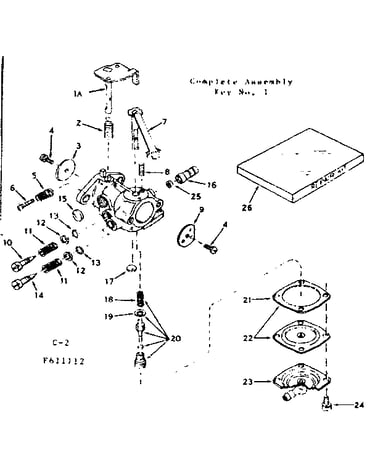

Carburetor diagram

Thrtle sprng

Part #631279

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Clamp 31335
#94

Basic engine diagram

/gvnr clamp

Part #31335

The manufacturer no longer makes this part, and there's no substitute part

Screw 30564
#28

Basic engine diagram

Screw

Part #30564

The manufacturer no longer makes this part, and there's no substitute part

Screw 650451
#48

Basic engine diagram

Screw

Part #650451

The manufacturer no longer makes this part, and there's no substitute part

Screw 28820
#81

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Diap/gaskt 630978
#22

Carburetor diagram

Diap/gaskt

Part #630978

The manufacturer no longer makes this part, and there's no substitute part
