Model # 56422720200 Official LXI tabletop stereo system

Here are the diagrams and repair parts for Official LXI 56422720200 tabletop stereo system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |
Handle 46-49139-3
#5

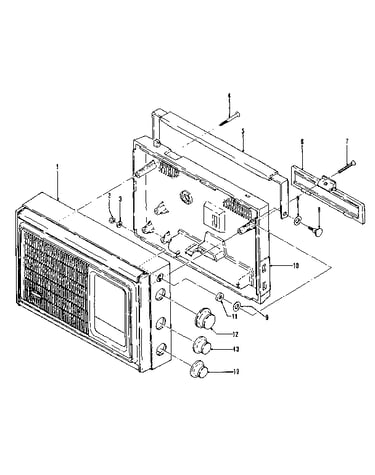

Cabinet diagram

Handle

Part #46-49139-3

The manufacturer no longer makes this part, and there's no substitute part

Sound Comp 46-3325-3

#NI

All parts diagram

Sound comp

Part #46-3325-3

The manufacturer no longer makes this part, and there's no substitute part

Screw 46-57414-3
#7

Cabinet diagram

Screw

Part #46-57414-3

The manufacturer no longer makes this part, and there's no substitute part

Knob 46-52439-3
#13

Cabinet diagram

Knob

Part #46-52439-3

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 46-42191-3
#1

Cabinet diagram

Cabinet

Part #46-42191-3

The manufacturer no longer makes this part, and there's no substitute part

Screw 46-9747-3
#8

Cabinet diagram

Screw

Part #46-9747-3

The manufacturer no longer makes this part, and there's no substitute part

Spacer 46-77104-3
#11

Cabinet diagram

Spacer

Part #46-77104-3

The manufacturer no longer makes this part, and there's no substitute part

Lid 46-21351-3
#6

Cabinet diagram

Lid

Part #46-21351-3

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 46-38434-3

#NI

All parts diagram

Owner's manual

Part #46-38434-3

The manufacturer no longer makes this part, and there's no substitute part

Washer 46-58211-3
#3

Cabinet diagram

Washer

Part #46-58211-3

The manufacturer no longer makes this part, and there's no substitute part
