Model # DCR-SR68L Official Sony camcorder

Here are the diagrams and repair parts for Official Sony DCR-SR68L camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
A/v Cable 182315661
#NI

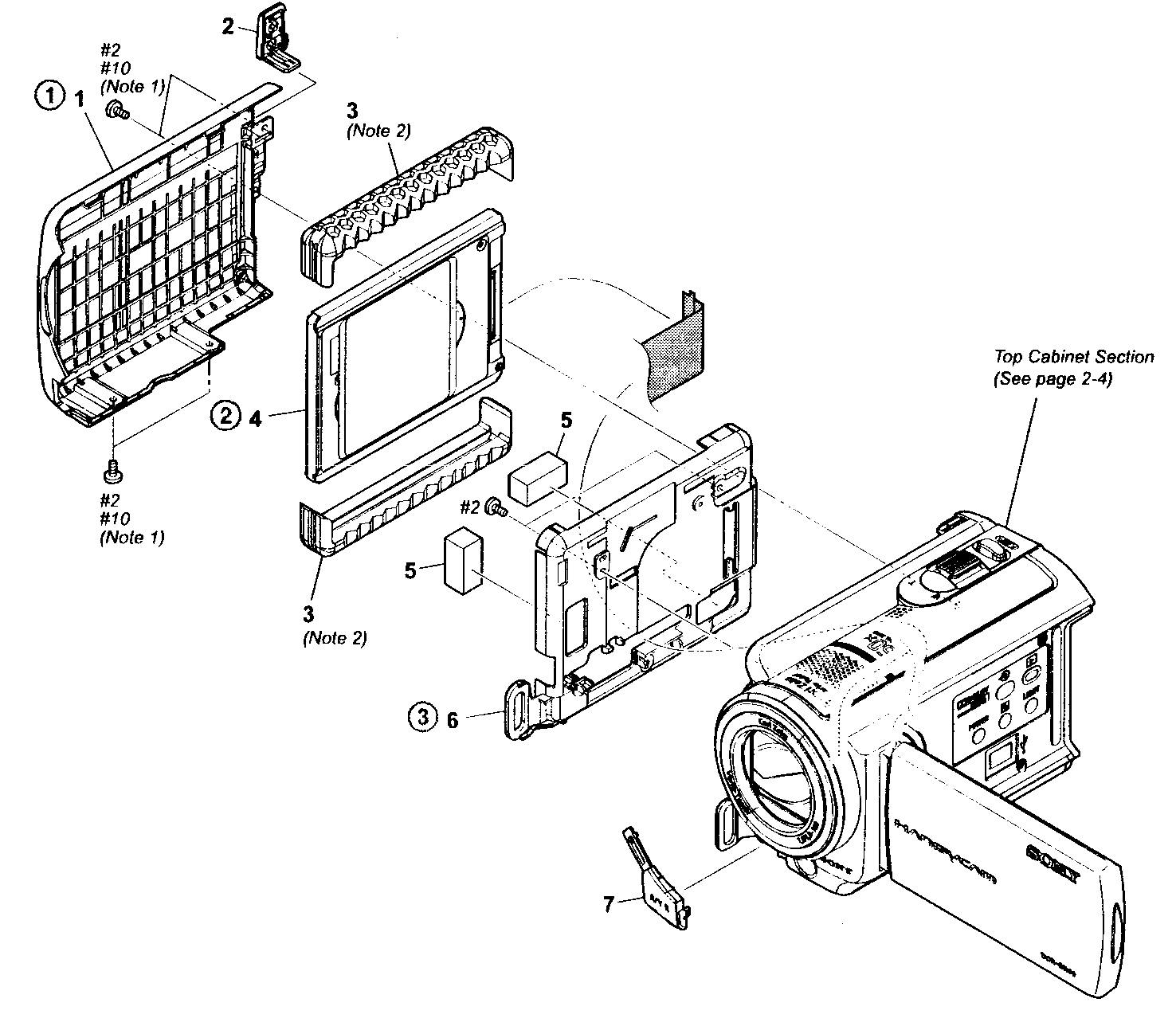

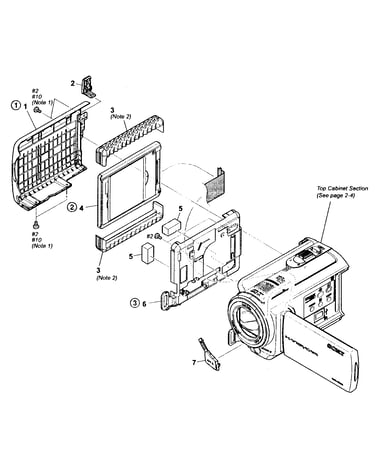

Hdd assy diagram

A/v cable

Part #182315661

The manufacturer no longer makes this part, and there's no substitute part

Diode 650295401
#D901

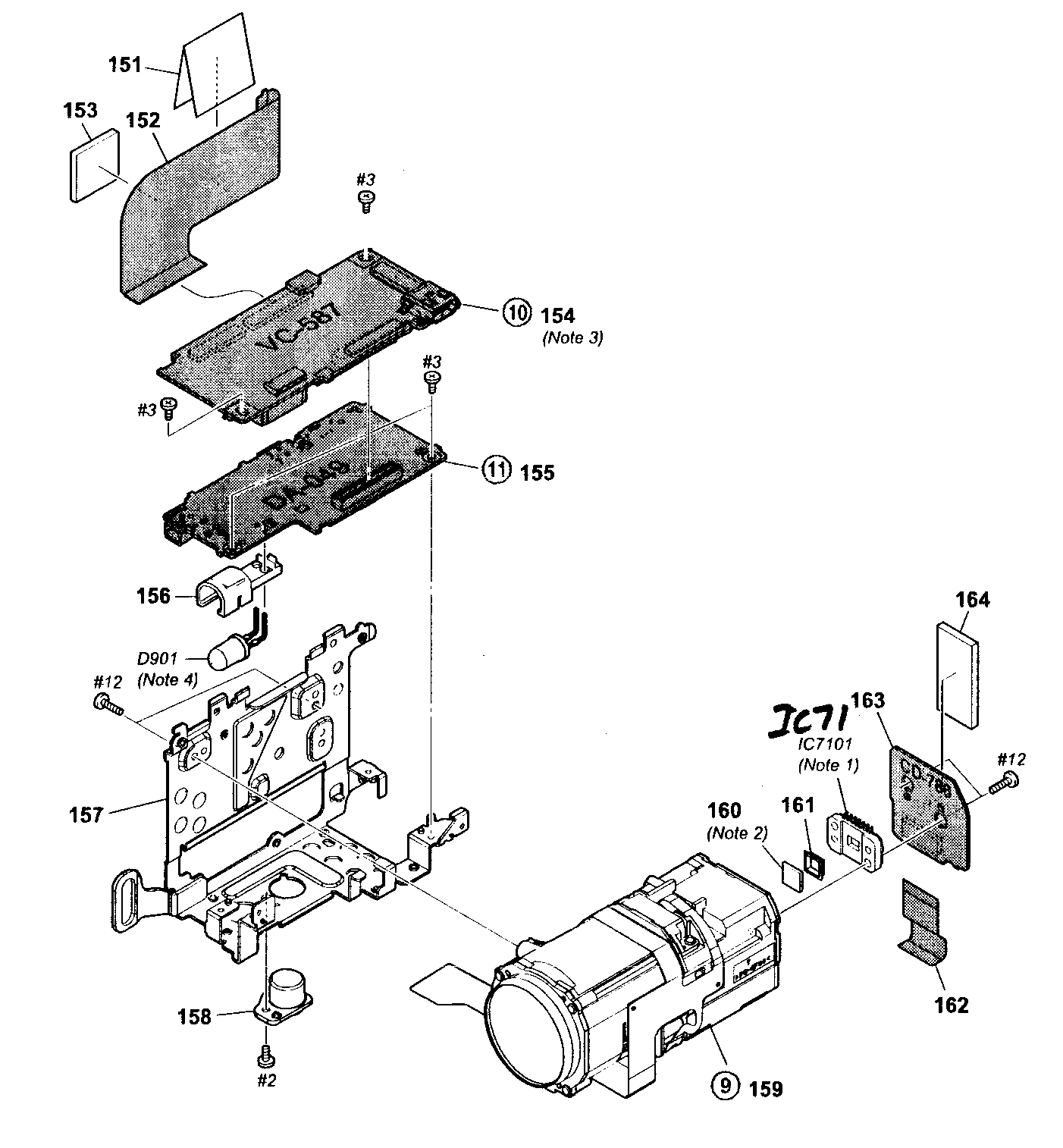

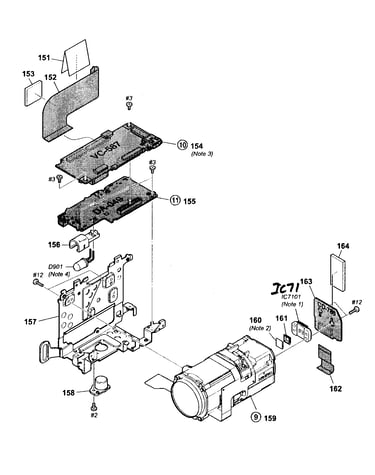

Lens assy diagram

Diode

Part #650295401

The manufacturer no longer makes this part, and there's no substitute part

Sheet 415623401
#203

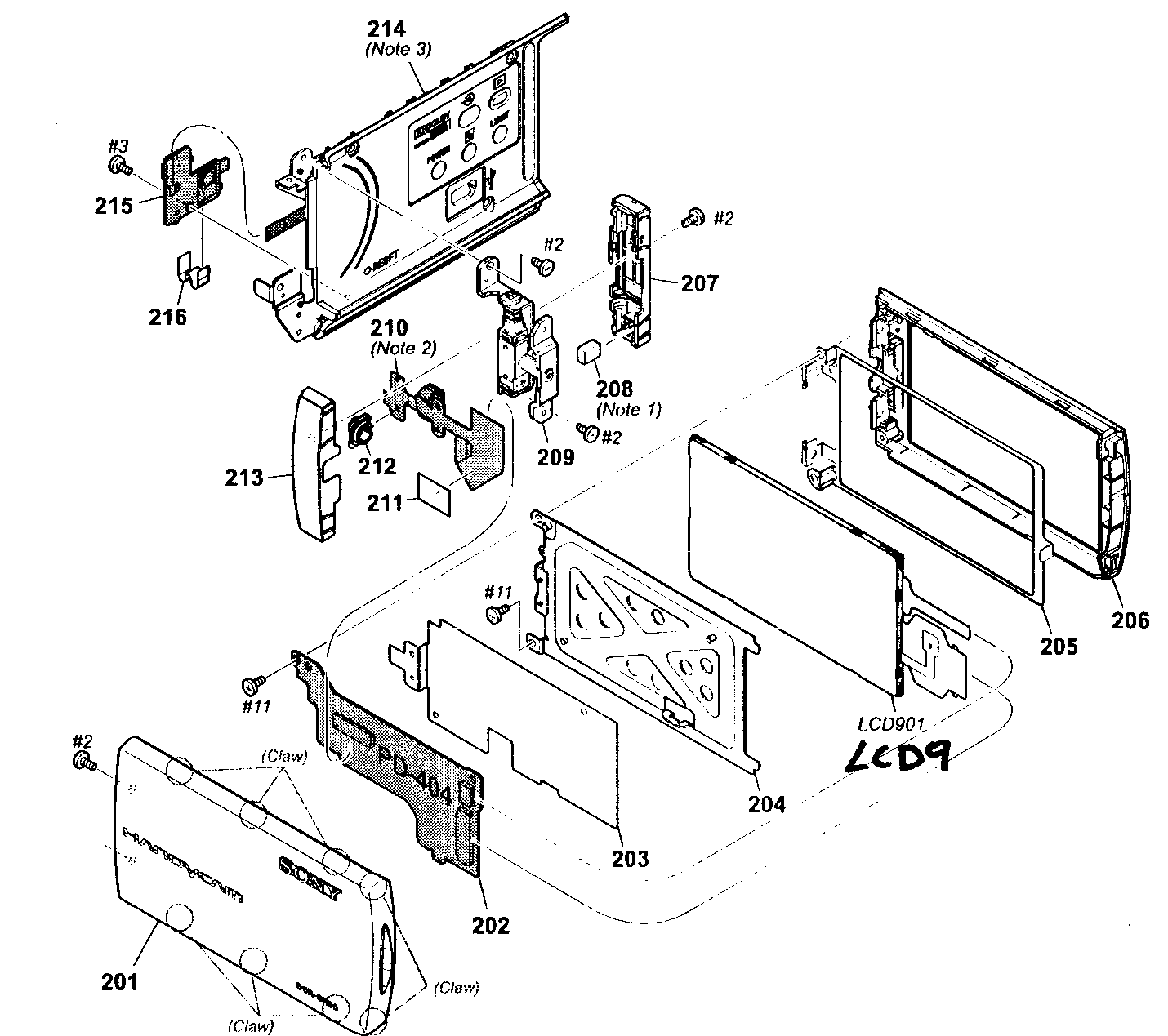

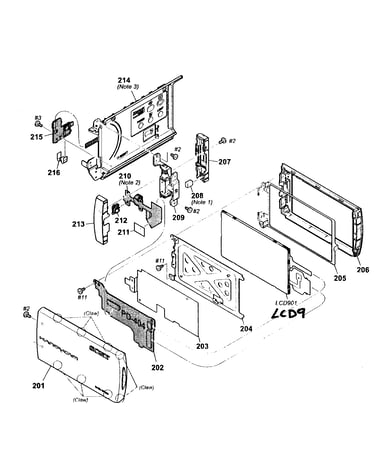

Lcd assy diagram

Sheet

Part #415623401

The manufacturer no longer makes this part, and there's no substitute part

Cover Assembly X25415841
#7

Hdd assy diagram

Cover assembly

Part #X25415841

The manufacturer no longer makes this part, and there's no substitute part

Pcb,vc-587 A1759340A
#154

Lens assy diagram

Pcb,vc-587

Part #A1759340A

The manufacturer no longer makes this part, and there's no substitute part

Screw(red) 266040101
#S3

Back panel diagram

Screw(red)

Part #266040101

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Assembly A1750479A
#201

Lcd assy diagram

Cabinet assembly

Part #A1750479A

The manufacturer no longer makes this part, and there's no substitute part

Pcb,ms-432 A1750997A
#104

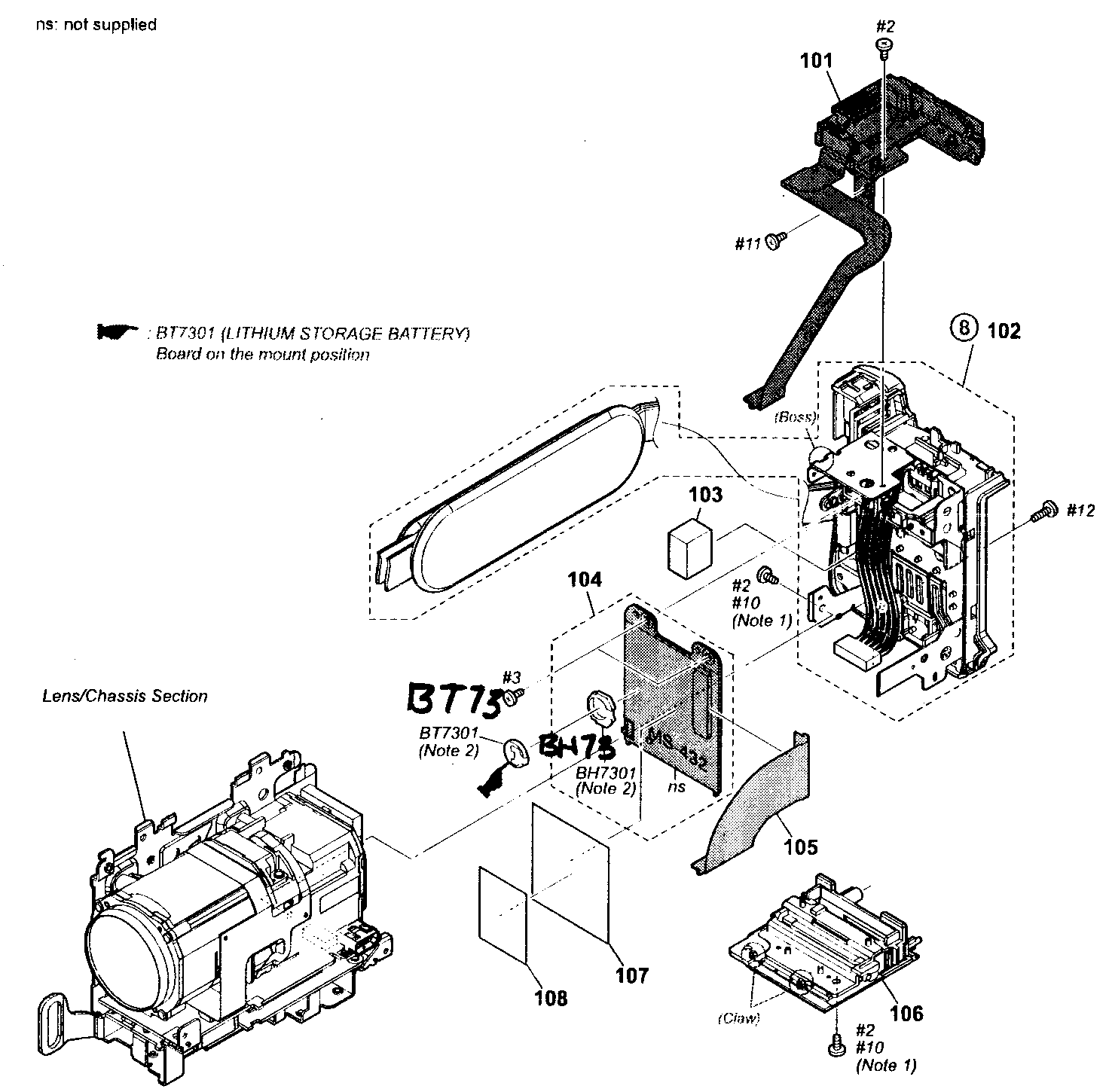

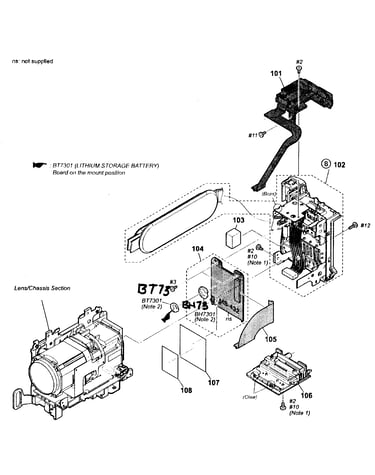

Back panel diagram

Pcb,ms-432

Part #A1750997A

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Assembly A1750492A
#57

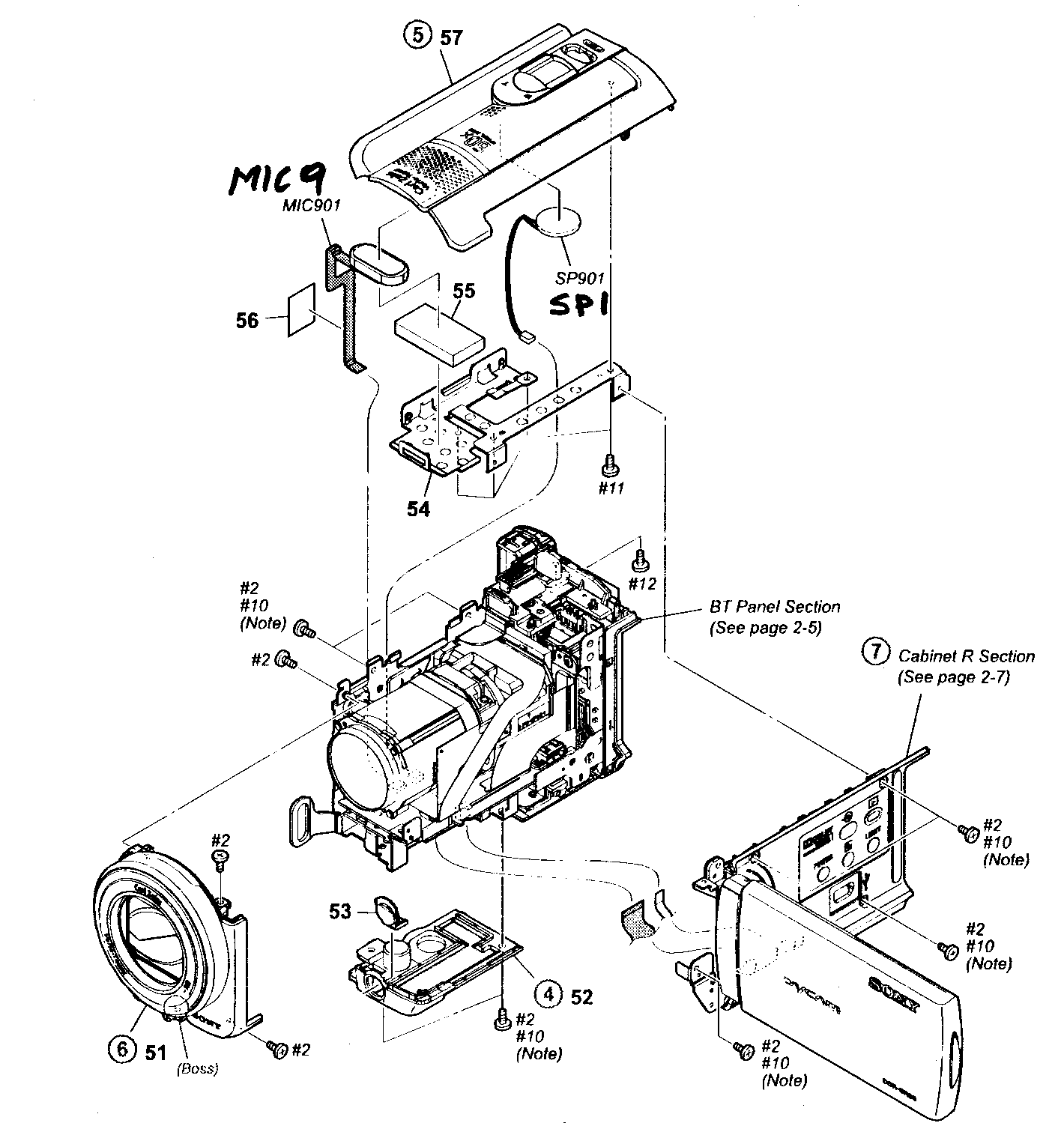

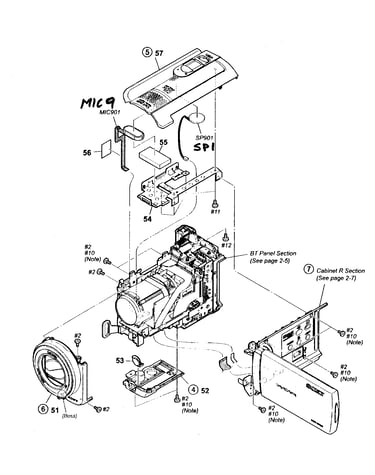

Top cabinet diagram

Cabinet assembly

Part #A1750492A

The manufacturer no longer makes this part, and there's no substitute part

Flex Clamp 416645101
#212

Lcd assy diagram

Flex clamp

Part #416645101

The manufacturer no longer makes this part, and there's no substitute part
