Black & Decker
Electric Chainsaw

Model # NLP1800 TYPE 1 Official Black & Decker chainsaw

Here are the diagrams and repair parts for Official Black & Decker NLP1800-TYPE-1 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 9 of 9 parts  |
Black & Decker Cover 90514903
#1

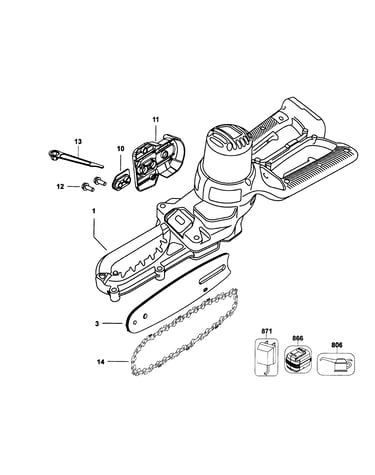

Chainsaw assy diagram

Black & decker cover

Part #90514903

The manufacturer no longer makes this part, and there's no substitute part

Bar Clamp 588213-00
#10

Chainsaw assy diagram

Bar clamp

Part #588213-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Chainsaw Bar 90516453
#3

Chainsaw assy diagram

Black & decker chainsaw bar

Part #90516453

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Bolt 90516533
#12

Chainsaw assy diagram

Black & decker bolt

Part #90516533

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Oil Bottle 90524942
#806

Chainsaw assy diagram

Black & decker oil bottle

Part #90524942

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Cover 90516437
#11

Chainsaw assy diagram

Black & decker cover

Part #90516437

The manufacturer no longer makes this part, and there's no substitute part

Tool 590439-00
#13

Chainsaw assy diagram

Tool

Part #590439-00

The manufacturer no longer makes this part, and there's no substitute part

Chain 587579-00
#14

Chainsaw assy diagram

Chain

Part #587579-00

The manufacturer no longer makes this part, and there's no substitute part

Charger 5103069-12
#871

Chainsaw assy diagram

Charger

Part #5103069-12

The manufacturer no longer makes this part, and there's no substitute part
