Model # RE964001 Official Hotpoint microwave

Here are the diagrams and repair parts for Official Hotpoint RE964001 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Magnetron WB27X5142
#1428

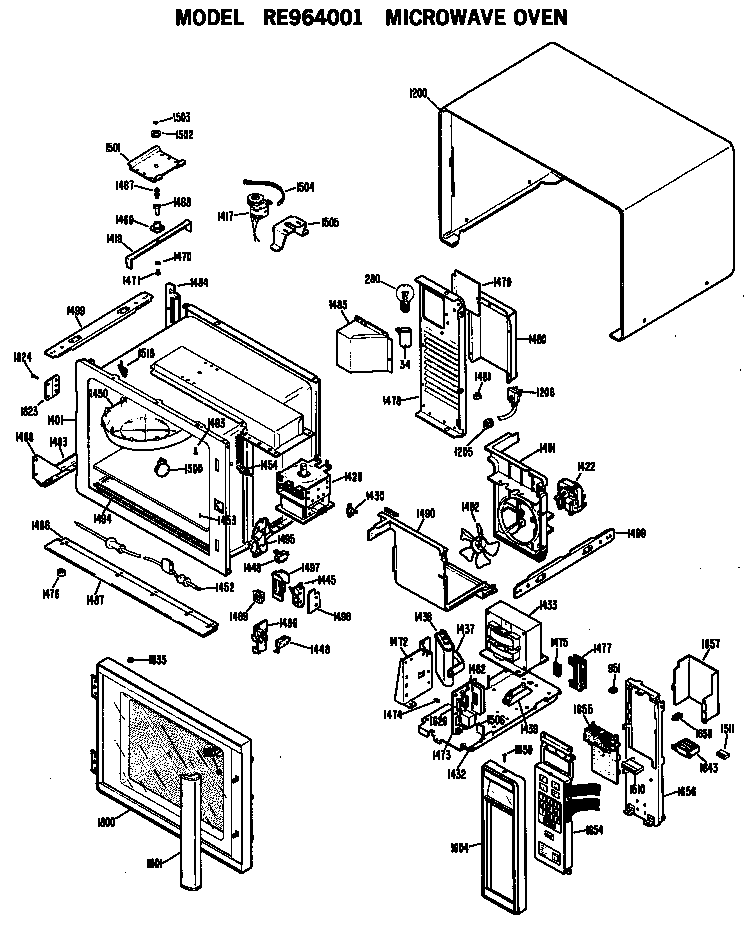

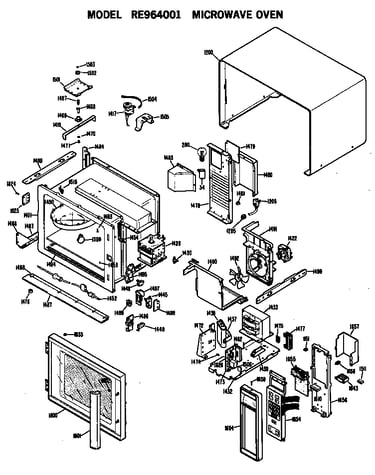

Microwave oven diagram

Magnetron

Part #WB27X5142

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Guide 39-4489

#NI

All parts diagram

Use and care guide

Part #39-4489

Replaced by #39-4489-1

?
Manufacturer substitution
This part replaces 39-4489. Substitute parts can look different from the original.
$8.49
In Stock
Outer Case WB56X5881
#1200

Microwave oven diagram

Outer case

Part #WB56X5881

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Support WB2X7089
#1501

Microwave oven diagram

Stirrer support

Part #WB2X7089

The manufacturer no longer makes this part, and there's no substitute part

Package Support WB2X7080
#1494A

Microwave oven diagram

Package support

Part #WB2X7080

The manufacturer no longer makes this part, and there's no substitute part

Fan Housing WB2X7078
#1491

Microwave oven diagram

Fan housing

Part #WB2X7078

The manufacturer no longer makes this part, and there's no substitute part

Housing Socket WB17X5079
#1511

Microwave oven diagram

Housing socket

Part #WB17X5079

The manufacturer no longer makes this part, and there's no substitute part

Antenna WB2X7056
#1467

Microwave oven diagram

Antenna

Part #WB2X7056

The manufacturer no longer makes this part, and there's no substitute part

Transformer WB27X5215
#1433

Microwave oven diagram

Transformer

Part #WB27X5215

The manufacturer no longer makes this part, and there's no substitute part

Screw Mtg Handle WB1X5580
#1802

Microwave oven diagram

Screw mtg handle

Part #WB1X5580

The manufacturer no longer makes this part, and there's no substitute part
