Model # CFS-207 Official Sony boombox

Here are the diagrams and repair parts for Official Sony CFS-207 boombox, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

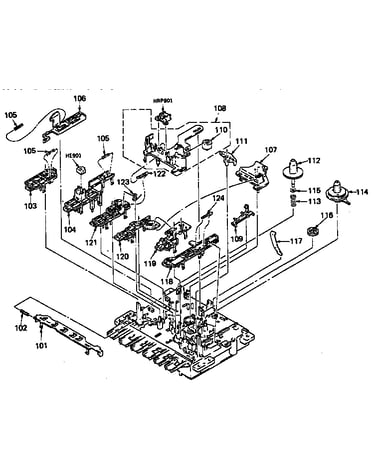

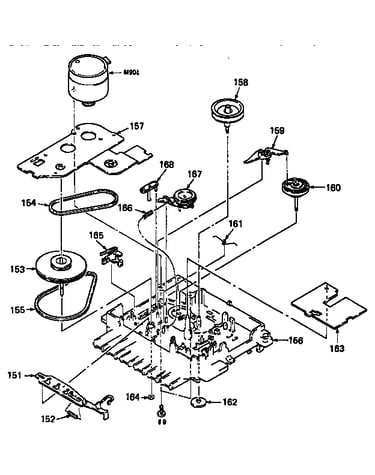

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Sony Spring 335617201
#3

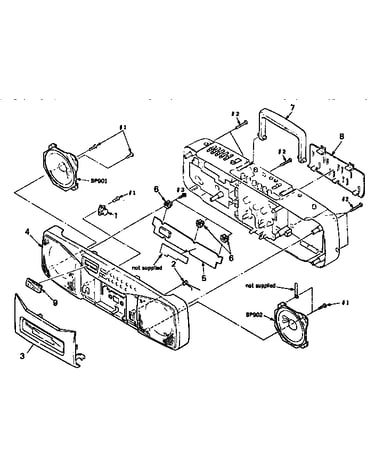

Front cabinet diagram

Sony spring

Part #335617201

The manufacturer no longer makes this part, and there's no substitute part

Sony Rewind Button 335752901
#7

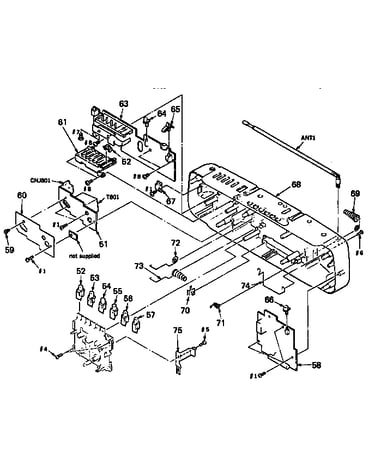

Rear cabinet diagram

Sony rewind button

Part #335752901

The manufacturer no longer makes this part, and there's no substitute part

Sony Terminal 335616801
#23

Rear cabinet diagram

Sony terminal

Part #335616801

The manufacturer no longer makes this part, and there's no substitute part

Sony Pcb Assembly A3261590A
#14

Rear cabinet diagram

Sony pcb assembly

Part #A3261590A

The manufacturer no longer makes this part, and there's no substitute part

Sony Insulator 335754401
#12

Rear cabinet diagram

Sony insulator

Part #335754401

The manufacturer no longer makes this part, and there's no substitute part

Sony Pcb Assembly A3261593A
#11

Rear cabinet diagram

Sony pcb assembly

Part #A3261593A

The manufacturer no longer makes this part, and there's no substitute part

Sony Lever 336776001
#26

Rear cabinet diagram

Sony lever

Part #336776001

The manufacturer no longer makes this part, and there's no substitute part

Sony Button (paus 335752701
#5

Rear cabinet diagram

Sony button (paus

Part #335752701

The manufacturer no longer makes this part, and there's no substitute part

Sony Record Button 335753301
#9

Rear cabinet diagram

Sony record button

Part #335753301

The manufacturer no longer makes this part, and there's no substitute part

Sony Spring 335616701
#24

Rear cabinet diagram

Sony spring

Part #335616701

The manufacturer no longer makes this part, and there's no substitute part
