Model # SLV-393 Official Sony videocassette recorder

Here are the diagrams and repair parts for Official Sony SLV-393 videocassette recorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 178 parts  |
Spring Tensn 3-736-047-01
#225

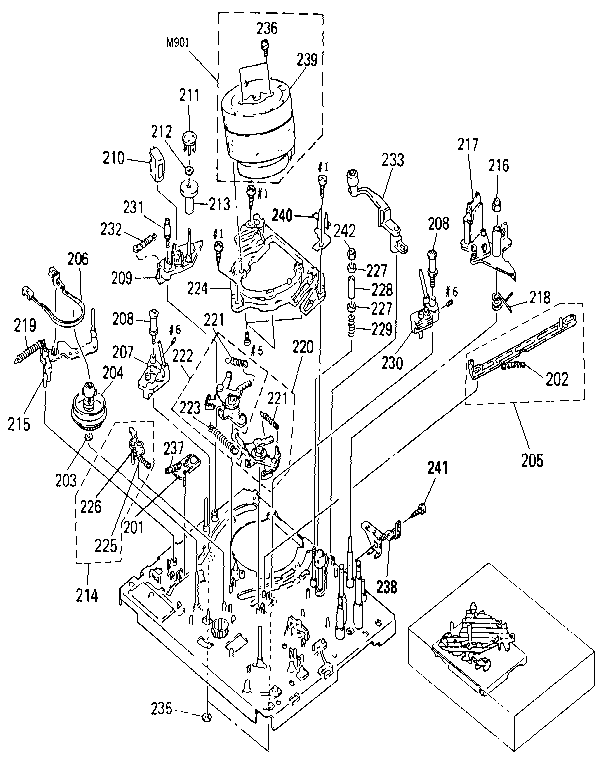

5-5. mechanism deck 2 diagram

Spring tensn

Part #3-736-047-01

The manufacturer no longer makes this part, and there's no substitute part

Fr Load Asy A-6751-397-A
#101

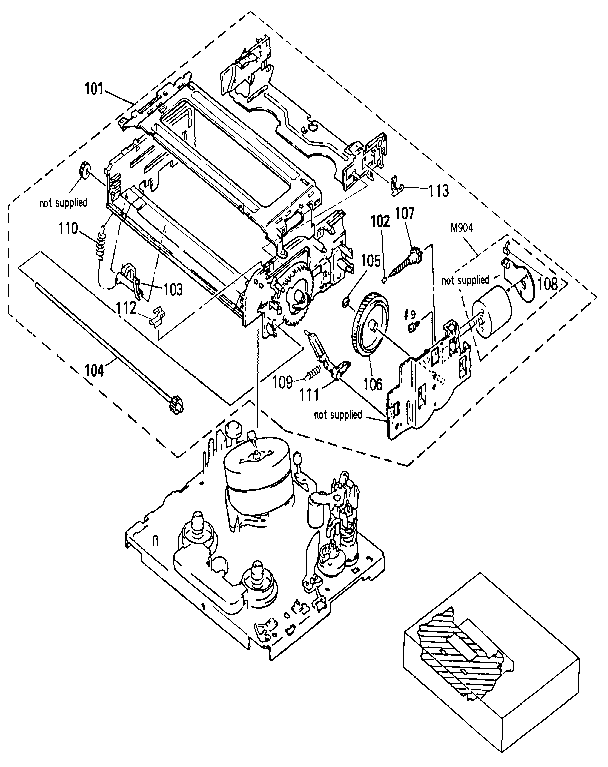

5-3. fl cassette compartment diagram

Fr load asy

Part #A-6751-397-A

The manufacturer no longer makes this part, and there's no substitute part

Nut 3-942-866-01
#242

5-5. mechanism deck 2 diagram

Nut

Part #3-942-866-01

The manufacturer no longer makes this part, and there's no substitute part

Connector 3p 1-506-482-11
Connector 3p

Part #1-506-482-11

The manufacturer no longer makes this part, and there's no substitute part

Led 8-719-985-00
#289A

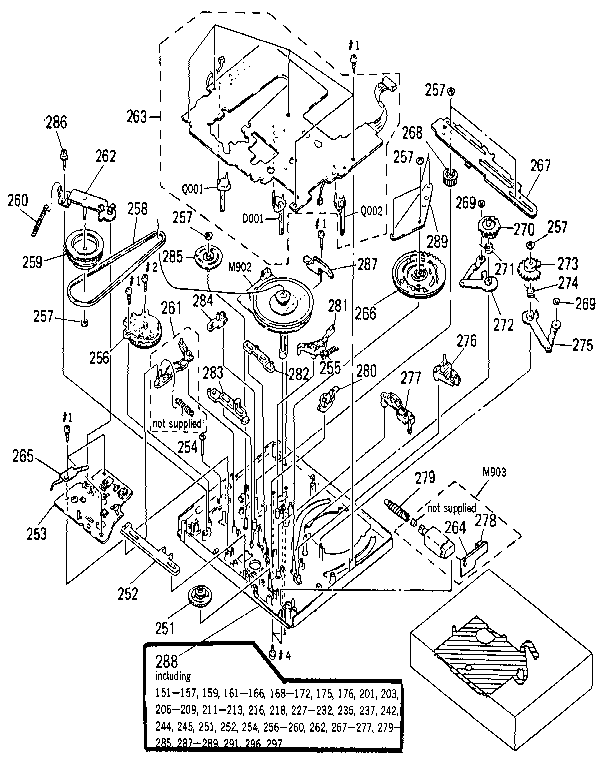

5-6. mechanism deck 3 diagram

Led

Part #8-719-985-00

The manufacturer no longer makes this part, and there's no substitute part

Button 3-941-618-01
#35

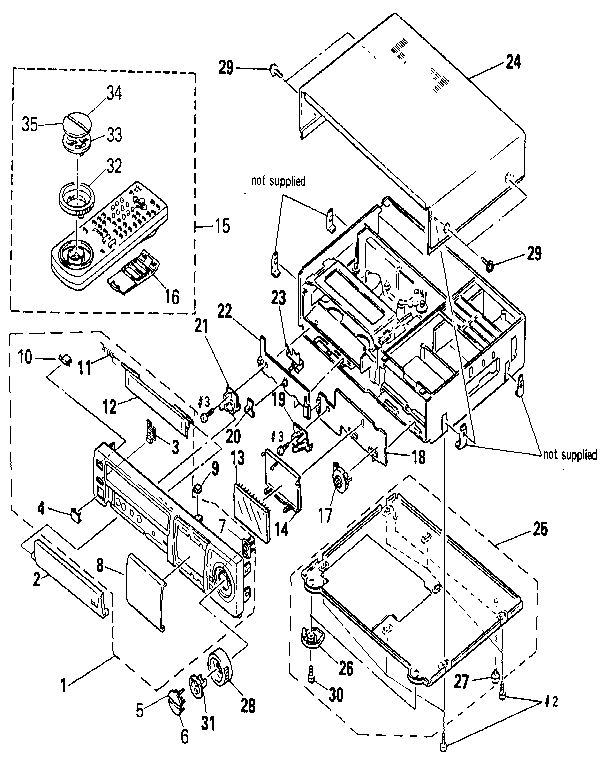

5-1. front panel. cabinet assemblies diagram

Button

Part #3-941-618-01

The manufacturer no longer makes this part, and there's no substitute part

Head Block A-6761-129-C
#217

5-5. mechanism deck 2 diagram

Head block

Part #A-6761-129-C

The manufacturer no longer makes this part, and there's no substitute part

Spring 3-942-829-01
#175

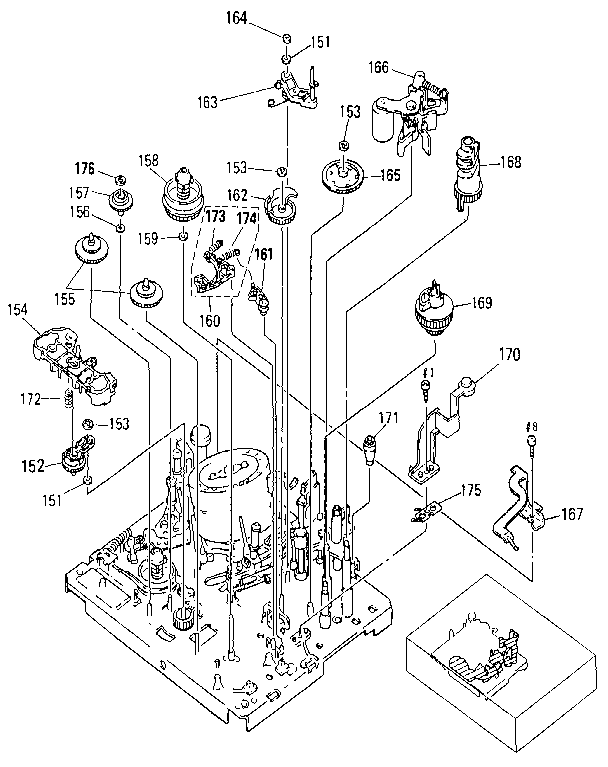

5-4. mechanism deck 1 diagram

Spring

Part #3-942-829-01

The manufacturer no longer makes this part, and there's no substitute part

Spring 3-944-833-01
#218

5-5. mechanism deck 2 diagram

Spring

Part #3-944-833-01

The manufacturer no longer makes this part, and there's no substitute part

Knob Selectn 3-744-217-01
#20

5-1. front panel. cabinet assemblies diagram

Knob selectn

Part #3-744-217-01

The manufacturer no longer makes this part, and there's no substitute part
