Model # 6705DW Official Makita cordless screwdriver

Here are the diagrams and repair parts for Official Makita 6705DW cordless screwdriver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

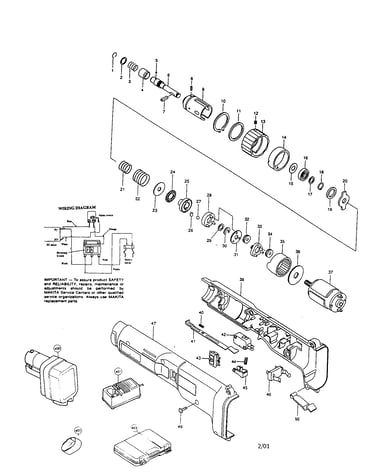

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |

Battery Holder 643909-9
#46

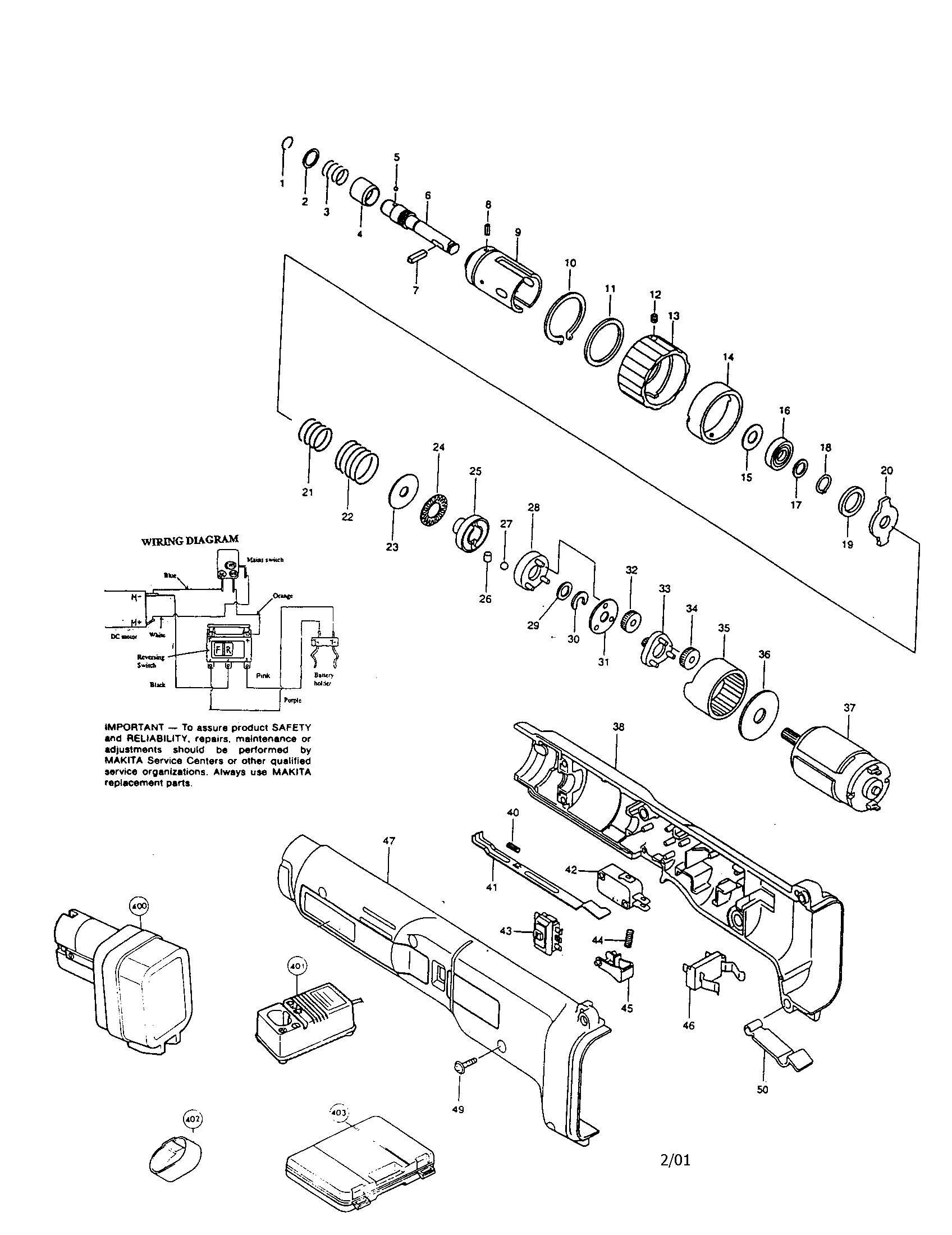

Cordless screwdriver diagram

Battery holder

Part #643909-9

The manufacturer no longer makes this part, and there's no substitute part

Spring 233005-7
#3

Cordless screwdriver diagram

Spring

Part #233005-7

The manufacturer no longer makes this part, and there's no substitute part

Lever 414752-1
#45

Cordless screwdriver diagram

Lever

Part #414752-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 911143-2
#49

Cordless screwdriver diagram

Screw

Part #911143-2

The manufacturer no longer makes this part, and there's no substitute part

Lever 343898-5
#41

Cordless screwdriver diagram

Lever

Part #343898-5

The manufacturer no longer makes this part, and there's no substitute part

Comp.sprng 233025-1
#40

Cordless screwdriver diagram

Comp.sprng

Part #233025-1

The manufacturer no longer makes this part, and there's no substitute part

Ring Sprng 231951-8
#1

Cordless screwdriver diagram

Ring sprng

Part #231951-8

The manufacturer no longer makes this part, and there's no substitute part

Rtnng Ring 961006-2
#18

Cordless screwdriver diagram

Rtnng ring

Part #961006-2

The manufacturer no longer makes this part, and there's no substitute part

Switch 651872-2
#43

Cordless screwdriver diagram

Switch

Part #651872-2

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 267085-1
#2

Cordless screwdriver diagram

Flat washer

Part #267085-1

The manufacturer no longer makes this part, and there's no substitute part
