Model # CRF1.5-1J/P54881-1C Official Amana remote condensing section - crf series

Here are the diagrams and repair parts for Official Amana CRF15-1J-P54881-1C remote condensing section - crf series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

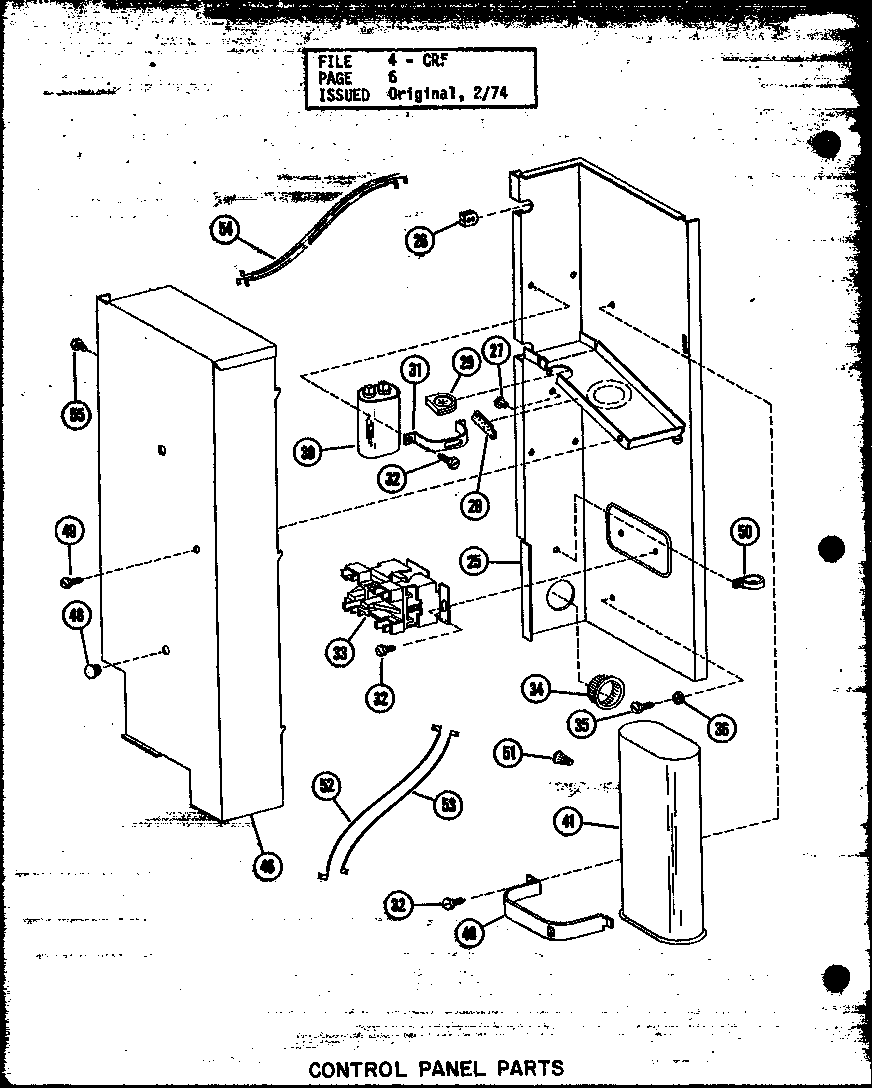

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Screw M0211317
Screw

Part #M0211317

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211317. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Screw M0211016
Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
"o" Ring (liquid Valve) B1135901
#71A

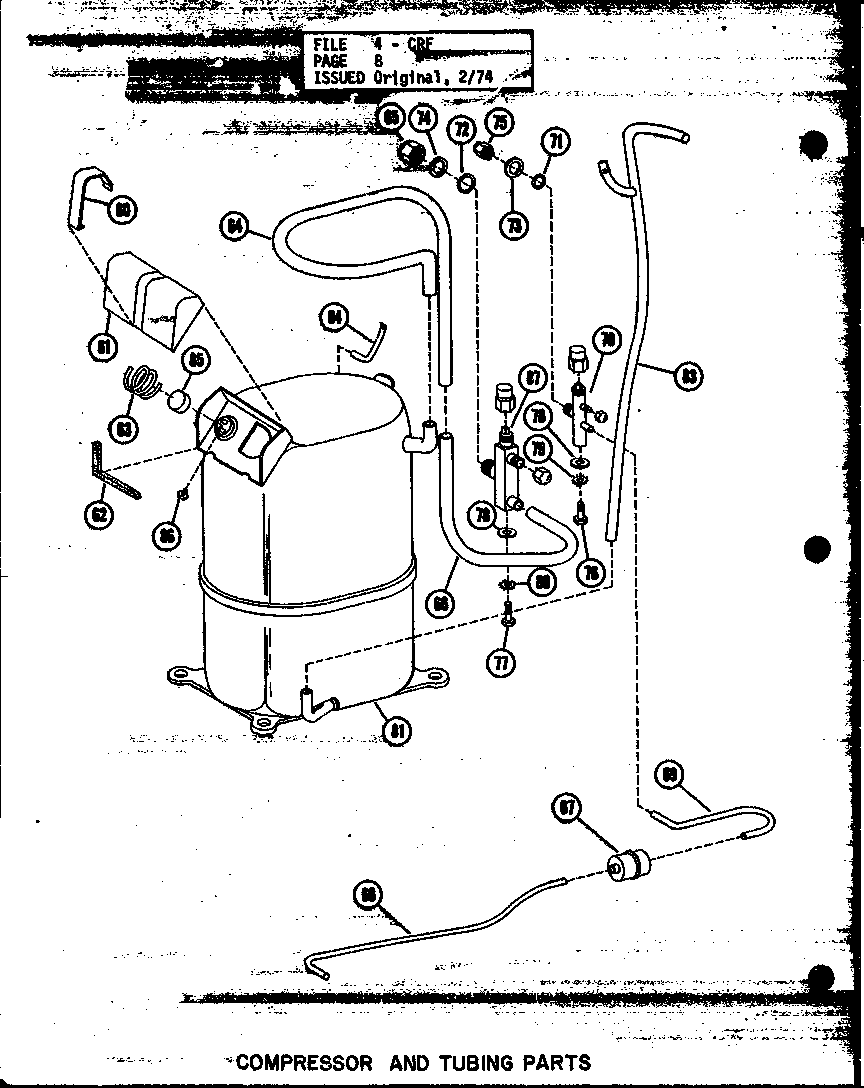

Compressor and tubing parts diagram

"o" ring (liquid valve)

Part #B1135901

The manufacturer no longer makes this part, and there's no substitute part

Baffle B5155701
#111

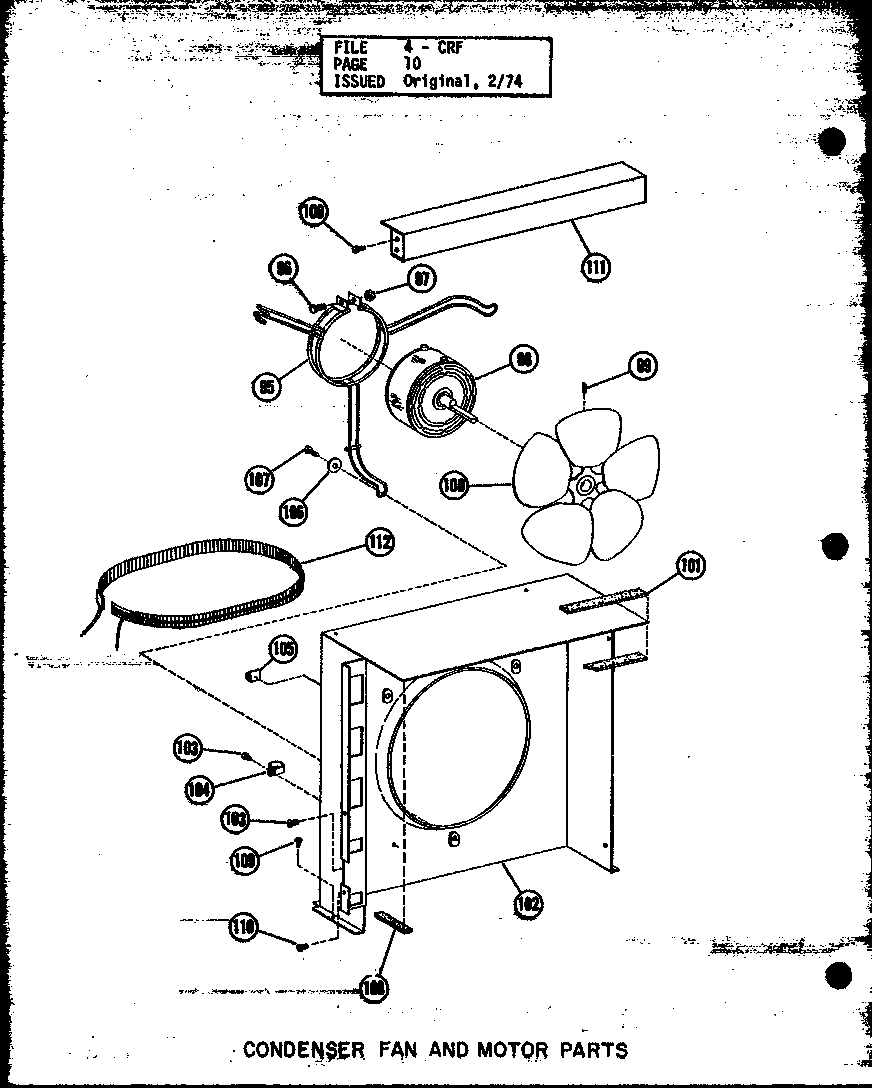

Condenser fan and motor parts diagram

Baffle

Part #B5155701

The manufacturer no longer makes this part, and there's no substitute part

Sleeve A4588802
#13C

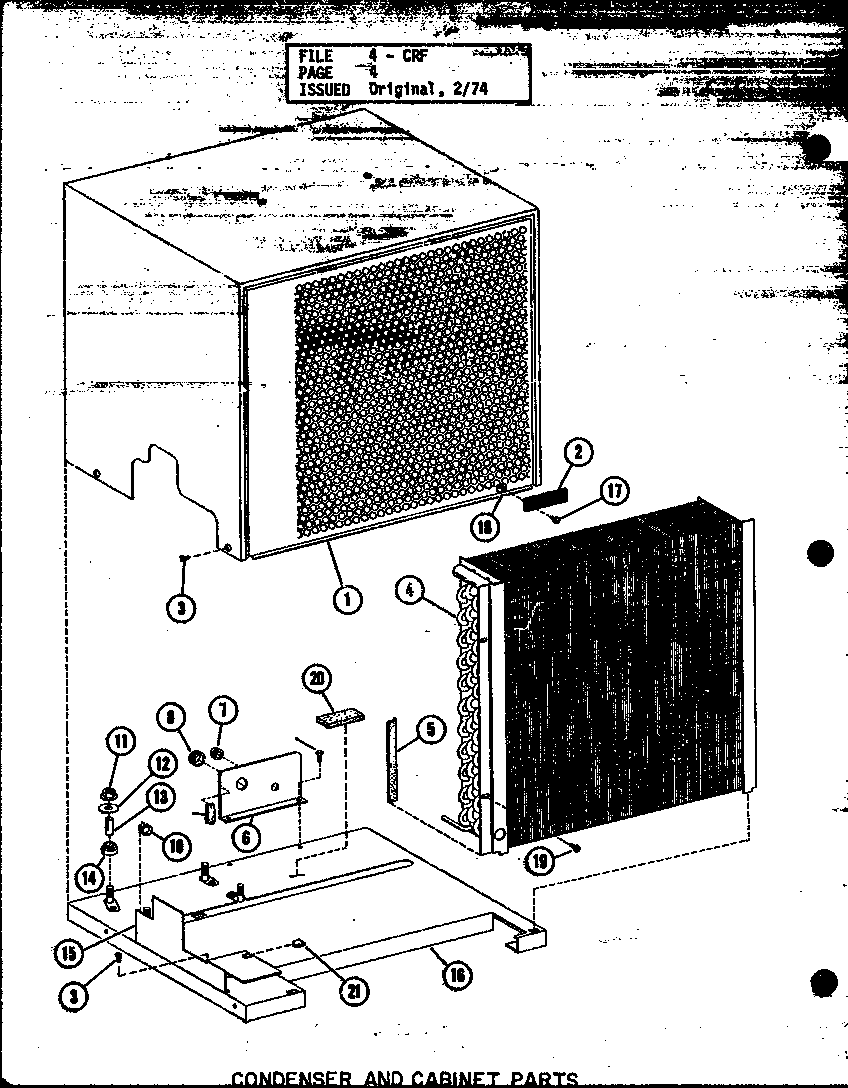

Condenser and cabinet parts diagram

Sleeve

Part #A4588802

The manufacturer no longer makes this part, and there's no substitute part

"d" Grommet A4568801
"d" grommet

Part #A4568801

The manufacturer no longer makes this part, and there's no substitute part

Cover Terminal B4793701
#61C

Compressor and tubing parts diagram

Cover terminal

Part #B4793701

The manufacturer no longer makes this part, and there's no substitute part

Condenser C5955601
#4G

Condenser and cabinet parts diagram

Condenser

Part #C5955601

The manufacturer no longer makes this part, and there's no substitute part

Condenser C5957801
#4H

Condenser and cabinet parts diagram

Condenser

Part #C5957801

The manufacturer no longer makes this part, and there's no substitute part

Weldment, Discharge Tube C5917401
#83B

Compressor and tubing parts diagram

Weldment, discharge tube

Part #C5917401

The manufacturer no longer makes this part, and there's no substitute part
