Kenmore
Canister Vacuum

Model # 1162003590 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1162003590 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |

Motor Mount 744426
#10

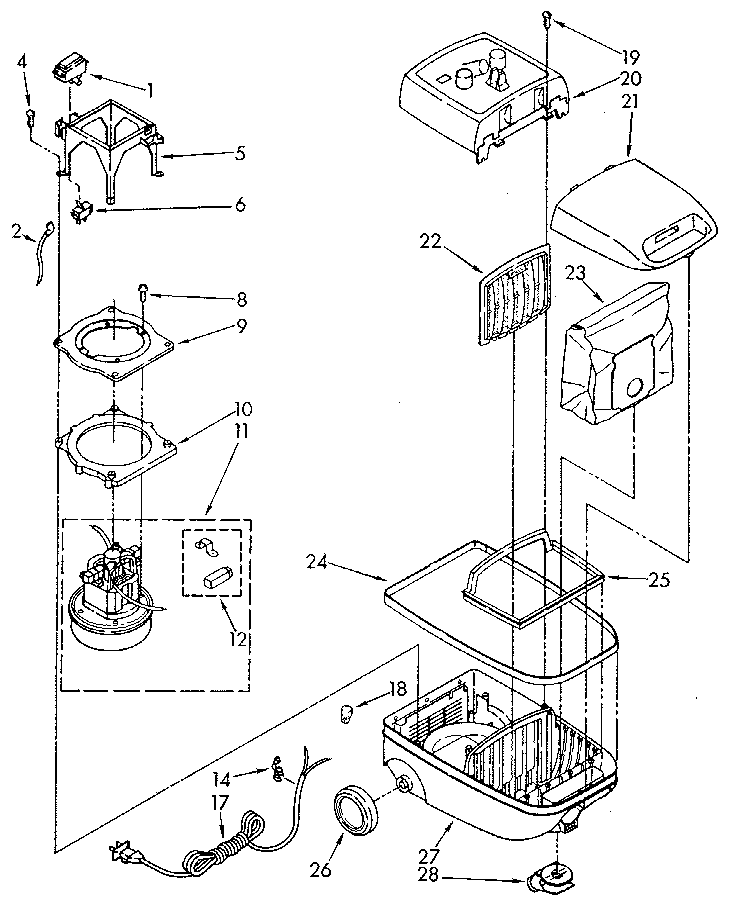

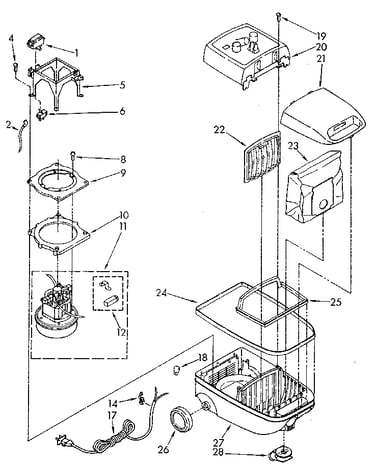

Unit parts diagram

Motor mount

Part #744426

The manufacturer no longer makes this part, and there's no substitute part

Floor Brush 4147110
#12

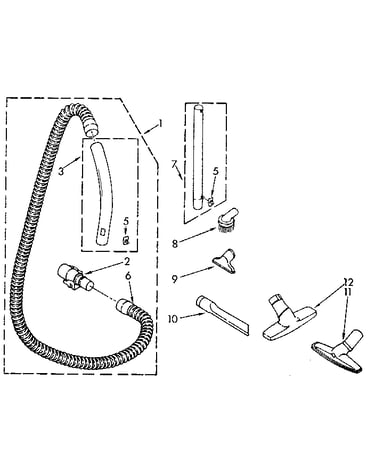

Hose and attachment diagram

Floor brush

Part #4147110

The manufacturer no longer makes this part, and there's no substitute part

Spring 725419
#5

Hose and attachment diagram

Spring

Part #725419

The manufacturer no longer makes this part, and there's no substitute part

Frame 4155694
#5

Unit parts diagram

Frame

Part #4155694

The manufacturer no longer makes this part, and there's no substitute part

Screw 681624
#8

Unit parts diagram

Screw

Part #681624

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual LIT4152963

#NI

All parts diagram

Owner's manual

Part #LIT4152963

The manufacturer no longer makes this part, and there's no substitute part

Wand 742489
#7

Hose and attachment diagram

Wand

Part #742489

The manufacturer no longer makes this part, and there's no substitute part

Upholstery Brush 4151029
#9

Hose and attachment diagram

Upholstery brush

Part #4151029

The manufacturer no longer makes this part, and there's no substitute part

Canister Hood 4155546
#21

Unit parts diagram

Canister hood

Part #4155546

The manufacturer no longer makes this part, and there's no substitute part

Relief 681556
#14

Unit parts diagram

Relief

Part #681556

The manufacturer no longer makes this part, and there's no substitute part
