Model # 56497991450 Official LXI turntable

Here are the diagrams and repair parts for Official LXI 56497991450 turntable, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Sansui Cartridge 89371
#62

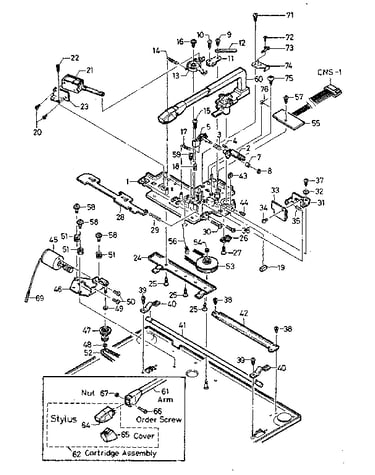

Mechanism diagram

Sansui cartridge

Part #89371

The manufacturer no longer makes this part, and there's no substitute part

Screw 46-57449-3
Screw

Part #46-57449-3

The manufacturer no longer makes this part, and there's no substitute part

Screw, Pan Head Tapping With Washer, 2.6 X 8 Mm, Arm Rest (ref. No. 10) Mtg. 46-47603-3
#17

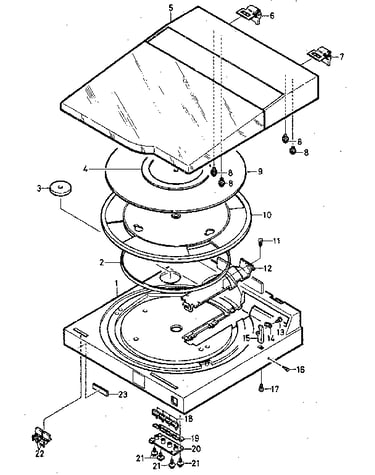

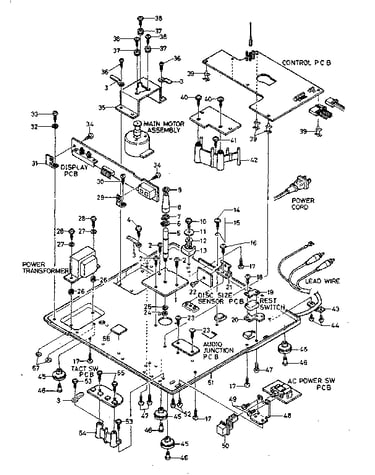

Cabinet diagram

Screw, pan head tapping with washer, 2.6 x 8 mm, arm rest (ref. no. 10) mtg.

Part #46-47603-3

The manufacturer no longer makes this part, and there's no substitute part

Adaptor, 7" Disc 46-84502-3
#3

Cabinet diagram

Adaptor, 7" disc

Part #46-84502-3

The manufacturer no longer makes this part, and there's no substitute part

Screw, Pan Hd., 3 X 16 Mm, Sensor Sensitivity Adjusting 46-57539-3
#36

Mechanism diagram

Screw, pan hd., 3 x 16 mm, sensor sensitivity adjusting

Part #46-57539-3

The manufacturer no longer makes this part, and there's no substitute part

Spring Coil, Retuning Lever (ref. No. 13) 46-701059-3
#14

Mechanism diagram

Spring coil, retuning lever (ref. no. 13)

Part #46-701059-3

The manufacturer no longer makes this part, and there's no substitute part

Pipe, Rotating Turntable 46-291231-3
#8

Cabinet diagram

Pipe, rotating turntable

Part #46-291231-3

The manufacturer no longer makes this part, and there's no substitute part

Washer, Spring, 4 X 7.6 X 1 Mm, Center Shaft (ref. No. 2) Mtg. 46-58470-3
#25

Cabinet diagram

Washer, spring, 4 x 7.6 x 1 mm, center shaft (ref. no. 2) mtg.

Part #46-58470-3

The manufacturer no longer makes this part, and there's no substitute part

Push Button, Left And Right Direction, Up, Start 46-521192-3
#18

Cabinet diagram

Push button, left and right direction, up, start

Part #46-521192-3

The manufacturer no longer makes this part, and there's no substitute part

Spring Wire, Adj. Bracket Switch 46-701062-3
#76

Mechanism diagram

Spring wire, adj. bracket switch

Part #46-701062-3

The manufacturer no longer makes this part, and there's no substitute part
