Model # NDP6125KJG1 Official ICP furnace

Here are the diagrams and repair parts for Official ICP NDP6125KJG1 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#28

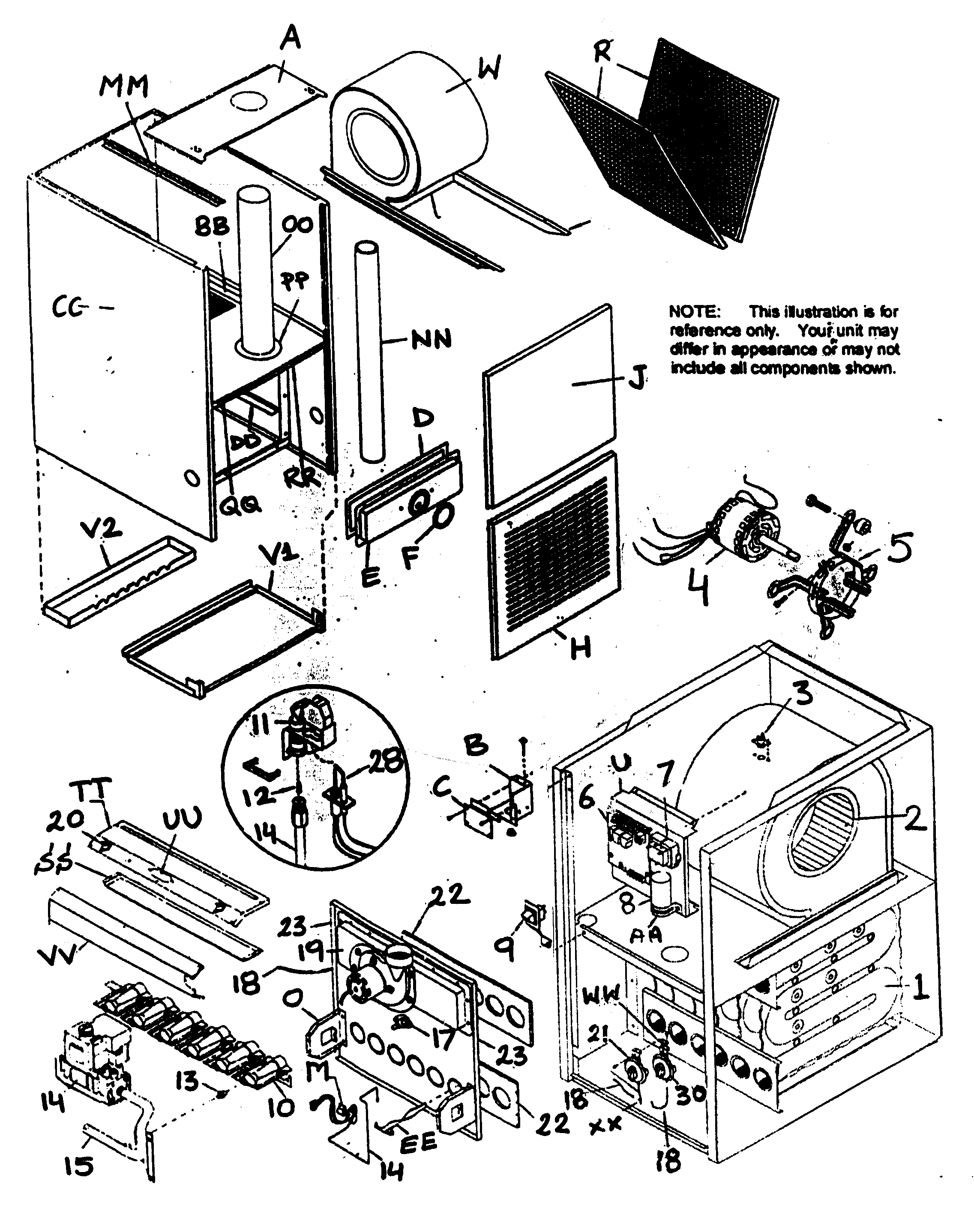

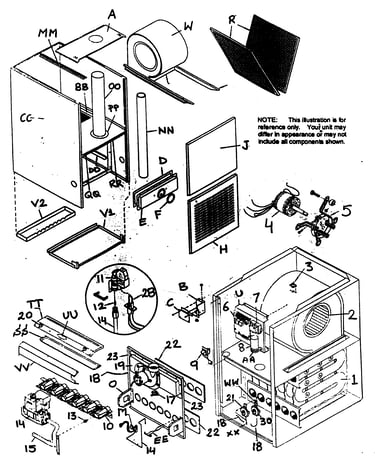

Cabinet parts diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Furnace Burner 1008726
#10

Cabinet parts diagram

Furnace burner

Part #1008726

$142.32
In Stock
Control 1012084
#6

Cabinet parts diagram

Control

Part #1012084

Replaced by #1014459

?
Manufacturer substitution
This part replaces 1012084. Substitute parts can look different from the original.
$320.61 |
$12.00 OFF Phone Price : $332.61
In Stock
Panel Cutoff 721020008
#X

Cabinet parts diagram

Panel cutoff

Part #721020008

$252.09
In Stock
Clamp Capctr 1095020
#AA

Cabinet parts diagram

Clamp capctr

Part #1095020

$100.98
In Stock
Sw Lmt T Ror 1320368
#3

Cabinet parts diagram

Sw lmt t ror

Part #1320368

$92.47
In Stock
Gskt Htx Bnr 2480907
#22

Cabinet parts diagram

Gskt htx bnr

Part #2480907

This item is not returnable
$7.46
In Stock
Cnvrsn-kit 1011789
#NI

Cabinet parts diagram

Cnvrsn-kit

Part #1011789

$298.29
In Stock
Glass-sght 1011781
#UU

Cabinet parts diagram

Glass-sght

Part #1011781

$22.26
In Stock
Panel Frnt 1012411
#23

Cabinet parts diagram

Panel frnt

Part #1012411

$708.00
In Stock
