Model # EBCU4810MD/P6866501C Official Amana high-efficiency universal blower unit with electric heat

Here are the diagrams and repair parts for Official Amana EBCU4810MD-P6866501C high-efficiency universal blower unit with electric heat, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

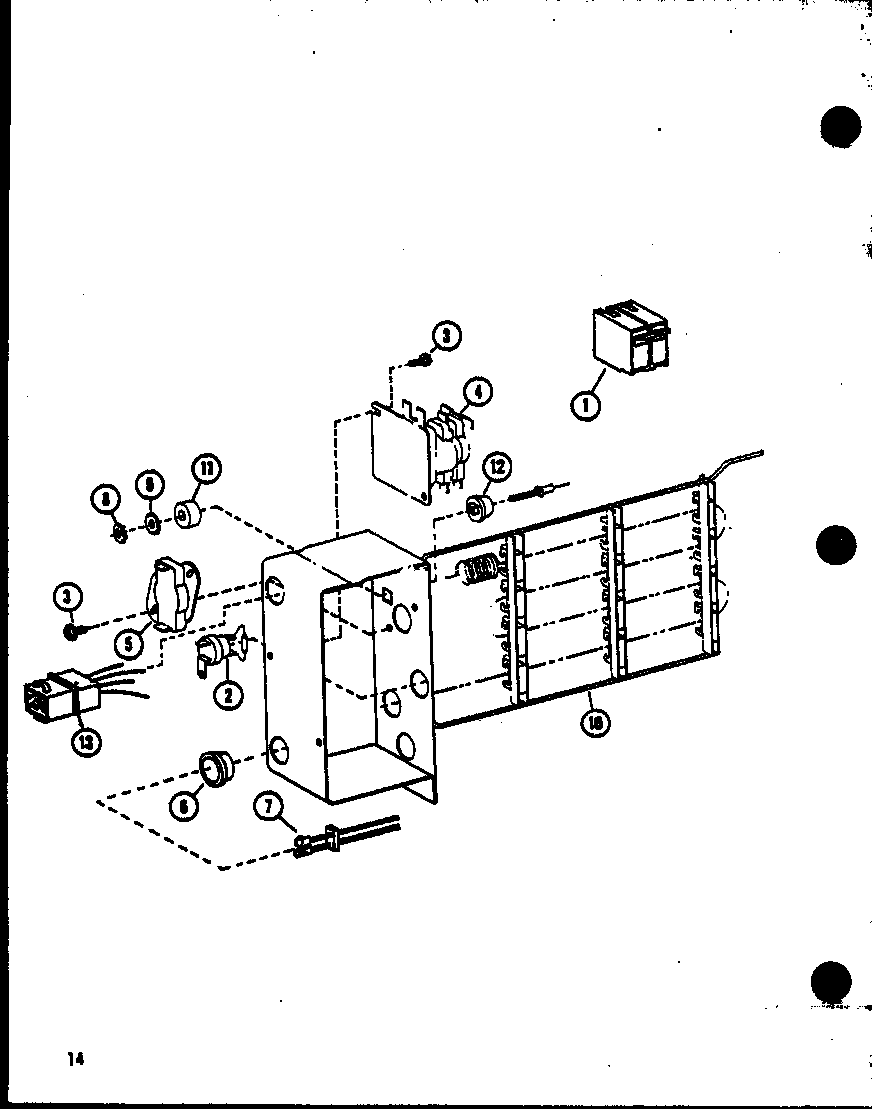

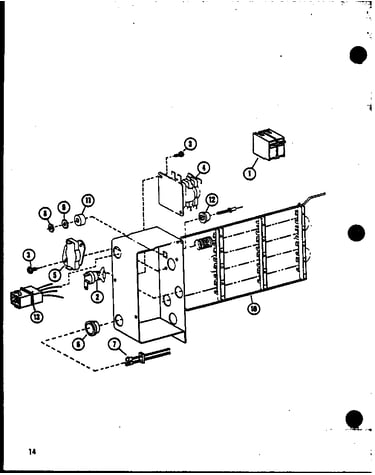

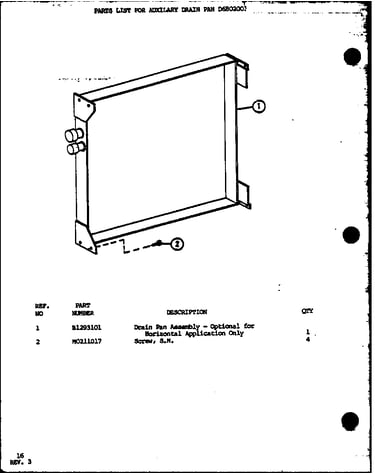

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Screw M0211317
Screw

Part #M0211317

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211317. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Use M0220617 M0233704
#14

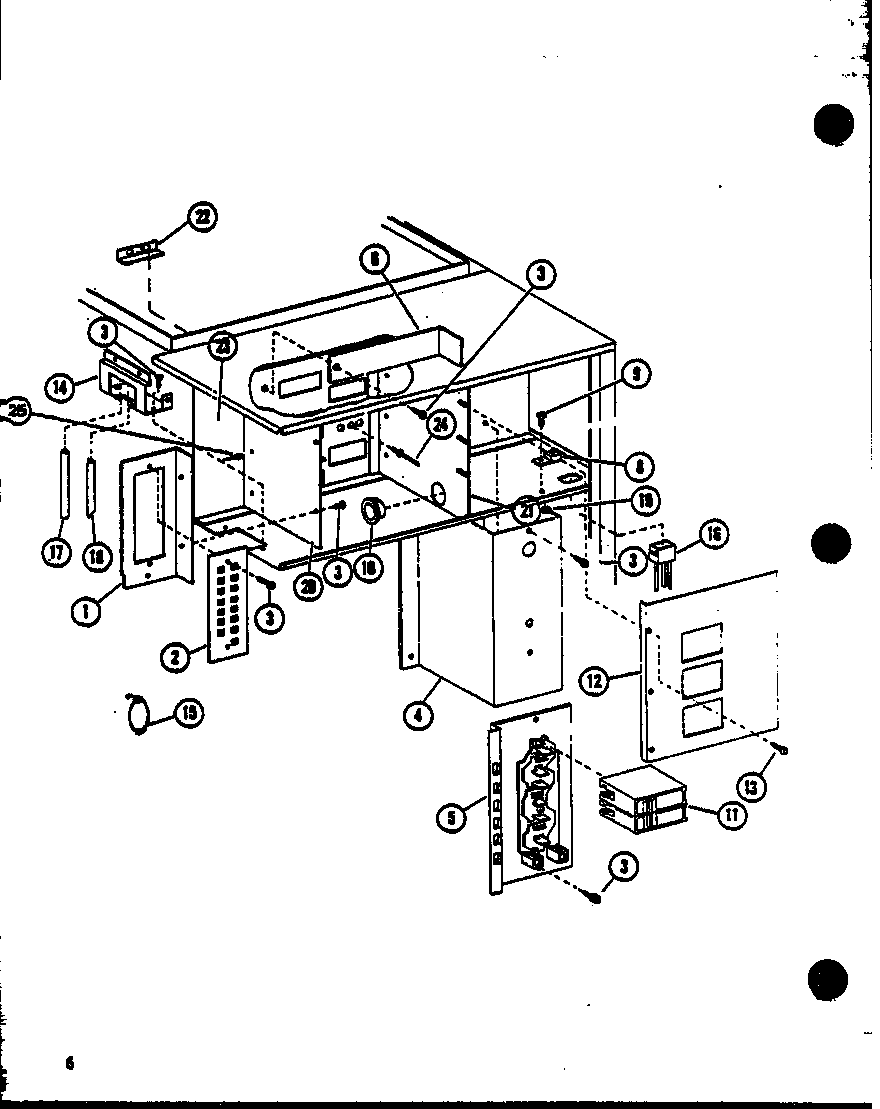

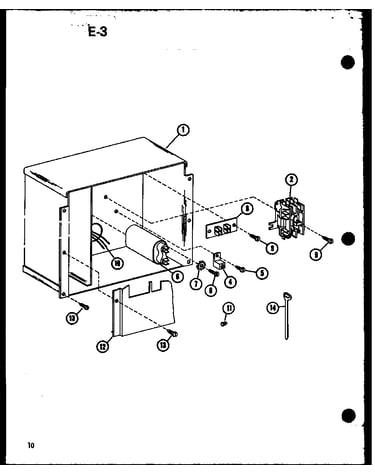

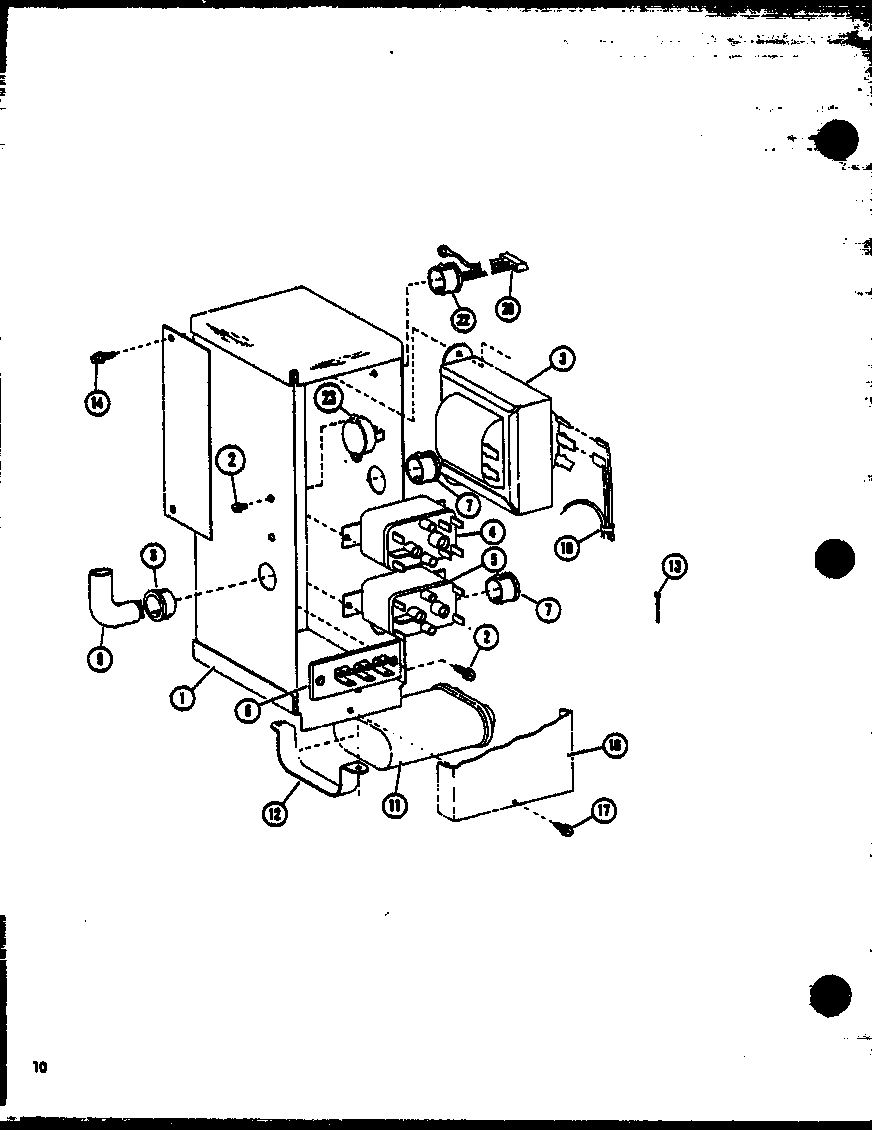

(ebcu4810md/p6866501c) (ebcu6010md/p6866502c) diagram

Use m0220617

Part #M0233704

Replaced by #WP489069

?
Manufacturer substitution
This part replaces M0233704. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Nut M0282009
#19

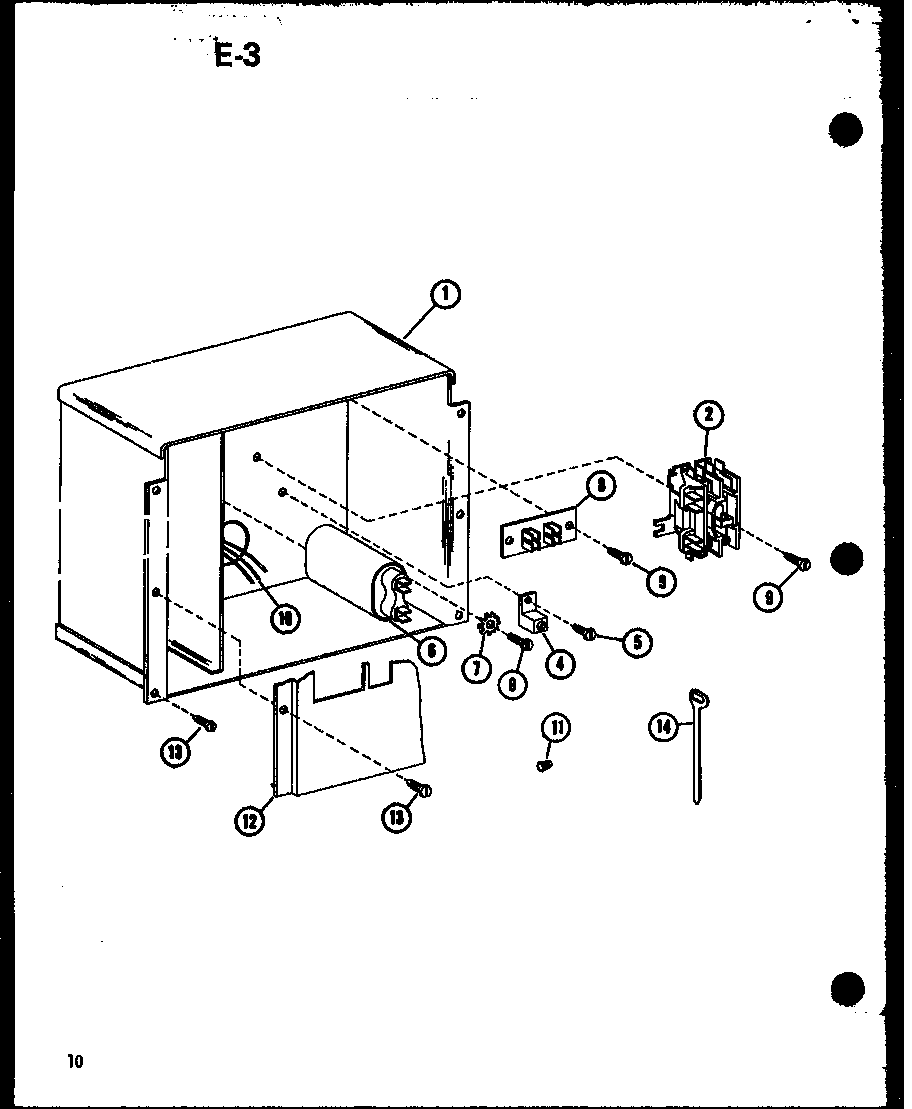

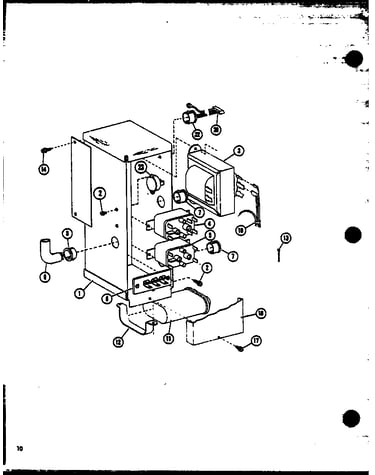

(ebcu4810md/p6866501c) (ebcu6010md/p6866502c) diagram

Nut

Part #M0282009

Replaced by #M0282009

?
Manufacturer substitution
This part replaces M0282009. Substitute parts can look different from the original.
$12.49
In Stock
Wire Joint A0317601
#11

(ebcu4810md/p6866501c) (ebcu6010md/p6866502c) diagram

Wire joint

Part #A0317601

Replaced by #WPA0317601

?
Manufacturer substitution
This part replaces A0317601. Substitute parts can look different from the original.
This item is not returnable
$6.29
In Stock
Tie M0321202
#13

(ebcu4810md/p6866501c) (ebcu6010md/p6866502c) diagram

Tie

Part #M0321202

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces M0321202. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw M0211016
Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Clamp M0102315

#NI

All parts diagram

Clamp

Part #M0102315

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Harness C6192501
#14

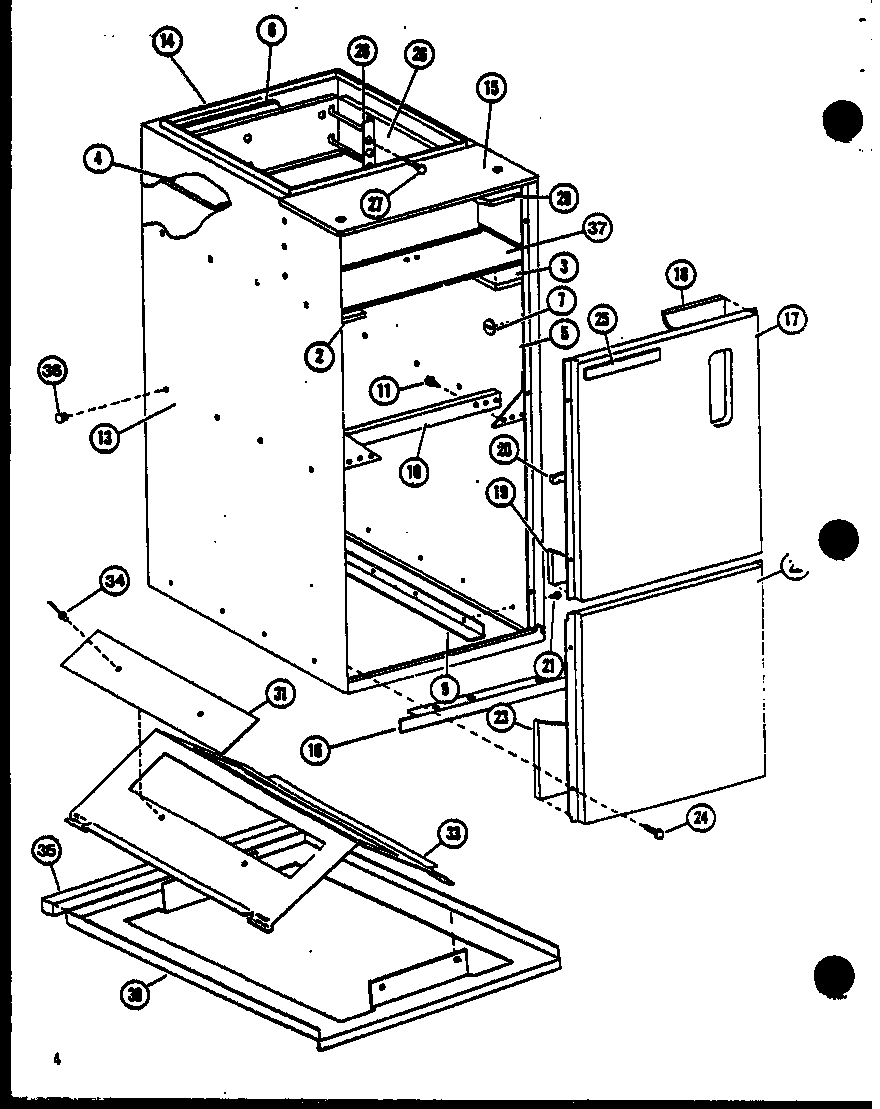

(ebcu4810md/p6866501c) (ebcu6010md/p6866502c) diagram

Bracket, harness

Part #C6192501

The manufacturer no longer makes this part, and there's no substitute part

Ground Lug A9015202
Ground lug

Part #A9015202

The manufacturer no longer makes this part, and there's no substitute part

Screw M1252043
#4A

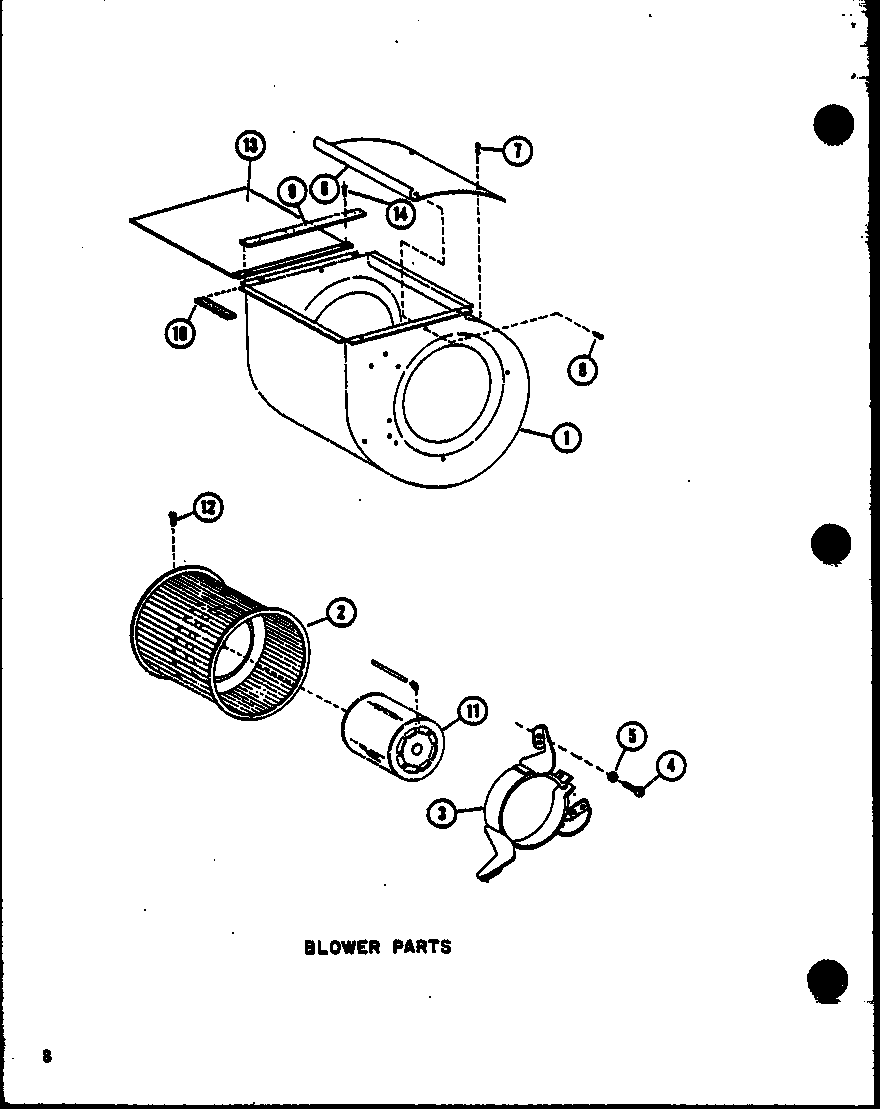

Blower parts (ebcu4810md/p6866501c) (ebcu6010md/p6866502c) diagram

Screw

Part #M1252043

The manufacturer no longer makes this part, and there's no substitute part
