Homelite
Gas Chainsaw

Model # SUPER 2-UT10653 Official Homelite chainsaw

Here are the diagrams and repair parts for Official Homelite SUPER-2-UT10653 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

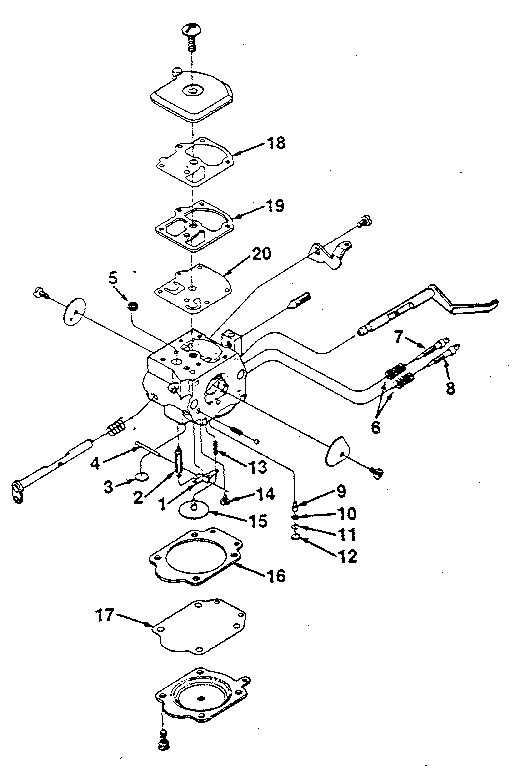

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Wrench - Combination D-24814

#NI

All parts diagram

Wrench - combination

Part #D-24814

The manufacturer no longer makes this part, and there's no substitute part

Sprocket A-95653-A
#21

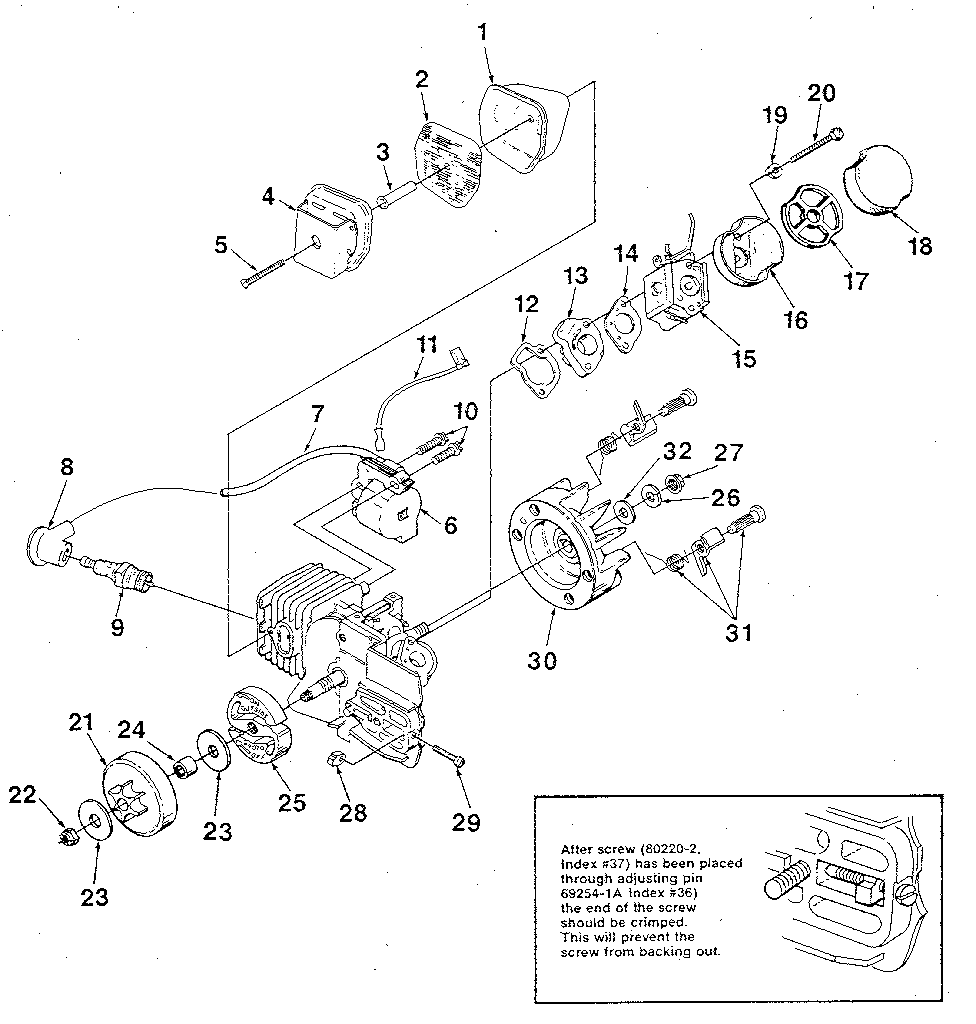

Figure 2 diagram

Sprocket

Part #A-95653-A

The manufacturer no longer makes this part, and there's no substitute part

Filter 96639
#38

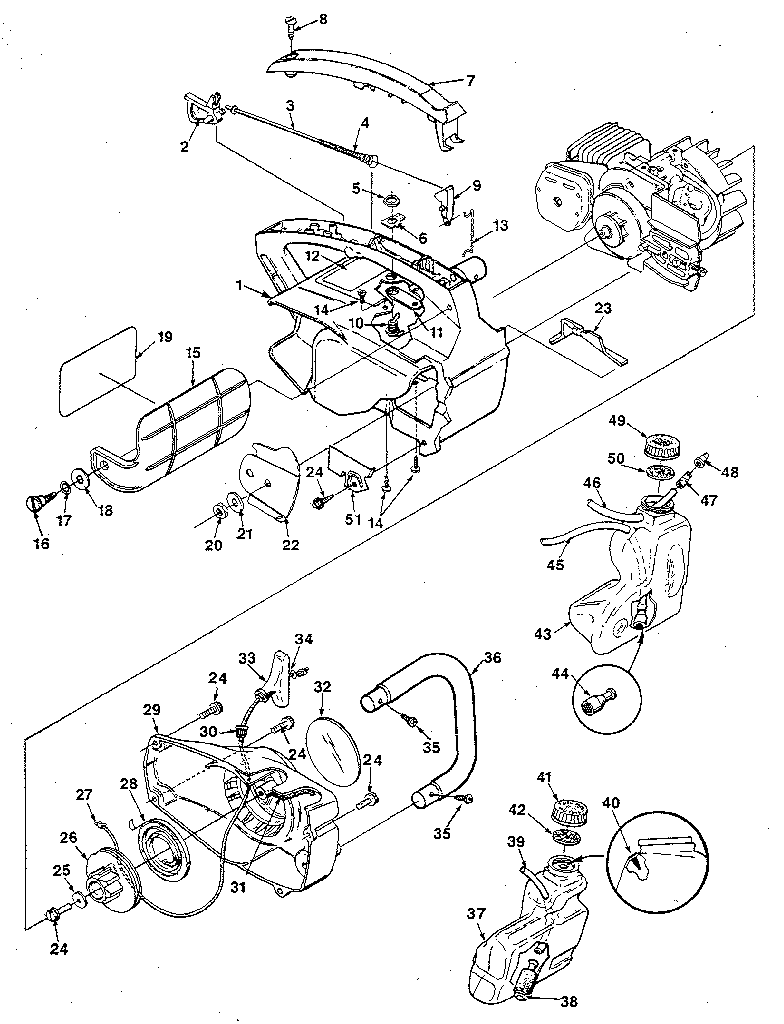

Figure 1 diagram

Filter

Part #96639

The manufacturer no longer makes this part, and there's no substitute part

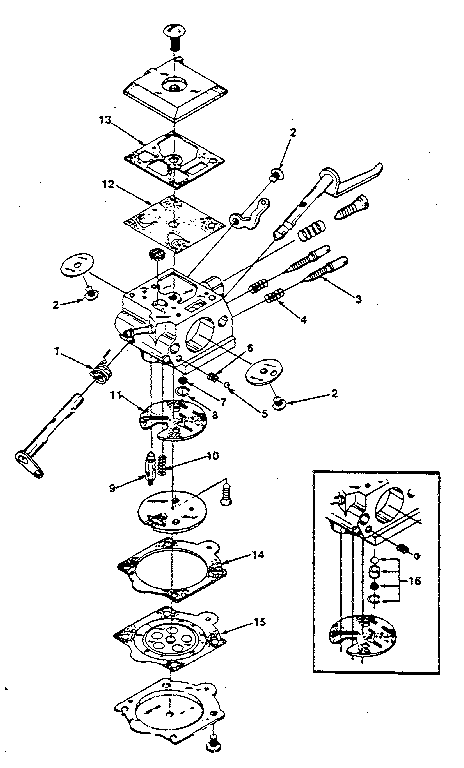

Fitting 70204
#10

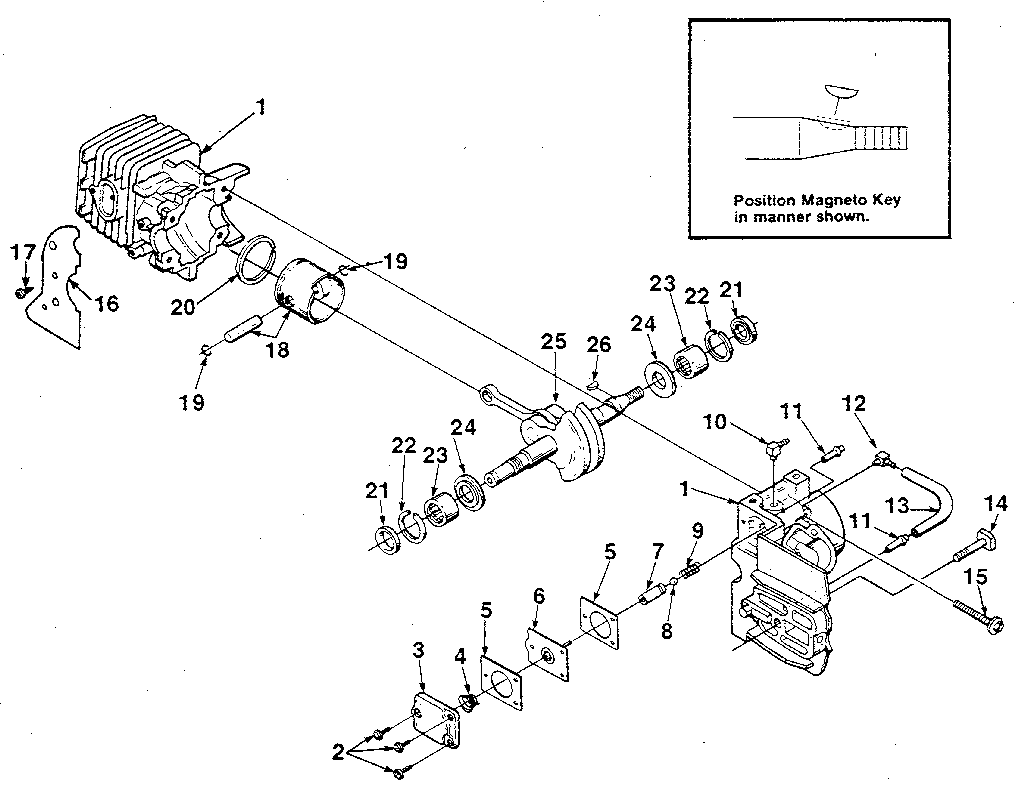

Figure 3 diagram

Fitting

Part #70204

The manufacturer no longer makes this part, and there's no substitute part

Gasket 69596

#NI

All parts diagram

Gasket

Part #69596

The manufacturer no longer makes this part, and there's no substitute part

Strap 96417
#11

Figure 1 diagram

Strap

Part #96417

The manufacturer no longer makes this part, and there's no substitute part

Screw 80571
#2

Figure 3 diagram

Screw

Part #80571

The manufacturer no longer makes this part, and there's no substitute part

Choke 60051
#8

Figure 3 diagram

Choke

Part #60051

The manufacturer no longer makes this part, and there's no substitute part

Screen 93991-A
#2

Figure 2 diagram

Screen

Part #93991-A

The manufacturer no longer makes this part, and there's no substitute part

Shield 69094
#16

Figure 3 diagram

Shield

Part #69094

The manufacturer no longer makes this part, and there's no substitute part
