Panasonic
Plasma Television

Model # TC-P55S60 Official Panasonic plasma television

Here are the diagrams and repair parts for Official Panasonic TC-P55S60 plasma television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Bracket TKZ5ZX50411
#9

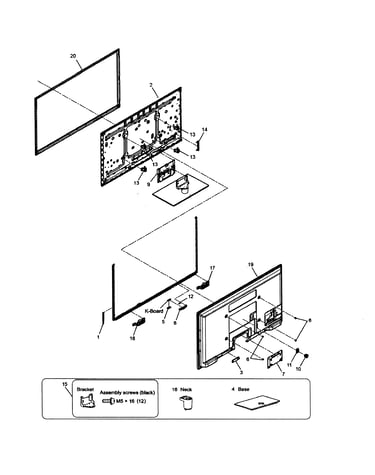

Cabinet parts diagram

Bracket

Part #TKZ5ZX50411

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Pcb Sd TZRNP03URUU
#SD

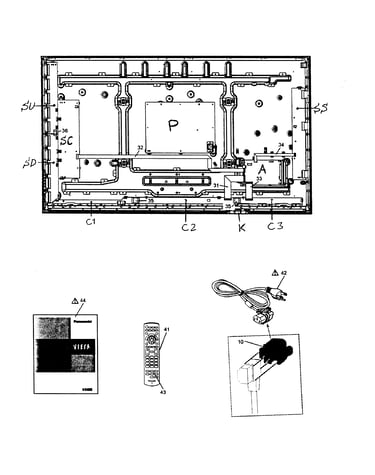

Plasma panel diagram

Panasonic pcb sd

Part #TZRNP03URUU

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Pcb Su TZRNP02URUU
#SU

Plasma panel diagram

Panasonic pcb su

Part #TZRNP02URUU

The manufacturer no longer makes this part, and there's no substitute part

Television Printed Circuit Board N5HBZ0000101
#3

Cabinet parts diagram

Television printed circuit board

Part #N5HBZ0000101

The manufacturer no longer makes this part, and there's no substitute part

Pcb C2 TZRNP07URUU
#C2

Plasma panel diagram

Pcb c2

Part #TZRNP07URUU

The manufacturer no longer makes this part, and there's no substitute part

Speaker TXFEA0113SER
#17

Cabinet parts diagram

Speaker

Part #TXFEA0113SER

The manufacturer no longer makes this part, and there's no substitute part

Pcb C1 TZRNP06URUU
#C1

Plasma panel diagram

Pcb c1

Part #TZRNP06URUU

The manufacturer no longer makes this part, and there's no substitute part

Stand Brck TXFBL5Z0119
#15

Cabinet parts diagram

Stand brck

Part #TXFBL5Z0119

The manufacturer no longer makes this part, and there's no substitute part

Cover TKP5ZA28601
#7

Cabinet parts diagram

Cover

Part #TKP5ZA28601

The manufacturer no longer makes this part, and there's no substitute part

Cable TSXM217
#36

Cabinet parts diagram

Cable

Part #TSXM217

The manufacturer no longer makes this part, and there's no substitute part
