Model # FR730V-AS05 Official Kawasaki engine

Here are the diagrams and repair parts for Official Kawasaki FR730V-AS05 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

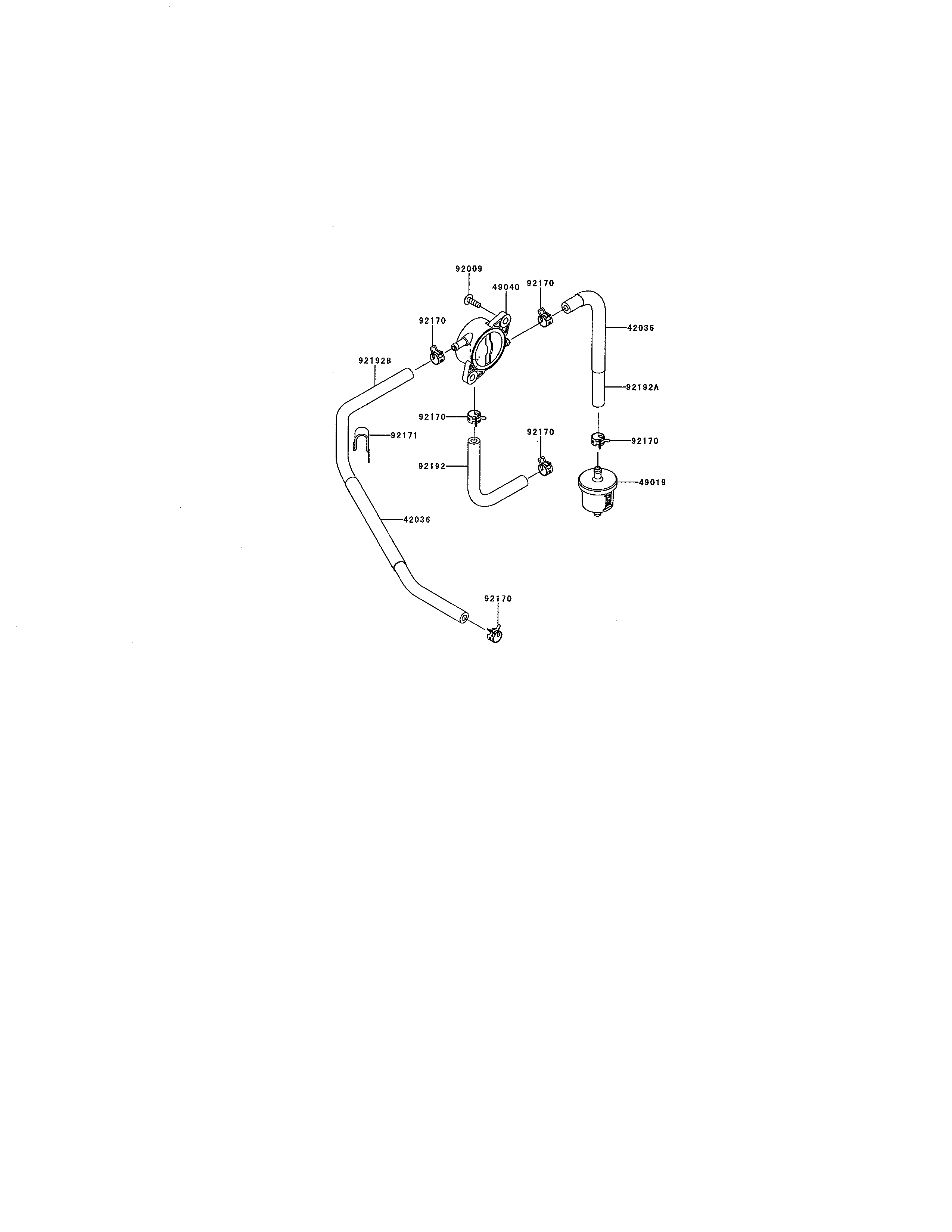

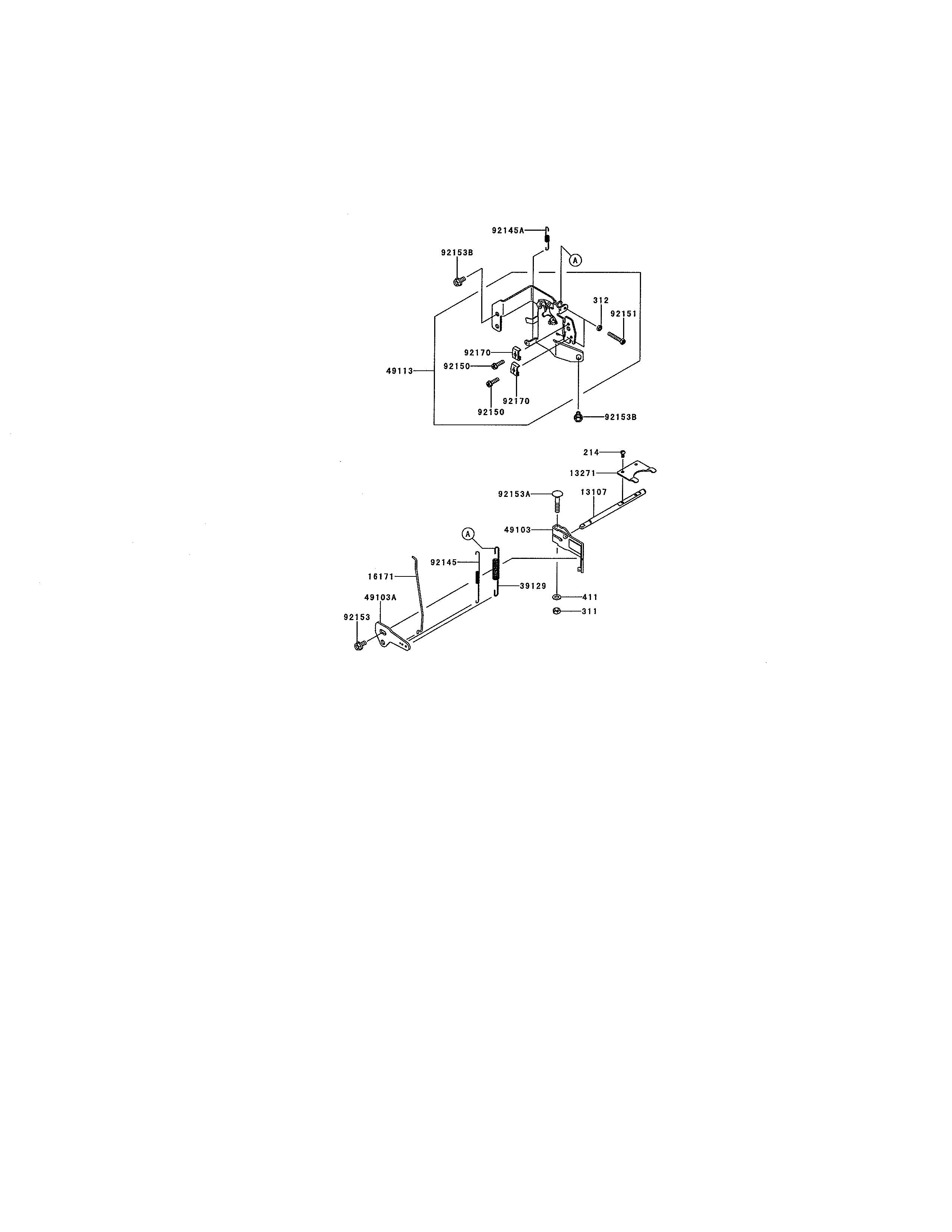

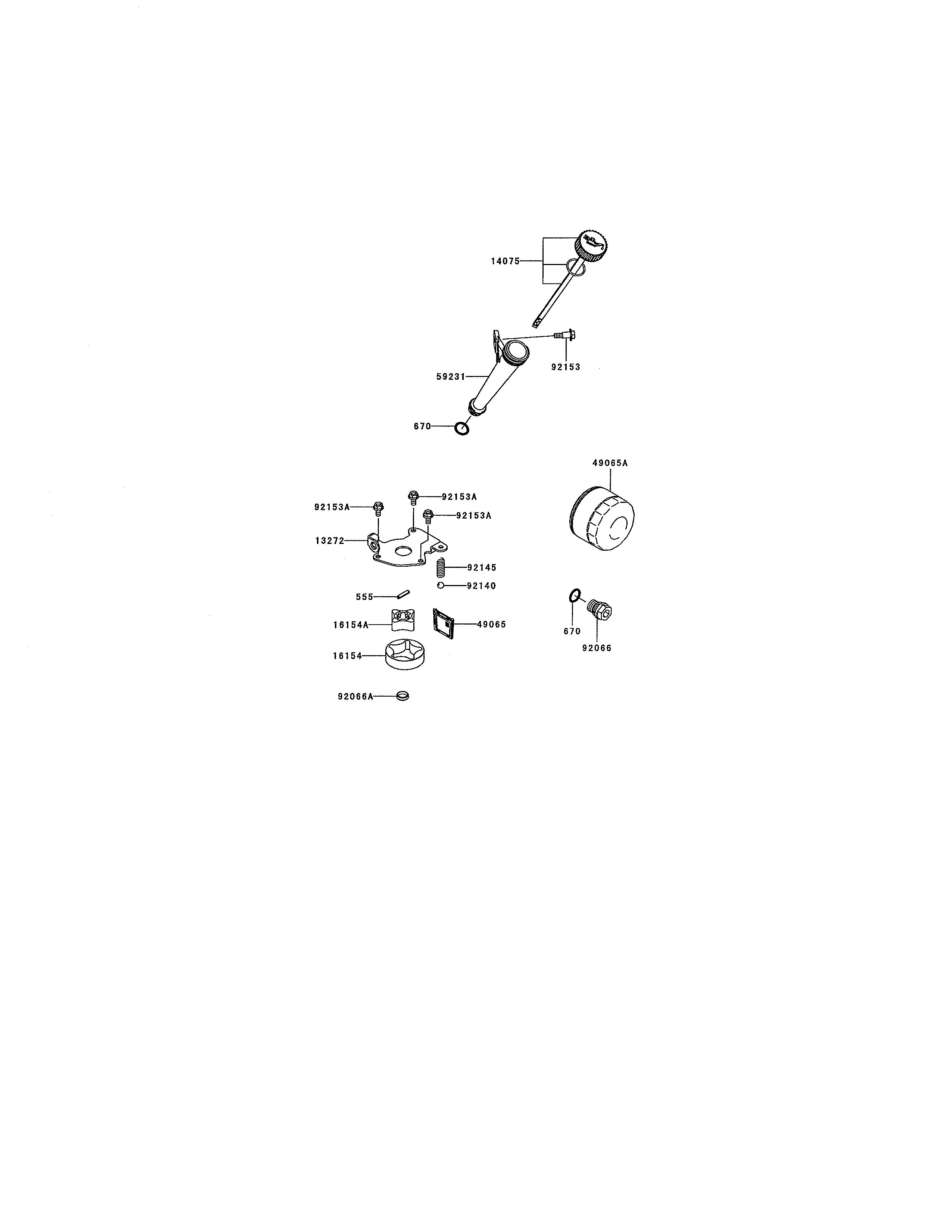

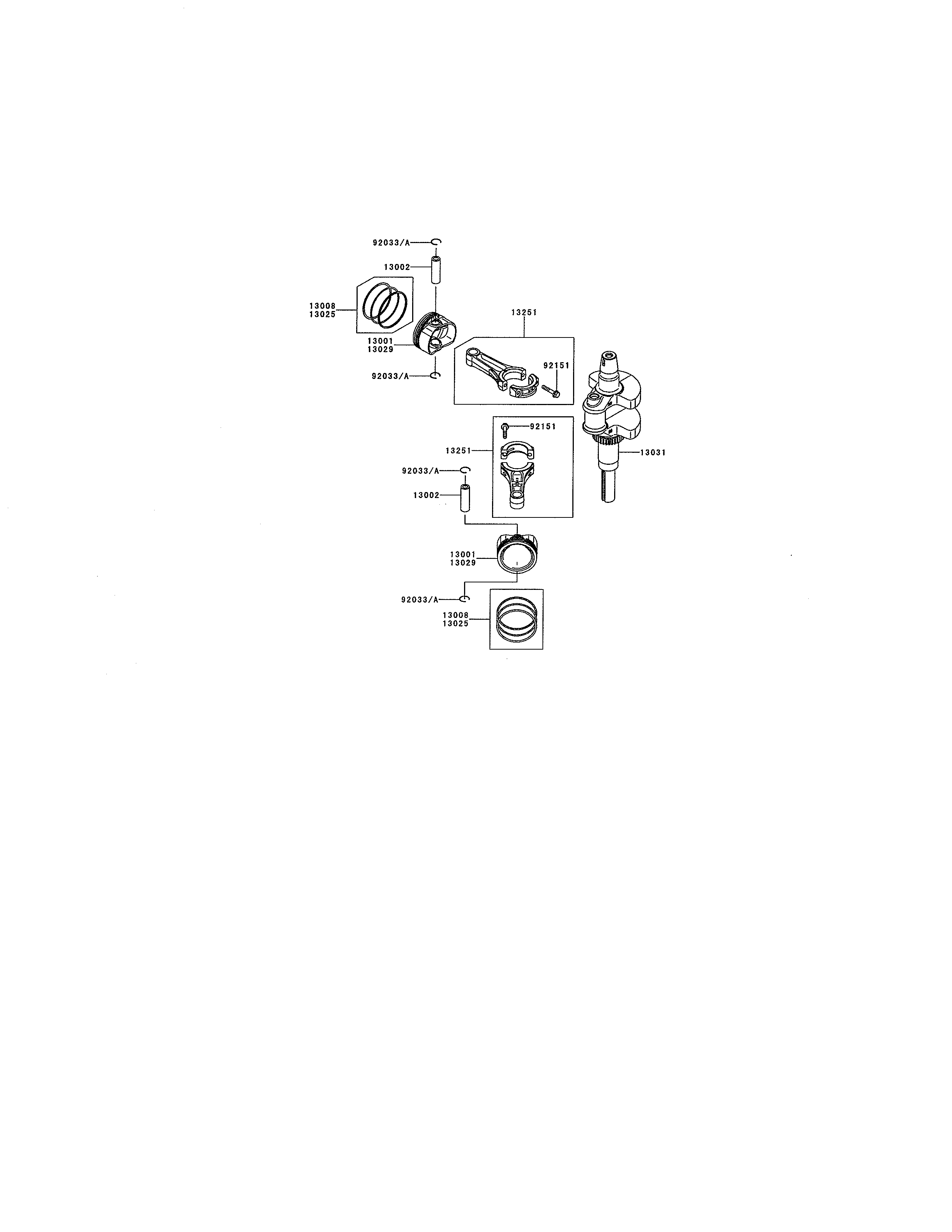

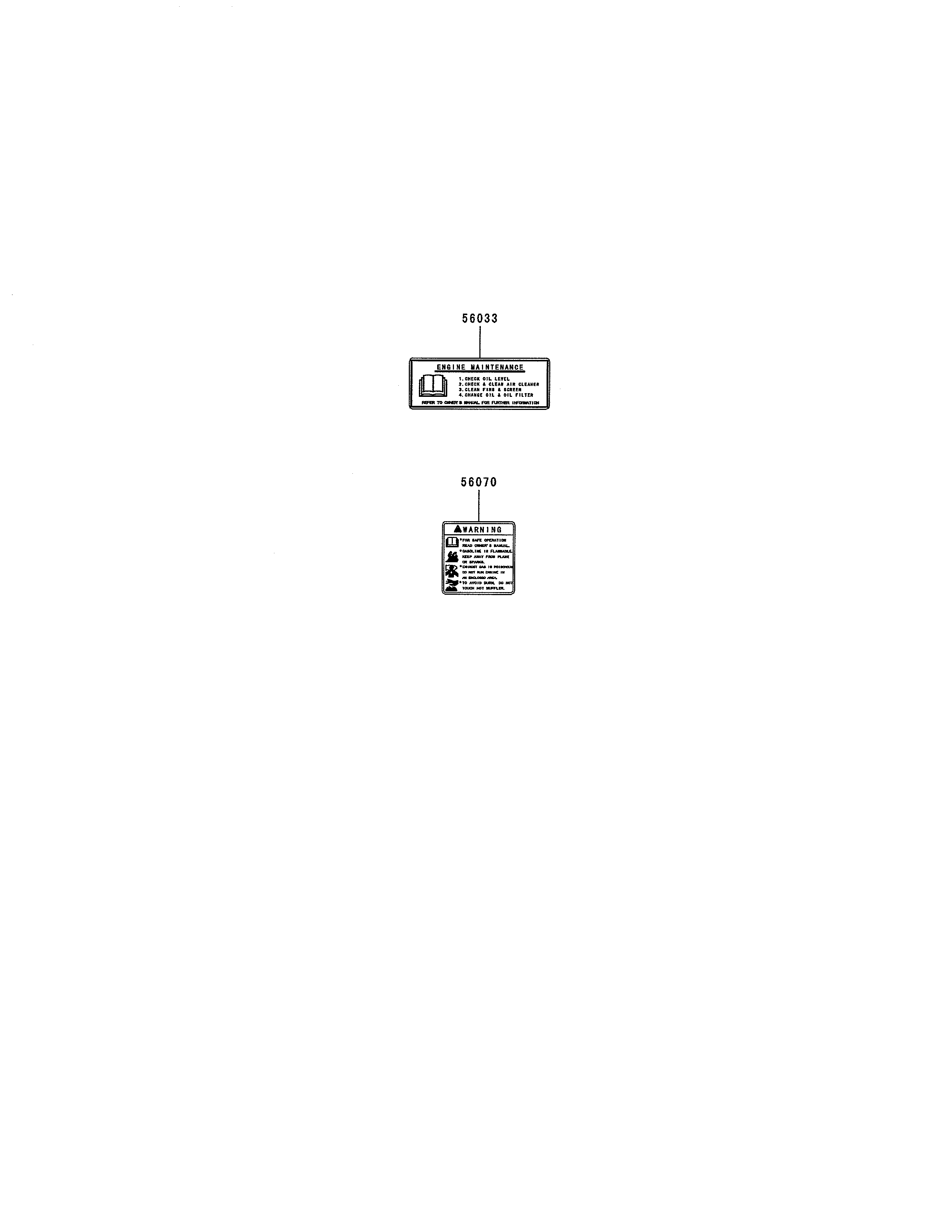

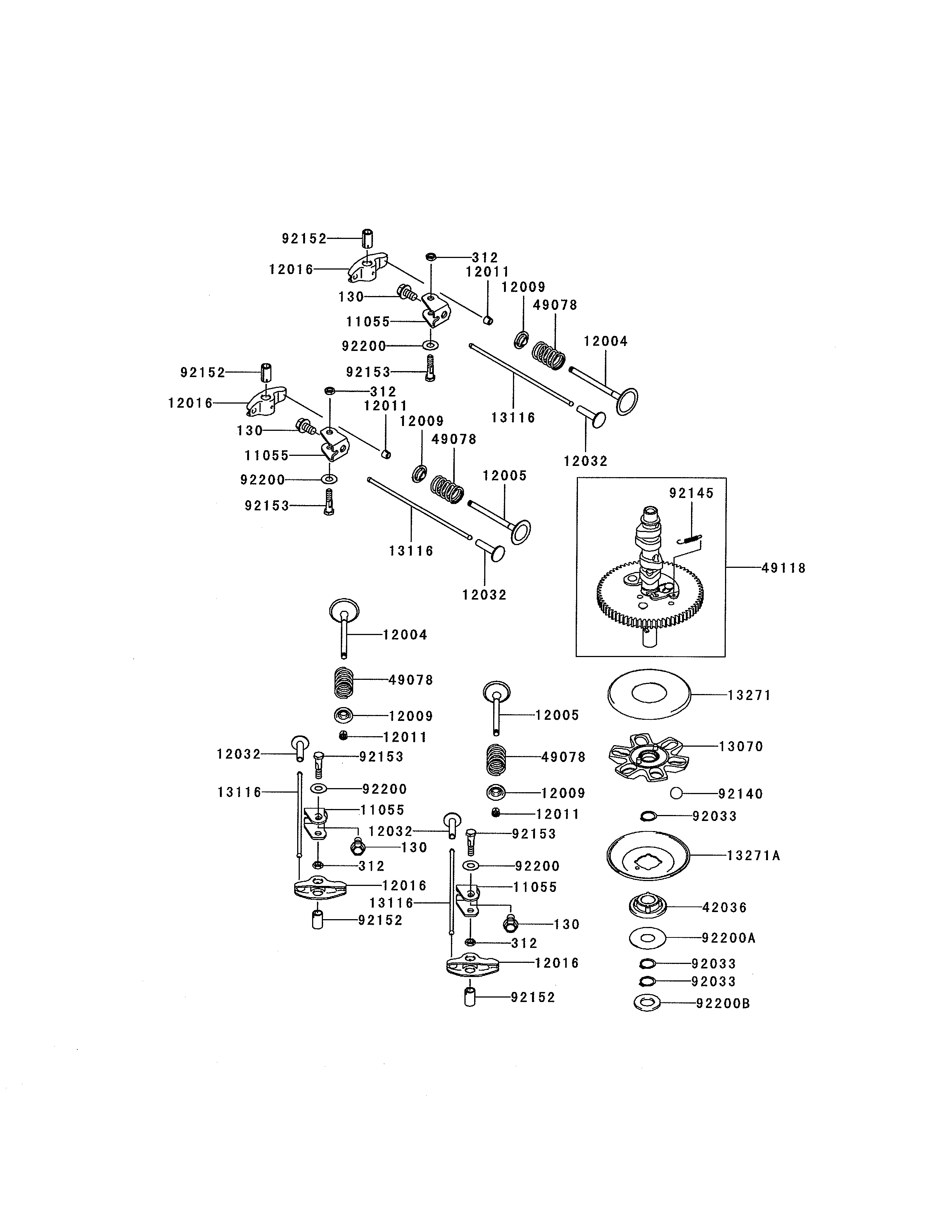

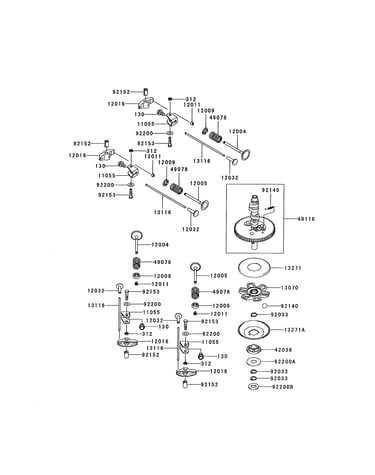

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 199 parts  |
Element 11013-7049
#11013

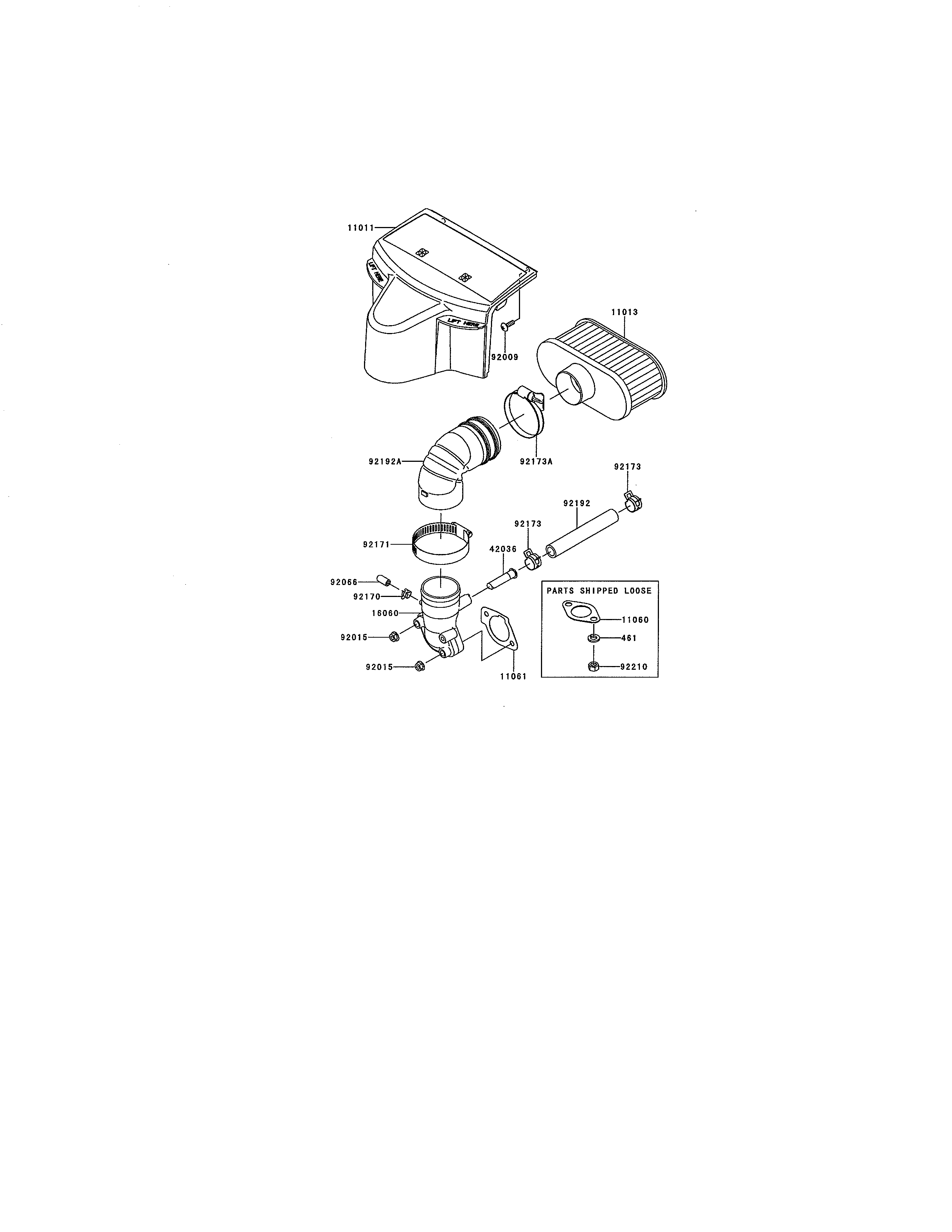

Air filter/muffler diagram

Element

Part #11013-7049

Replaced by #KM-11013-0752

?
Manufacturer substitution
This part replaces 11013-7049. Substitute parts can look different from the original.
$33.64
In Stock
Lawn & Garden Equipment Engine Spark Plug BPR4ES
#92070

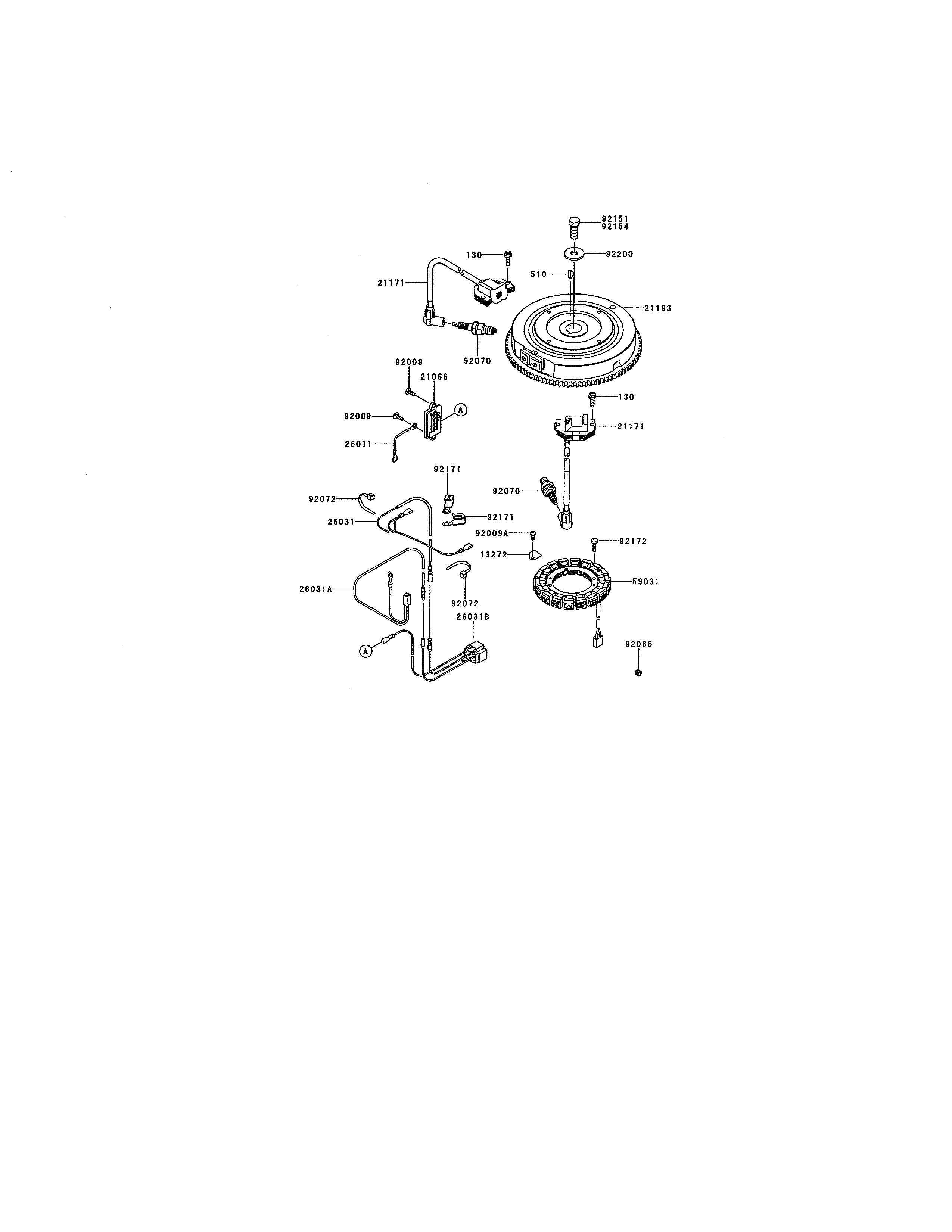

Electric equipment diagram

Lawn & garden equipment engine spark plug

Part #BPR4ES

Replaced by #6578

?
Manufacturer substitution
This part replaces BPR4ES. Substitute parts can look different from the original.
This item is not returnable
$5.60
In Stock
Electric Starter 21163-7034
#21163

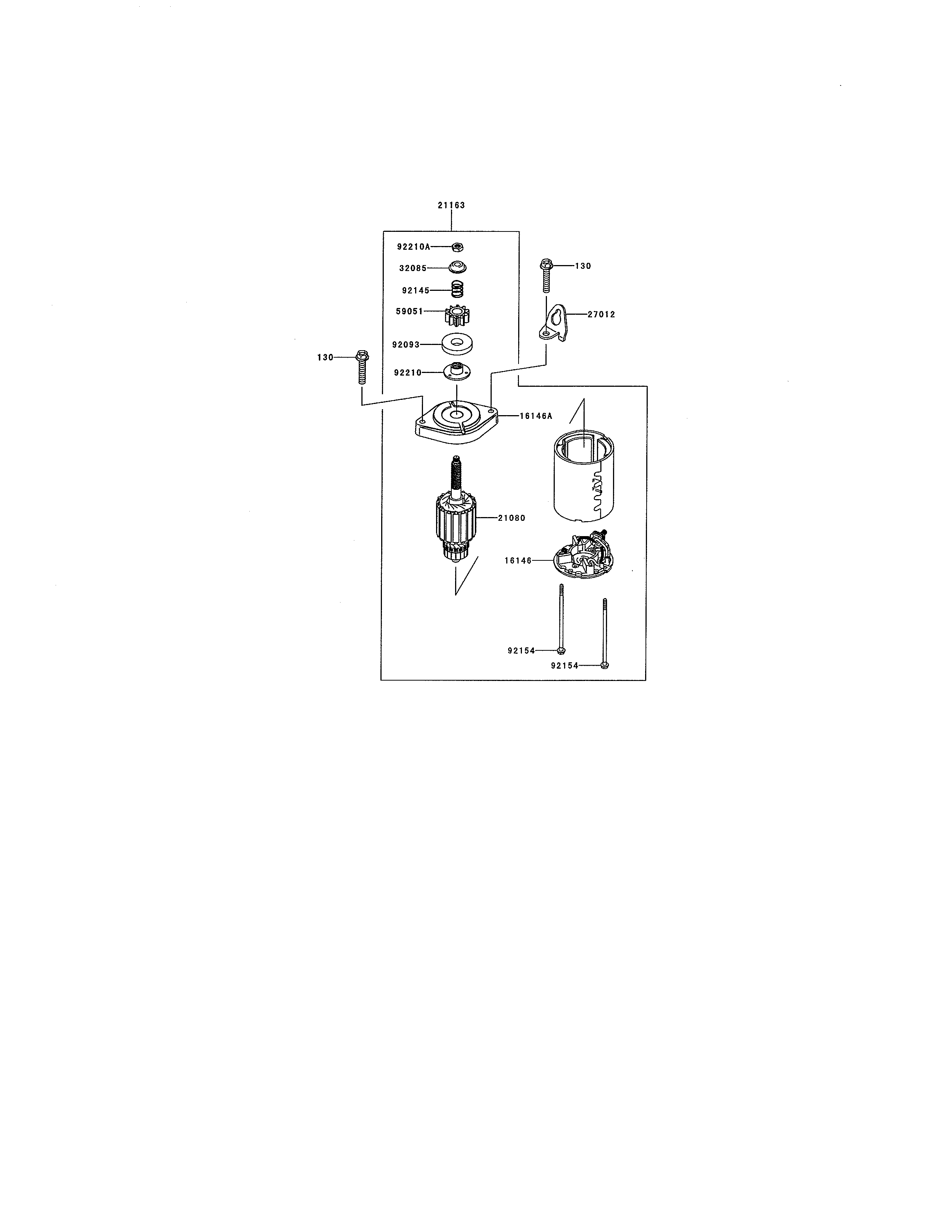

Starter diagram

Electric starter

Part #21163-7034

Replaced by #KM-21163-0804

?
Manufacturer substitution
This part replaces 21163-7034. Substitute parts can look different from the original.
$357.45
In Stock
Spring 92081-2234
#92081

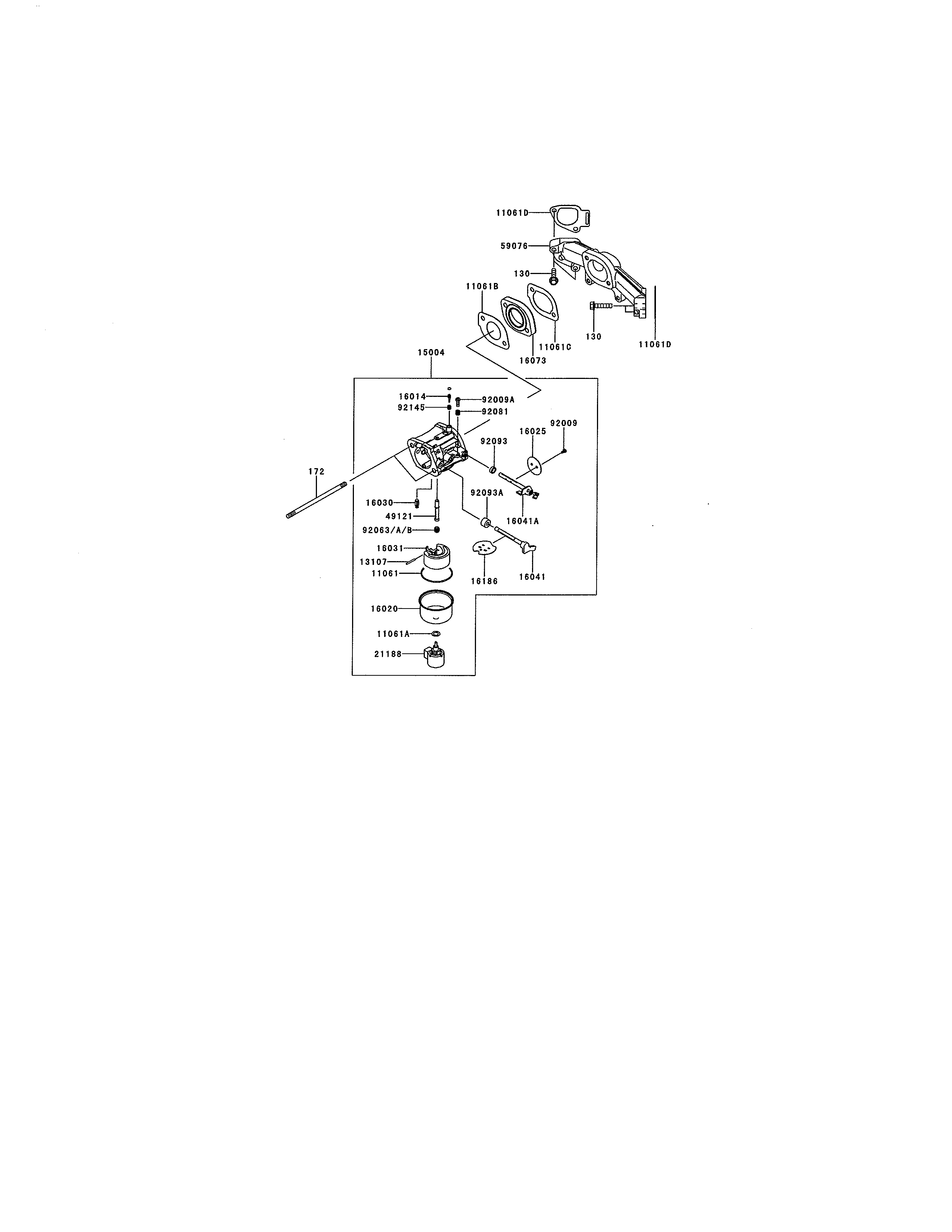

Carburetor diagram

Spring

Part #92081-2234

Replaced by #KM-92081-2234

?
Manufacturer substitution
This part replaces 92081-2234. Substitute parts can look different from the original.
This item is not returnable
$6.00
In Stock
Screw 214AA0408
Screw

Part #214AA0408

Replaced by #KM-214AA0408

?
Manufacturer substitution
This part replaces 214AA0408. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Case-rock #1 11022-7019
#11022

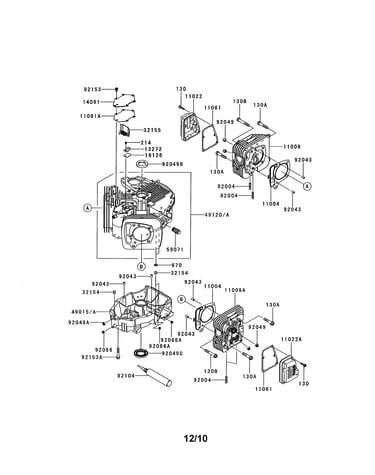

Cylinder/crankcase diagram

Case-rock #1

Part #11022-7019

Replaced by #KM-11022-7019

?
Manufacturer substitution
This part replaces 11022-7019. Substitute parts can look different from the original.
$25.07
In Stock
Fan 59041-7014
#59041

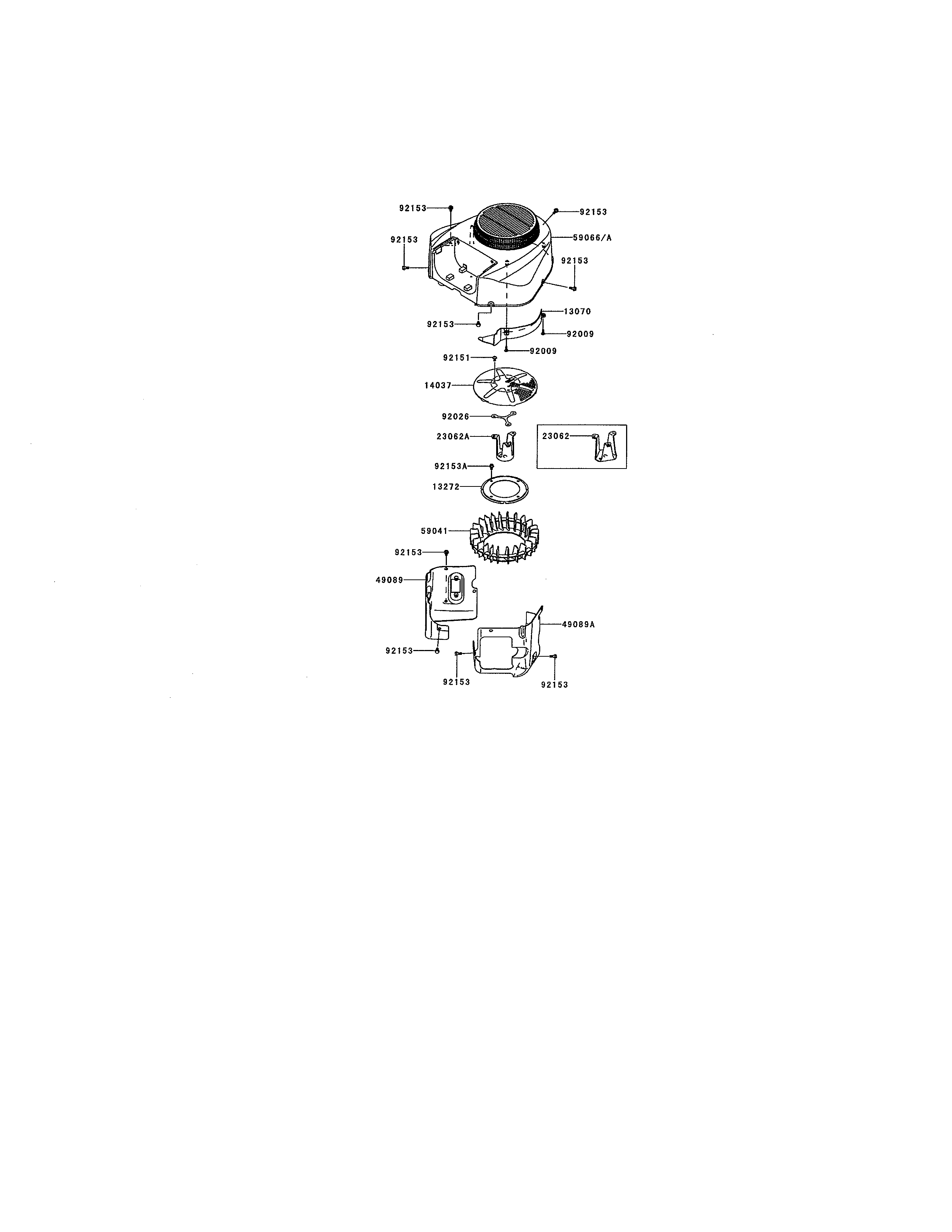

Cooling equipment diagram

Fan

Part #59041-7014

Replaced by #KM-59041-7014

?
Manufacturer substitution
This part replaces 59041-7014. Substitute parts can look different from the original.
$25.91
In Stock
Air Filter 11011-7054
#11011

Air filter/muffler diagram

Air filter

Part #11011-7054

Replaced by #KM-11011-0820

?
Manufacturer substitution
This part replaces 11011-7054. Substitute parts can look different from the original.
$69.47
In Stock
Plate 13272-7012
#13272

Electric equipment diagram

Plate

Part #13272-7012

Replaced by #KM-13272-7012

?
Manufacturer substitution
This part replaces 13272-7012. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Oil Seal 92049-7010
#92049B

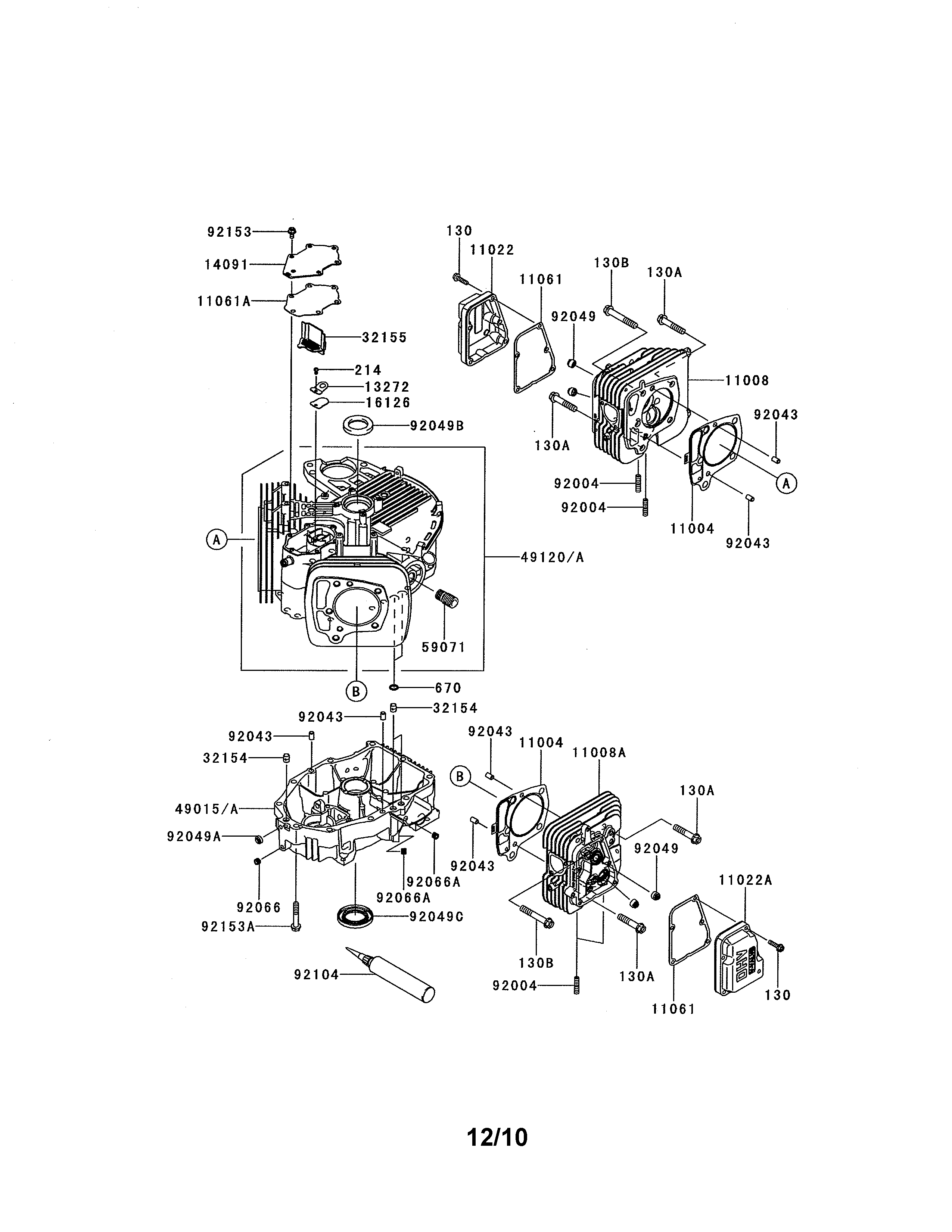

Cylinder/crankcase diagram

Oil seal

Part #92049-7010

Replaced by #KM-92049-7010

?
Manufacturer substitution
This part replaces 92049-7010. Substitute parts can look different from the original.
This item is not returnable
$5.66
In Stock
