Countertop Microwave

Model # JE1860BH03 Official GE microwave

Here are the diagrams and repair parts for Official GE JE1860BH03 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

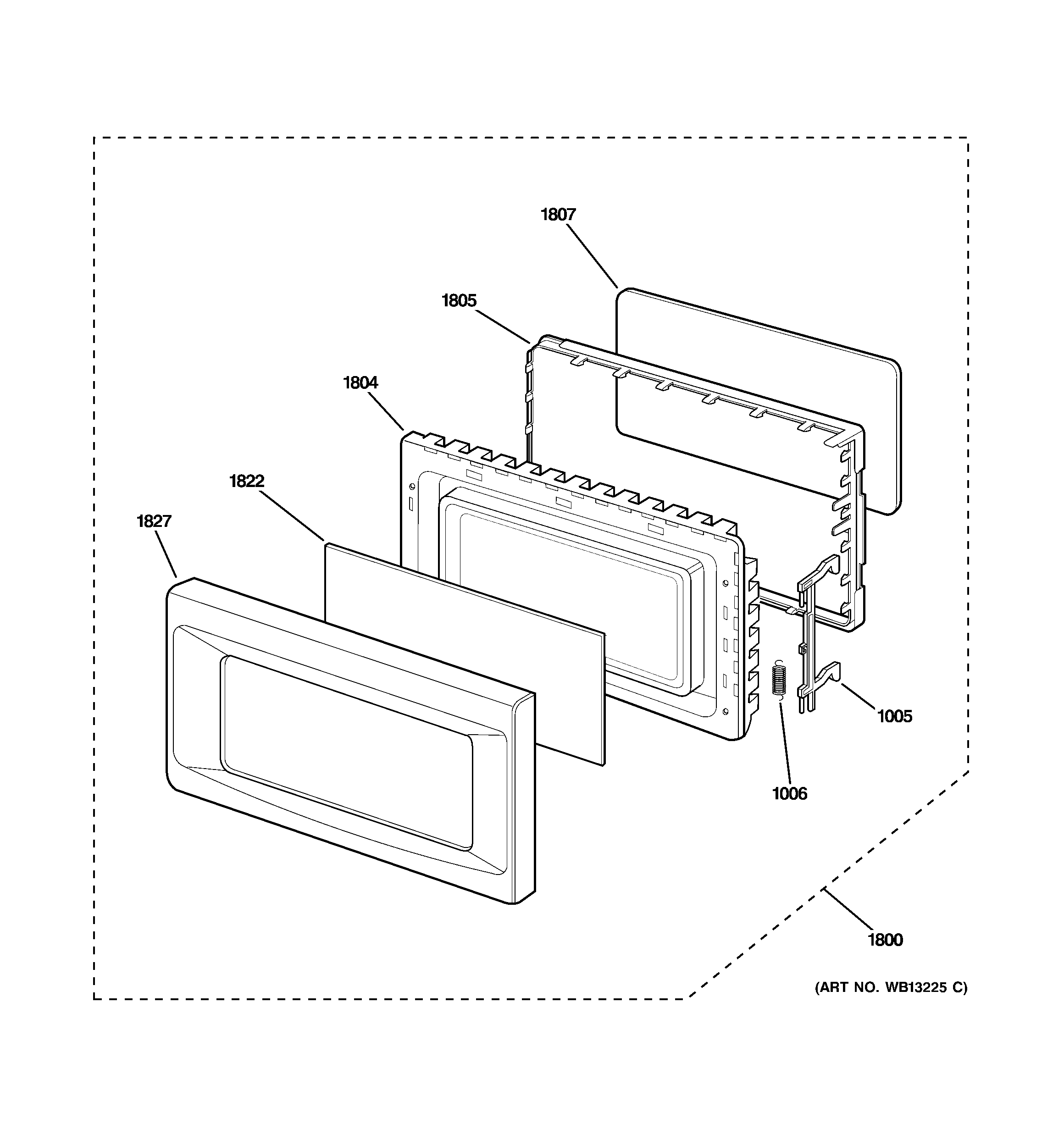

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Microwave Fuse WB27X10388
#4010

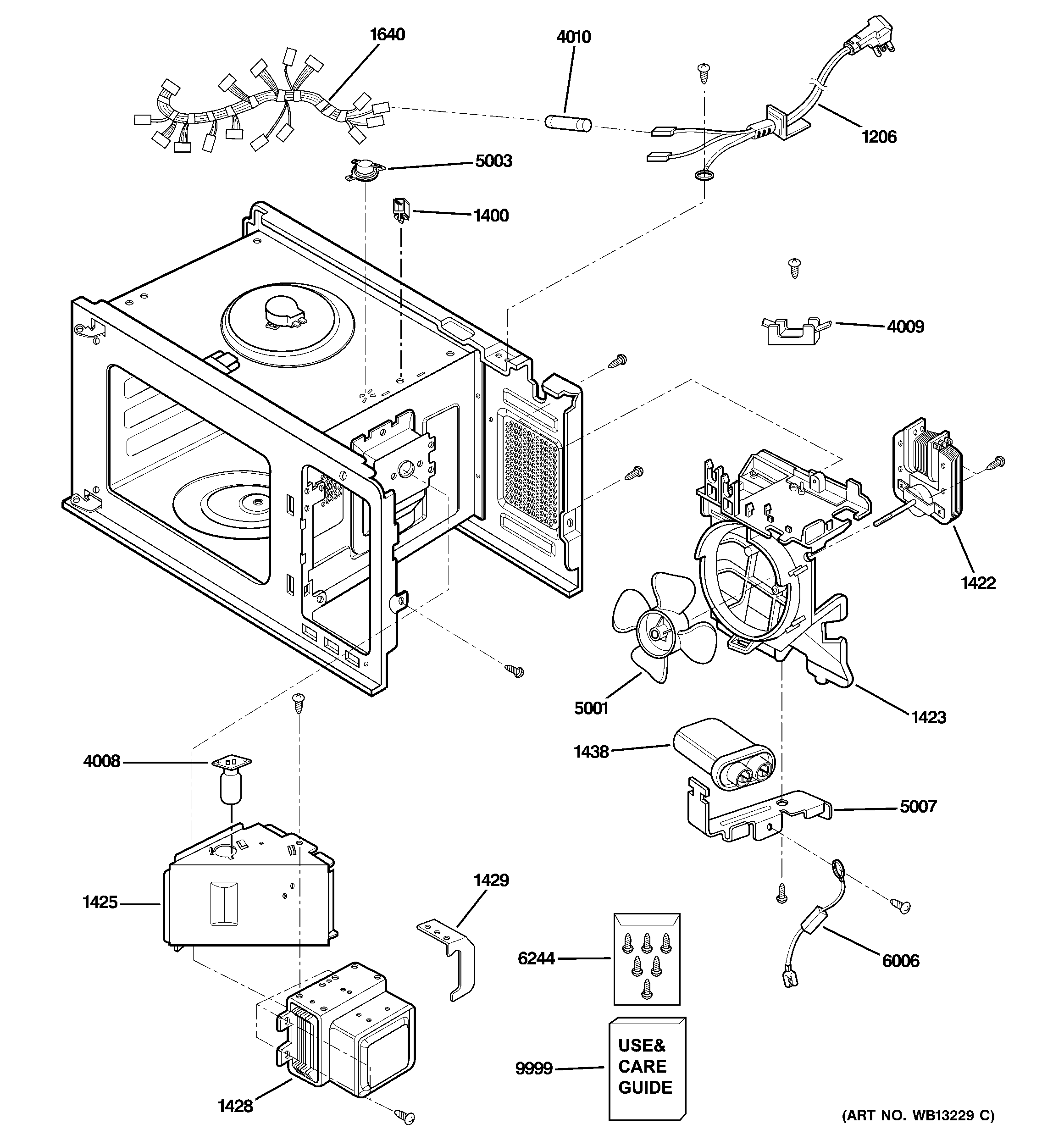

Interior parts (1) diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave Magnetron WB27X10305
#1428

Interior parts (1) diagram

Microwave magnetron

Part #WB27X10305

The manufacturer no longer makes this part, and there's no substitute part

Drive Capacitor WB27X10805
#1438

Interior parts (1) diagram

Drive capacitor

Part #WB27X10805

Replaced by #WB27X11033

?
Manufacturer substitution
This part replaces WB27X10805. Substitute parts can look different from the original.
BEST SELLER
$41.91 |
13% OFF Phone Price : $47.91
In Stock
Latch Board WB06X10546
#4001

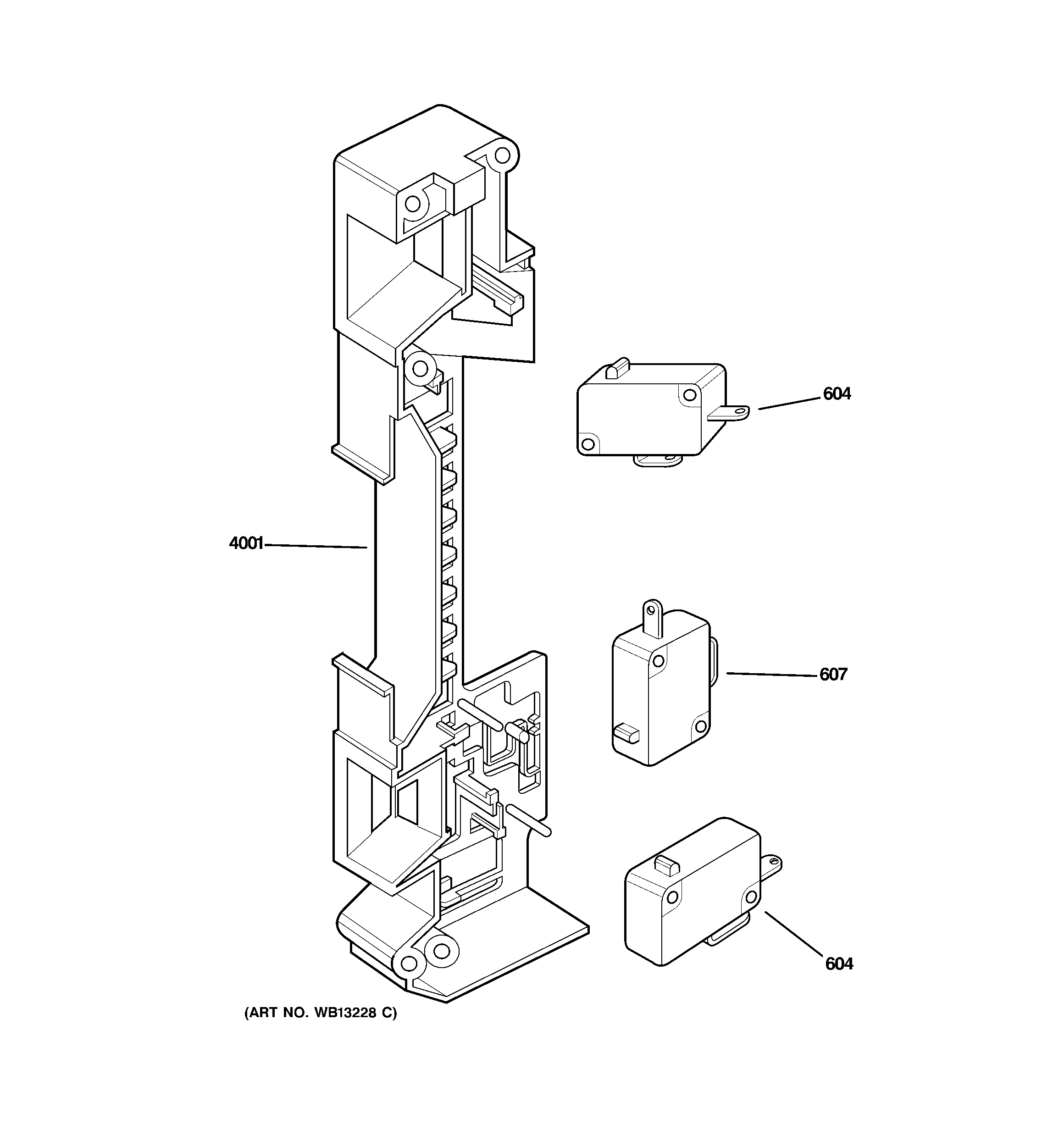

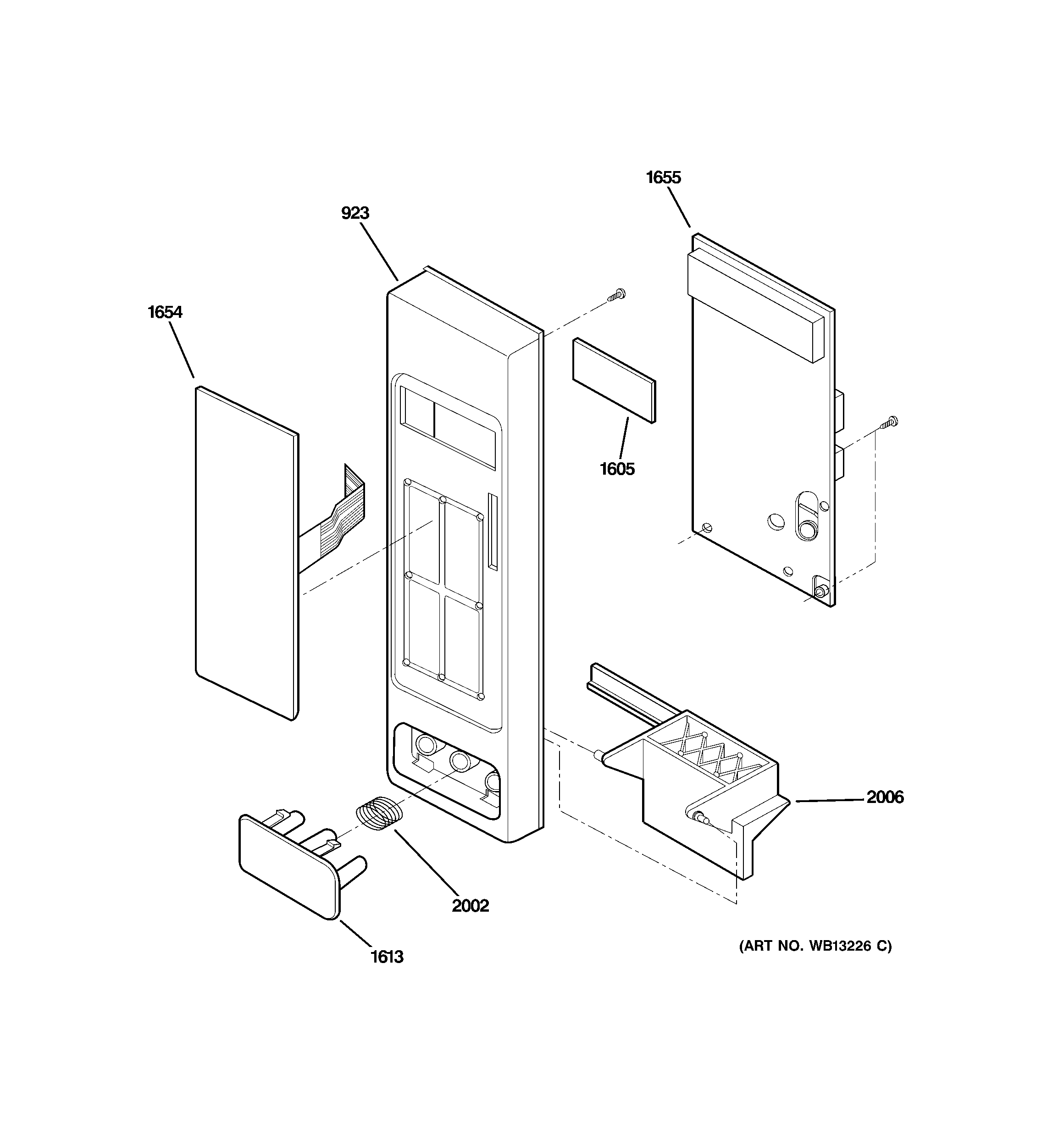

Latch board parts diagram

Latch board

Part #WB06X10546

Replaced by #WB02X21662

?
Manufacturer substitution
This part replaces WB06X10546. Substitute parts can look different from the original.
$17.49 |
10% OFF Phone Price : $19.49
In Stock
Microwave Waveguide Cover WB06X10305
#1475

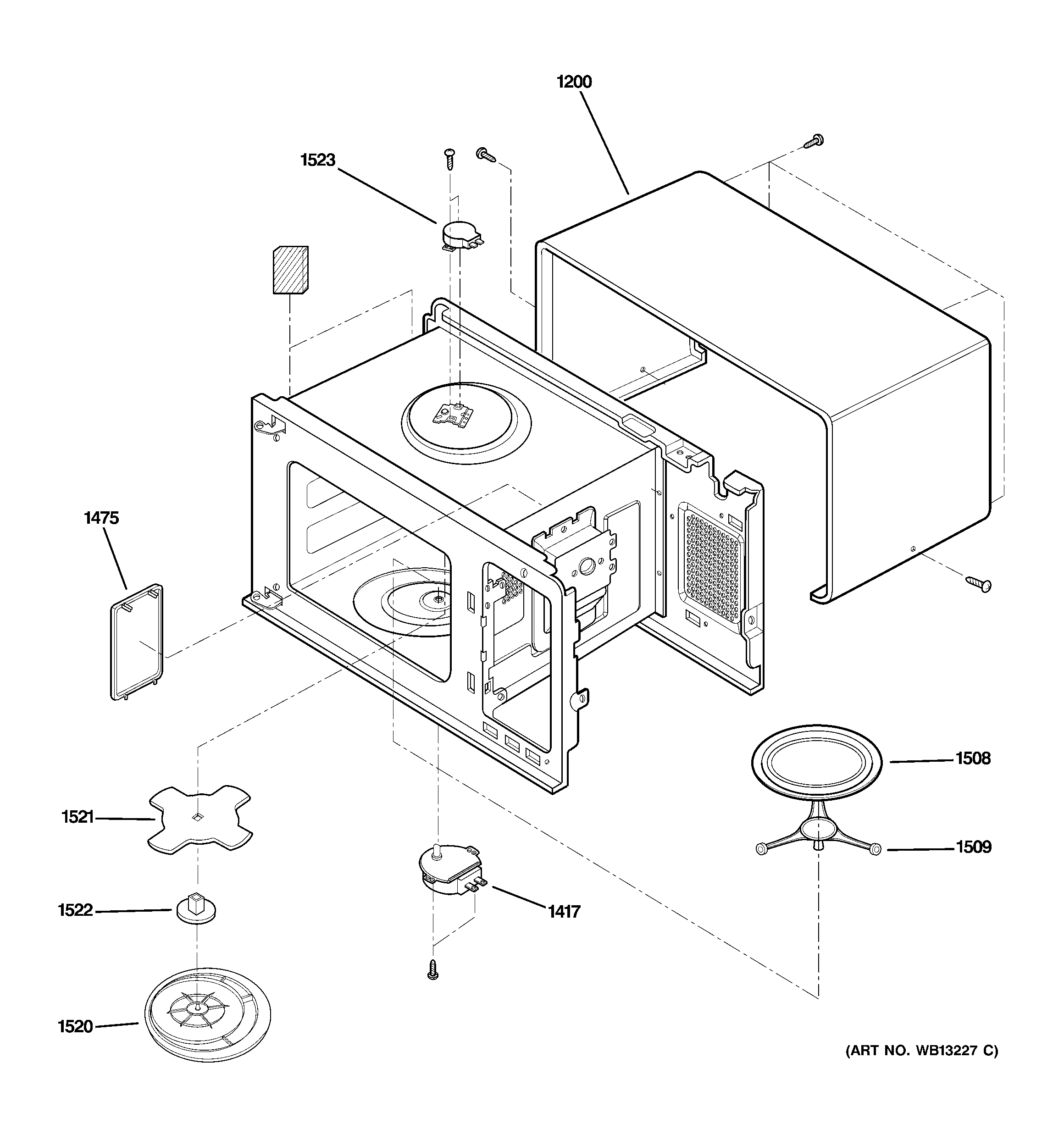

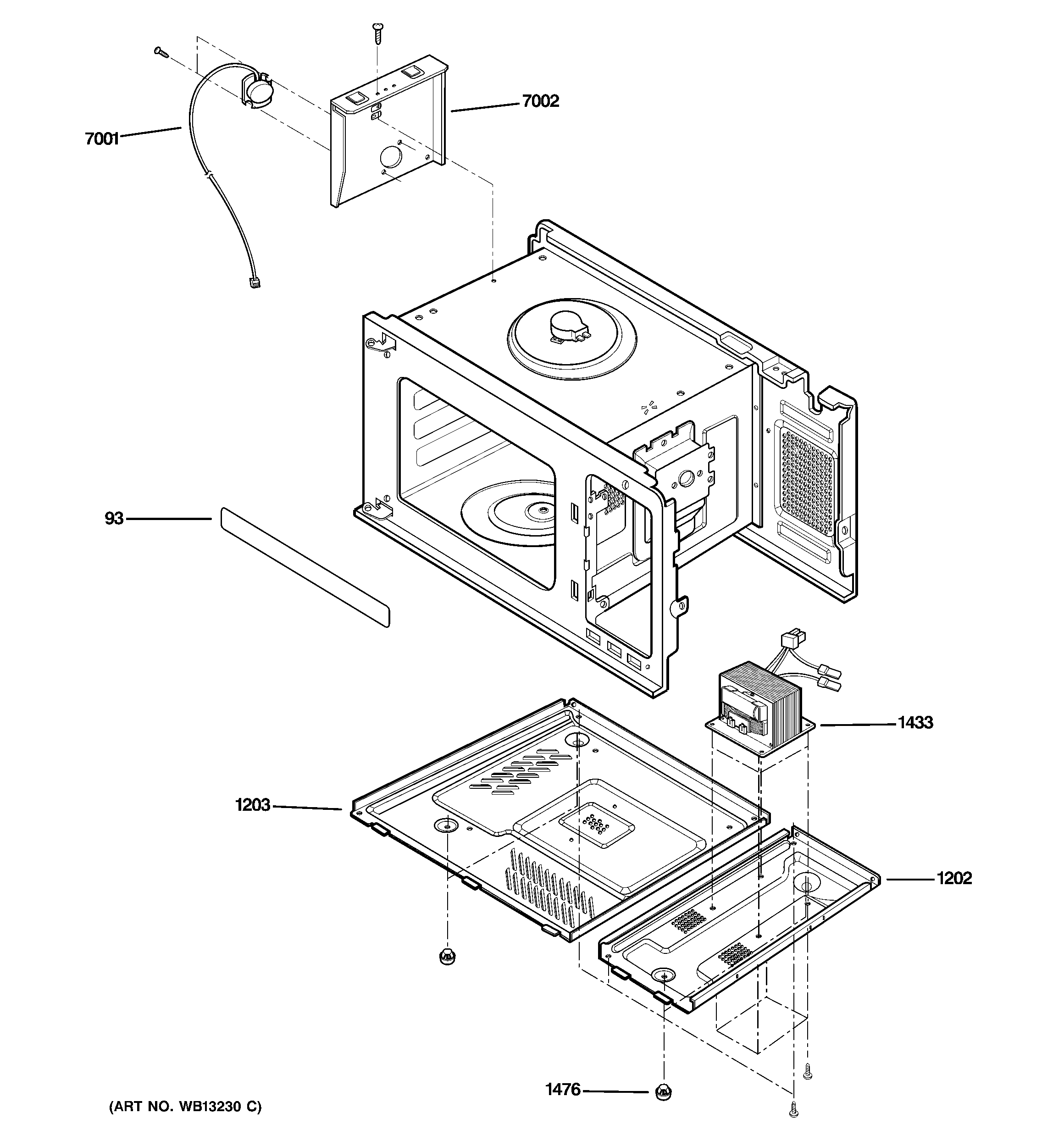

Oven cavity diagram

Microwave waveguide cover

Part #WB06X10305

Replaced by #WB06X10764

?
Manufacturer substitution
This part replaces WB06X10305. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Micro-switch WB24X10072
#604

Latch board parts diagram

Micro-switch

Part #WB24X10072

Replaced by #WB24X10029

?
Manufacturer substitution
This part replaces WB24X10072. Substitute parts can look different from the original.
$36.39 |
14% OFF Phone Price : $42.39
In Stock
Microwave Turntable Motor WB26X10143
#1417

Oven cavity diagram

Microwave turntable motor

Part #WB26X10143

$26.59 |
18% OFF Phone Price : $32.59
In Stock
Microwave Turntable Tray Support WB06X10584
#1509

Oven cavity diagram

Microwave turntable tray support

Part #WB06X10584

$23.66 |
20% OFF Phone Price : $29.66
In Stock
"out Case,u-b" WB56X10583
#1200

Oven cavity diagram

"out case,u-b"

Part #WB56X10583

$67.49
In Stock
High-voltage Capacitor Bracket WB06X10306
#5007

Interior parts (1) diagram

High-voltage capacitor bracket

Part #WB06X10306

$8.11
In Stock
