Room Air Conditioner

Model # AW18AP2HDB1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AW18AP2HDB1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Indoor Fan Motor WJ94X23257
#33

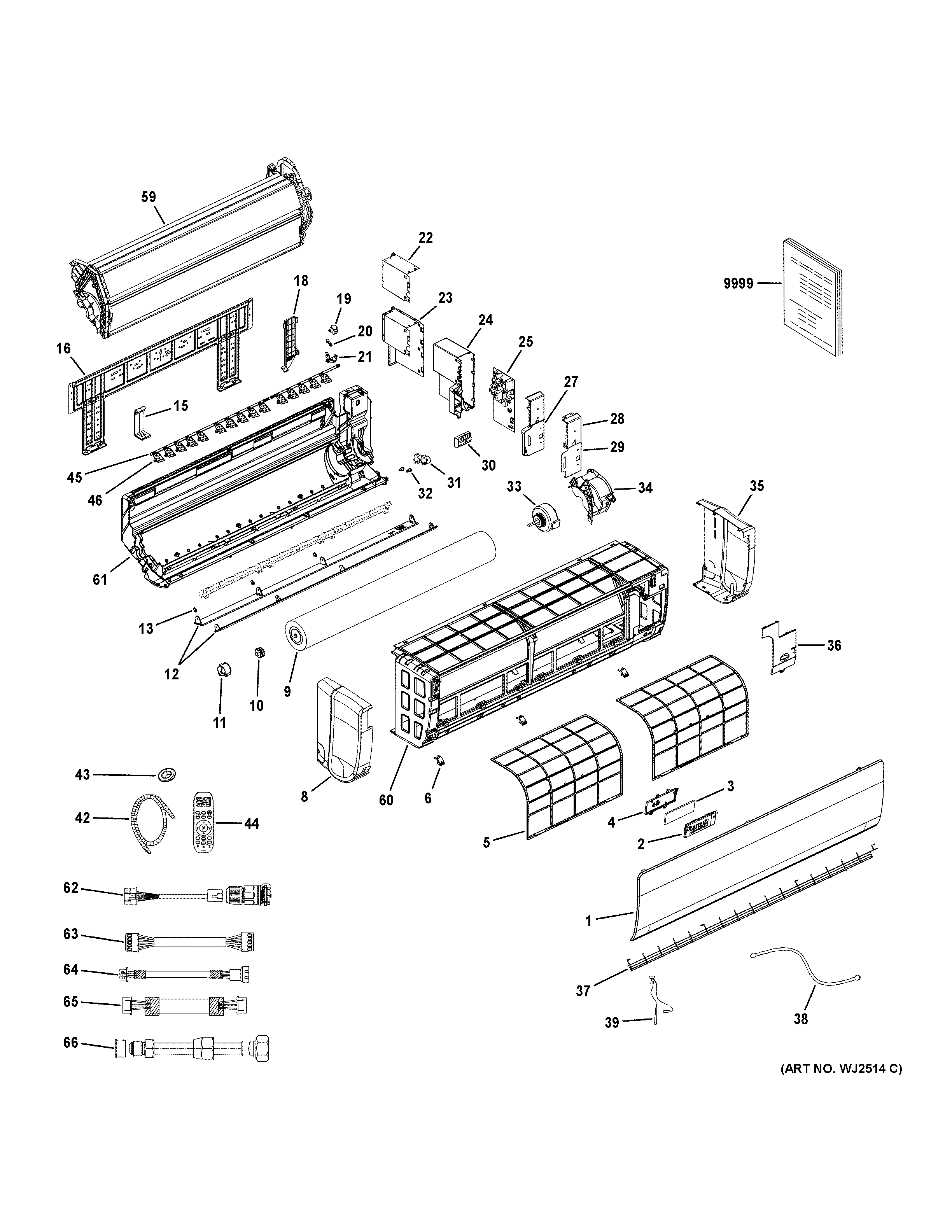

Room air conditioner diagram

Indoor fan motor

Part #WJ94X23257

Replaced by #WJ94X23054

?
Manufacturer substitution
This part replaces WJ94X23257. Substitute parts can look different from the original.
$136.29 |
8% OFF Phone Price : $148.29
In Stock
Guard Ring WJ53X28913
#43

Room air conditioner diagram

Guard ring

Part #WJ53X28913

$8.26
In Stock
Haier Protect Board Of Cover Board 2 WJ76X29514
#28

Room air conditioner diagram

Haier protect board of cover board 2

Part #WJ76X29514

$8.26
In Stock
Air Louvre WJ71X22765
#12

Room air conditioner diagram

Air louvre

Part #WJ71X22765

$39.02
In Stock
Indoor Power Control Board WJ26X33178
#25

Room air conditioner diagram

Indoor power control board

Part #WJ26X33178

$125.40
In Stock
Haier Connecting R WJ65X33040
#45

Room air conditioner diagram

Haier connecting r

Part #WJ65X33040

$7.86
In Stock
Pipe Chanel Cover WJ76X29798
#18

Room air conditioner diagram

Pipe chanel cover

Part #WJ76X29798

$8.26
In Stock
Drain Pipe Bracket WJ65X23248
#15

Room air conditioner diagram

Drain pipe bracket

Part #WJ65X23248

$7.86
In Stock
Casing Assembly WJ76X31358
#60

Room air conditioner diagram

Casing assembly

Part #WJ76X31358

$87.53
In Stock
Wiring Harness WJ35X23134
#38

Room air conditioner diagram

Wiring harness

Part #WJ35X23134

$21.79 |
22% OFF Phone Price : $27.79
In Stock
