Kenmore
Canister Vacuum

Model # 1162639580 Official Kenmore vacuum cleaner hose & attachment parts

Here are the diagrams and repair parts for Official Kenmore 1162639580 vacuum cleaner hose & attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |

Vacuum Receptacle Assembly 4147243
#24

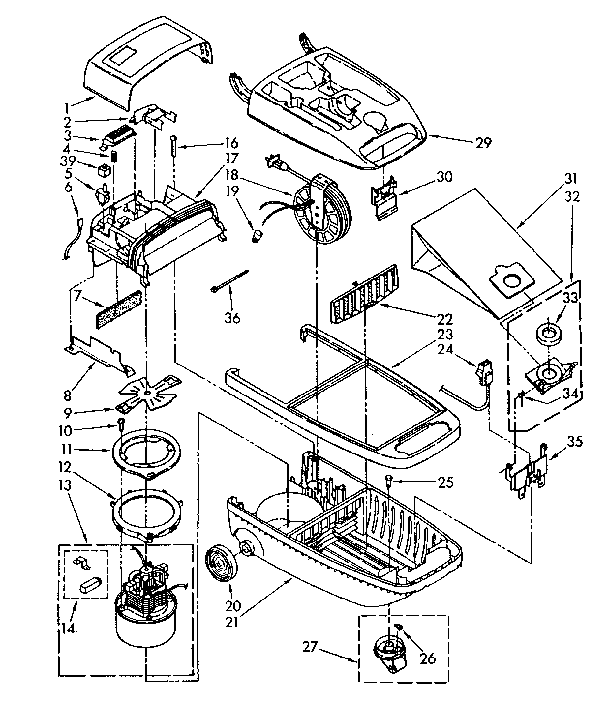

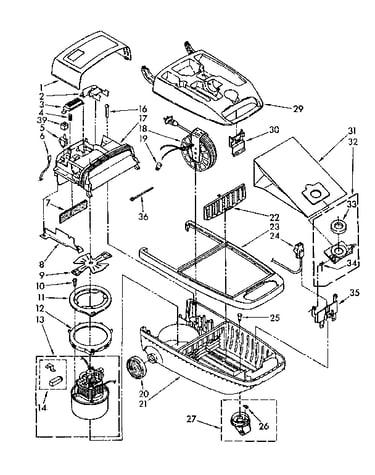

Vacuum cleaner diagram

Vacuum receptacle assembly

Part #4147243

The manufacturer no longer makes this part, and there's no substitute part

Shield 706827
#8

Vacuum cleaner diagram

Shield

Part #706827

The manufacturer no longer makes this part, and there's no substitute part

Wire 706824
#6

Vacuum cleaner diagram

Wire

Part #706824

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 4147126
#20

Vacuum cleaner diagram

Vacuum wheel

Part #4147126

The manufacturer no longer makes this part, and there's no substitute part

Hood Latch 4147145
#30

Vacuum cleaner diagram

Hood latch

Part #4147145

The manufacturer no longer makes this part, and there's no substitute part

Cover Canopy 4147220
#1

Vacuum cleaner diagram

Cover canopy

Part #4147220

The manufacturer no longer makes this part, and there's no substitute part

Motor Plate 706011
#11

Vacuum cleaner diagram

Motor plate

Part #706011

The manufacturer no longer makes this part, and there's no substitute part

Hose 4147156
#1

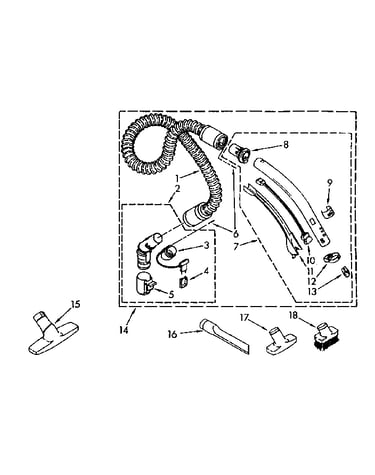

Hose and attachment diagram

Hose

Part #4147156

The manufacturer no longer makes this part, and there's no substitute part

Cable Tie 596702
#36

Vacuum cleaner diagram

Cable tie

Part #596702

The manufacturer no longer makes this part, and there's no substitute part

Housing, Swivel 4147147
#5

Hose and attachment diagram

Housing, swivel

Part #4147147

The manufacturer no longer makes this part, and there's no substitute part
