Model # CH5018VKA1 Official ICP heat pump

Here are the diagrams and repair parts for Official ICP CH5018VKA1 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Spst Relay 1053004
#9

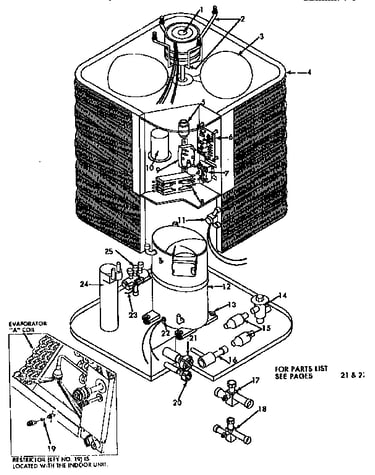

Functional diagram

Spst relay

Part #1053004

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Condenser Fan Motor Mount 1051460
#2

Functional diagram

Central air conditioner condenser fan motor mount

Part #1051460

$310.20
In Stock
Central Air Conditioner Condenser Fan Motor 1050892
#1

Functional diagram

Central air conditioner condenser fan motor

Part #1050892

$415.12
In Stock
Raceway 1051322
#13A

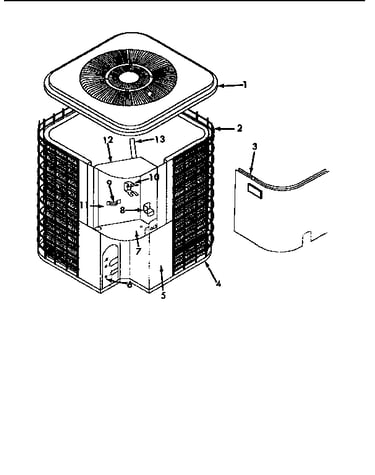

Non-functional replacement diagram

Raceway

Part #1051322

$10.20
In Stock
Check Valve 1052910
#16

Functional diagram

Check valve

Part #1052910

$84.67
In Stock
Serv Valve 1052652
#17

Functional diagram

Serv valve

Part #1052652

Replaced by #1080995

?
Manufacturer substitution
This part replaces 1052652. Substitute parts can look different from the original.
$176.28
In Stock
Valve 1052758
#25

Functional diagram

Valve

Part #1052758

Replaced by #V3-410080-770

?
Manufacturer substitution
This part replaces 1052758. Substitute parts can look different from the original.
$203.70
In Stock
Serv Valve 1052923
#18

Functional diagram

Serv valve

Part #1052923

Replaced by #1080999

?
Manufacturer substitution
This part replaces 1052923. Substitute parts can look different from the original.
$127.30
In Stock
Start Device 704415
#5

Functional diagram

Start device

Part #704415

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 1050680
#10

Functional diagram

Capacitor

Part #1050680

The manufacturer no longer makes this part, and there's no substitute part
