Kenmore
Upright Vacuum

Model # 1163227590 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1163227590 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Vacuum Screw 4368563
Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor Brush N/P
#5

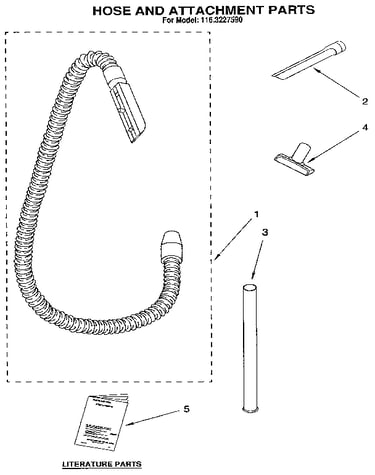

Hose and attachment diagram

(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Hose Hook 4368832
#8

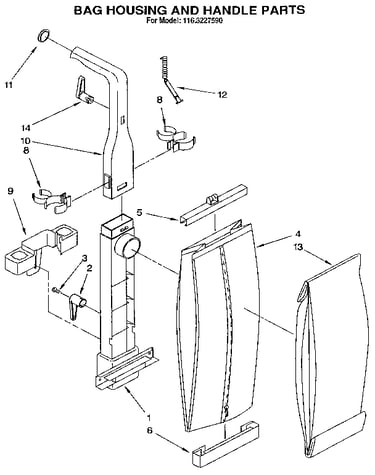

Bag housing and handle diagram

Hose hook

Part #4368832

The manufacturer no longer makes this part, and there's no substitute part

Fan Case 4368556
#17

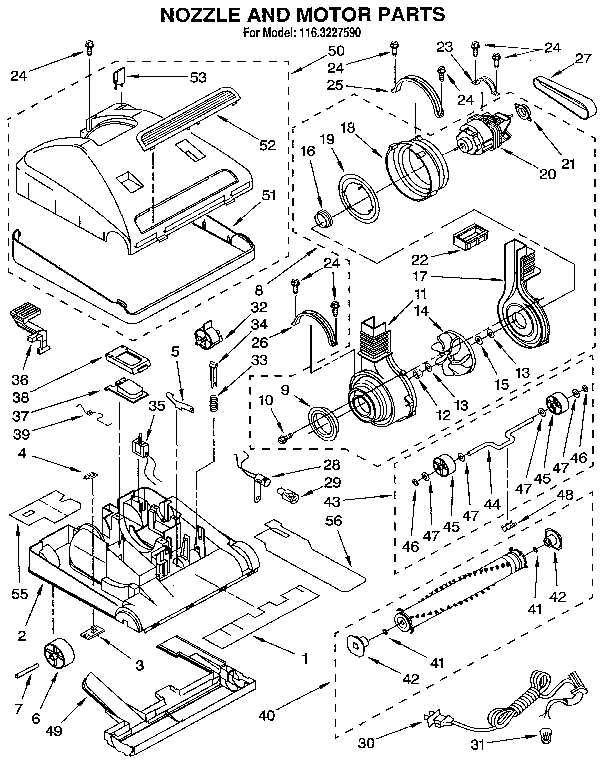

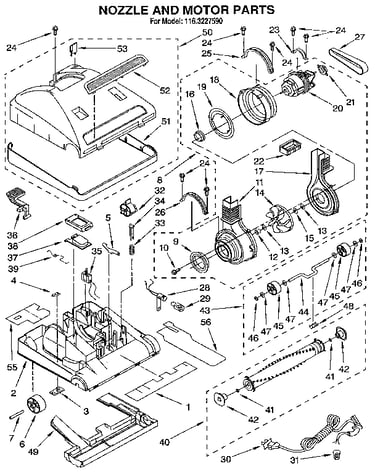

Nozzle and motor diagram

Fan case

Part #4368556

The manufacturer no longer makes this part, and there's no substitute part

Motor Plate 4368558
#19

Nozzle and motor diagram

Motor plate

Part #4368558

The manufacturer no longer makes this part, and there's no substitute part

Roller Nozzle 4368580
#45

Nozzle and motor diagram

Roller nozzle

Part #4368580

The manufacturer no longer makes this part, and there's no substitute part

Nut 4149002
#12

Nozzle and motor diagram

Nut

Part #4149002

The manufacturer no longer makes this part, and there's no substitute part

Impeller 4150897
#14

Nozzle and motor diagram

Impeller

Part #4150897

The manufacturer no longer makes this part, and there's no substitute part

Switch Plunger 4368571
#35

Nozzle and motor diagram

Switch plunger

Part #4368571

The manufacturer no longer makes this part, and there's no substitute part

Cord Hook 4368592
#2

Bag housing and handle diagram

Cord hook

Part #4368592

The manufacturer no longer makes this part, and there's no substitute part
