Model # AW0893P Official Samsung room air conditioner

Here are the diagrams and repair parts for Official Samsung AW0893P room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Gasket;r/c DB63-00765A
#15

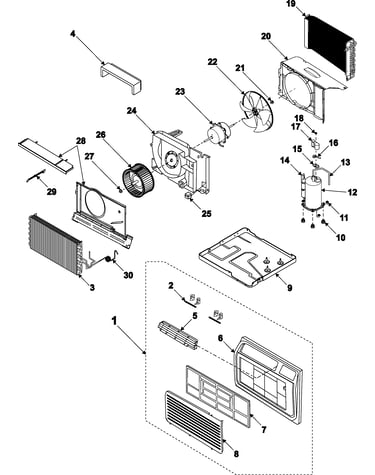

Chassis assembly diagram

Gasket;r/c

Part #DB63-00765A

This item is not returnable
$2.30
In Stock
Flange Nut DB60-30020A
#21

Chassis assembly diagram

Flange nut

Part #DB60-30020A

This item is not returnable
$2.59
In Stock
Grommet Is DB63-00764A
#10A

Chassis assembly diagram

Grommet is

Part #DB63-00764A

The manufacturer no longer makes this part, and there's no substitute part

Assy Parti DB94-00416C
#24A

Chassis assembly diagram

Assy parti

Part #DB94-00416C

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 2501-001230
#9A

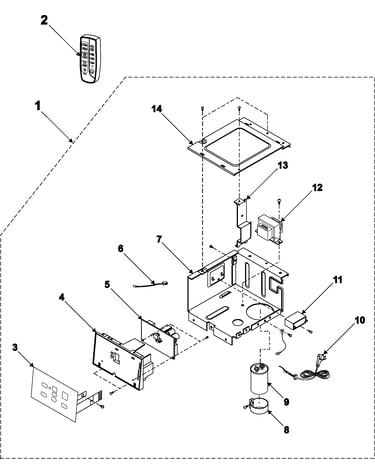

Control assembly-aw0693l aw0893l aw0893p diagram

Capacitor

Part #2501-001230

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Outdoor Fan Blade DB67-50077A
#22

Chassis assembly diagram

Room air conditioner outdoor fan blade

Part #DB67-50077A

The manufacturer no longer makes this part, and there's no substitute part

Lever Damper DB66-00557A
#29

Chassis assembly diagram

Lever damper

Part #DB66-00557A

The manufacturer no longer makes this part, and there's no substitute part

C-film,mpe 2301-001448
#11

Control assembly-aw0693l aw0893l aw0893p diagram

C-film,mpe

Part #2301-001448

The manufacturer no longer makes this part, and there's no substitute part

Power Transformer DB26-00006F
#12

Control assembly-aw0693l aw0893l aw0893p diagram

Power transformer

Part #DB26-00006F

The manufacturer no longer makes this part, and there's no substitute part

Base Assembly DB90-01255A
#9

Chassis assembly diagram

Base assembly

Part #DB90-01255A

The manufacturer no longer makes this part, and there's no substitute part
