Amana
Countertop Microwave

Model # EX2010.003 Official Amana microwave

Here are the diagrams and repair parts for Official Amana EX2010003 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

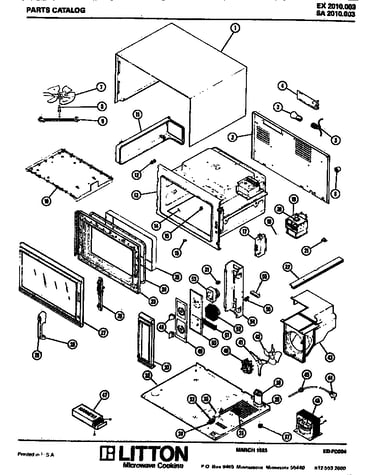

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Bracket Resistor Mtg. M8D123
#56A

Replacement parts diagram

Bracket resistor mtg.

Part #M8D123

The manufacturer no longer makes this part, and there's no substitute part

Magnetron M57D36
#19A

Replacement parts diagram

Magnetron

Part #M57D36

The manufacturer no longer makes this part, and there's no substitute part

Screw, Bracket Mtg. M1D368
#44B

Replacement parts diagram

Screw, bracket mtg.

Part #M1D368

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness M27D360
#47A

Replacement parts diagram

Wire harness

Part #M27D360

The manufacturer no longer makes this part, and there's no substitute part

Outer Case M80D108
#1A

Replacement parts diagram

Outer case

Part #M80D108

The manufacturer no longer makes this part, and there's no substitute part

Cavity Assembly (incl. Nos. 14, 15 & 16) M77D132
#13A

Replacement parts diagram

Cavity assembly (incl. nos. 14, 15 & 16)

Part #M77D132

The manufacturer no longer makes this part, and there's no substitute part

Timer (60 Minute) M30D87
#53A

Replacement parts diagram

Timer (60 minute)

Part #M30D87

The manufacturer no longer makes this part, and there's no substitute part

Component Mtg. Plate M7D592
#50

Replacement parts diagram

Component mtg. plate

Part #M7D592

The manufacturer no longer makes this part, and there's no substitute part

Toroid M5D369
#18

Replacement parts diagram

Toroid

Part #M5D369

The manufacturer no longer makes this part, and there's no substitute part

Intrusion Plate M8D253
#51

Replacement parts diagram

Intrusion plate

Part #M8D253

The manufacturer no longer makes this part, and there's no substitute part
