Kenmore
Countertop Microwave

Model # 72163263300 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72163263300 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

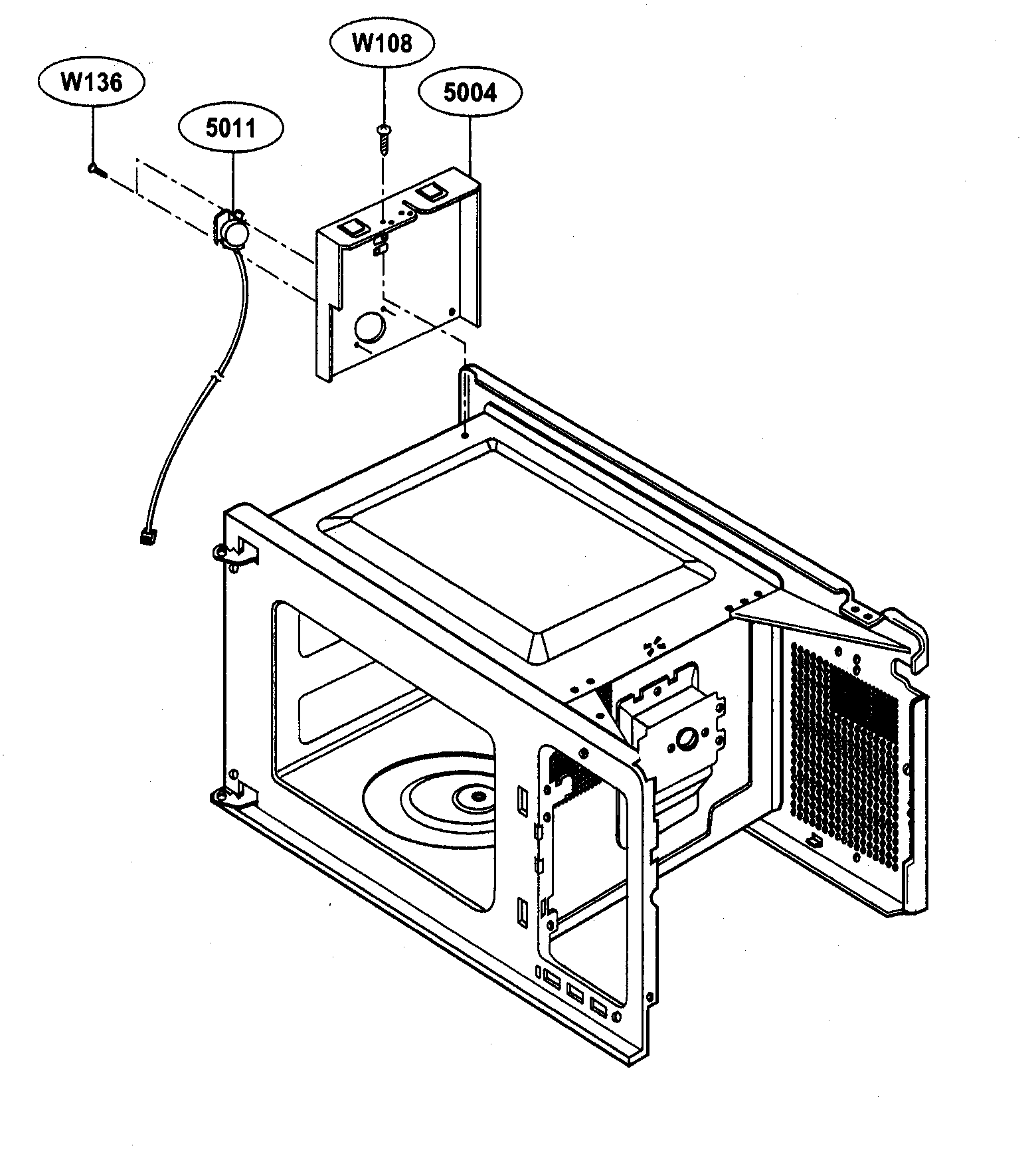

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Microwave High-voltage Diode 6021W3B001R
#5018

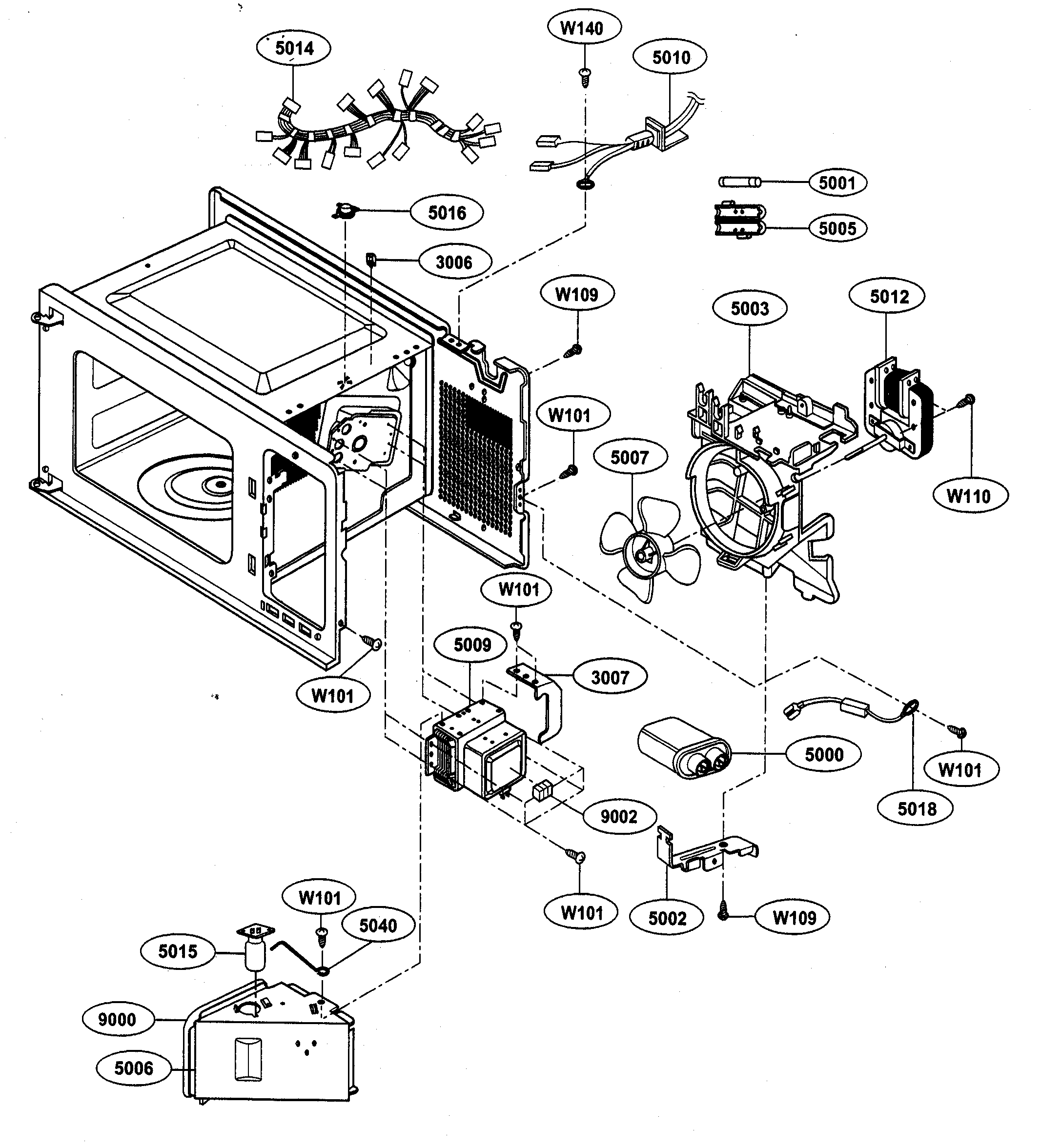

Interior parts diagram

Microwave high-voltage diode

Part #6021W3B001R

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001R. Substitute parts can look different from the original.
BEST SELLER
$8.73 |
10% OFF Phone Price : $9.73
In Stock
Microwave Door Interlock Switch 6600W1K003D
#4002

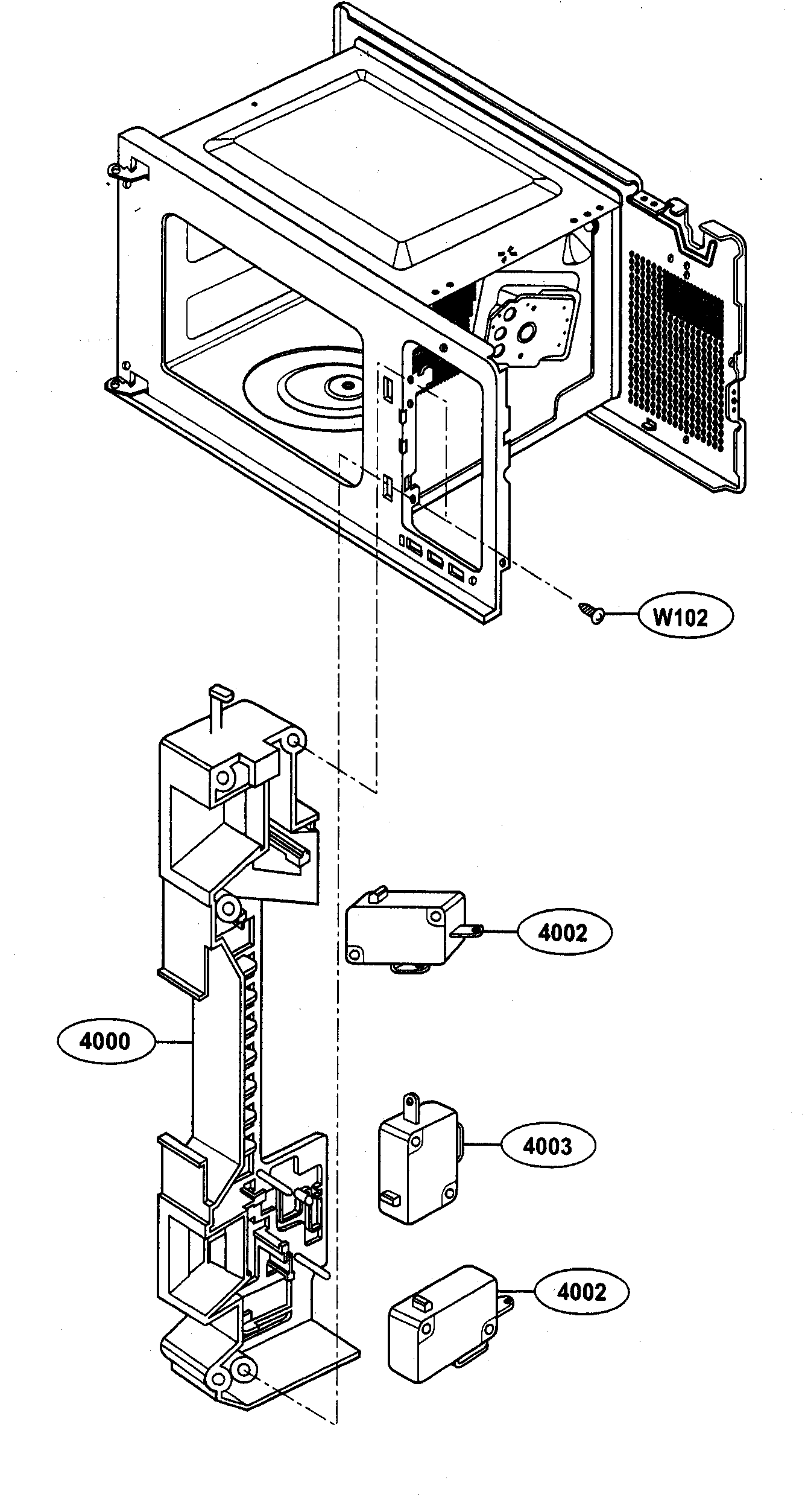

Latch board parts diagram

Microwave door interlock switch

Part #6600W1K003D

Replaced by #6600W1K001D

?
Manufacturer substitution
This part replaces 6600W1K003D. Substitute parts can look different from the original.
BEST SELLER
$10.58 |
16% OFF Phone Price : $12.58
In Stock
Us Pressed Steel Microwave Fuse 3B74133K
#5001

Interior parts diagram

Us pressed steel microwave fuse

Part #3B74133K

BEST SELLER
$7.62 |
12% OFF Phone Price : $8.62
In Stock
Microwave Light Bulb (replaces 6912w3b002g) 6912W3B002L
#5015

Interior parts diagram

Microwave light bulb (replaces 6912w3b002g)

Part #6912W3B002L

BEST SELLER
This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Turntable Motor (replaces 6549w1s011c, 6549w1s017a) 6549W1S011B
#3009

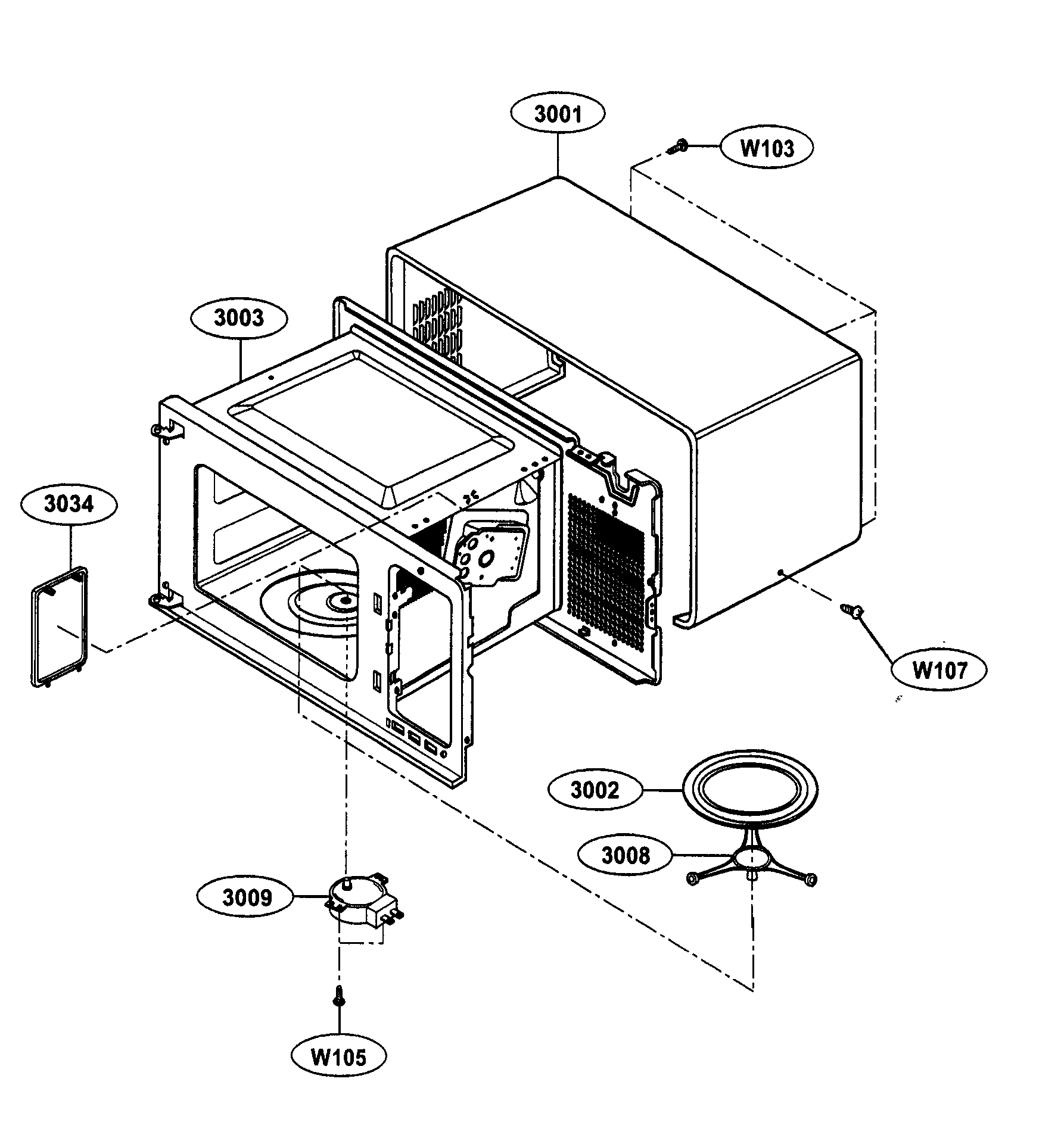

Oven cavity parts diagram

Microwave turntable motor (replaces 6549w1s011c, 6549w1s017a)

Part #6549W1S011B

BEST SELLER
This item is not returnable
$21.20 |
22% OFF Phone Price : $27.20
In Stock
Microwave Glass Turntable Tray 3390W1G004A
#3002

Oven cavity parts diagram

Microwave glass turntable tray

Part #3390W1G004A

Replaced by #3390W1A044B

?
Manufacturer substitution
This part replaces 3390W1G004A. Substitute parts can look different from the original.
$23.92 |
20% OFF Phone Price : $29.92
In Stock
Microwave Door Latch Hook (replaces 4026w2a012a) 4026W2A016A
#1006

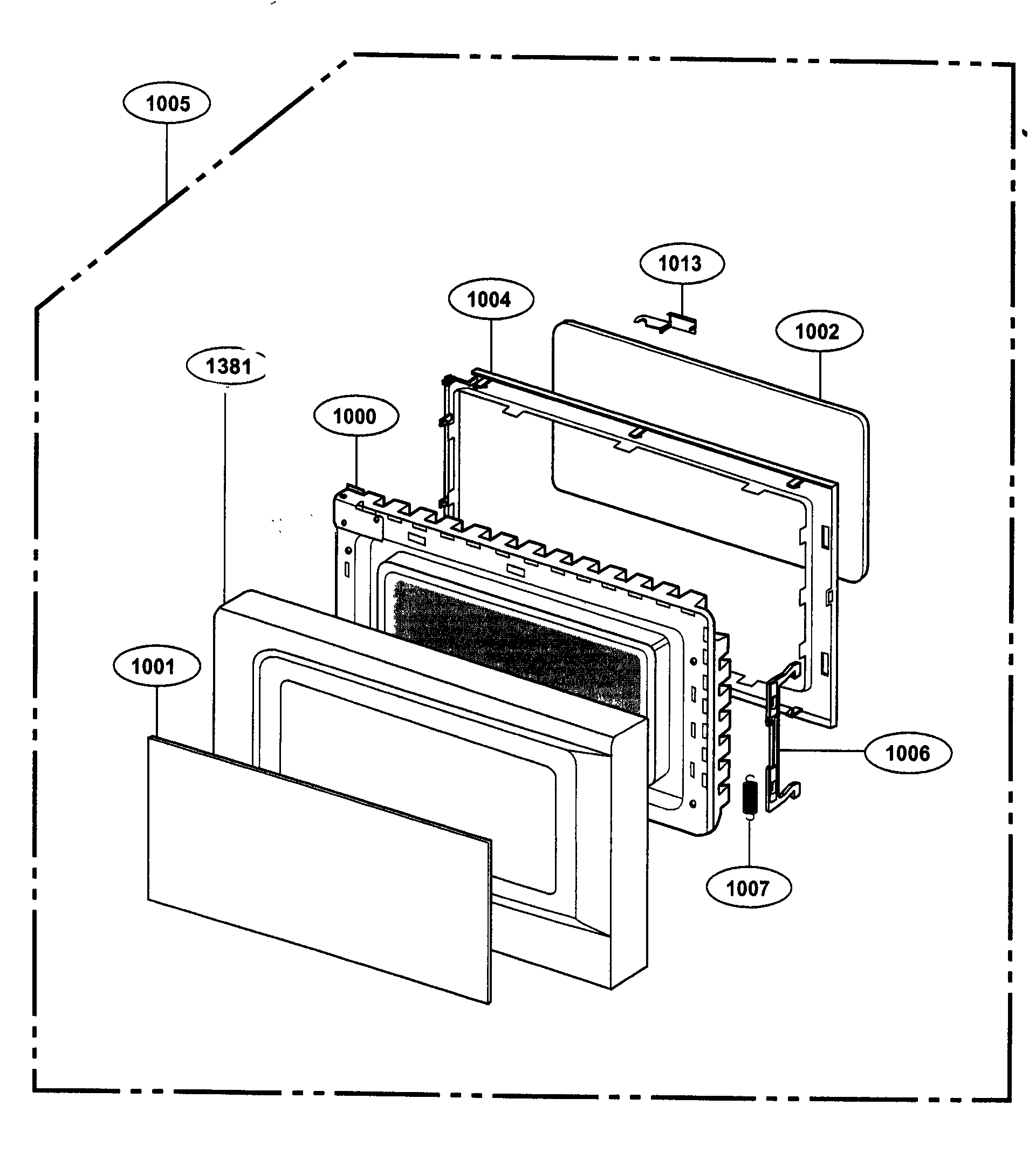

Door parts diagram

Microwave door latch hook (replaces 4026w2a012a)

Part #4026W2A016A

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Us Pressed Steel Microwave Screw 1TTL0402818
#W109

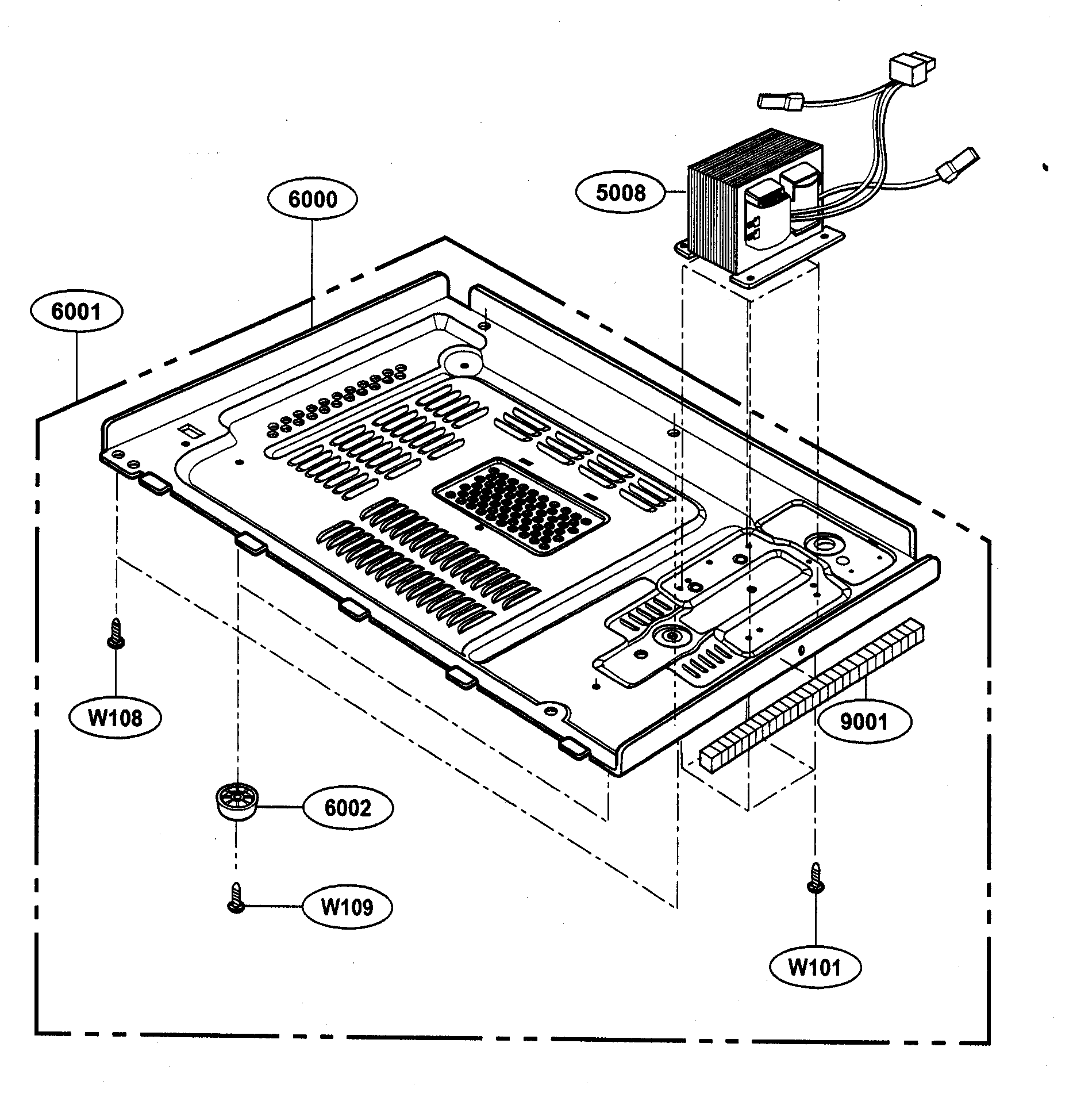

Base plate parts diagram

Us pressed steel microwave screw

Part #1TTL0402818

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Door Release Button Spring 4B72023B
#2005

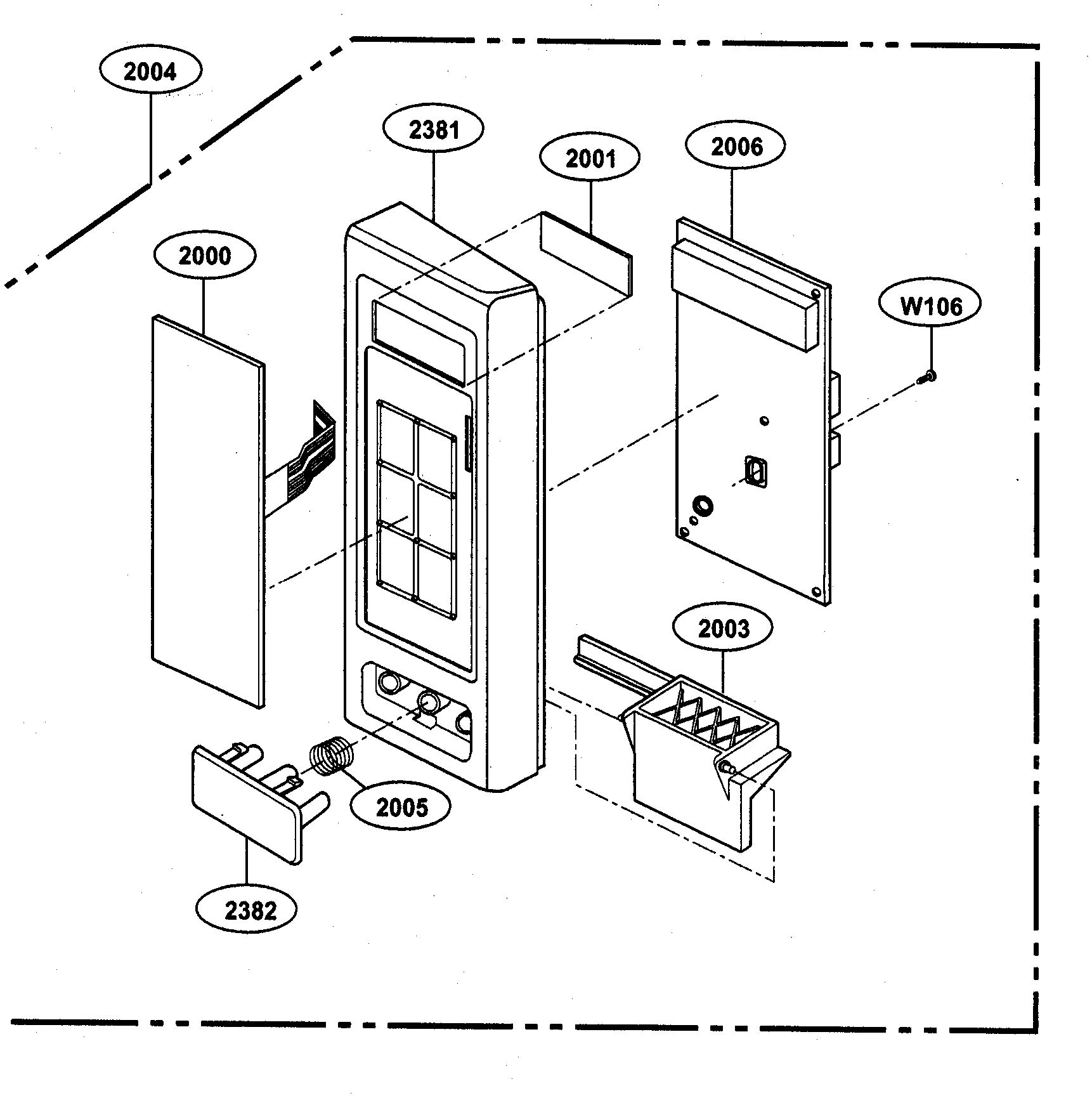

Controller parts diagram

Microwave door release button spring

Part #4B72023B

This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Us Pressed Steel Microwave Screw 4B70188C
#W102

Latch board parts diagram

Us pressed steel microwave screw

Part #4B70188C

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
