Model # 10V2S/P1212702R Official Amana room air conditioner

Here are the diagrams and repair parts for Official Amana 10V2S-P1212702R room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Screw, 10-16 X 0.72, Square Drive R0750029
#2

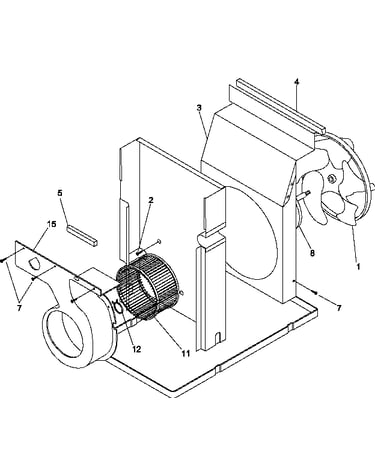

Air handling parts diagram

Screw, 10-16 x 0.72, square drive

Part #R0750029

The manufacturer no longer makes this part, and there's no substitute part

Bracket Support R0750056
#8

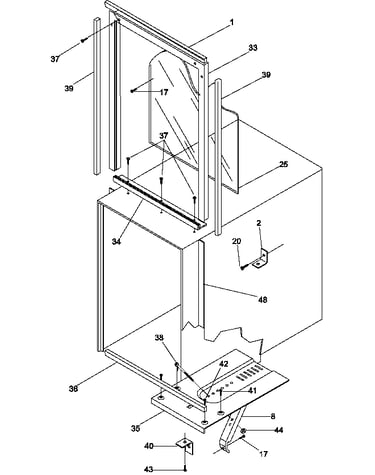

Window mounting parts diagram

Bracket support

Part #R0750056

The manufacturer no longer makes this part, and there's no substitute part

Housing Seal R0750032
#5

Air handling parts diagram

Housing seal

Part #R0750032

The manufacturer no longer makes this part, and there's no substitute part

Control-vent Door R0750026
#28

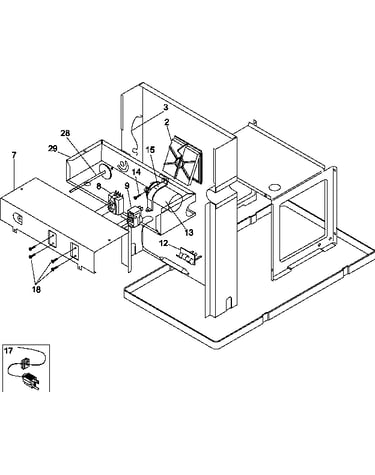

Control parts diagram

Control-vent door

Part #R0750026

The manufacturer no longer makes this part, and there's no substitute part

Screw, .138-32 X .188 R0750025
#18

Control parts diagram

Screw, .138-32 x .188

Part #R0750025

The manufacturer no longer makes this part, and there's no substitute part

Plate-mounting, Unit R0750063
#35

Window mounting parts diagram

Plate-mounting, unit

Part #R0750063

The manufacturer no longer makes this part, and there's no substitute part

Bracket R0750055
#2

Window mounting parts diagram

Bracket

Part #R0750055

The manufacturer no longer makes this part, and there's no substitute part

Nut, Plastic, Compressor R0750040
#3

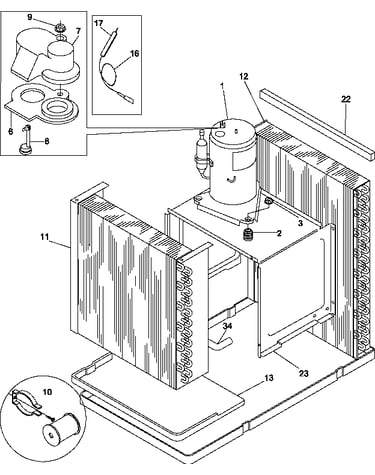

Compressor parts diagram

Nut, plastic, compressor

Part #R0750040

The manufacturer no longer makes this part, and there's no substitute part

Rear Grille R0750003
#2

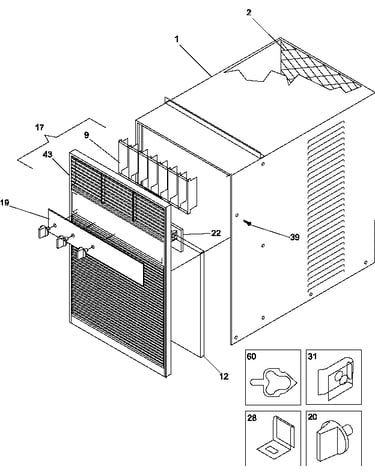

Cabinet front & wrapper diagram

Rear grille

Part #R0750003

The manufacturer no longer makes this part, and there's no substitute part

Overload Protector R0750043
#8

Compressor parts diagram

Overload protector

Part #R0750043

The manufacturer no longer makes this part, and there's no substitute part
