Model # KY-32E Official Soleus Air portable air conditioner

Here are the diagrams and repair parts for Official Soleus Air KY-32E portable air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Inwarranty Parts/service Call 1-888-876-5387 N/P
#NI

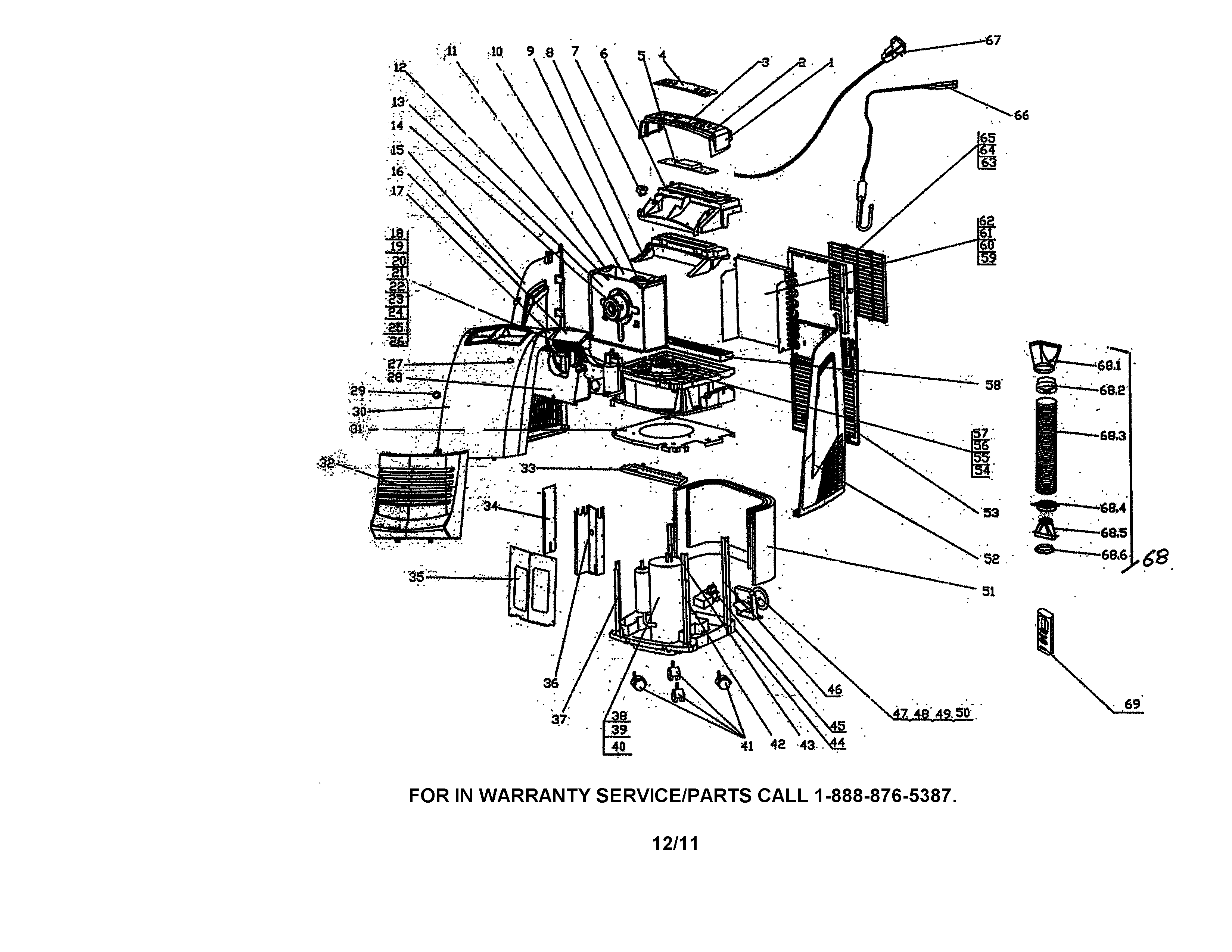

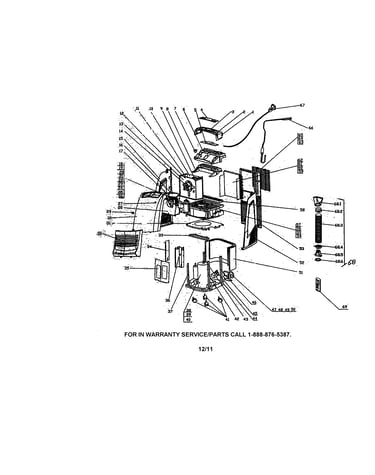

Cabinet parts diagram

Inwarranty parts/service call 1-888-876-5387

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Motor 15212103
#7

Cabinet parts diagram

Motor

Part #15212103

The manufacturer no longer makes this part, and there's no substitute part

Plate 20056054
#54

Cabinet parts diagram

Plate

Part #20056054

The manufacturer no longer makes this part, and there's no substitute part

Motor 15316002
#14

Cabinet parts diagram

Motor

Part #15316002

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Water Pump 150160271
#47

Cabinet parts diagram

Air conditioner water pump

Part #150160271

The manufacturer no longer makes this part, and there's no substitute part

Plate 01236220
#35

Cabinet parts diagram

Plate

Part #01236220

The manufacturer no longer makes this part, and there's no substitute part

Lcd Cover 20126030
#1

Cabinet parts diagram

Lcd cover

Part #20126030

The manufacturer no longer makes this part, and there's no substitute part

Air Guider 22416031
#16

Cabinet parts diagram

Air guider

Part #22416031

The manufacturer no longer makes this part, and there's no substitute part

Magnt Ring 49010104
#25

Cabinet parts diagram

Magnt ring

Part #49010104

The manufacturer no longer makes this part, and there's no substitute part

Air Guider 22416030
#17

Cabinet parts diagram

Air guider

Part #22416030

The manufacturer no longer makes this part, and there's no substitute part
