Sharp
Microwave

Model # R-23GT Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-23GT microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

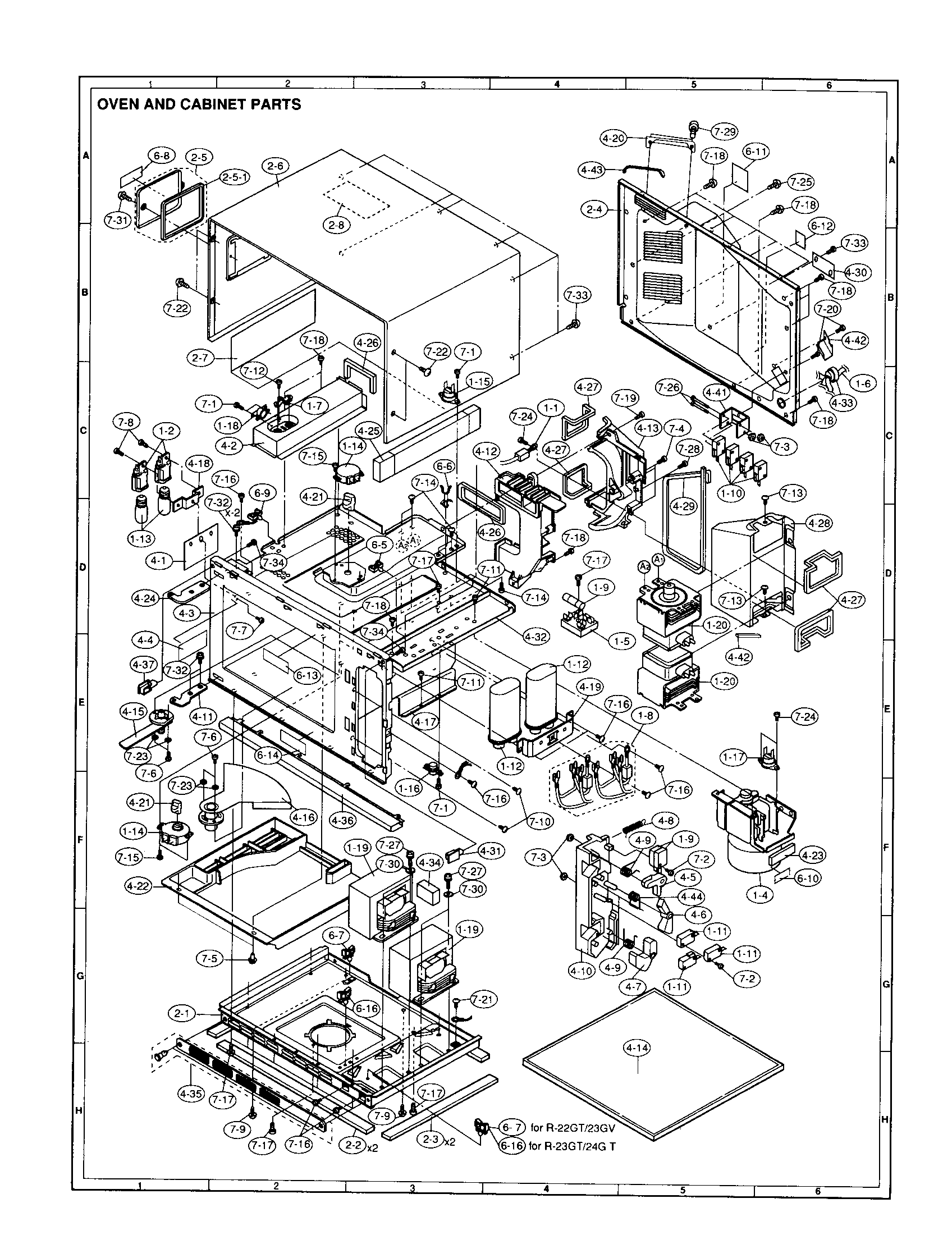

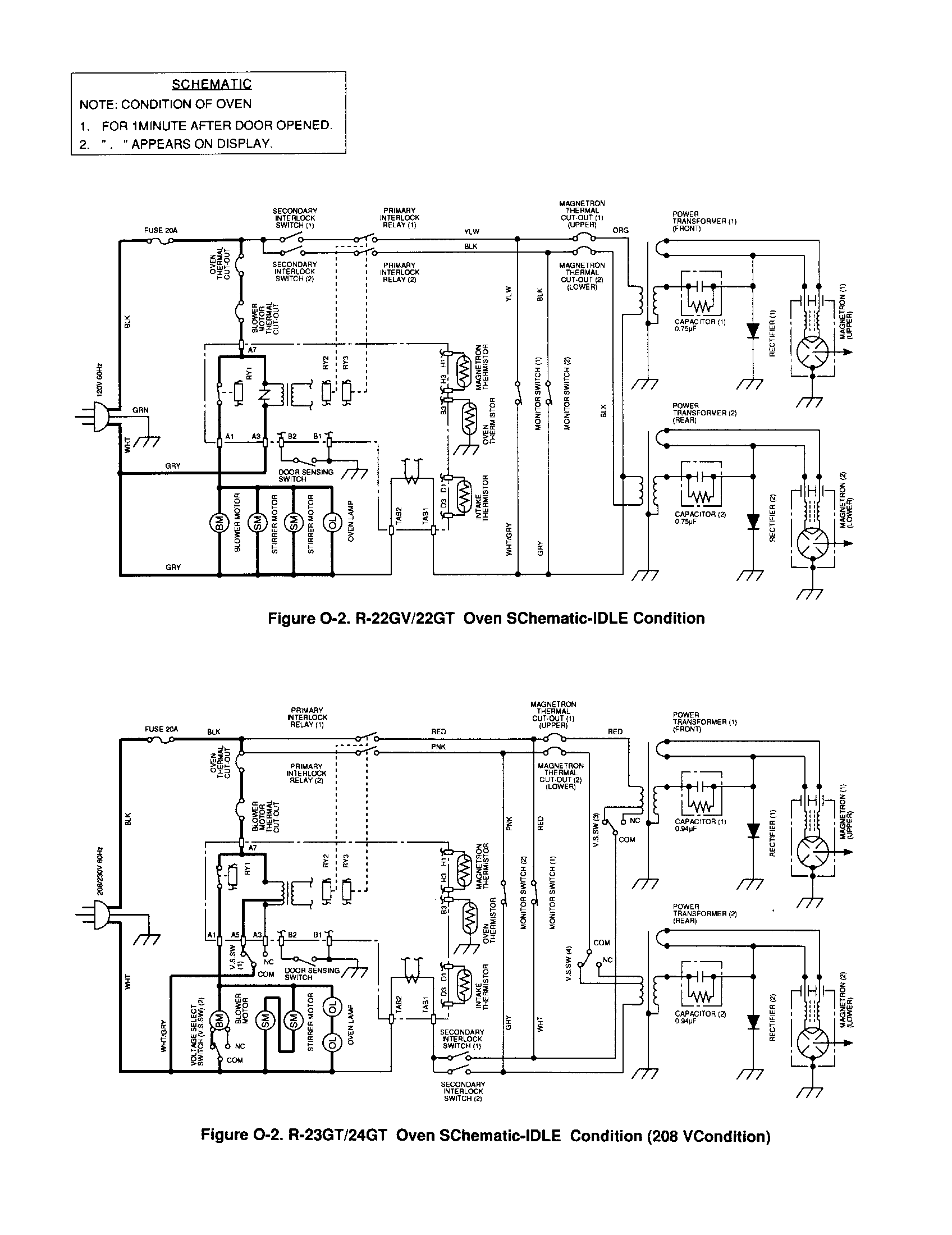

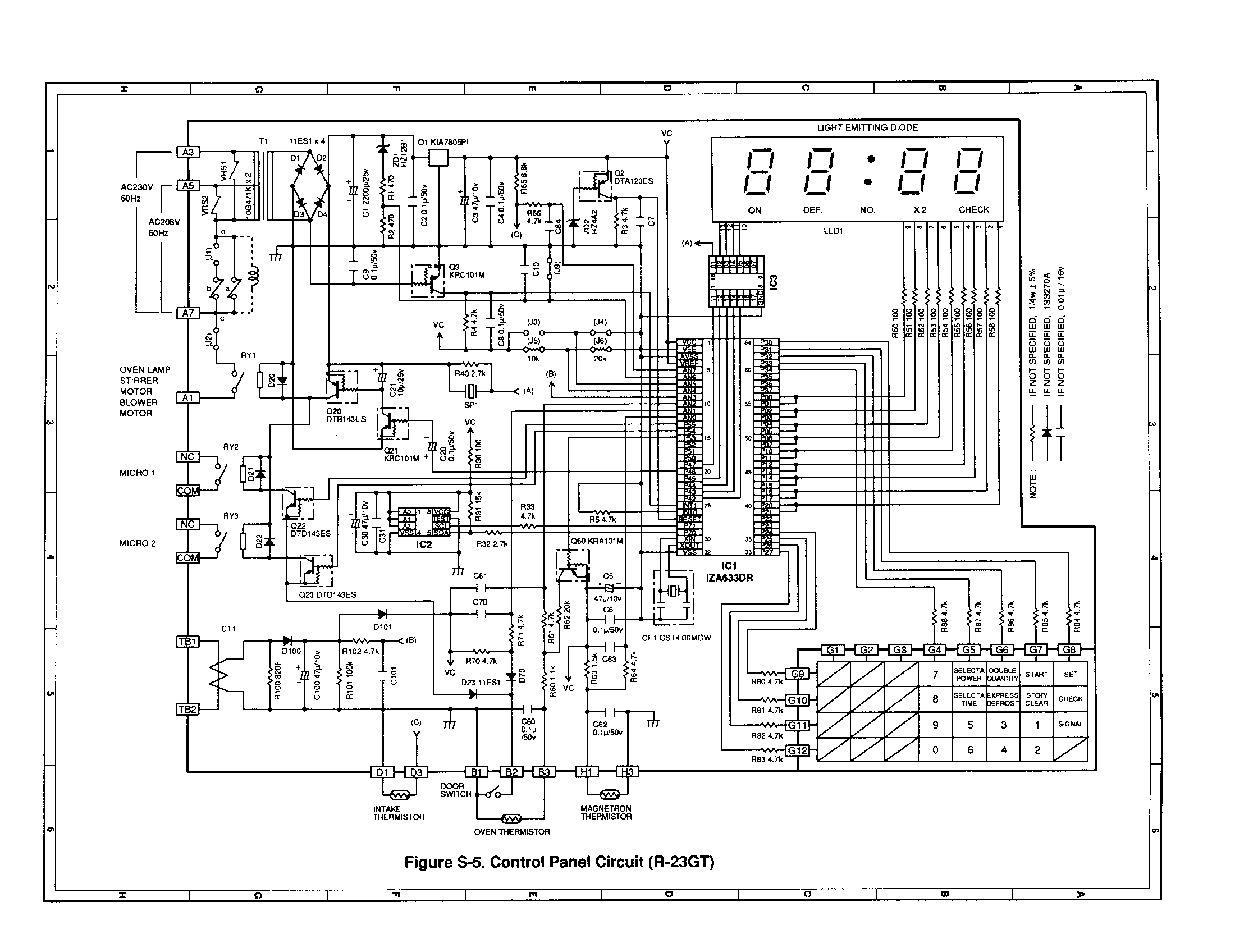

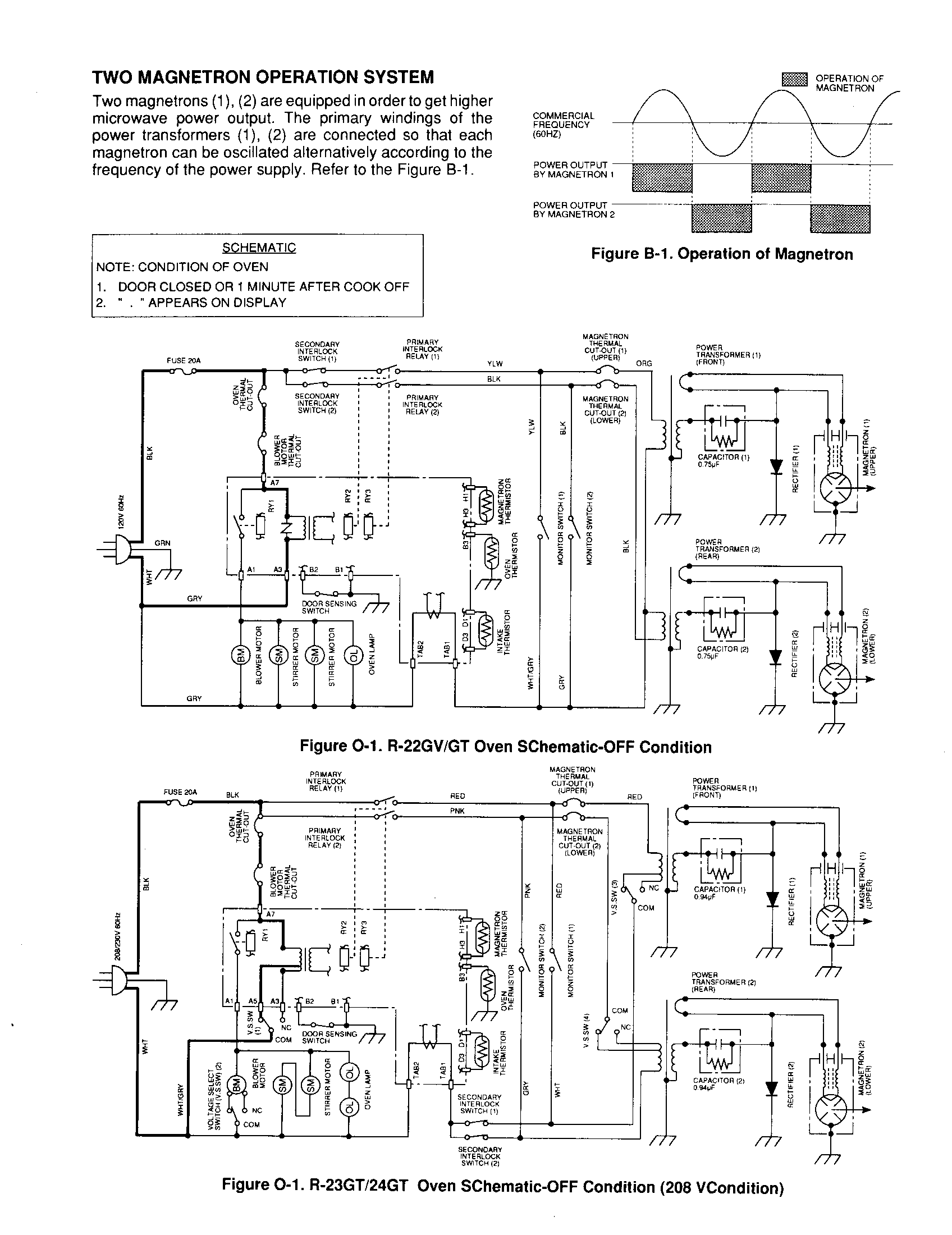

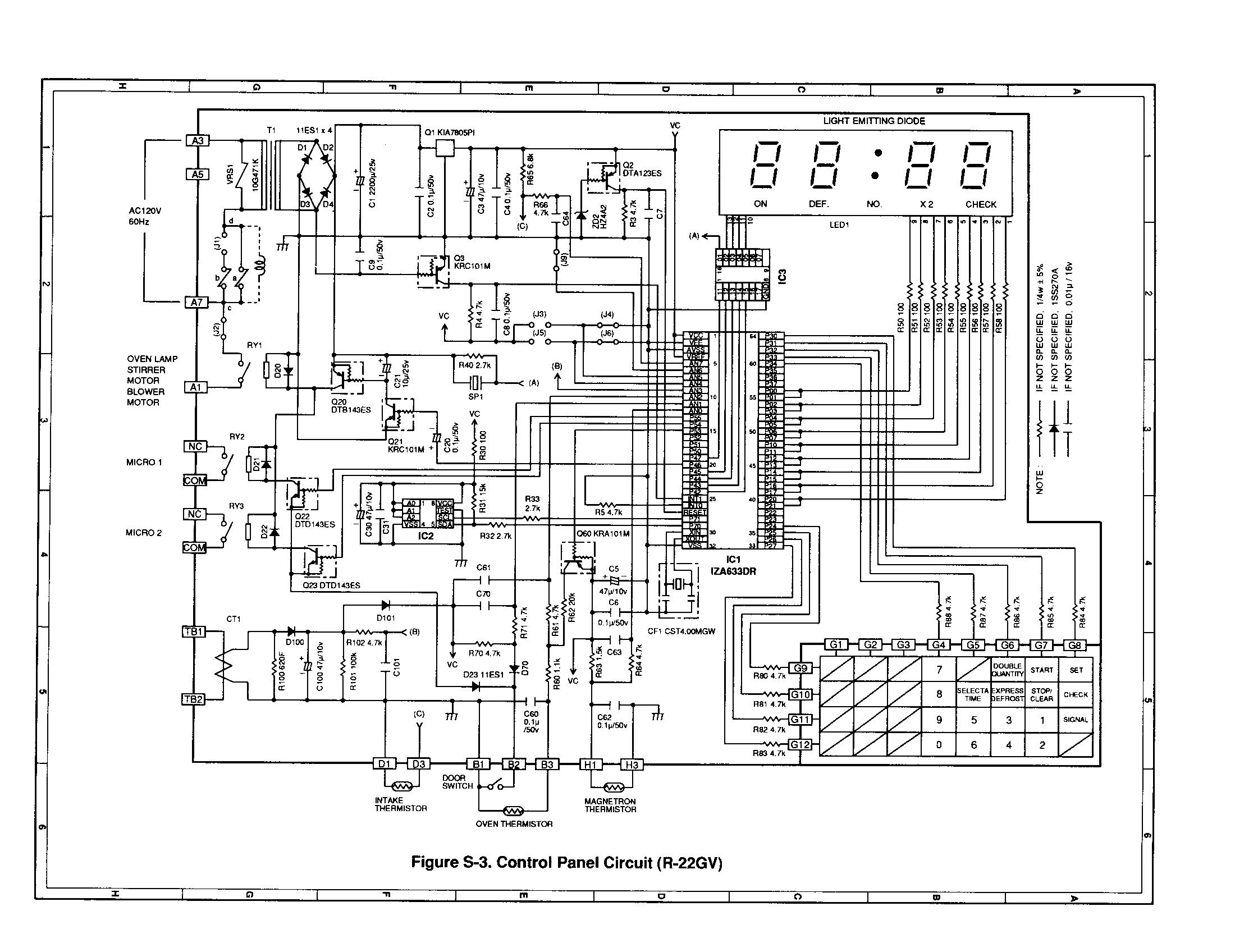

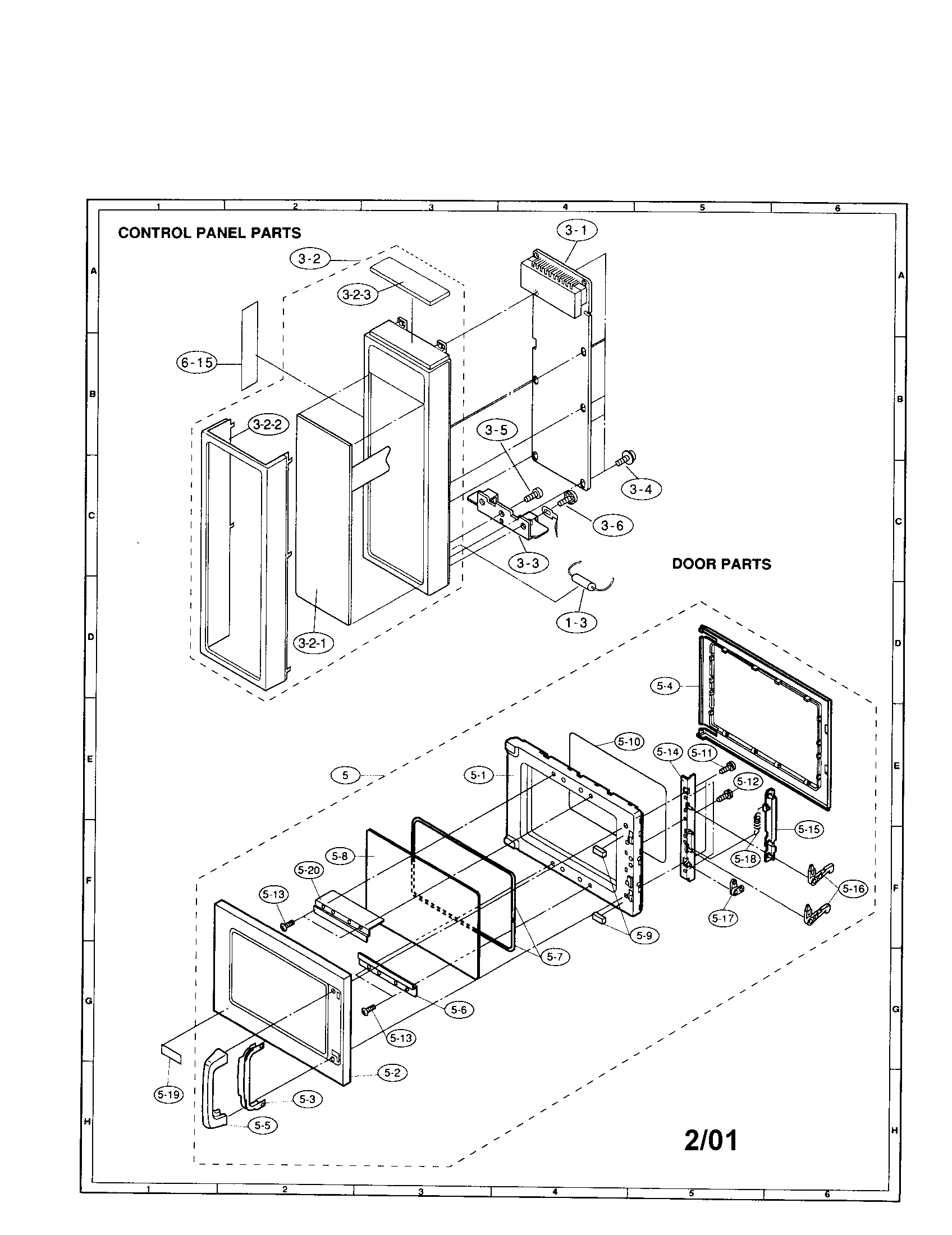

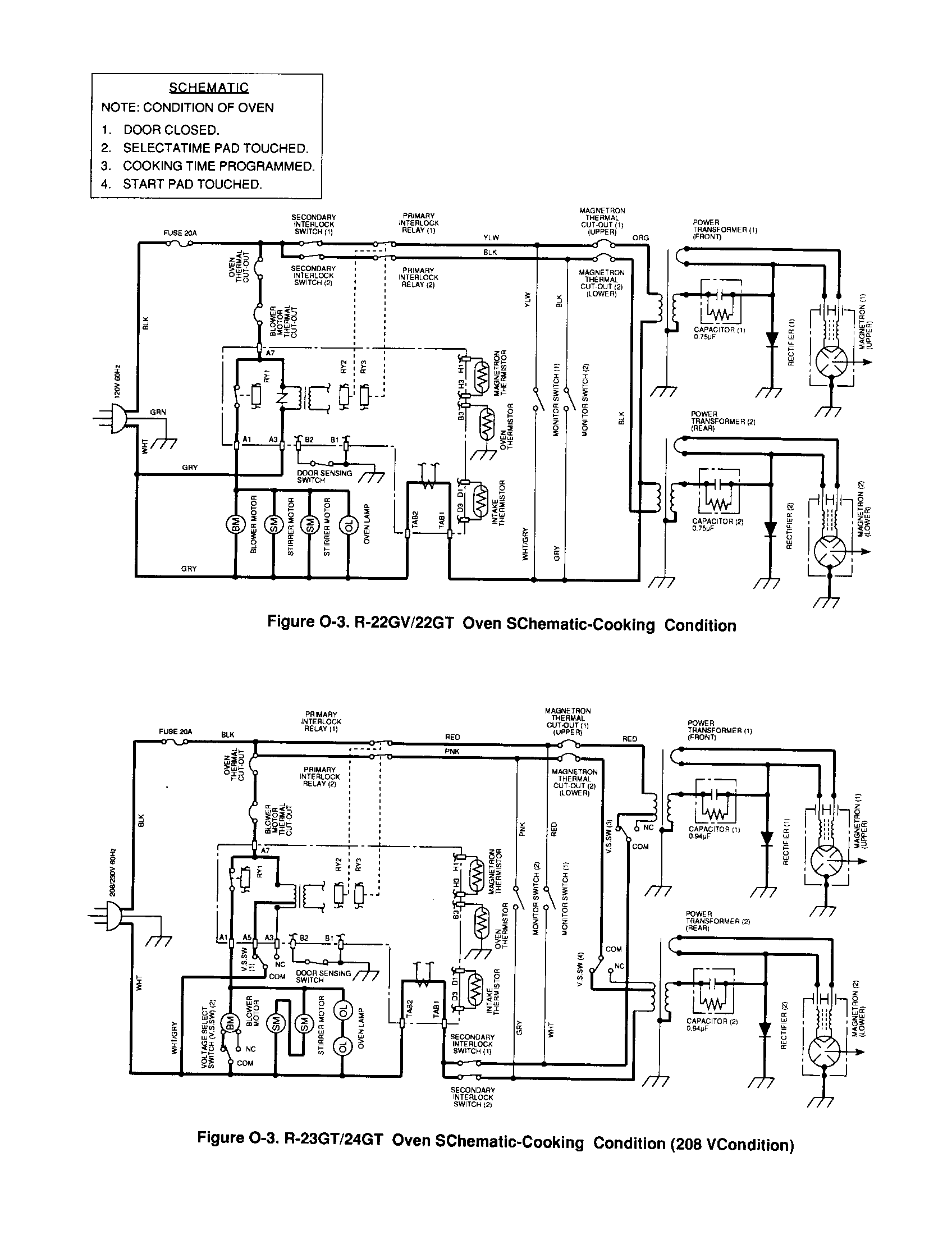

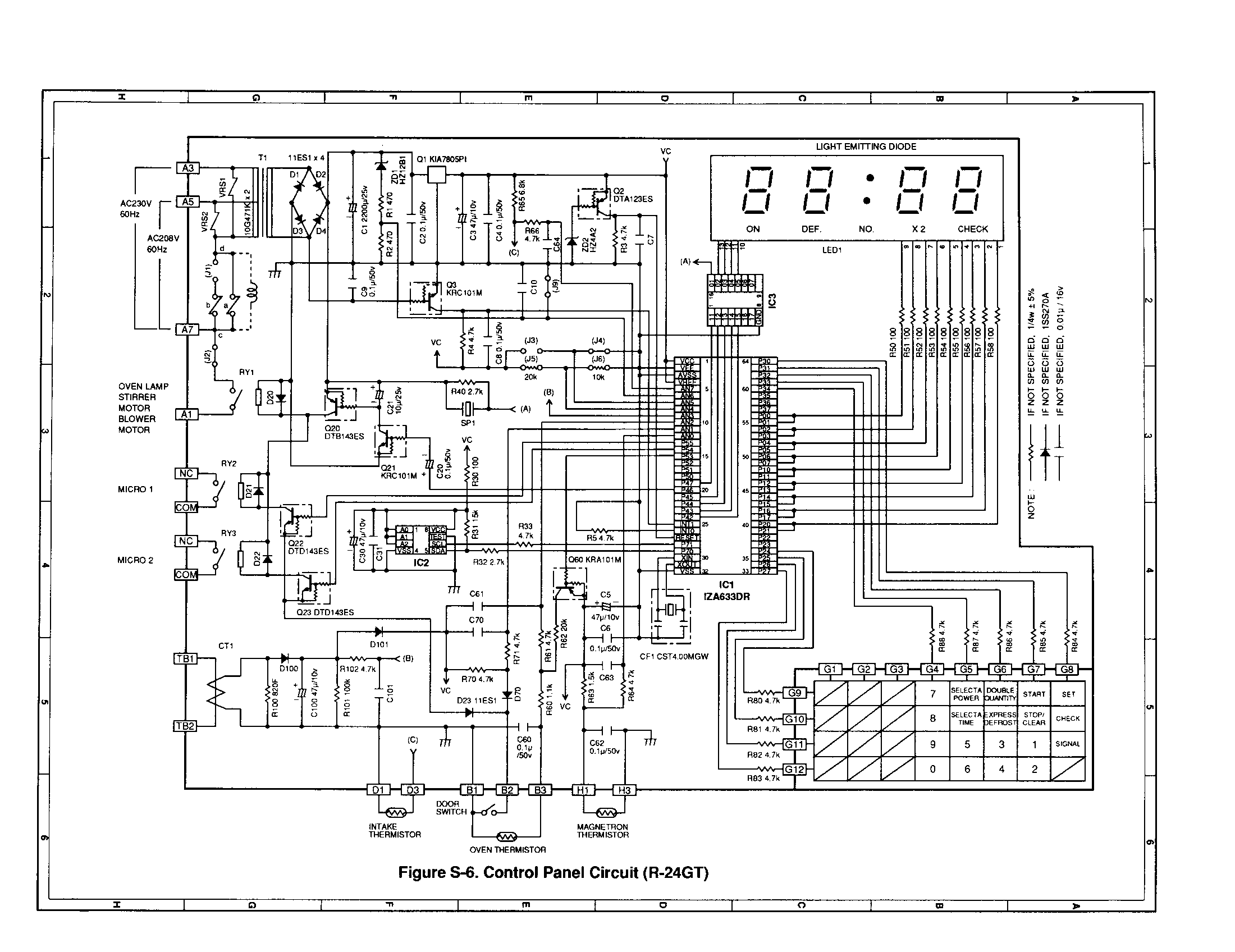

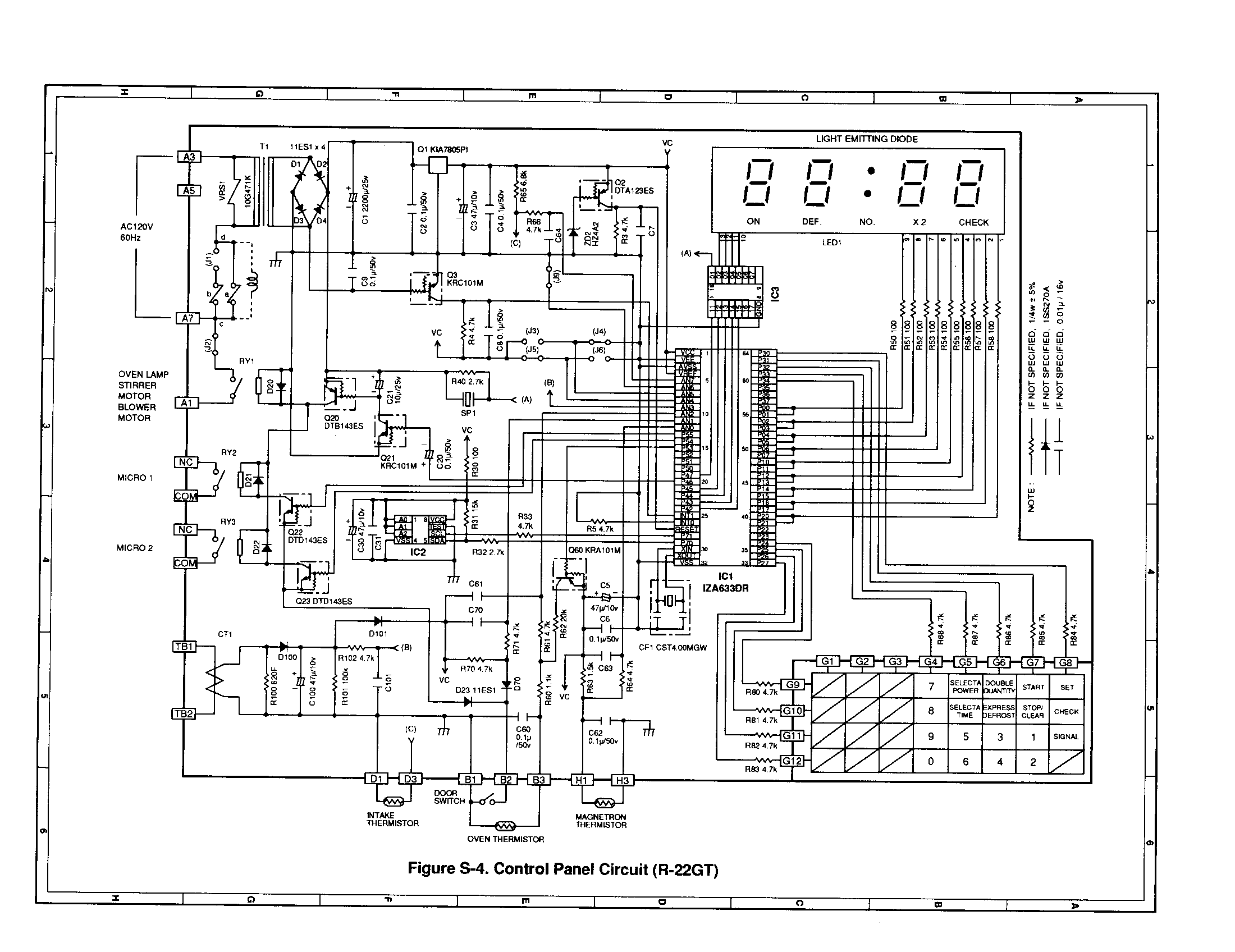

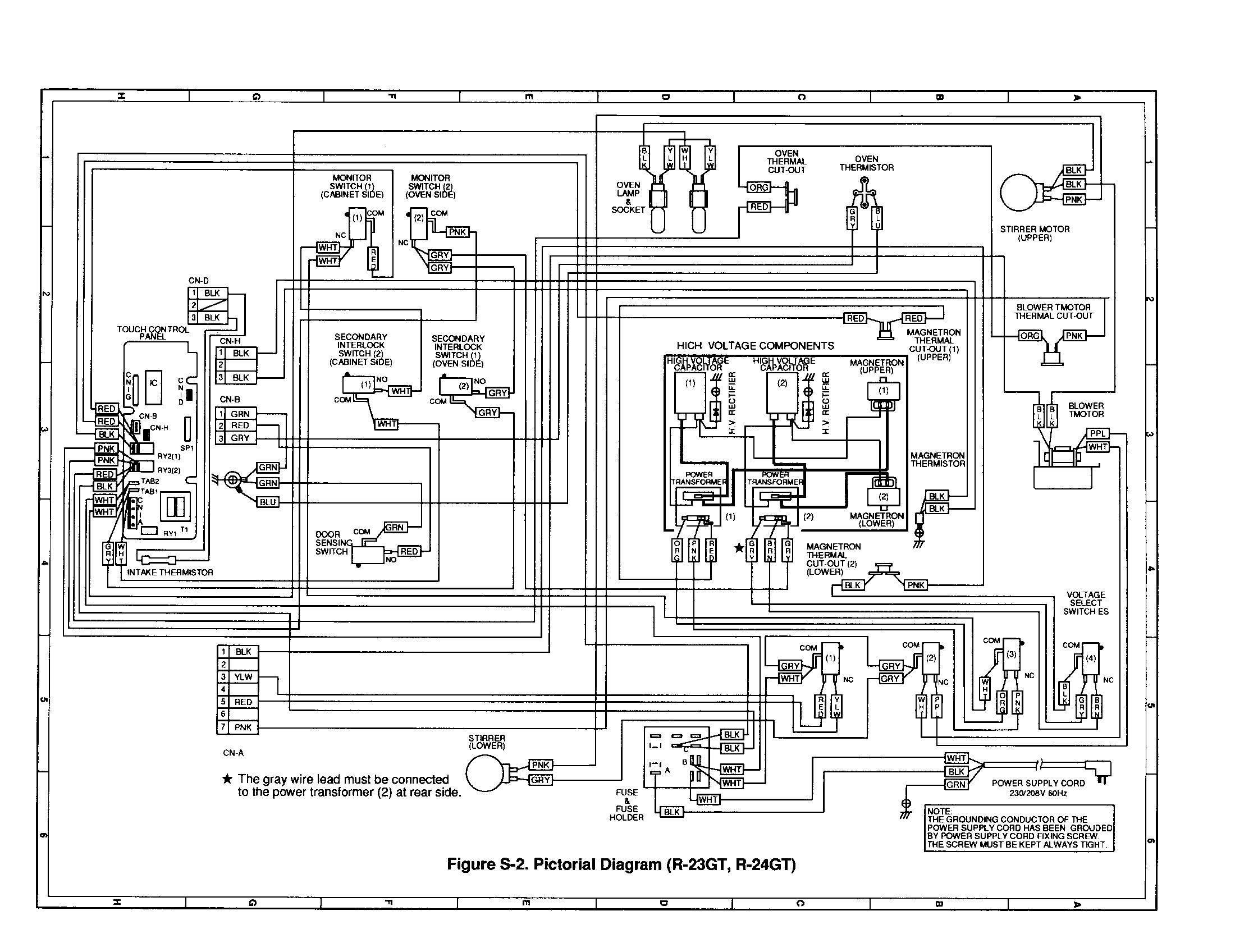

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 226 parts  |
Switch QSW-MA051WRE0

#1-11

All parts diagram

Switch

Part #QSW-MA051WRE0

The manufacturer no longer makes this part, and there's no substitute part

Magnetron RV-MZA189WRE0

#1-20A

All parts diagram

Magnetron

Part #RV-MZA189WRE0

The manufacturer no longer makes this part, and there's no substitute part

Screw : 5mm X 8mm (8) XHPSD50P08000

#7-14

All parts diagram

Screw : 5mm x 8mm (8)

Part #XHPSD50P08000

The manufacturer no longer makes this part, and there's no substitute part

Screw : 3mm X 50mm (2) XBPSD30P50K00

#7-26

All parts diagram

Screw : 3mm x 50mm (2)

Part #XBPSD30P50K00

The manufacturer no longer makes this part, and there's no substitute part

Screw : 4mm X 6mm XOTSD40P06000

#7-11

All parts diagram

Screw : 4mm x 6mm

Part #XOTSD40P06000

The manufacturer no longer makes this part, and there's no substitute part

J5/j6 Resistor 10k Ohm 1/4w (r23gt) (r-24gt) VRD-Q12EF103J

#NI

All parts diagram

J5/j6 resistor 10k ohm 1/4w (r23gt) (r-24gt)

Part #VRD-Q12EF103J

The manufacturer no longer makes this part, and there's no substitute part

High-voltage Diode FW-QZA100WRK0

#1-08

All parts diagram

High-voltage diode

Part #FW-QZA100WRK0

The manufacturer no longer makes this part, and there's no substitute part

Rating Label (r-22gv) TSPCNC130WRR0

#6-13

All parts diagram

Rating label (r-22gv)

Part #TSPCNC130WRR0

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-BZA116WRE0

#7-05

All parts diagram

Screw

Part #LX-BZA116WRE0

The manufacturer no longer makes this part, and there's no substitute part

Lever Switch MLEVPA154WRF0

#4-06

All parts diagram

Lever switch

Part #MLEVPA154WRF0

The manufacturer no longer makes this part, and there's no substitute part
