Model # NF80D110S5C53 Official GE hvac-gas furnace

Here are the diagrams and repair parts for Official GE NF80D110S5C53 hvac-gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Lb-74940b Flame Sensor Kit (102431-02) 69W43
#210

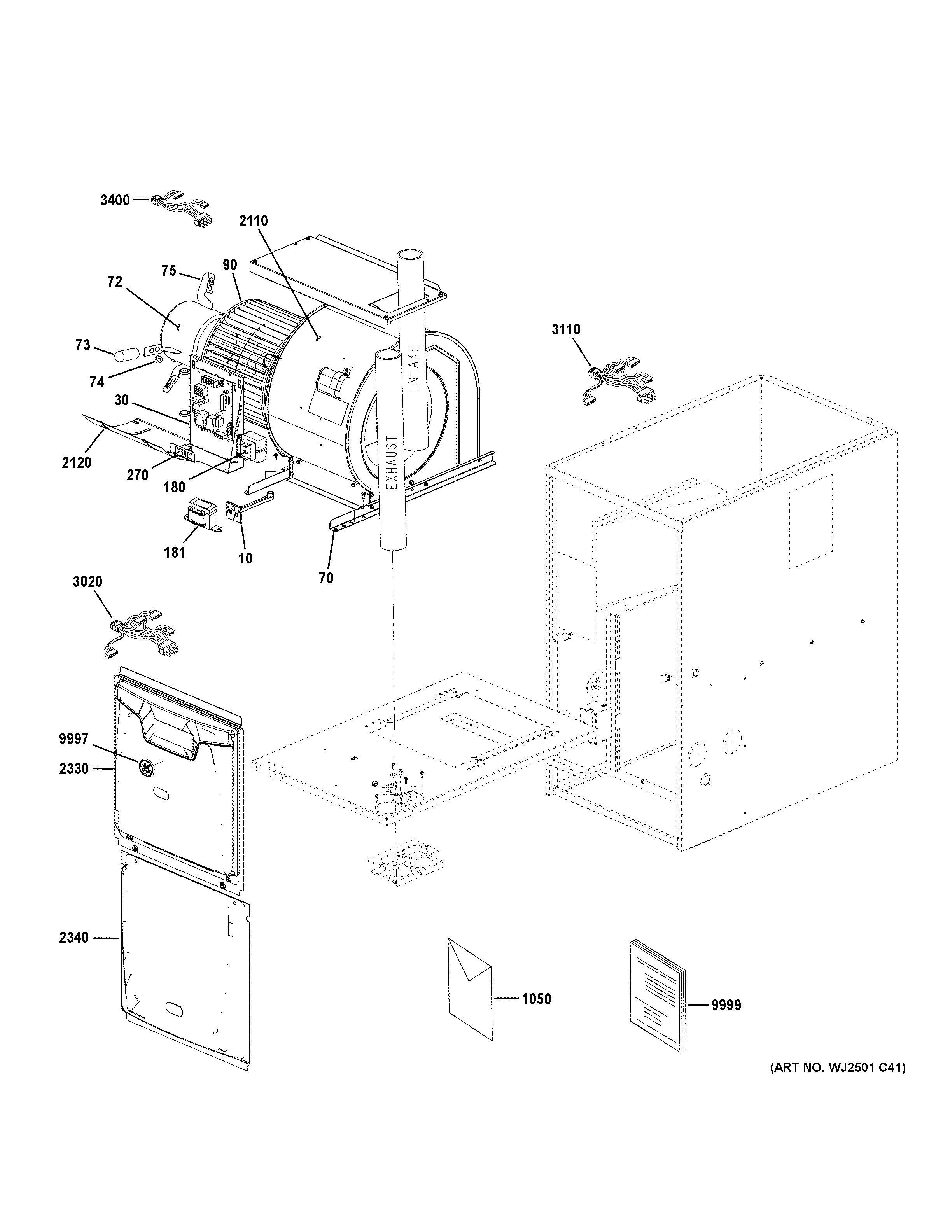

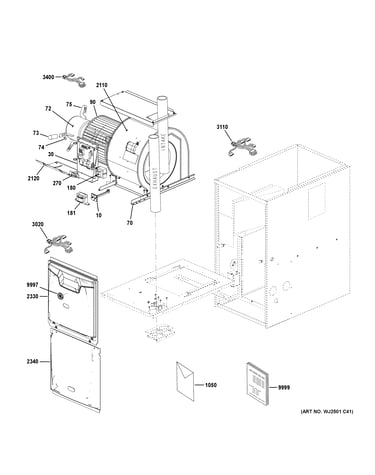

Cabinet (2) diagram

Lb-74940b flame sensor kit (102431-02)

Part #69W43

$63.98
In Stock
Lb-112237b Ignitor Assembly (100536-03) 70W16
#120

Cabinet (2) diagram

Lb-112237b ignitor assembly (100536-03)

Part #70W16

$83.31
In Stock
Control-limit (au X ) 135f 69m3801 69M38
#290

Cabinet (2) diagram

Control-limit (au x ) 135f 69m3801

Part #69M38

$48.38
In Stock
Gea Badge 107213-05
#9997

Cabinet (1) diagram

Gea badge

Part #107213-05

$10.74
In Stock
102317-01 Switch-interlock 51W15
#270

Cabinet (1) diagram

102317-01 switch-interlock

Part #51W15

$23.97
In Stock
102135-04 Control-limit Aux (165f) 69W37
#10

Cabinet (1) diagram

102135-04 control-limit aux (165f)

Part #69W37

$43.22
In Stock
101910-05 Orifice-lp 61 69W94
#4

Cabinet (2) diagram

101910-05 orifice-lp 61

Part #69W94

$27.23
In Stock
607436-03 Ignition Control Kit 16C81
#30

Cabinet (1) diagram

607436-03 ignition control kit

Part #16C81

$115.56
In Stock
102907-01 Roll Out Switch (210f) 71W49
#60

Cabinet (2) diagram

102907-01 roll out switch (210f)

Part #71W49

$31.60
In Stock
103247-09 Switch-pressure .65 80W57
#20

Cabinet (2) diagram

103247-09 switch-pressure .65

Part #80W57

$48.80
In Stock
