Model # 6654433451 Official Kenmore built-in oven with microwave

Here are the diagrams and repair parts for Official Kenmore 6654433451 built-in oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

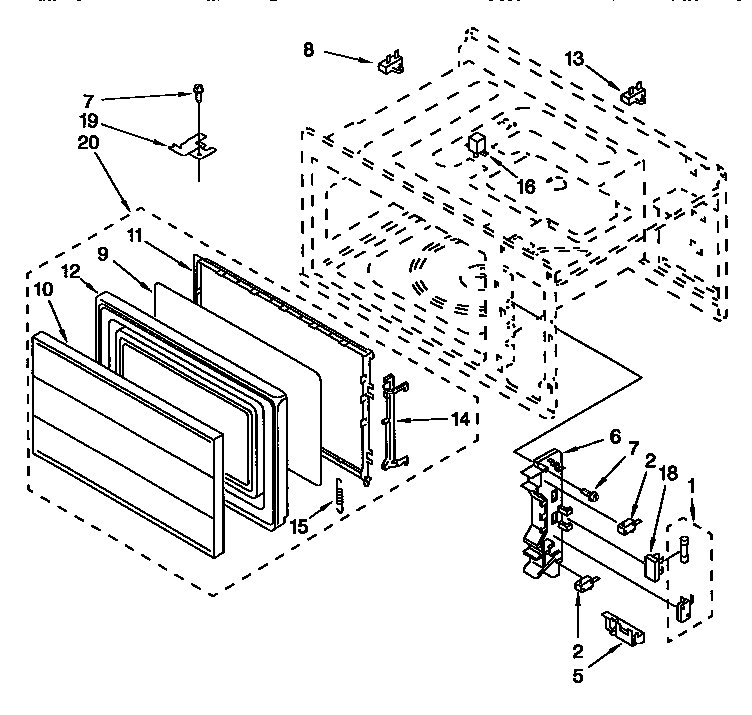

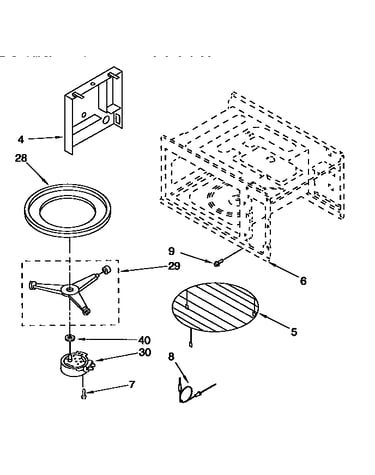

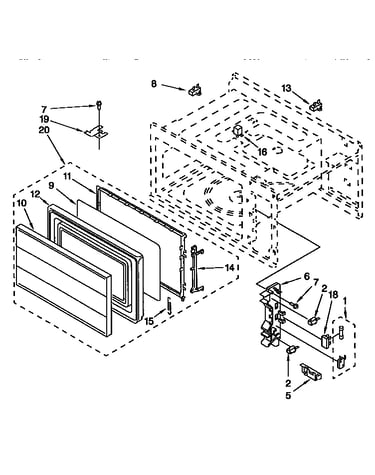

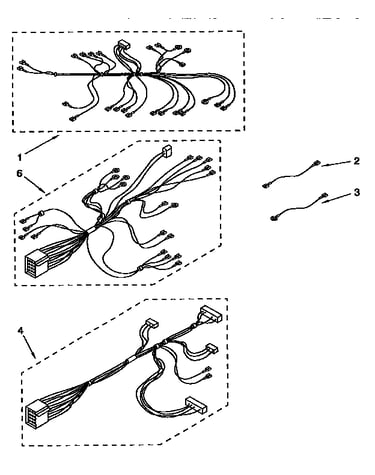

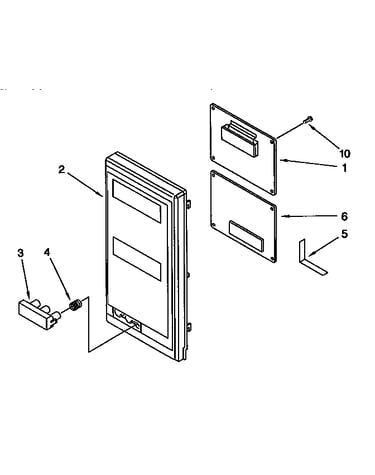

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 209 parts  |
Light Bulb 311255
#41

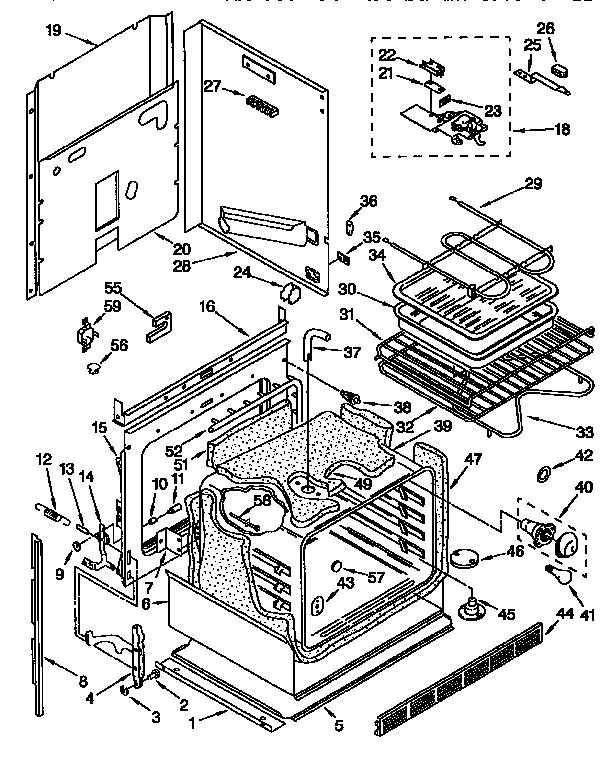

Lower oven diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Bake Element 661170
#33

Lower oven diagram

Bake element

Part #661170

Replaced by #WP308180

?
Manufacturer substitution
This part replaces 661170. Substitute parts can look different from the original.
BEST SELLER
$41.44 |
13% OFF Phone Price : $47.44
In Stock
Magnetron 4313675
#4

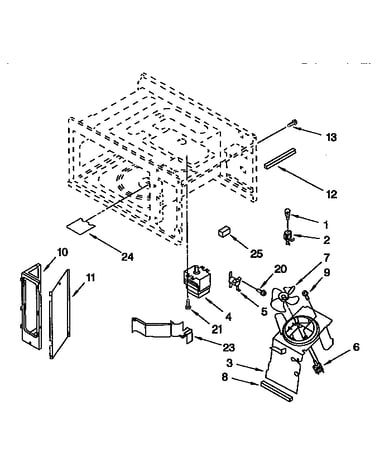

Magnetron and air flow diagram

Magnetron

Part #4313675

The manufacturer no longer makes this part, and there's no substitute part

Range Broil Element 660579
#29

Lower oven diagram

Range broil element

Part #660579

Replaced by #WP660579

?
Manufacturer substitution
This part replaces 660579. Substitute parts can look different from the original.
$67.38 |
8% OFF Phone Price : $73.38
In Stock
Wall Oven Door Inner Glass 3169203
#4

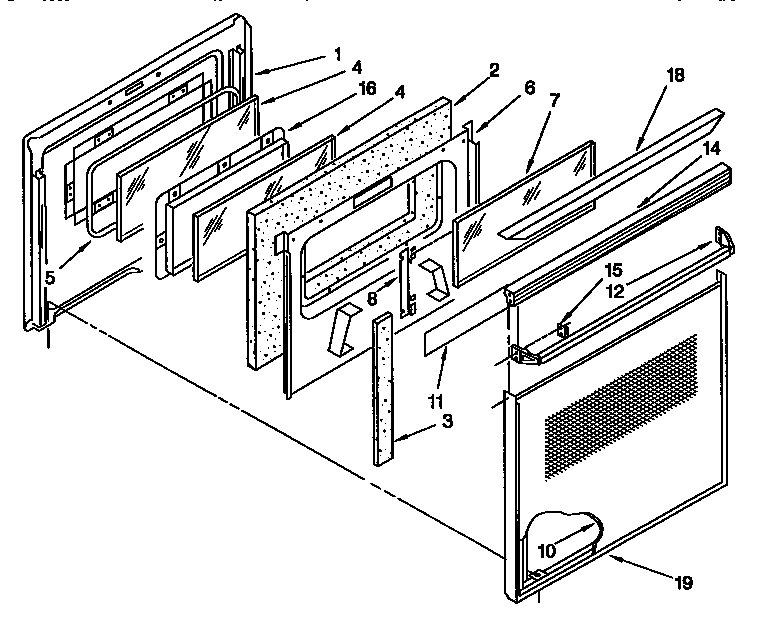

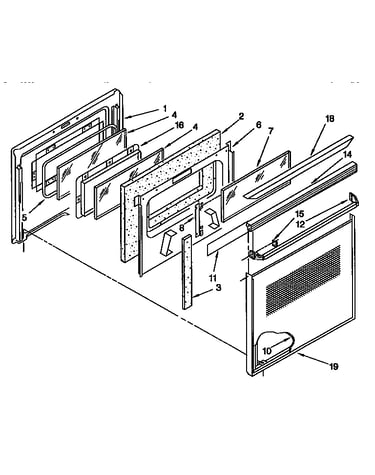

Electric oven door diagram

Wall oven door inner glass

Part #3169203

Replaced by #WP3169203

?
Manufacturer substitution
This part replaces 3169203. Substitute parts can look different from the original.
$57.87 |
9% OFF Phone Price : $63.87
In Stock
Terminal Block 258076
#27

Lower oven diagram

Terminal block

Part #258076

Replaced by #WP8203546

?
Manufacturer substitution
This part replaces 258076. Substitute parts can look different from the original.
This item is not returnable
$16.75 |
11% OFF Phone Price : $18.75
In Stock
Range Oven Rack 3185641
#32

Lower oven diagram

Range oven rack

Part #3185641

Replaced by #WP3185641

?
Manufacturer substitution
This part replaces 3185641. Substitute parts can look different from the original.
$68.49 |
8% OFF Phone Price : $74.49
In Stock
Nut 112432
#27A

Lower oven diagram

Nut

Part #112432

Replaced by #WP112432

?
Manufacturer substitution
This part replaces 112432. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Range Oven Door Spring 308126
#12

Lower oven diagram

Range oven door spring

Part #308126

Replaced by #WP308126

?
Manufacturer substitution
This part replaces 308126. Substitute parts can look different from the original.
$20.24 |
23% OFF Phone Price : $26.24
In Stock
Screw 246132
#23B

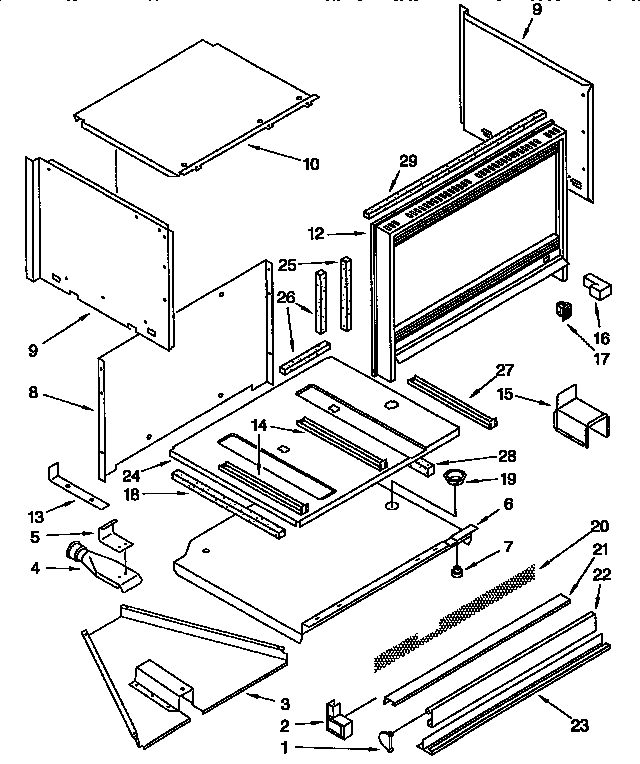

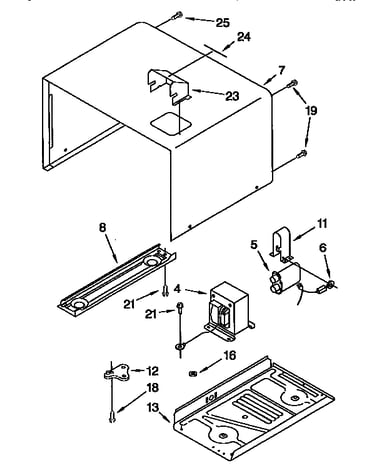

Microwave cabinet and air flow diagram

Screw

Part #246132

Replaced by #WP965173

?
Manufacturer substitution
This part replaces 246132. Substitute parts can look different from the original.
This item is not returnable
$5.85
In Stock
