Model # 093J02-0032-F1 Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 093J02-0032-F1 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Briggs And Stratton Filter-air Cleaner Ca 798452
#445

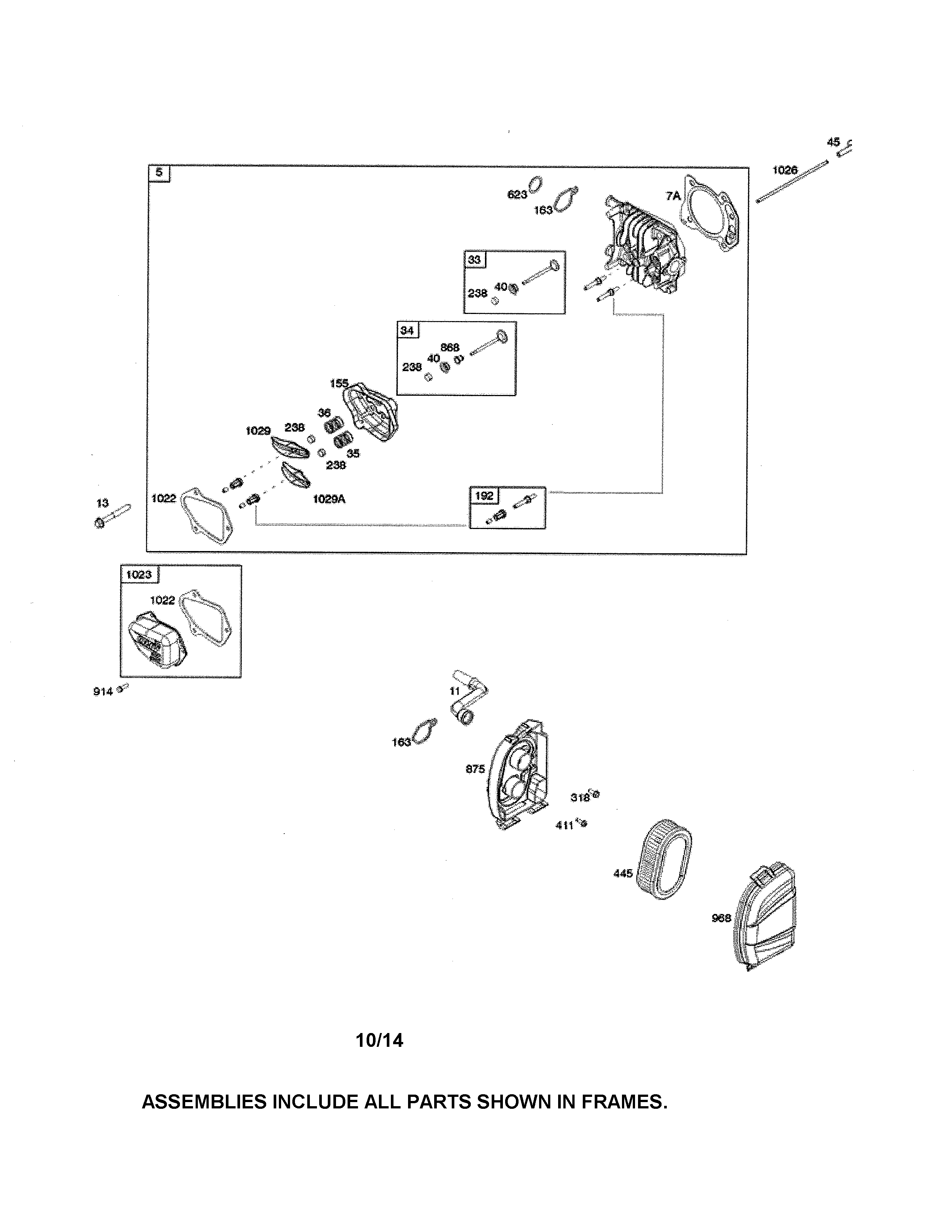

Air cleaner/cylinder head diagram

Briggs and stratton filter-air cleaner ca

Part #798452

Replaced by #593260

?
Manufacturer substitution
This part replaces 798452. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$17.55 |
10% OFF Phone Price : $19.55
In Stock
Lawn & Garden Equipment Engine Fuel Line (replaces 1734994sm, 327290ma, 691050, 7012638yp, 7032016yp, 7032956yp, 7041996yp, 7076272yp, 7077351yp, 791866, 798512, 809322, 809499) 791766
#187

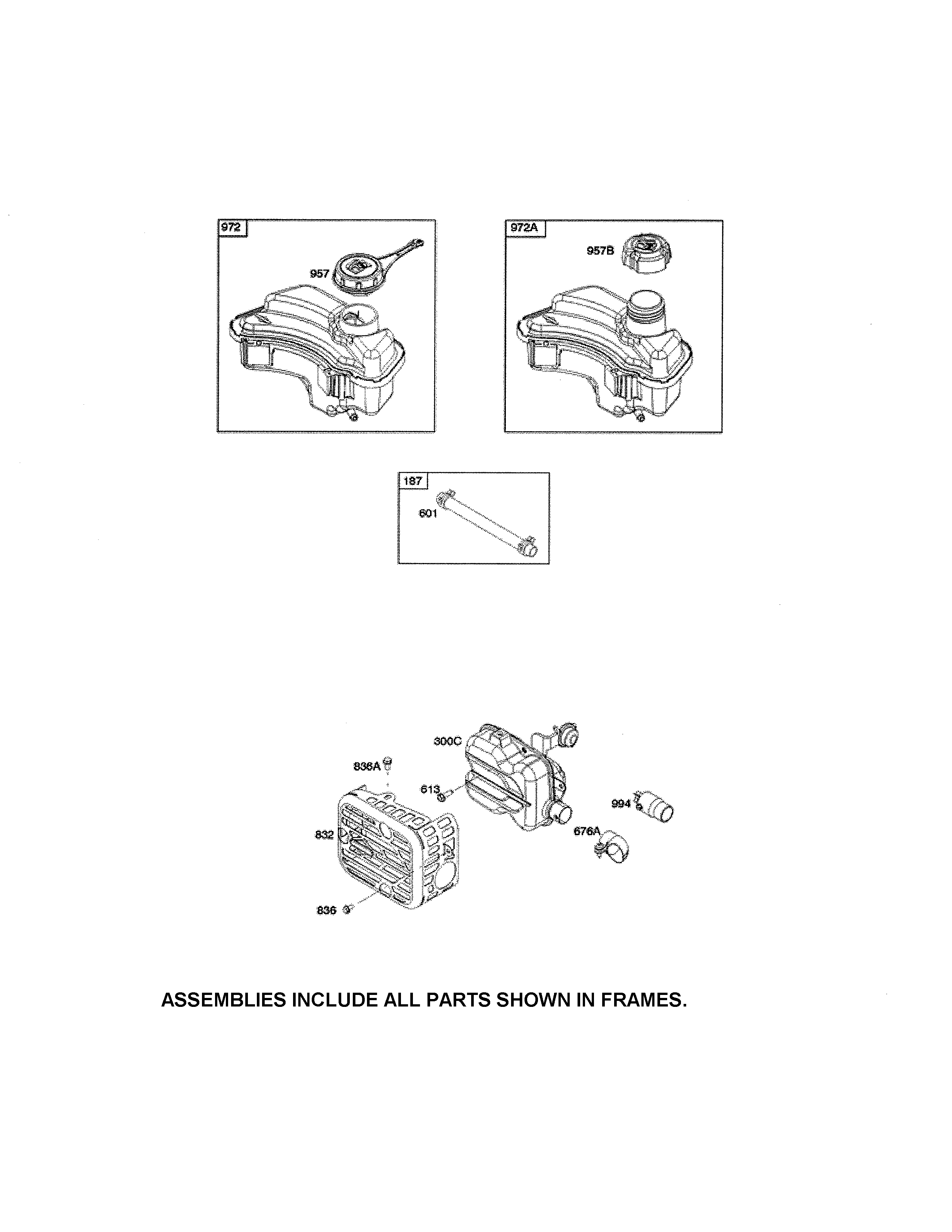

Fuel tank diagram

Lawn & garden equipment engine fuel line (replaces 1734994sm, 327290ma, 691050, 7012638yp, 7032016yp, 7032956yp, 7041996yp, 7076272yp, 7077351yp, 791866, 798512, 809322, 809499)

Part #791766

BEST SELLER
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Lawn & Garden Equipment Engine Fuel Tank Cap (replaces 1501726ma, 33385, 397974s, 498697, 793606, 796654) 692046
#957B

Fuel tank diagram

Lawn & garden equipment engine fuel tank cap (replaces 1501726ma, 33385, 397974s, 498697, 793606, 796654)

Part #692046

BEST SELLER
$8.80 |
10% OFF Phone Price : $9.80
In Stock
Lawn & Garden Equipment Engine Flywheel Key (replaces 222698, 690974, Bs-222698s) 222698S
#24

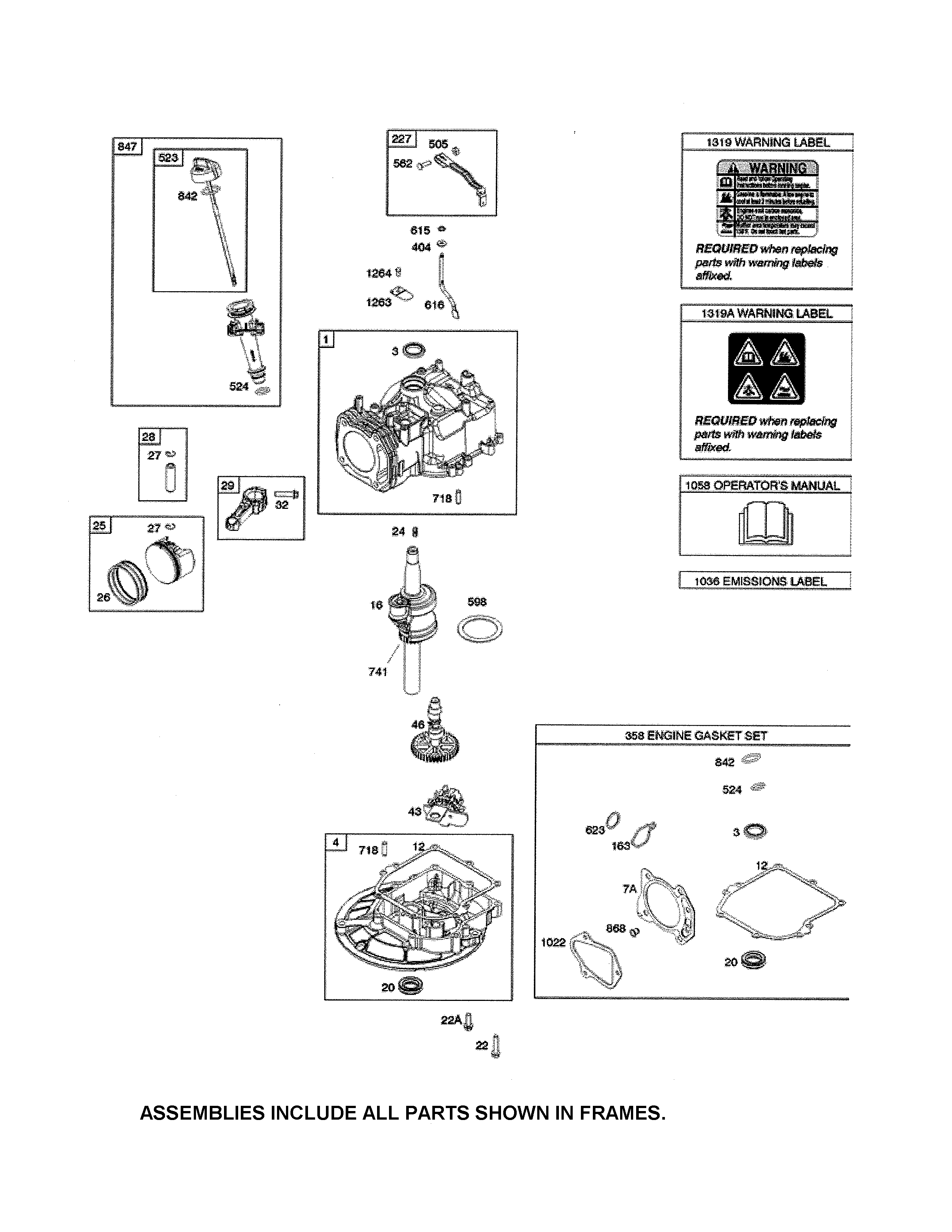

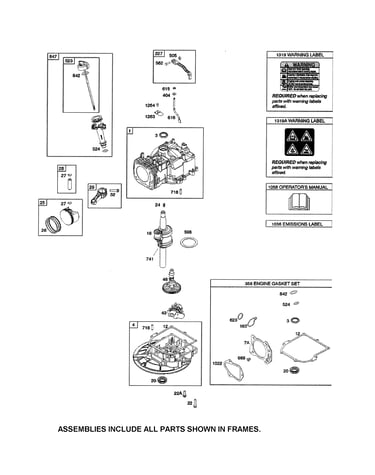

Crankshaft/cylinder/sump diagram

Lawn & garden equipment engine flywheel key (replaces 222698, 690974, bs-222698s)

Part #222698S

BEST SELLER
This item is not returnable
$3.29 |
23% OFF Phone Price : $4.29
In Stock
Lawn & Garden Equipment Engine Recoil Starter Handle (replaces 281434, 691930, 795426, Bs-281434s) 281434S
#60A

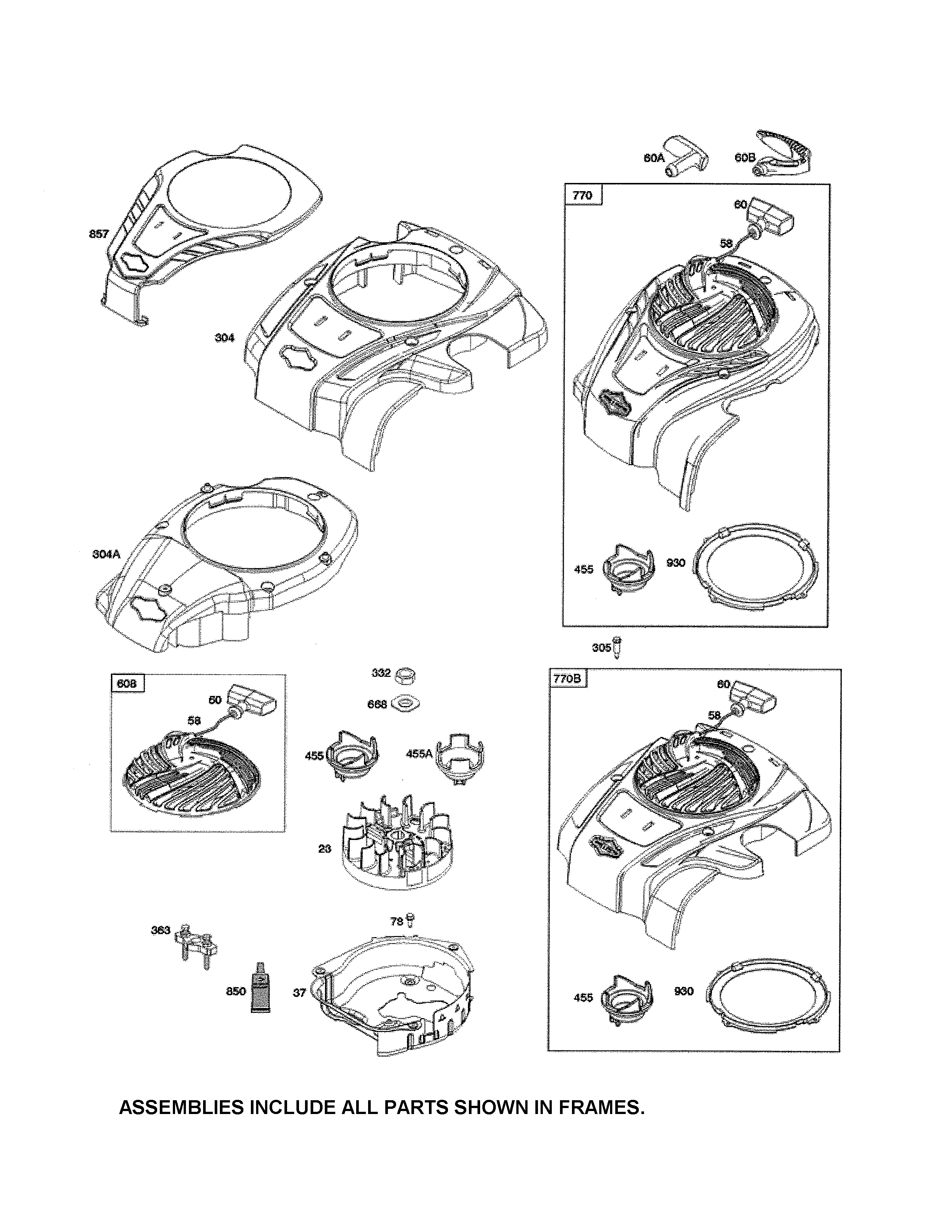

Blower housing/flywheel diagram

Lawn & garden equipment engine recoil starter handle (replaces 281434, 691930, 795426, bs-281434s)

Part #281434S

BEST SELLER
This item is not returnable
$6.34 |
14% OFF Phone Price : $7.34
In Stock
Lawn & Garden Equipment Engine Fuel Tank Cap (replaces 799684, Bs-799585) 799585
#957

Fuel tank diagram

Lawn & garden equipment engine fuel tank cap (replaces 799684, bs-799585)

Part #799585

This item is not returnable
$22.49 |
21% OFF Phone Price : $28.49
In Stock

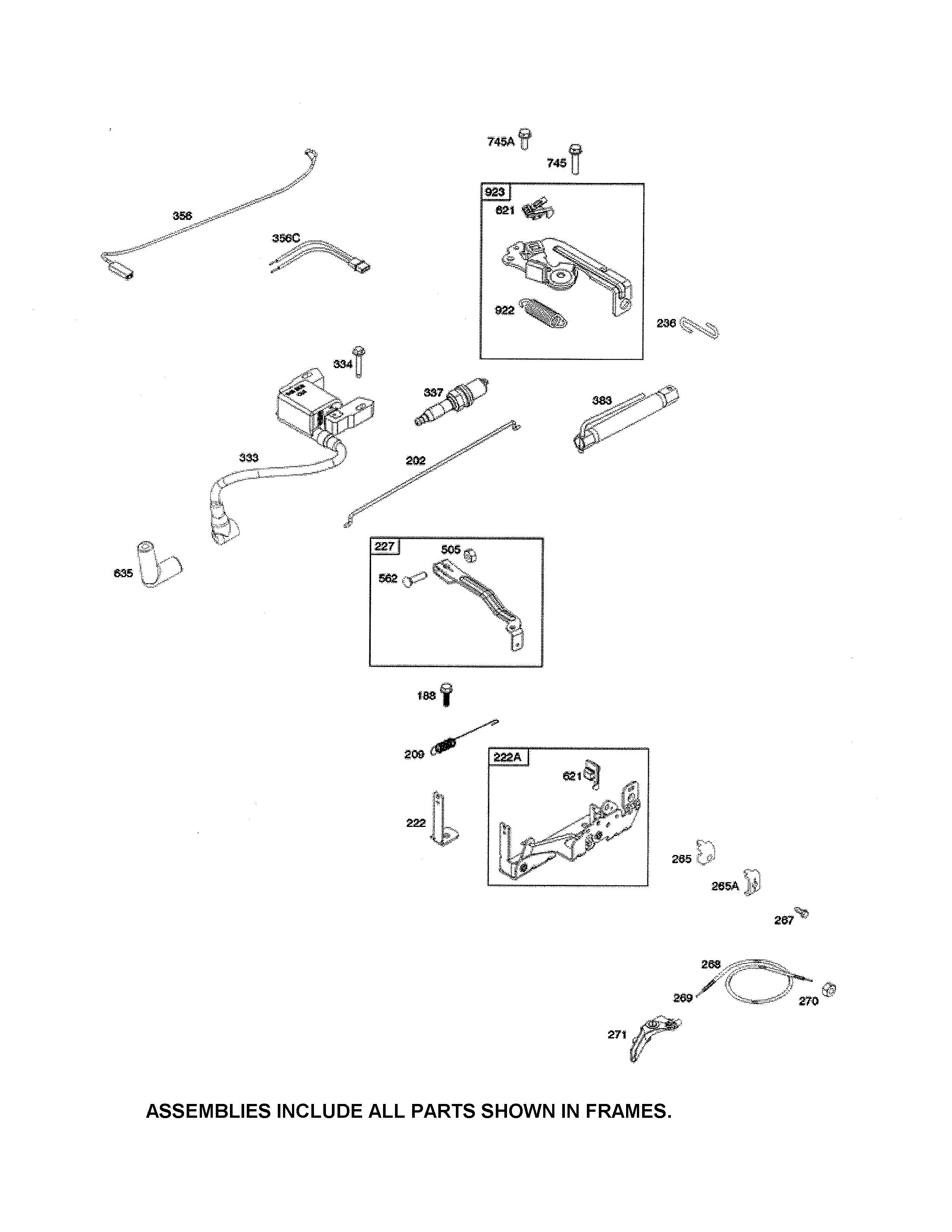

Lawn & Garden Equipment Engine Ignition Coil (replaces 799582) 593872
#333

Armature/controls diagram

Lawn & garden equipment engine ignition coil (replaces 799582)

Part #593872

Replaced by #84005272

?
Manufacturer substitution
This part replaces 593872. Substitute parts can look different from the original.
$45.18
In Stock
Lawn & Garden Equipment Engine Spark Plug Wrench (replaces 19374s, 19576, Bs-19576s) 19576S
#383

Armature/controls diagram

Lawn & garden equipment engine spark plug wrench (replaces 19374s, 19576, bs-19576s)

Part #19576S

This item is not returnable

Get free shipping with Automatic Reorder

$9.89 |
9% OFF Phone Price : $10.89
In Stock
Lawn & Garden Equipment Engine Oil Seal (replaces 299819, 692266, Bs-299819, Bs-299819s) 299819S
#3

Crankshaft/cylinder/sump diagram

Lawn & garden equipment engine oil seal (replaces 299819, 692266, bs-299819, bs-299819s)

Part #299819S

This item is not returnable
$7.89 |
11% OFF Phone Price : $8.89
In Stock
Lawn & Garden Equipment Engine Carburetor (replaces 596587) 592361
#125

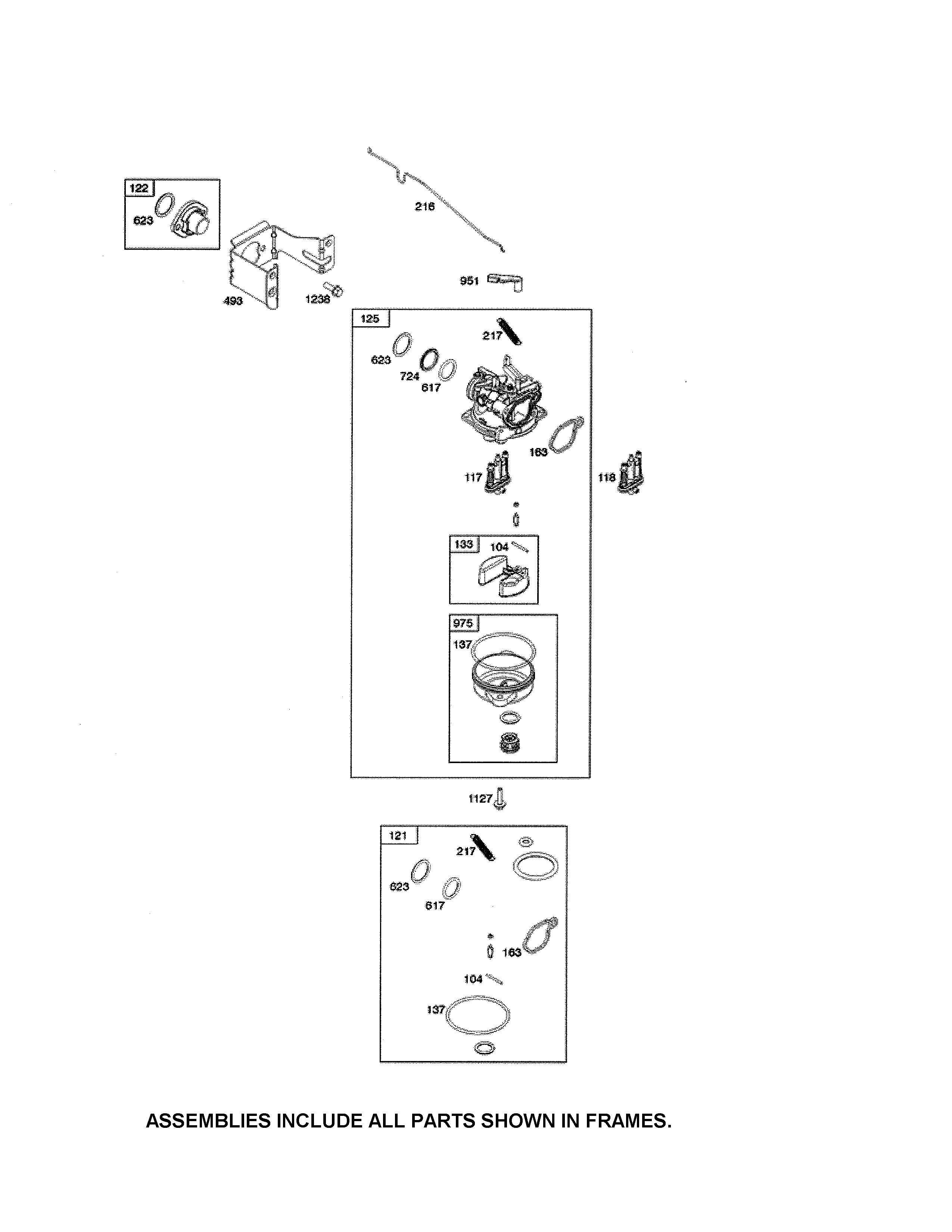

Carburetor diagram

Lawn & garden equipment engine carburetor (replaces 596587)

Part #592361

$50.79 |
11% OFF Phone Price : $56.79
In Stock
