Model # 28538 Official Lifestyler exercise bike

Here are the diagrams and repair parts for Official Lifestyler 28538 exercise bike, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

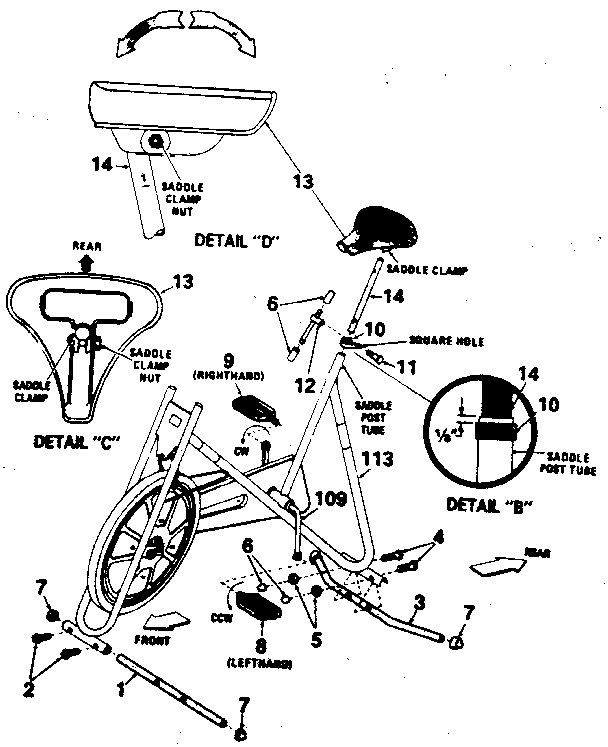

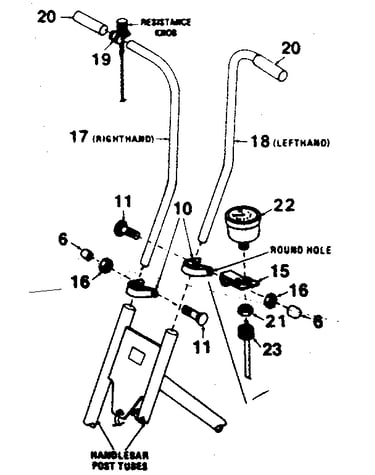

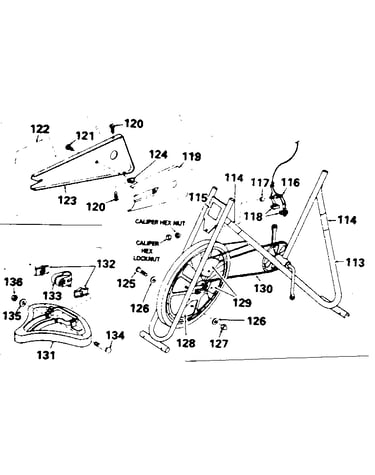

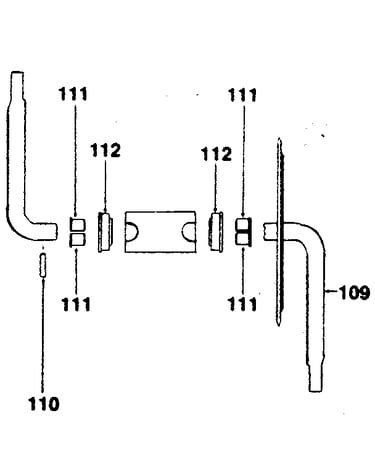

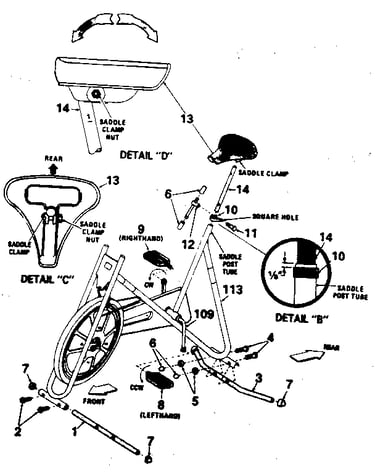

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Screw 20010200

#120

All parts diagram

Screw

Part #20010200

The manufacturer no longer makes this part, and there's no substitute part

Insert 30104867

#14

All parts diagram

Insert

Part #30104867

The manufacturer no longer makes this part, and there's no substitute part

Spacer 28035800

#117

All parts diagram

Spacer

Part #28035800

The manufacturer no longer makes this part, and there's no substitute part

Foot Tube 30145567

#3

All parts diagram

Foot tube

Part #30145567

The manufacturer no longer makes this part, and there's no substitute part

Gear Box 28045500

#101

All parts diagram

Gear box

Part #28045500

The manufacturer no longer makes this part, and there's no substitute part

Handle Nut 28015000

#12

All parts diagram

Handle nut

Part #28015000

The manufacturer no longer makes this part, and there's no substitute part

Lock Clamp 28057000

#132

All parts diagram

Lock clamp

Part #28057000

The manufacturer no longer makes this part, and there's no substitute part

Speedometer 28022200

#22

All parts diagram

Speedometer

Part #28022200

The manufacturer no longer makes this part, and there's no substitute part

Cap Nut 25012000

#127

All parts diagram

Cap nut

Part #25012000

The manufacturer no longer makes this part, and there's no substitute part

Washer 26006300

#135

All parts diagram

Washer

Part #26006300

The manufacturer no longer makes this part, and there's no substitute part
