Kenmore
Gas Water Heater

Model # 153336251 Official Kenmore power miser 6 gas water heater

Here are the diagrams and repair parts for Official Kenmore 153336251 power miser 6 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Thermocouple 42-33900
#7

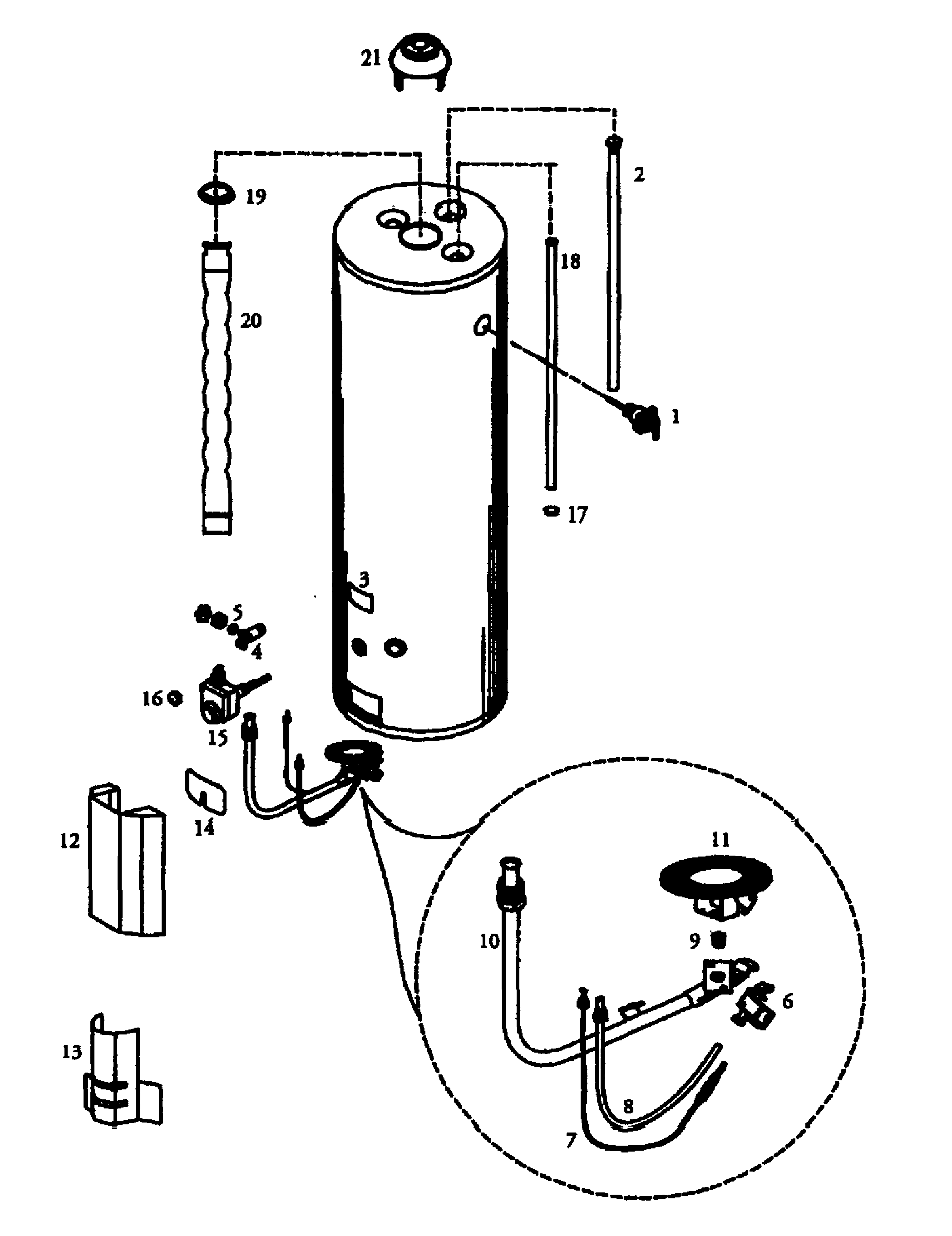

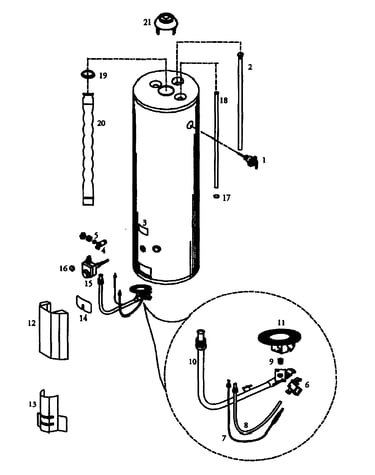

Main assembly diagram

Thermocouple

Part #42-33900

Replaced by #H06E-36

?
Manufacturer substitution
This part replaces 42-33900. Substitute parts can look different from the original.
This item is not returnable
$14.52 |
12% OFF Phone Price : $16.52
In Stock
Gasket 0530087
#17

Main assembly diagram

Gasket

Part #0530087

Replaced by #100108744

?
Manufacturer substitution
This part replaces 0530087. Substitute parts can look different from the original.
$24.44
In Stock
Ring 9000275
#19

Main assembly diagram

Ring

Part #9000275

Replaced by #100108369

?
Manufacturer substitution
This part replaces 9000275. Substitute parts can look different from the original.
$27.78
In Stock
Mag Erad 23600
#NI

Main assembly diagram

Mag erad

Part #23600

Replaced by #23600

?
Manufacturer substitution
This part replaces 23600. Substitute parts can look different from the original.
$35.19
In Stock
Annode Rod 9000279
#2

Main assembly diagram

Annode rod

Part #9000279

Replaced by #100108571

?
Manufacturer substitution
This part replaces 9000279. Substitute parts can look different from the original.
$90.00
In Stock
Water Heater Drain Valve 9000254
#4

Main assembly diagram

Water heater drain valve

Part #9000254

Replaced by #100108361

?
Manufacturer substitution
This part replaces 9000254. Substitute parts can look different from the original.
$17.14
In Stock
Water Heater Temperature And Pressure Relief Valve 9000071
#1

Main assembly diagram

Water heater temperature and pressure relief valve

Part #9000071

Replaced by #100108279

?
Manufacturer substitution
This part replaces 9000071. Substitute parts can look different from the original.
$32.22
In Stock
Orifice 0230130
#9

Main assembly diagram

Orifice

Part #0230130

Replaced by #100108672

?
Manufacturer substitution
This part replaces 0230130. Substitute parts can look different from the original.
$22.86
In Stock
Pilot 9000284
#6

Main assembly diagram

Pilot

Part #9000284

Replaced by #100109070

?
Manufacturer substitution
This part replaces 9000284. Substitute parts can look different from the original.
$47.78
In Stock
Dip Tube 9001918
#18

Main assembly diagram

Dip tube

Part #9001918

Replaced by #100108765

?
Manufacturer substitution
This part replaces 9001918. Substitute parts can look different from the original.
$24.29
In Stock
