Model # SC-HTB550P Official Panasonic home theater system

Here are the diagrams and repair parts for Official Panasonic SC-HTB550P home theater system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

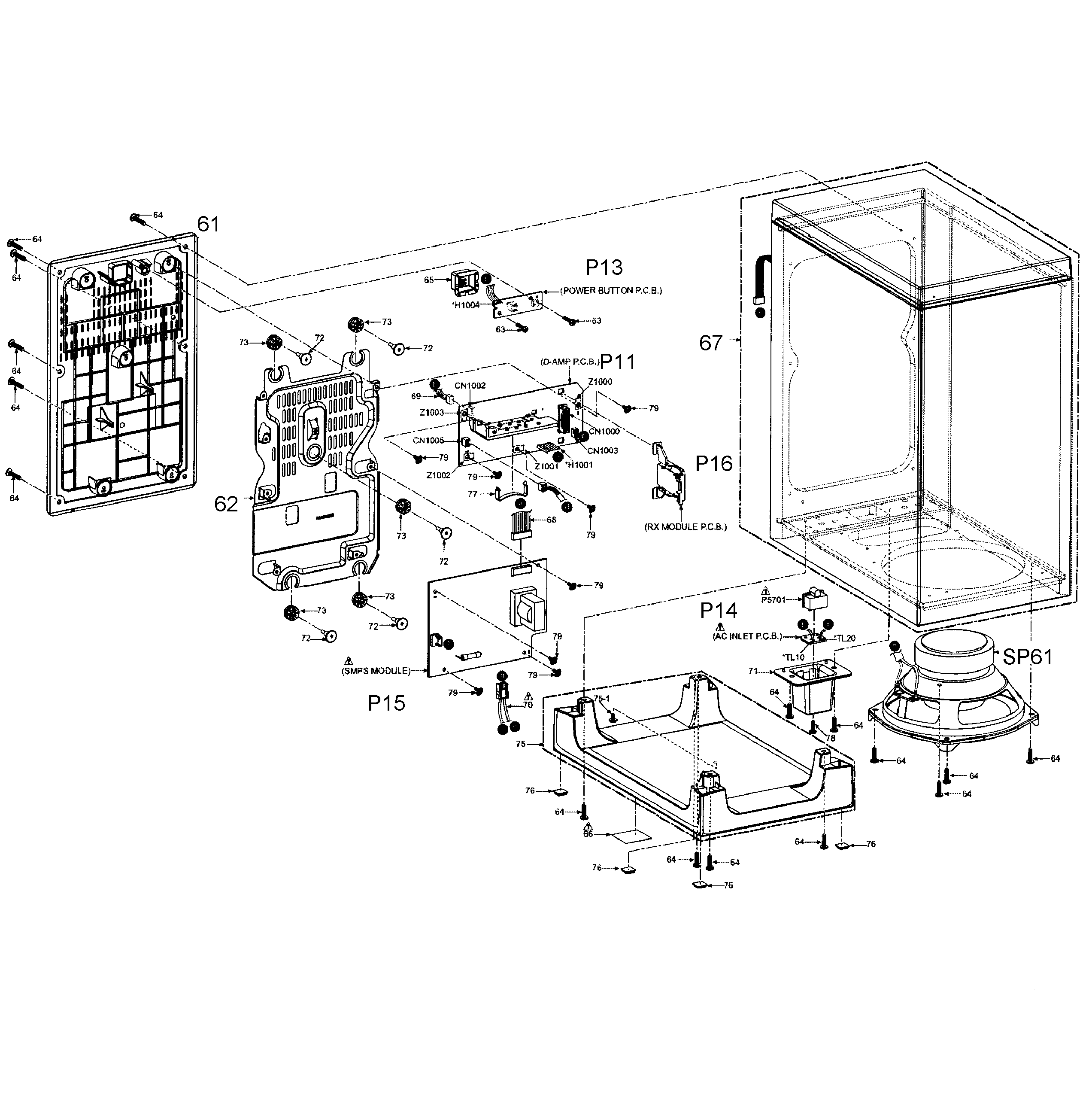

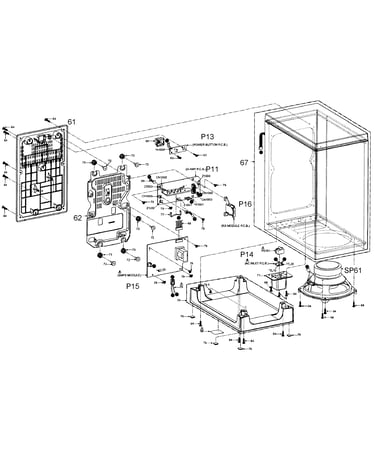

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |

Thermistor D4CAA2R20001
#NI

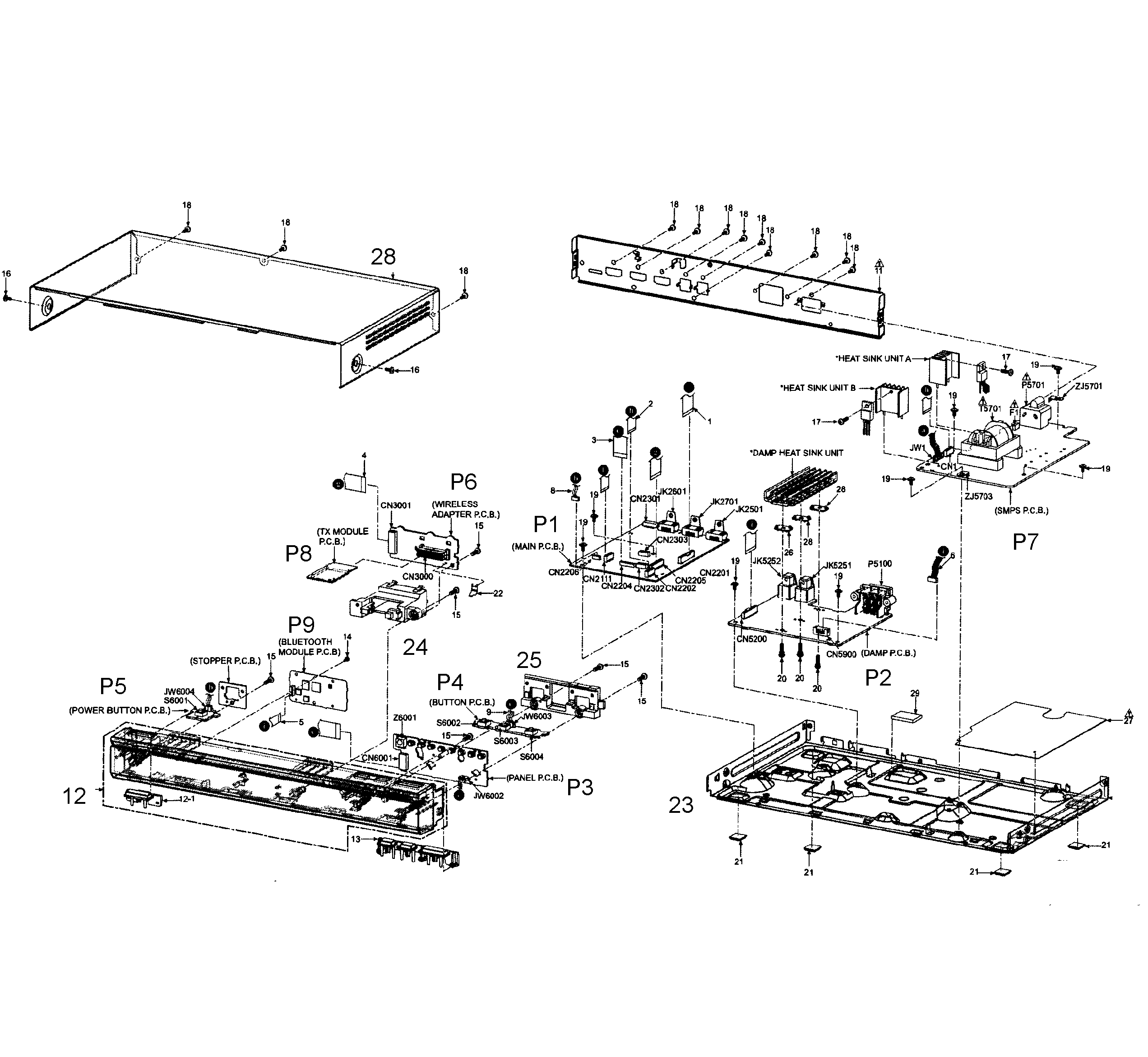

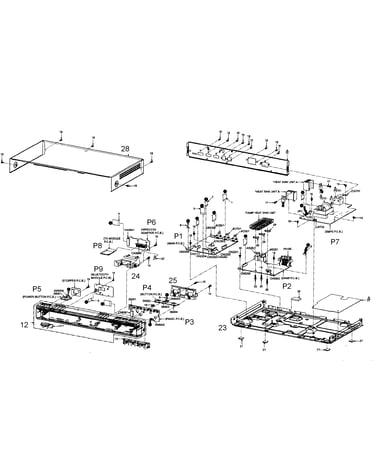

Receiver diagram

Thermistor

Part #D4CAA2R20001

The manufacturer no longer makes this part, and there's no substitute part

Port RYQ0885-K
#4

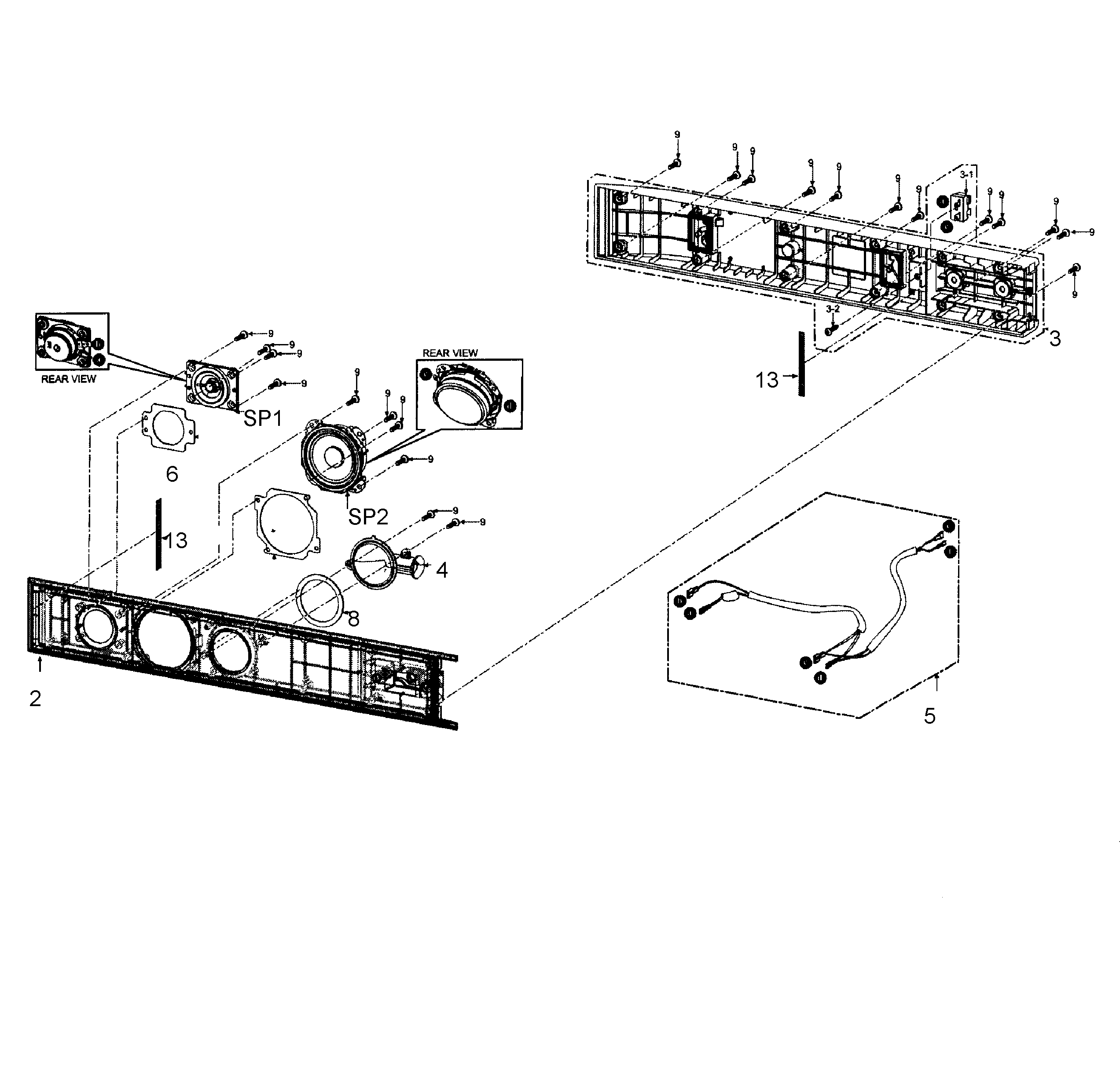

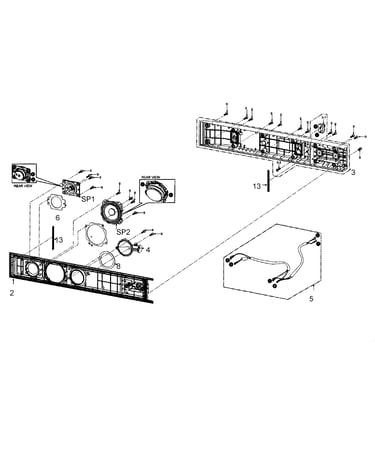

Speaker diagram

Port

Part #RYQ0885-K

The manufacturer no longer makes this part, and there's no substitute part

Panel RYP1694-K
#12

Receiver diagram

Panel

Part #RYP1694-K

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C1AB00003217
#NI

Receiver diagram

Integrated circuit

Part #C1AB00003217

The manufacturer no longer makes this part, and there's no substitute part

Screw XYN5J14FJK
#A10

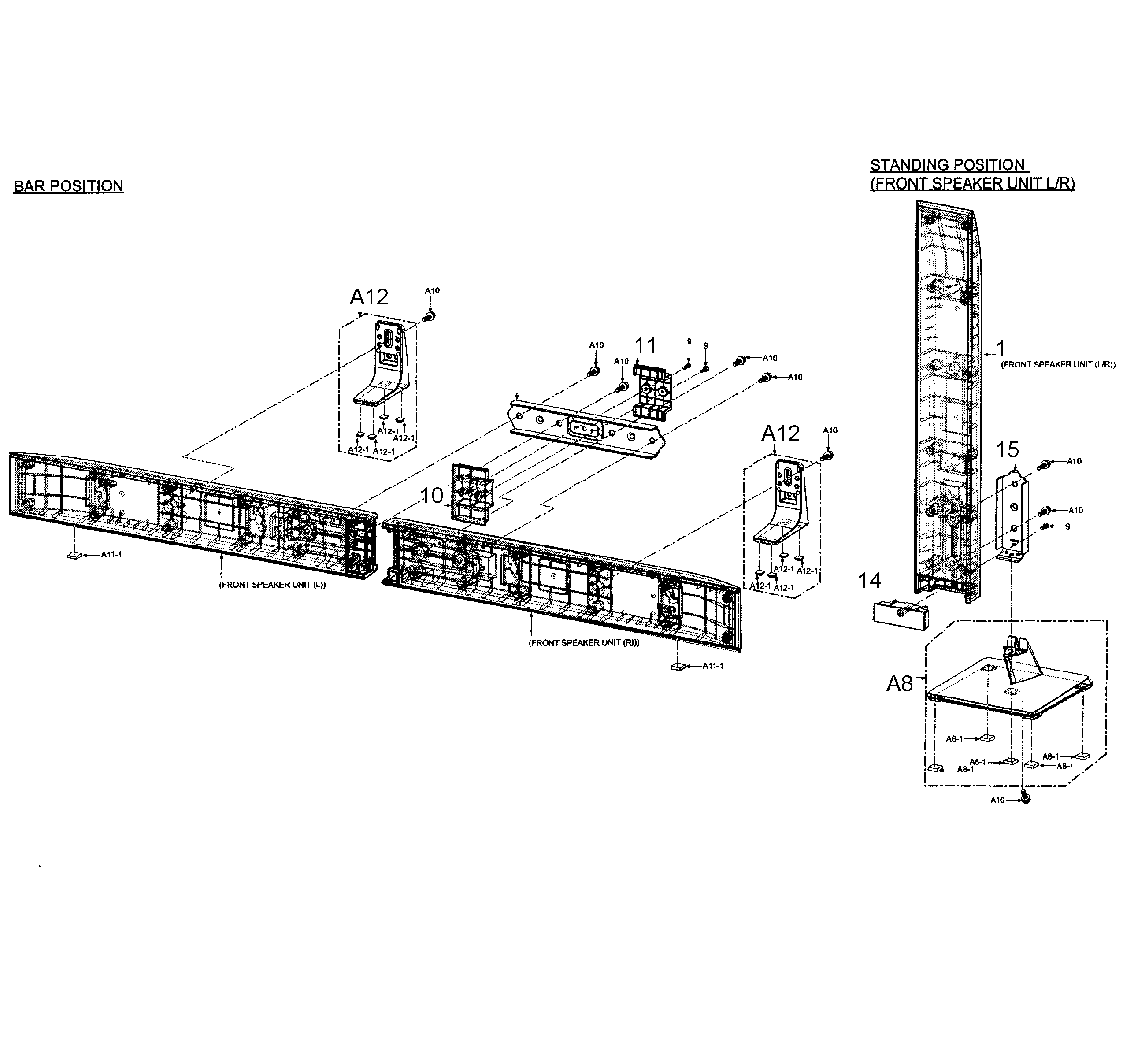

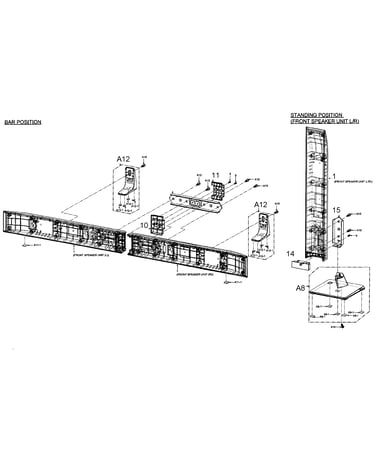

Bar assy diagram

Screw

Part #XYN5J14FJK

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0JBAR000396
#NI

Receiver diagram

Integrated circuit

Part #C0JBAR000396

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0EBY0000867
#NI

Receiver diagram

Integrated circuit

Part #C0EBY0000867

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0JBAB000837
#NI

Receiver diagram

Integrated circuit

Part #C0JBAB000837

The manufacturer no longer makes this part, and there's no substitute part

Screw RHD30102-1
#17

Receiver diagram

Screw

Part #RHD30102-1

The manufacturer no longer makes this part, and there's no substitute part

Bluetooth REP4805A
#P9

Receiver diagram

Bluetooth

Part #REP4805A

The manufacturer no longer makes this part, and there's no substitute part
