Amana
Countertop Microwave

Model # RR54D/P7338701M Official Amana microwave

Here are the diagrams and repair parts for Official Amana RR54D-P7338701M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 202 parts  |
Screw M0216515
Screw

Part #M0216515

Replaced by #WP489349

?
Manufacturer substitution
This part replaces M0216515. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Nut M0282005
Nut

Part #M0282005

Replaced by #M0282005

?
Manufacturer substitution
This part replaces M0282005. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Screw M0229916
#32

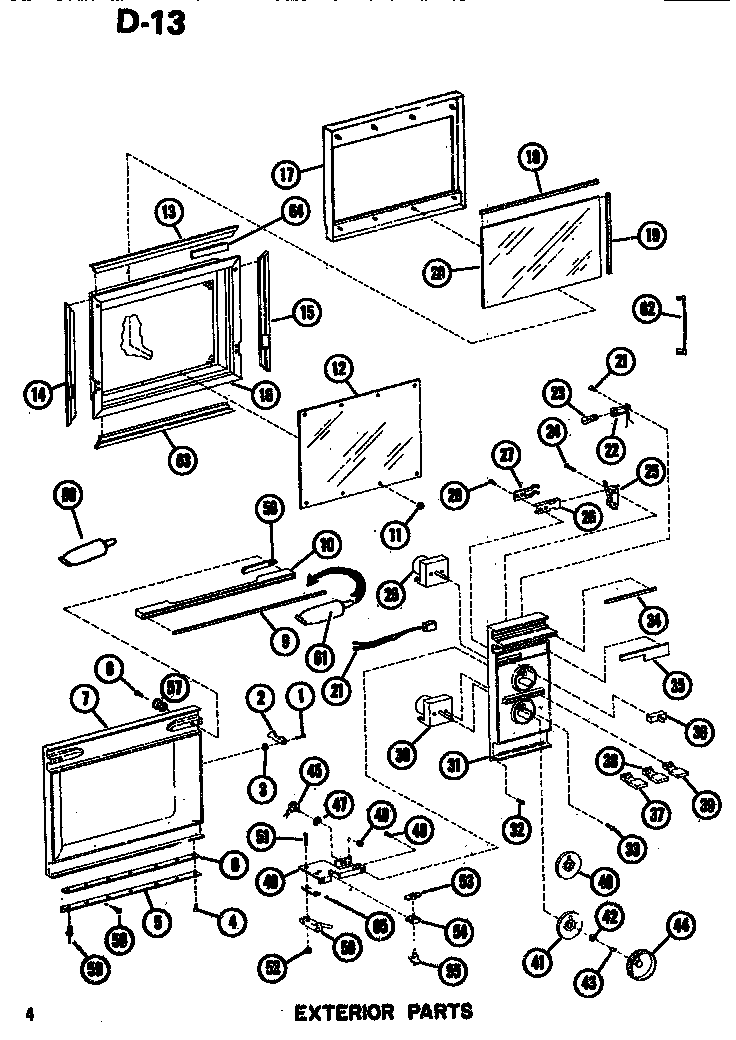

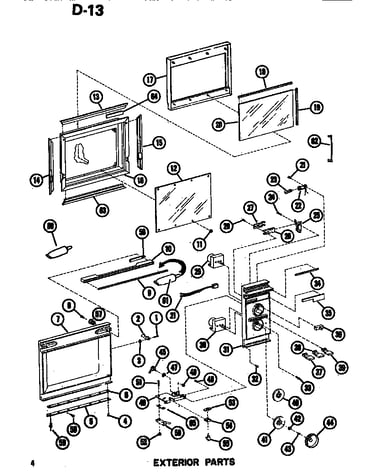

Exterior diagram

Screw

Part #M0229916

Replaced by #M0229916

?
Manufacturer substitution
This part replaces M0229916. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Font, Outer Case B5660203
#30

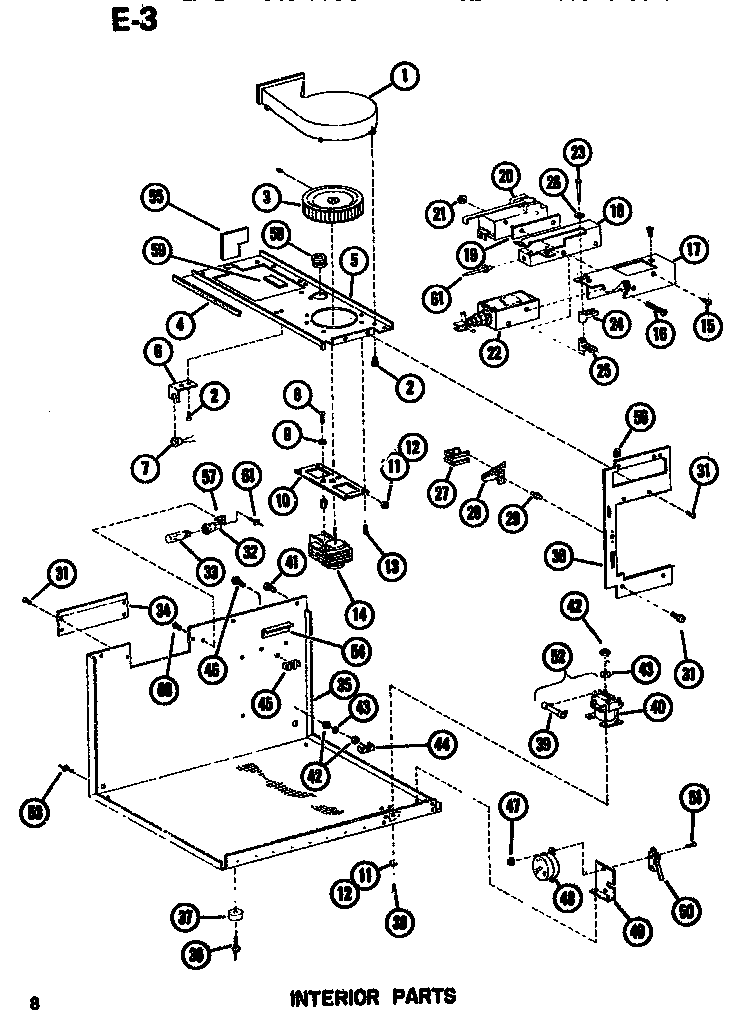

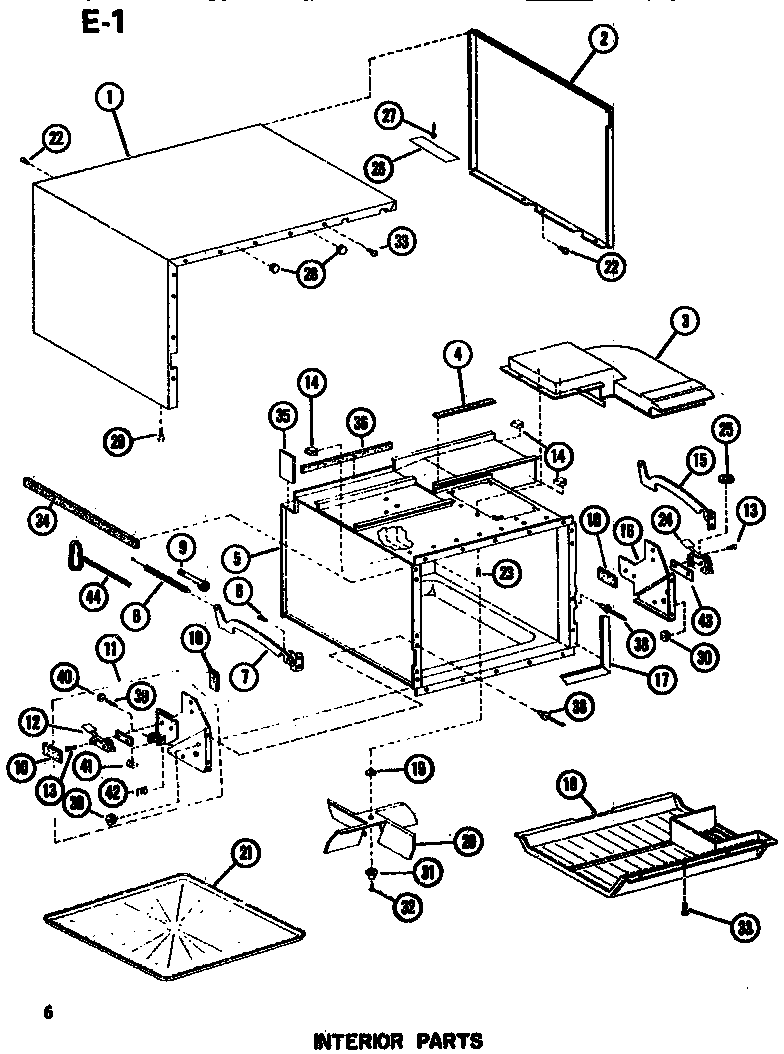

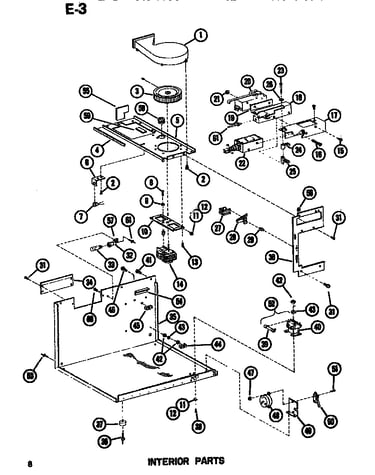

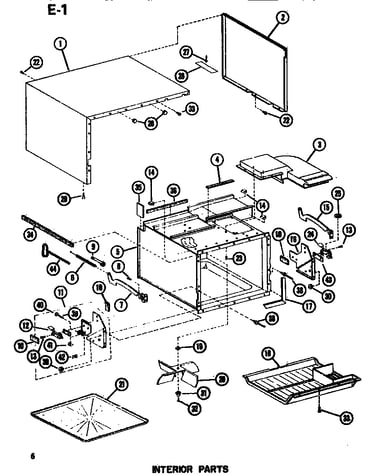

Interior diagram

Font, outer case

Part #B5660203

The manufacturer no longer makes this part, and there's no substitute part

Knob D7028702
#44

Exterior diagram

Knob

Part #D7028702

The manufacturer no longer makes this part, and there's no substitute part

Air Blocking, Foam, 10" X 1" X 3/4" B5695302
#36

Interior diagram

Air blocking, foam, 10" x 1" x 3/4"

Part #B5695302

The manufacturer no longer makes this part, and there's no substitute part

Shim A3127102
#6B

Exterior diagram

Shim

Part #A3127102

The manufacturer no longer makes this part, and there's no substitute part

Latch Spring B5769001
#18

Interior diagram

Latch spring

Part #B5769001

The manufacturer no longer makes this part, and there's no substitute part

Hinge B5603203
#5

Exterior diagram

Hinge

Part #B5603203

The manufacturer no longer makes this part, and there's no substitute part

Diode B5767802
#32

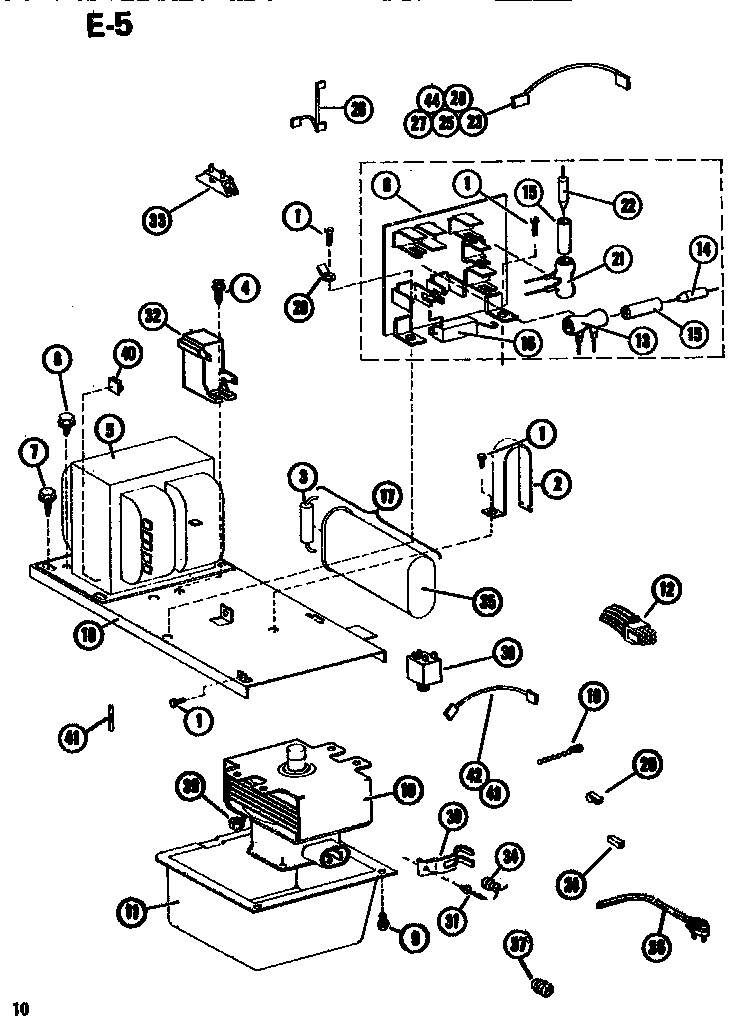

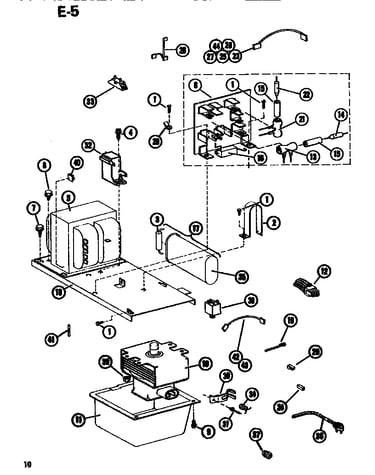

Electrical diagram

Diode

Part #B5767802

The manufacturer no longer makes this part, and there's no substitute part
