Model # DW328K TYPE 2 Official DeWalt band saw

Here are the diagrams and repair parts for Official DeWalt DW328K-TYPE-2 band saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Dewalt Ac Cord 285102-00
#5

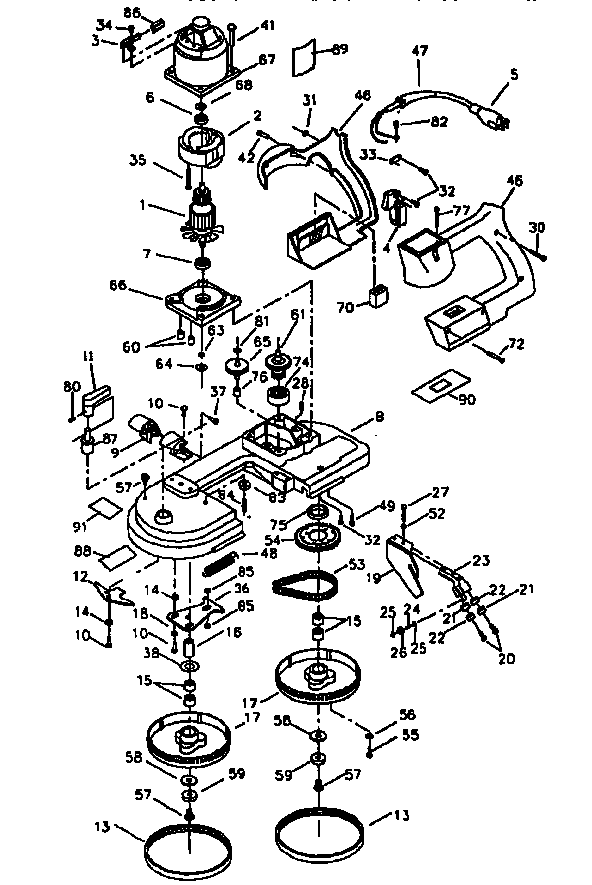

Unit parts diagram

Dewalt ac cord

Part #285102-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 285167-00
Screw

Part #285167-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 285136-00
#38

Unit parts diagram

Washer

Part #285136-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 285118-00
#20

Unit parts diagram

Screw

Part #285118-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 285158-00
#68

Unit parts diagram

Washer

Part #285158-00

The manufacturer no longer makes this part, and there's no substitute part

Chain 285144-00
#53

Unit parts diagram

Chain

Part #285144-00

The manufacturer no longer makes this part, and there's no substitute part

Sprocket 285145-00
#54

Unit parts diagram

Sprocket

Part #285145-00

The manufacturer no longer makes this part, and there's no substitute part

Seal 285162-00
#75

Unit parts diagram

Seal

Part #285162-00

The manufacturer no longer makes this part, and there's no substitute part

Bearing 285125-00
#26

Unit parts diagram

Bearing

Part #285125-00

The manufacturer no longer makes this part, and there's no substitute part

Control 285159-00
#70

Unit parts diagram

Control

Part #285159-00

The manufacturer no longer makes this part, and there's no substitute part
