Sharp
Countertop Microwave

Model # R-312AW Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-312AW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

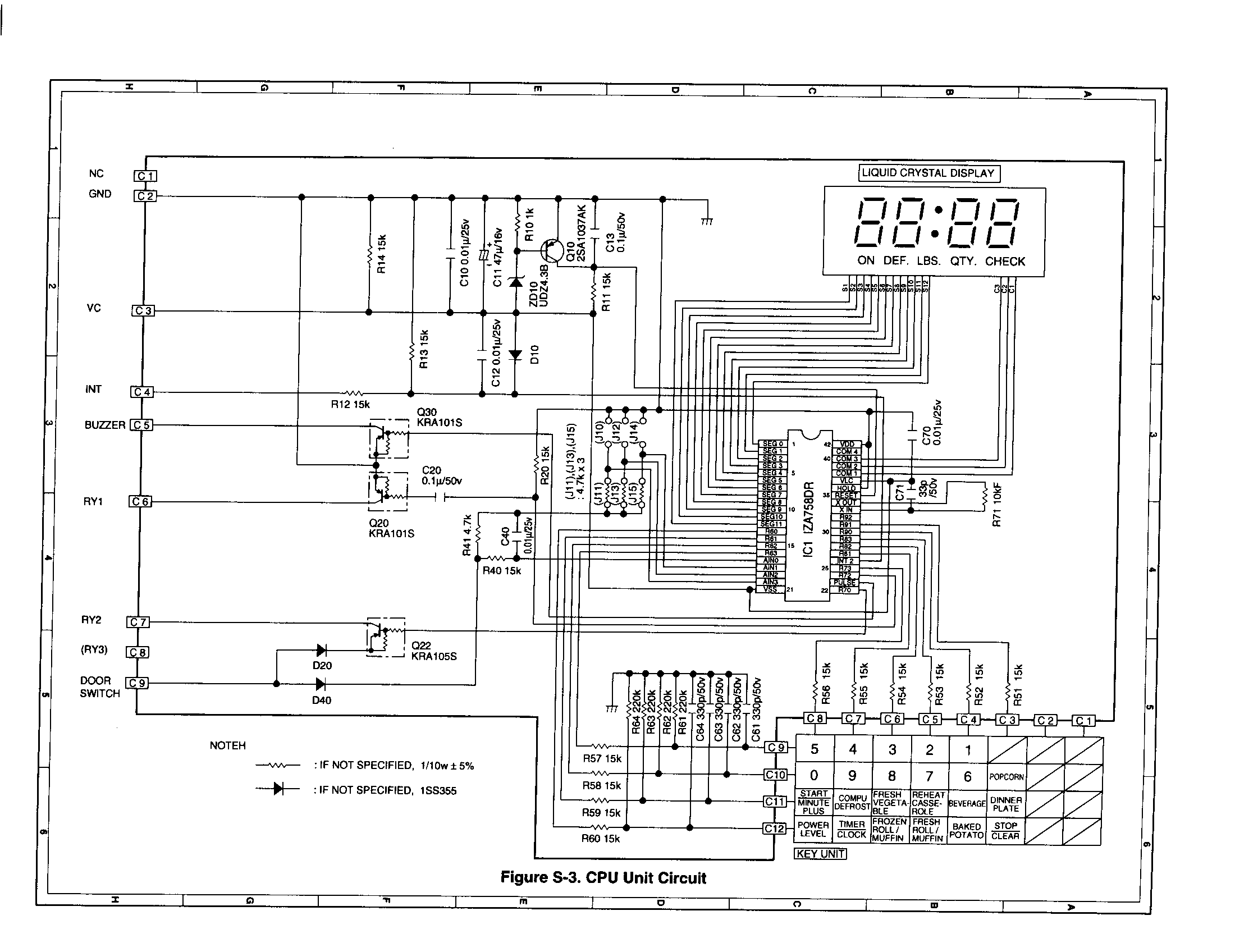

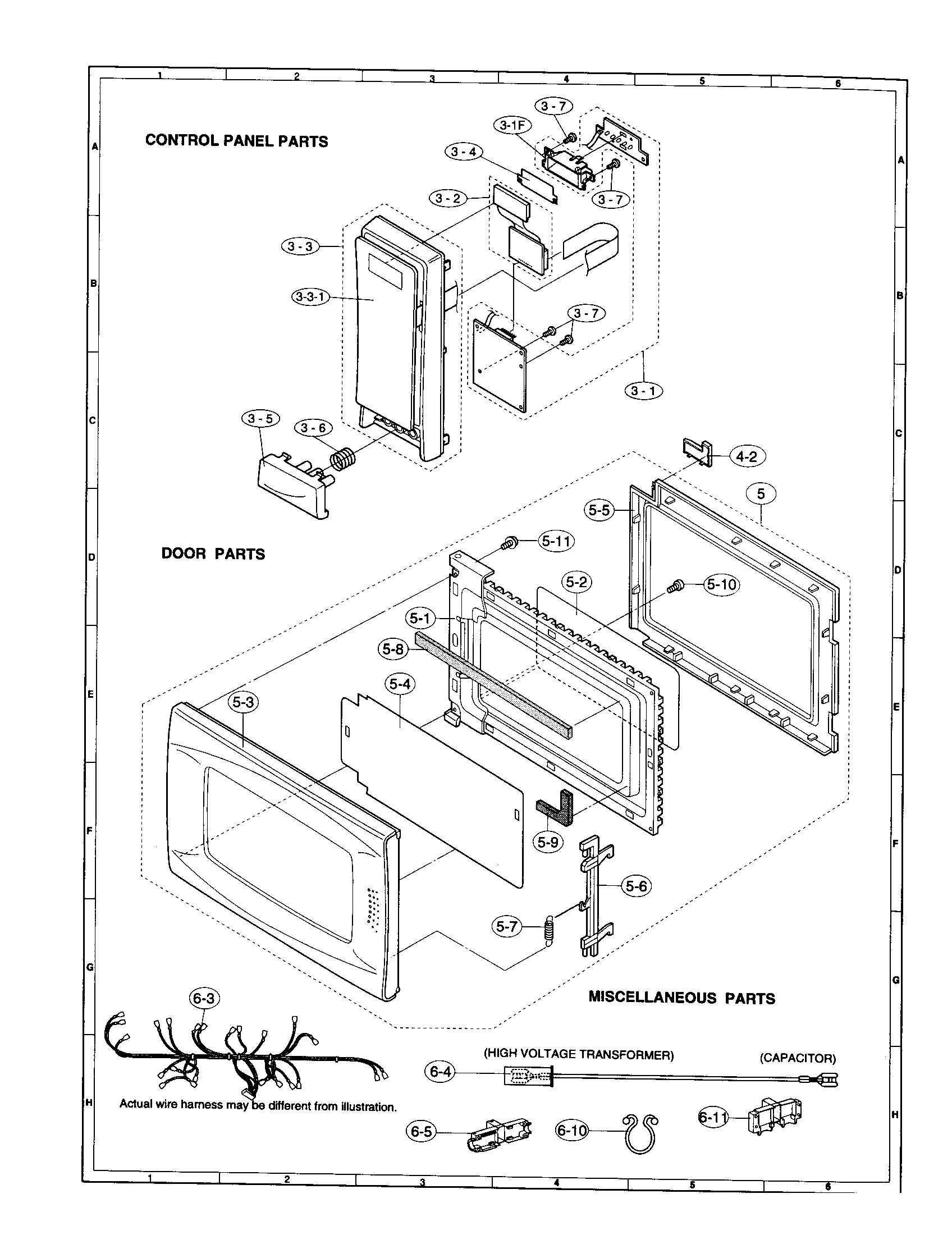

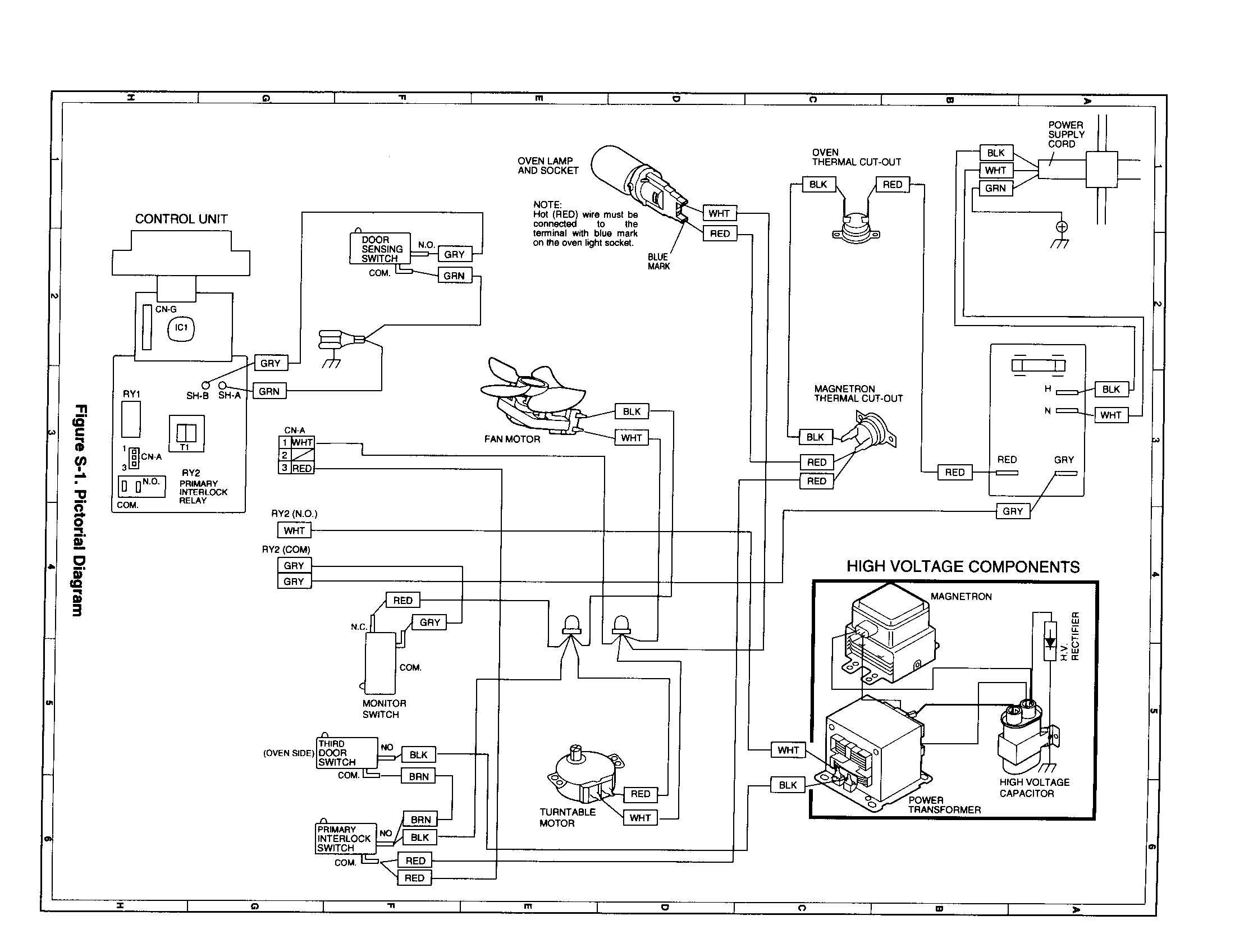

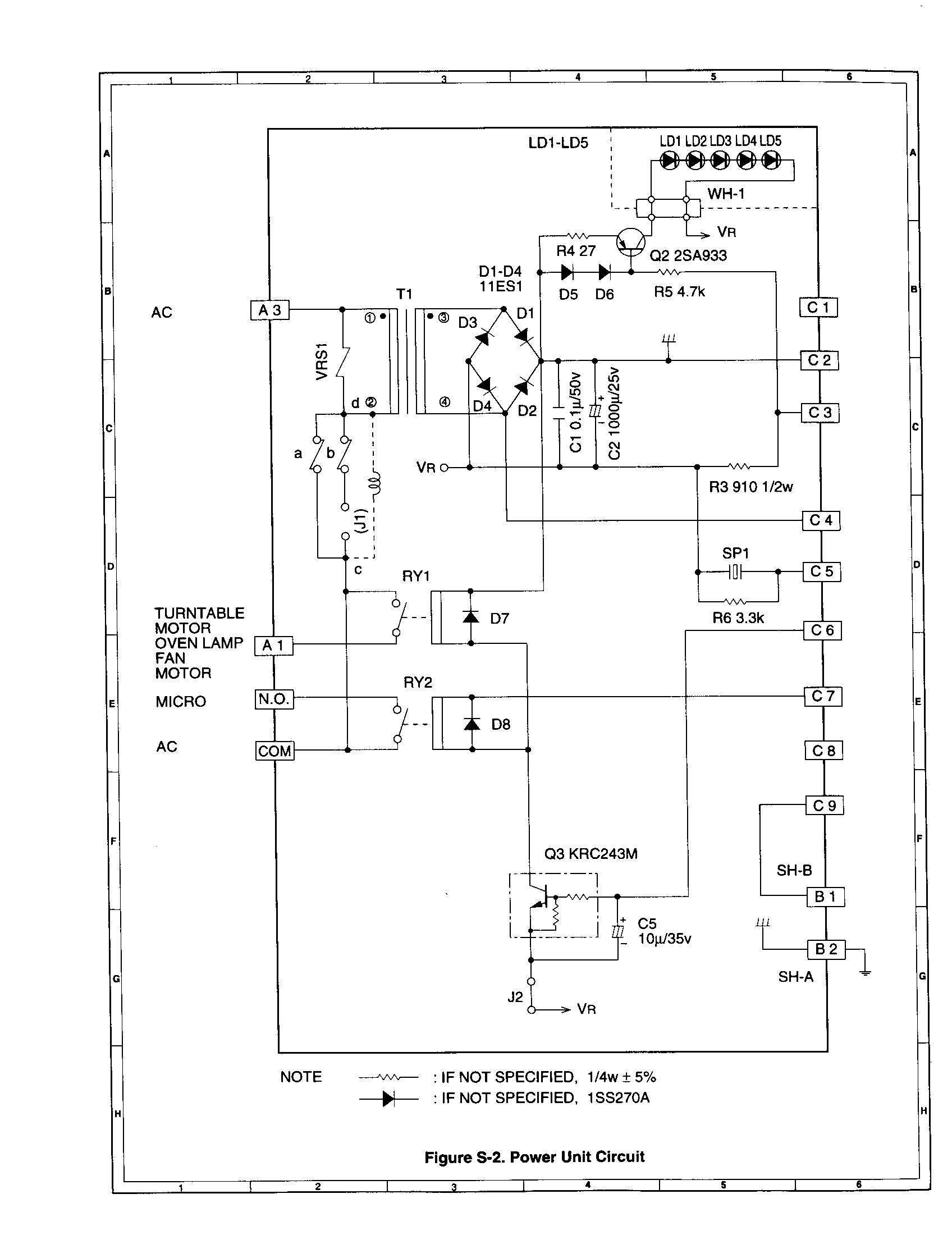

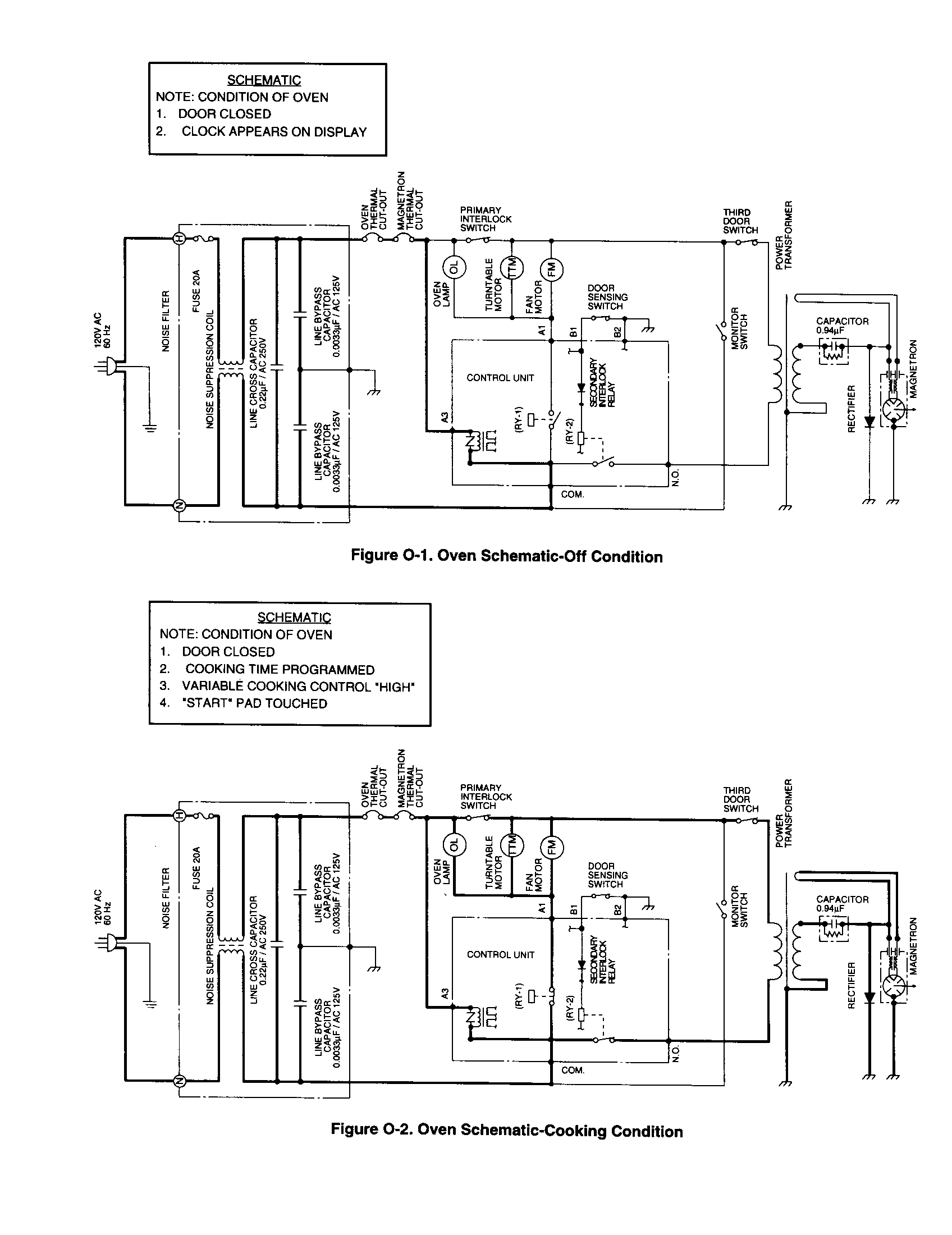

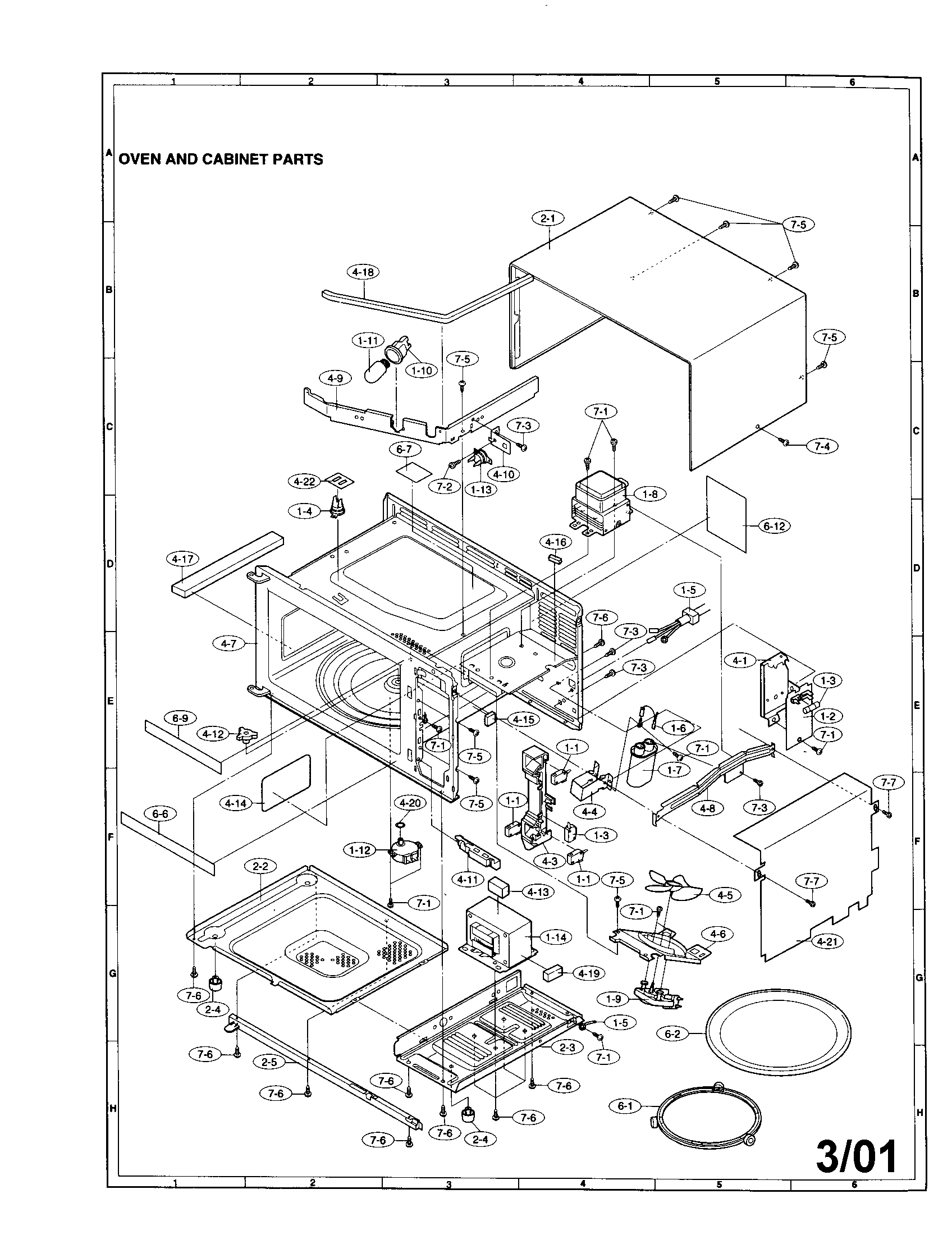

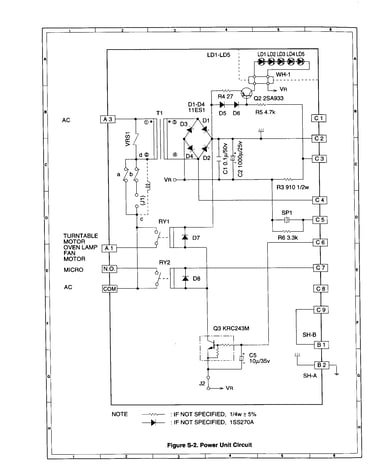

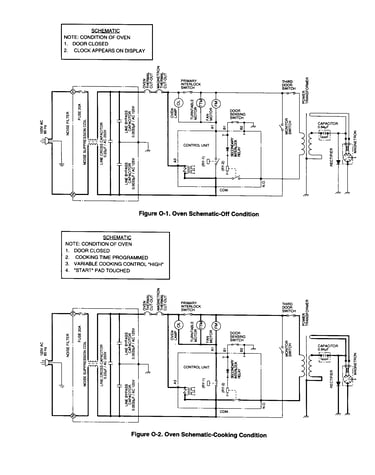

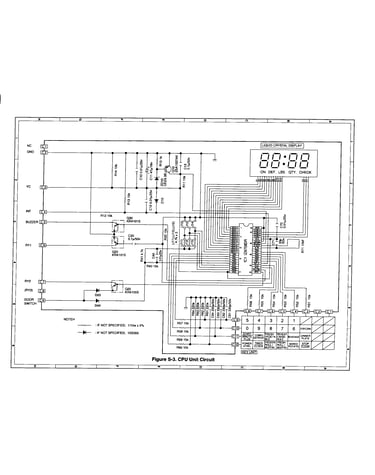

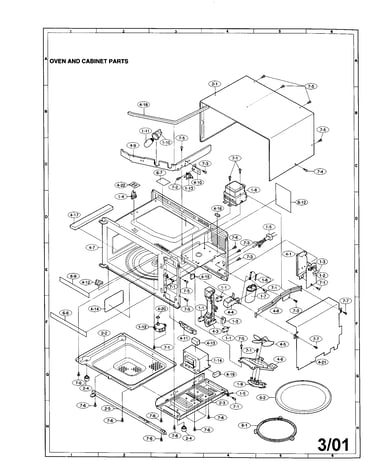

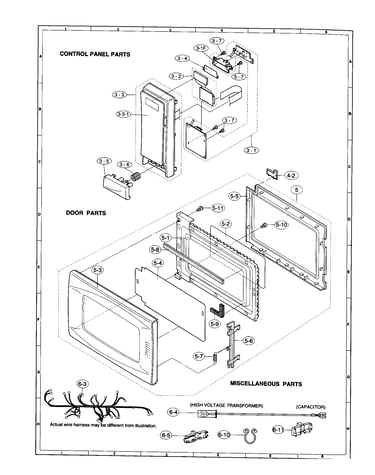

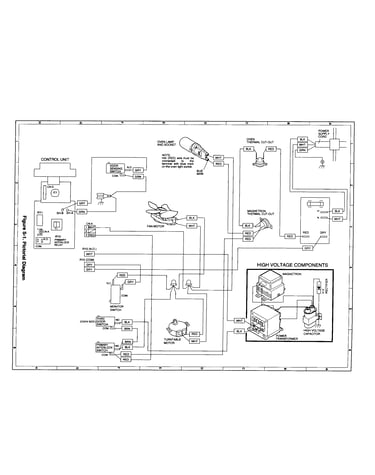

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Magnetron RV-MZA222WRE0

#1-08A

All parts diagram

Magnetron

Part #RV-MZA222WRE0

The manufacturer no longer makes this part, and there's no substitute part

Magnetron RV-MZA197WRE0

#1-08

All parts diagram

Magnetron

Part #RV-MZA197WRE0

The manufacturer no longer makes this part, and there's no substitute part

Diode FH-DZA075WRK0

#1-06

All parts diagram

Diode

Part #FH-DZA075WRK0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Support FROLPA079WRK0

#6-01

All parts diagram

Microwave turntable support

Part #FROLPA079WRK0

The manufacturer no longer makes this part, and there's no substitute part

El 1000mfd VCEAB31EW108M

#NI

All parts diagram

El 1000mfd

Part #VCEAB31EW108M

The manufacturer no longer makes this part, and there's no substitute part

Transistor VS2SA933S//-3

#NI

All parts diagram

Transistor

Part #VS2SA933S//-3

The manufacturer no longer makes this part, and there's no substitute part

Foot GLEGPA023WRE0

#2-04

All parts diagram

Foot

Part #GLEGPA023WRE0

The manufacturer no longer makes this part, and there's no substitute part

Power Cord FACCDA074WRE0

#1-05

All parts diagram

Power cord

Part #FACCDA074WRE0

The manufacturer no longer makes this part, and there's no substitute part

Motor RMOTDA161WRE0

#1-12

All parts diagram

Motor

Part #RMOTDA161WRE0

The manufacturer no longer makes this part, and there's no substitute part

Resistor VRD-B12EF472J

#NI

All parts diagram

Resistor

Part #VRD-B12EF472J

The manufacturer no longer makes this part, and there's no substitute part
