Model # F5909900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover F5909900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Vacuum Screw And Nut 40201149
#48

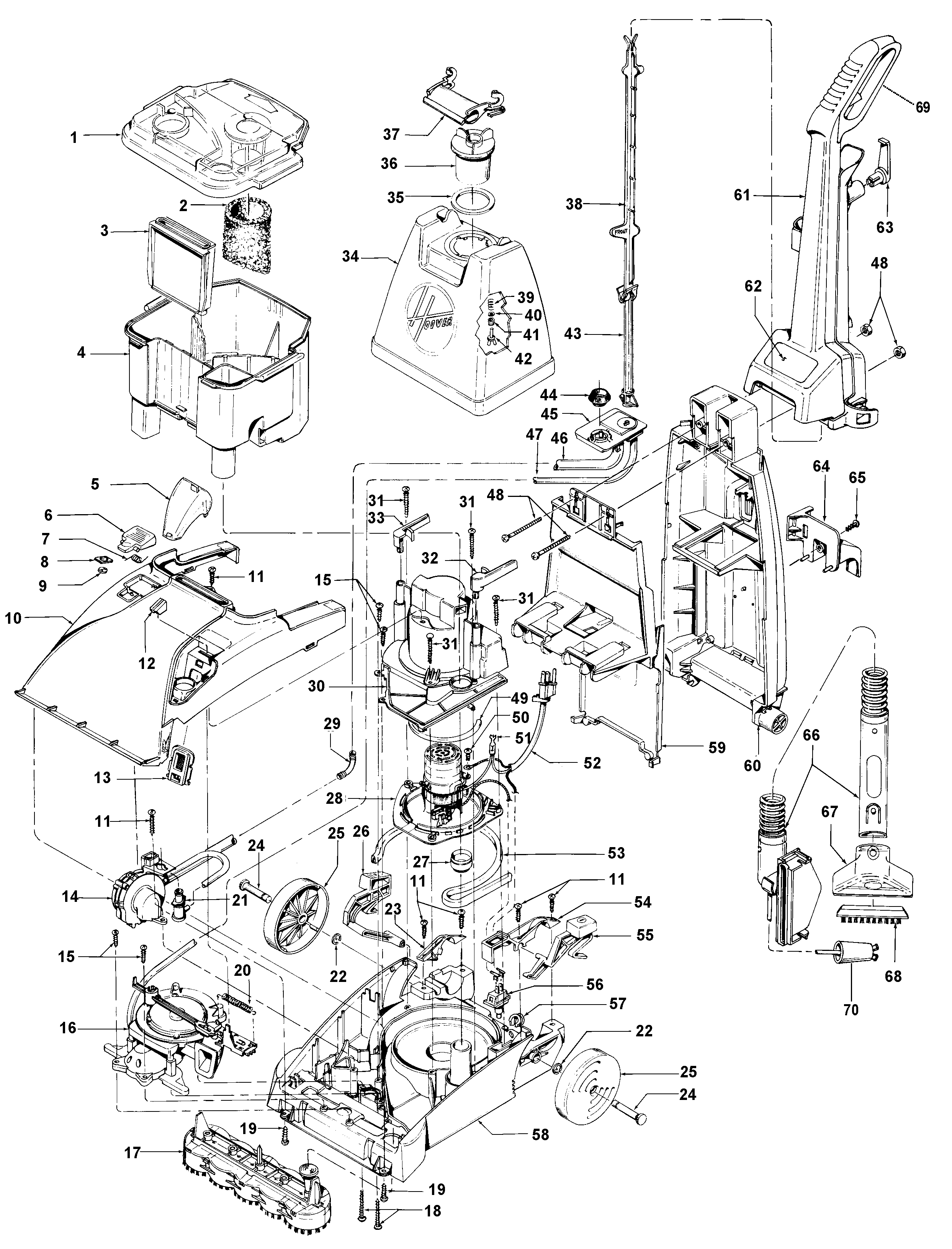

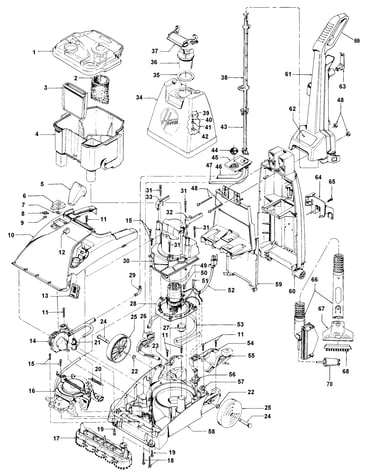

Complete assembly diagram

Vacuum screw and nut

Part #40201149

The manufacturer no longer makes this part, and there's no substitute part

Regina Lens 39383106
#5

Complete assembly diagram

Regina lens

Part #39383106

The manufacturer no longer makes this part, and there's no substitute part

Regina Motor Seal 38781048
#53

Complete assembly diagram

Regina motor seal

Part #38781048

The manufacturer no longer makes this part, and there's no substitute part

Cord Wrap 90001273
#63

Complete assembly diagram

Cord wrap

Part #90001273

The manufacturer no longer makes this part, and there's no substitute part

Regina Carpet Cleaner Solution Valve Spring 38312014
#39

Complete assembly diagram

Regina carpet cleaner solution valve spring

Part #38312014

The manufacturer no longer makes this part, and there's no substitute part

Regina Carpet Cleaner Float Retainer 38719027
#72

Complete assembly diagram

Regina carpet cleaner float retainer

Part #38719027

The manufacturer no longer makes this part, and there's no substitute part

Spring 38351017
#7

Complete assembly diagram

Spring

Part #38351017

The manufacturer no longer makes this part, and there's no substitute part

Seal 38783021
#8

Complete assembly diagram

Seal

Part #38783021

The manufacturer no longer makes this part, and there's no substitute part

Regina Actuat Lever 38434025
#55

Complete assembly diagram

Regina actuat lever

Part #38434025

The manufacturer no longer makes this part, and there's no substitute part

Regina Carpet Cleaner Solution Tank Seal 38784060
#44

Complete assembly diagram

Regina carpet cleaner solution tank seal

Part #38784060

The manufacturer no longer makes this part, and there's no substitute part
