Tappan
Countertop Microwave

Model # 56-9802-10-03 Official Tappan 1.0 cubic foot microwave

Here are the diagrams and repair parts for Official Tappan 56-9802-10-03 1.0 cubic foot microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |

Paint 5303203124

#NI

All parts diagram

Paint

Part #5303203124

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 5303203124. Substitute parts can look different from the original.
This item is not returnable
$15.09
12% OFF Phone Price : $17.09
In Stock
Plug 5303013626
#2

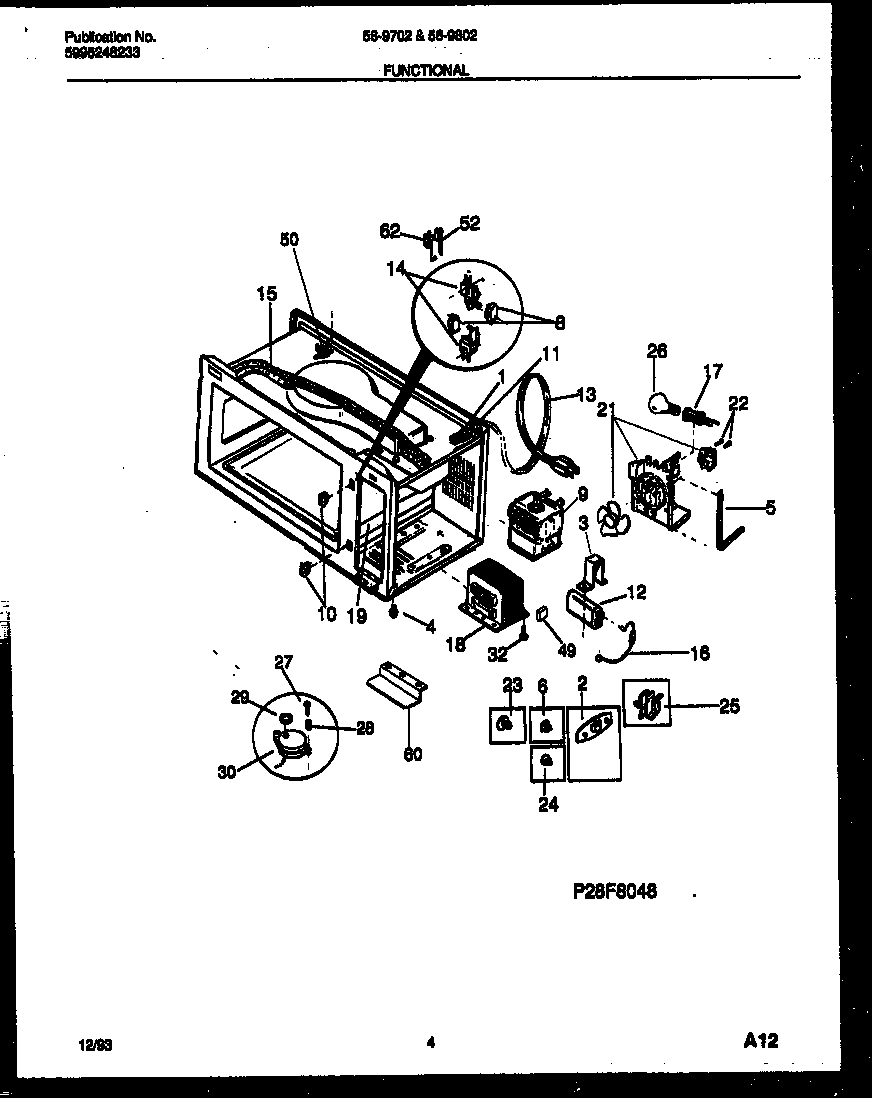

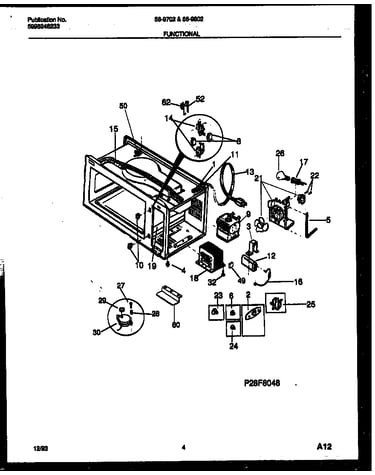

Functional parts diagram

Plug

Part #5303013626

This item is not returnable
In Stock
Microwave Turntable Screw 317009501
#27

Functional parts diagram

Microwave turntable screw

Part #317009501

This item is not returnable
In Stock
Door Handle 5303270402
#5

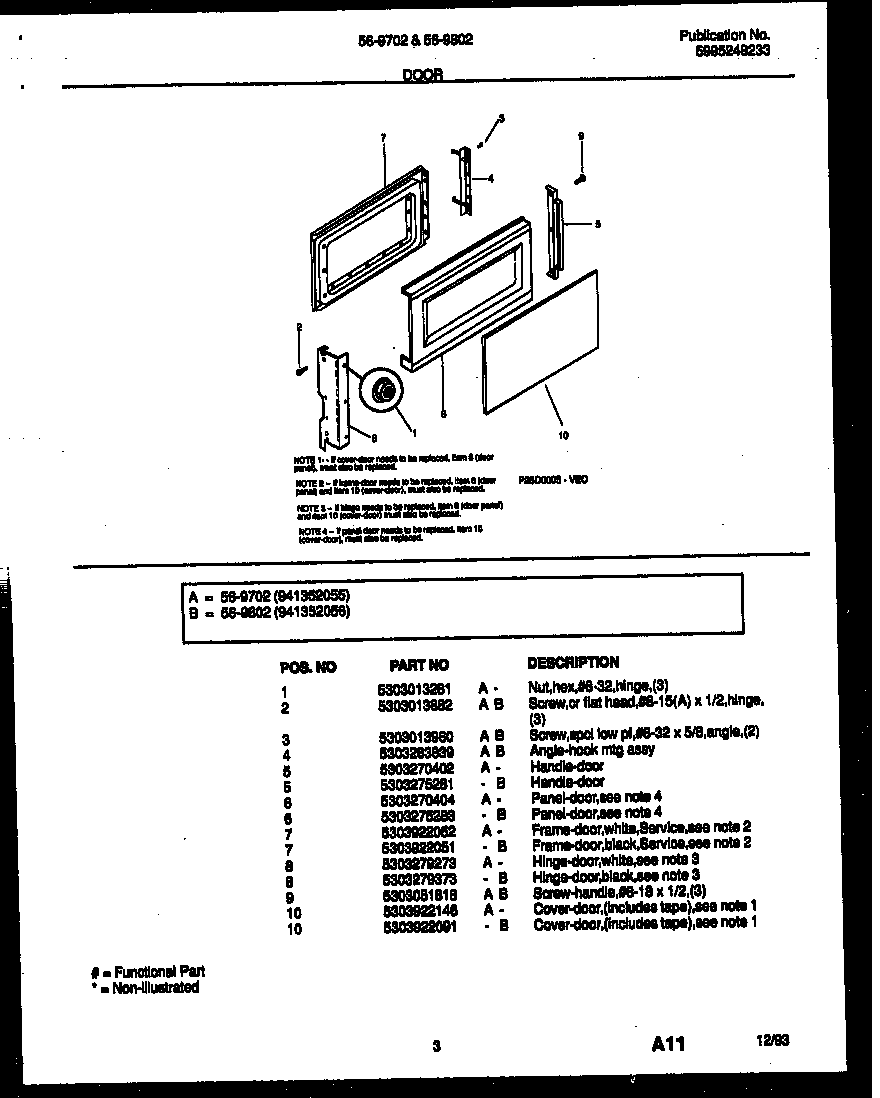

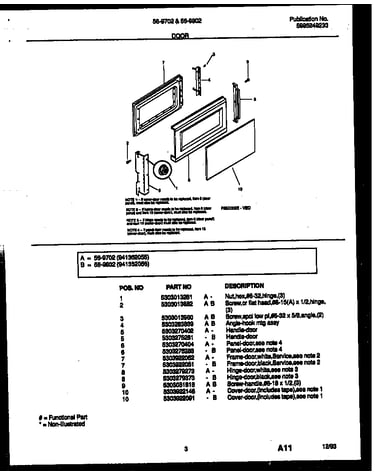

Door parts diagram

Door handle

Part #5303270402

In Stock
Screw 5303017863
#60A

Functional parts diagram

Screw

Part #5303017863

In Stock
Wrapper 5303284343
#20

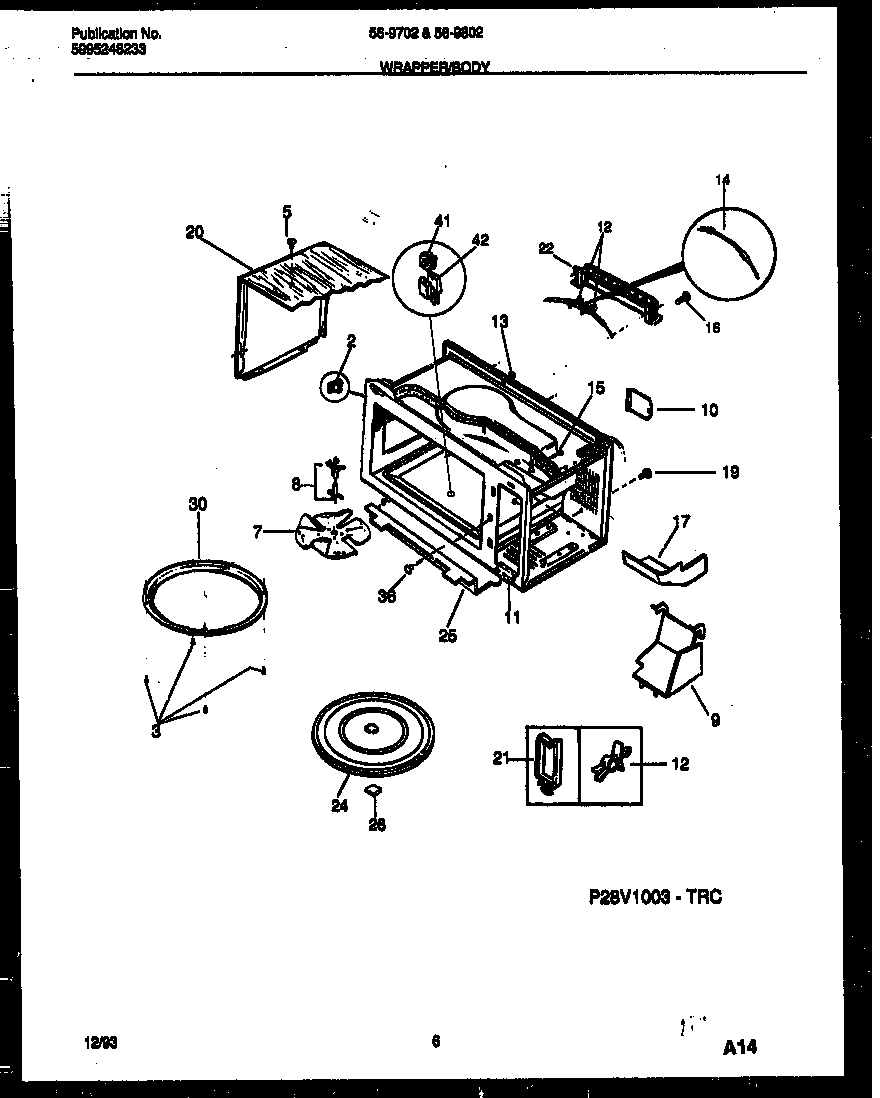

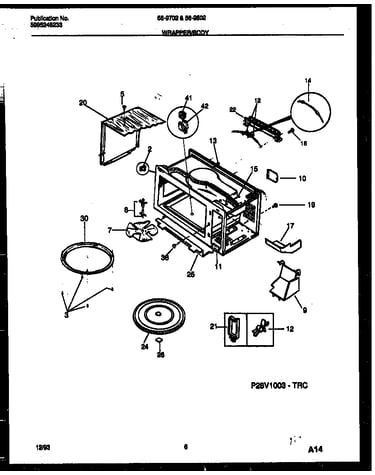

Wrapper and body parts diagram

Wrapper

Part #5303284343

In Stock
Switch 5303278810
#50

Functional parts diagram

Switch

Part #5303278810

In Stock
Circuit Board 5303291346
#1

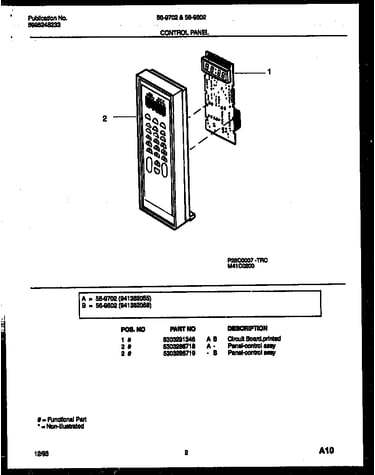

Control panel diagram

Circuit board

Part #5303291346

In Stock
Door Cover 5303922091
#10

Door parts diagram

Door cover

Part #5303922091

In Stock
Button Plug 5303282074
#36

Wrapper and body parts diagram

Button plug

Part #5303282074

This item is not returnable
In Stock
