Model # 113179045 Official Craftsman 12-gallon commercial wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 113179045 12-gallon commercial wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |

Hex Head Screw 827435
#22

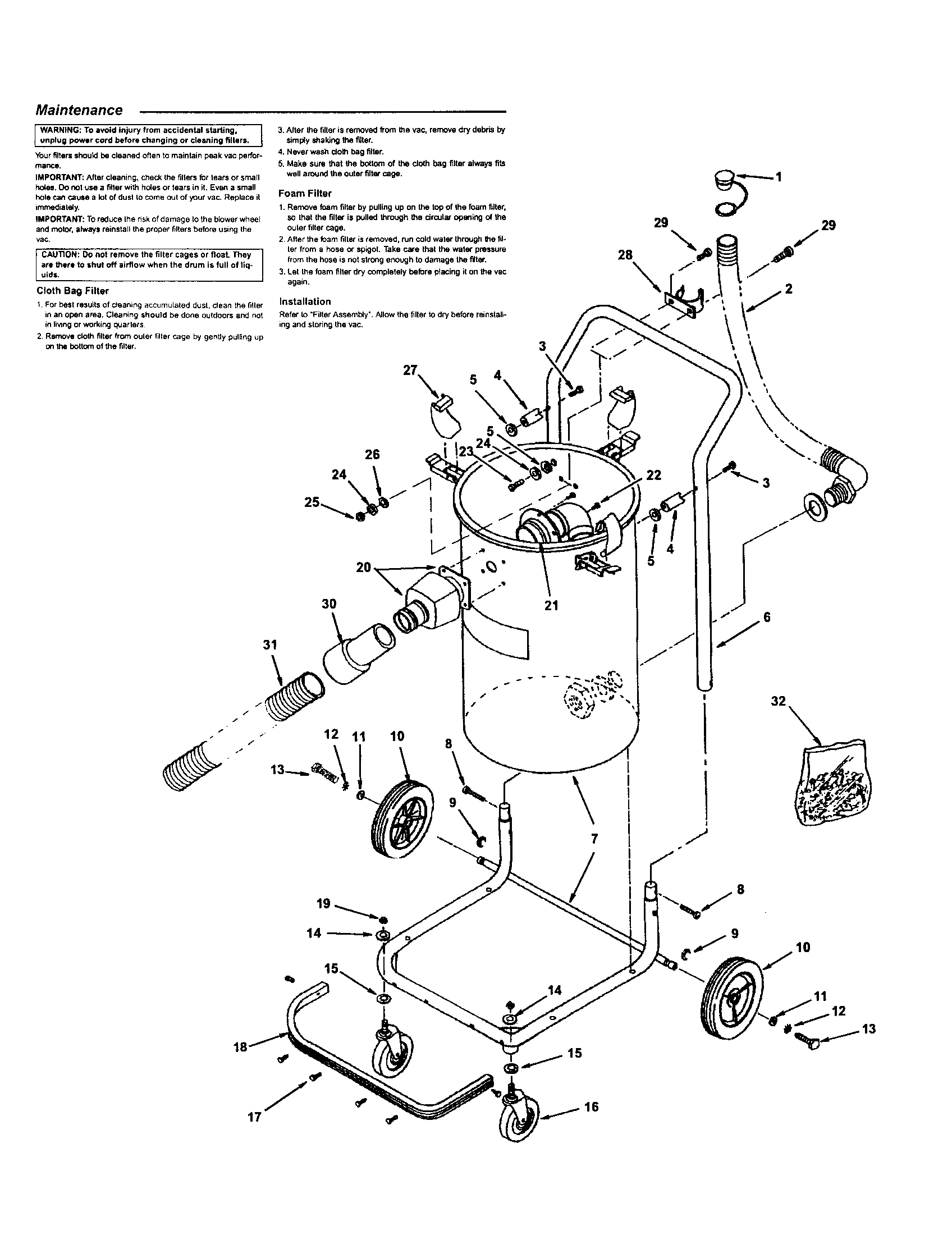

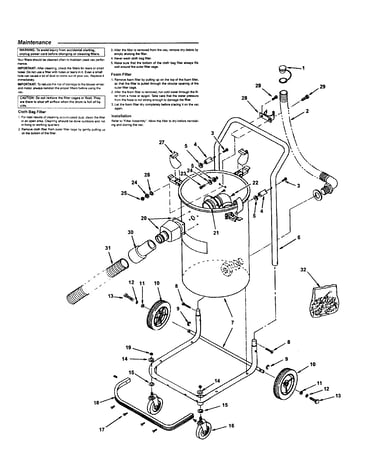

Drum/chassis/handle/wheels diagram

Hex head screw

Part #827435

The manufacturer no longer makes this part, and there's no substitute part

Screw 827423
#17

Drum/chassis/handle/wheels diagram

Screw

Part #827423

The manufacturer no longer makes this part, and there's no substitute part

Screw Ty Ab 826896
#1

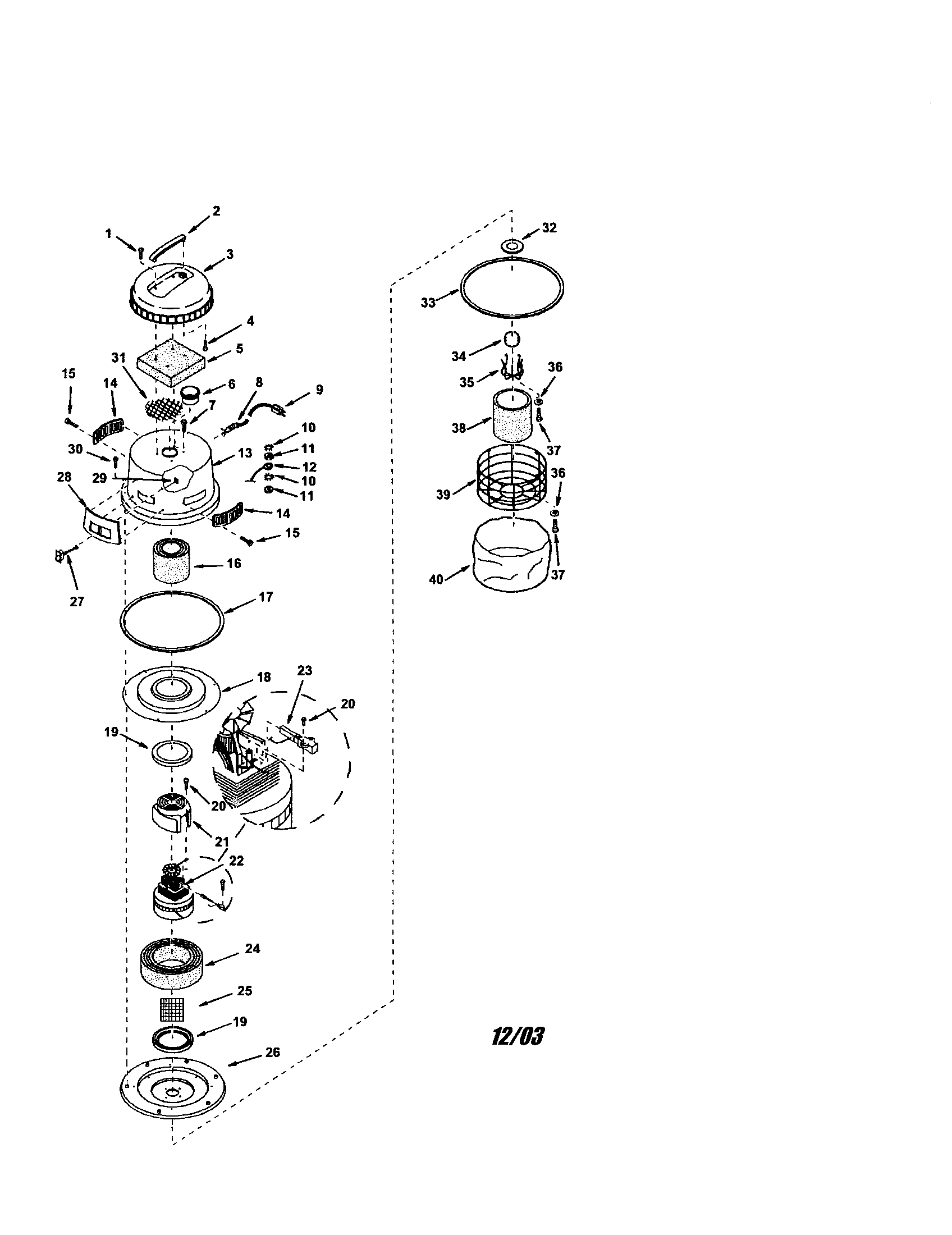

Motor/motor cover/fan cover diagram

Screw ty ab

Part #826896

The manufacturer no longer makes this part, and there's no substitute part

Float Gskt 827420
#32

Motor/motor cover/fan cover diagram

Float gskt

Part #827420

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 826881
#28

Drum/chassis/handle/wheels diagram

Hose clamp

Part #826881

The manufacturer no longer makes this part, and there's no substitute part

Blower Gd 827425
#25

Motor/motor cover/fan cover diagram

Blower gd

Part #827425

The manufacturer no longer makes this part, and there's no substitute part

Inlet Grille 827574
#31

Motor/motor cover/fan cover diagram

Inlet grille

Part #827574

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Foam Filter Sleeve 827426
#38

Motor/motor cover/fan cover diagram

Shop vacuum foam filter sleeve

Part #827426

The manufacturer no longer makes this part, and there's no substitute part

Lead Asm Gd 826894
#12

Motor/motor cover/fan cover diagram

Lead asm gd

Part #826894

The manufacturer no longer makes this part, and there's no substitute part

Frt Caster 827437
#16

Drum/chassis/handle/wheels diagram

Frt caster

Part #827437

The manufacturer no longer makes this part, and there's no substitute part
